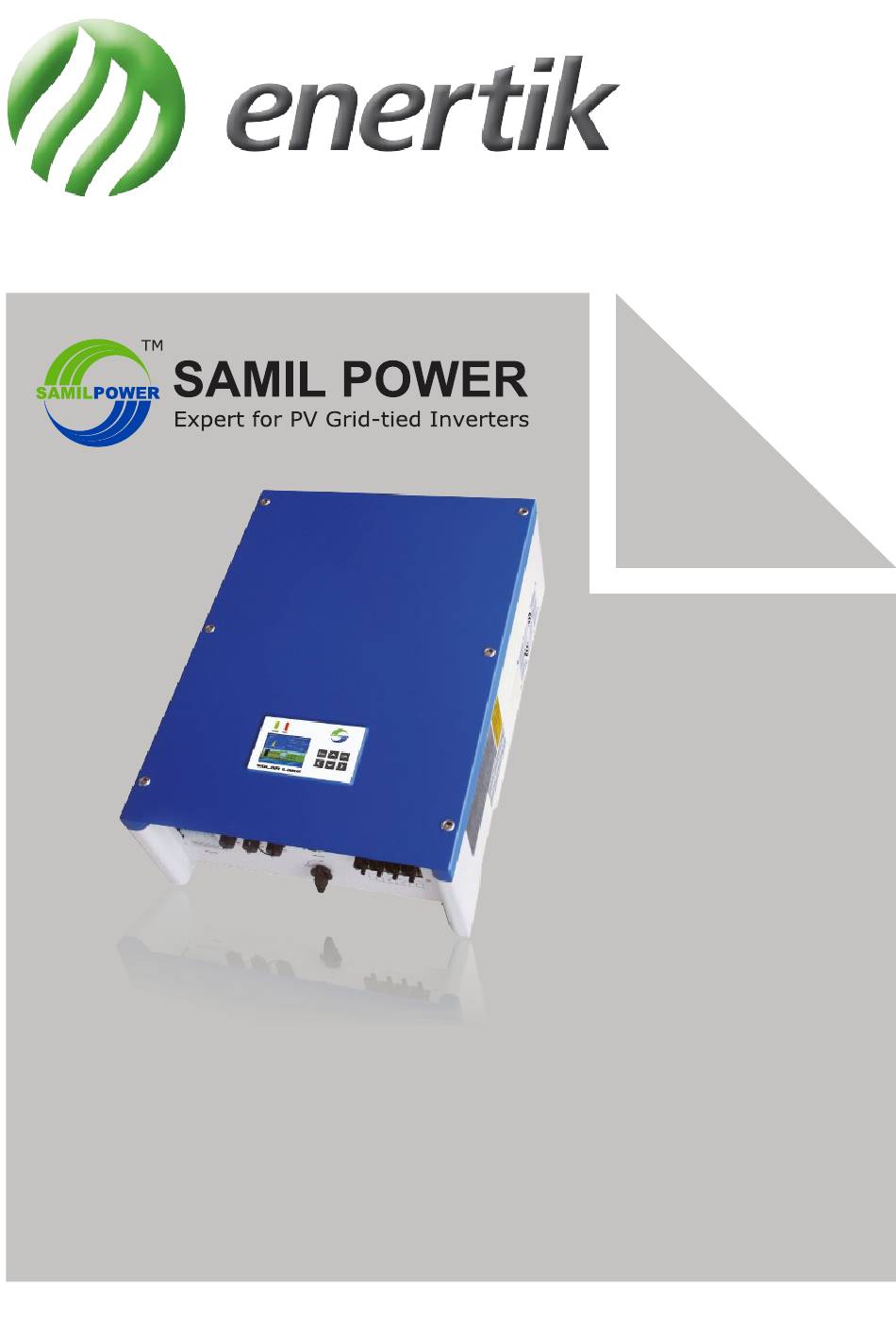

- Page 1 Distribuidor exclusivo en Argentina SolarLake PV Grid-tied Inverter User Manual...
-
Page 2: Table Of Contents
Contents 1 NOTES ON THIS MANUAL....................1.1 SCOPE OF VALIDITY..........................05 1.2 T ARGET GROUP............................05 1.3 SYMBOLS USED............................05 2 SAFETY..........................2.1 APPROPRIATE USAGE..........................07 2.2 IMPORTANT SAFETY INSTRUCTIONS.....................07 2.3 EXPLANATION OF SYMBOLS........................08 3 INTRODUCTION......................... 3.1 BASIC FEATURES............................10 3.2 ELECTRICAL BLOCK DIAGRAM.........................10 3.3 DIMENSION.................... - Page 3 7. COMMUNICATION AND MONITORING ....................34 7.1 COMMUNICATION INTERFACE........................34 7.2 COMMUNICATION............................34 8 TROUBLESHOOTING ..........................35 8.1 TROUBLESHOOTING...........................35 8.2 ROUTINE MAINTENANCE...........................38 9 DECOMMISSIONING ..........................39 9.1 DISMANTLING THE INVERTER........................39 9.2 PACKAGING..............................39 9.3 STORAGE..............................39 9.4 DISPOSAL..............................39 10 CONTACT SAMIL POWER ........................40...
-
Page 4: Notes On This Manual
Notes on This Manual 1 Notes on This Manual This manual is an integral part of the inverter, Please read the product manual carefully before installation, operation or maintenance. Keep this product manual for future reference. Please note that all pictures are edited by Samil Power. 1.1 Scope of Validity This product manual describes the assembly, installation, commissioning, maintenance and failure search of the following Samil Power SolarLake Series inverters. - Page 5 Notes on This Manual Danger！ Danger indicates a hazardous situation which, if not avoided, will result in death or serious injury. Warning！ Warning indicates a hazardous situation which, if not avoided, could result in death or serious injury. Caution！ Caution indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
-
Page 6: Safety
Safety 2 Safety 2.1 Appropriate Usage The SolarLake Series is a PV inverter which converts the DC current of a PV generator into AC current and feeds it into the public grid. PV Modules Grid-connected Inverter Grid Figure 2 PV Grid-connected System 2.2 Important Safety Instruction Danger！... -
Page 7: Explanation Of Symbols
Safety Note！ Grounding the PV generator. Comply with the local requirements for grounding the PV modules and the PV generator. Samil Power recommends connecting the generator frame and other electrically conductive surfaces in a manner which ensures continuous conduction and ground these in order to have optimal protection of the system and personnel. - Page 8 Safety Warning！ Authorized service personnel must disconnect both AC and DC power from the SolarLake Series inverter before attempting any maintenance or cleaning or working on any circuits connected to the SolarLake Series inverter. ● Before using the SolarLake Series inverter, read all instructions and cautionary markings on the SolarLake Series inverter, and all appropriate sections of this guide.
-
Page 9: Introduction
Introduction 3 Introduction 3.1 Basic Features Congratulations on user purchase of a SolarLake Series inverter from Samil Power. The SolarLake Series inverter is one of the finest inverter on the market today, incorporating state-of-the-art technology, high reliability, and convenient control features. ●... -
Page 10: Dimension
Introduction ●Terminals of PV inverter RS232 COM1 COM2 RS-232 AC GRID AC Output DC Switch DC Input Figure 4 Terminals of PV inverter for 10 KW~17 KW(DC switch is optional) Note: For safety reasons, the use of a DC switch is recommended. Between the PV modules and the power modules may be mandatory in some countries. -
Page 11: Technical Data
Introduction &Technical Data Note: The AC output terminal is most length part at the bottom of inverter, so take care of the AC output terminals, do not make it stand on the ground or other materials while moving or lifting the inverters, otherwise will make terminal damaged. 4 Technical Data 4.1 Input (DC) SolarLake... -
Page 12: Efficiency, Safety And Protection
Technical Data 4.3 Efficiency, Safety and Protection SolarLake SolarLake SolarLake SolarLake Model 10000TL 12000TL 15000TL 17000TL 98.0% 98.0% 98.0% 98.0% Max. efficiency Euro-efficiency 97.6% 97.6% 97.6% 97.6% MPPT efficiency 99.9% 99.9% 99.9% 99.9% Overvoltage / Undervoltage protection DC isolation impedance monitoring Ground fault protection Grid monitoring... -
Page 13: Installation
Technical Data&Installation IP65 Degree of protection Pollution Degree Transformerless Topology Internal consumption <5 <5 <5 <5 ( night ) [W] 3.5Inch, 3.5Inch, 3.5Inch, 3.5Inch, LCD display TFT-LCD TFT-LCD TFT-LCD TFT-LCD RS485/RS232 / RS485/RS232 / RS485/RS232 / RS485/RS232 / Communication Ethernet; Ethernet;... -
Page 14: Installation Precaution
Installation 5.2 Installation precaution Warning！ Before installation and maintenance, AC and DC side doesn’t carry electricity, but if DC side is just disconnected, capacitance still contains electricity, so please wait for at least 5 minutes to ensure the capacitors completely release the energy and inverter is not electrified. Note！... -
Page 15: Preparation
Installation 5.3 Preparation Below tools are needed before installation. Figure 7 Installation tools Installation Tools: crimping pliers for binding post and RJ45, screw drivers and manual wrench and ø 8 driller, rubber hammer. 5.4 Installation Steps Step1: Drill holes in the wall with ø 8 driller according to the size of bracket. Keep drilling vertical to the wall, and don’t shake when drilling to avoid damage to the wall. -
Page 16: Connections Of The Pv Power System
Installation Step 3 Step 4 Figure 8 Bracket installation Use the bracket to install the inverter onto the narrow vertical panel (or wall). make Step2: upper corner part of inverter hanging onto the bracket, lower part match the standard of the bracket.See step 2. - Page 17 Installation Please use PV cable to connect modules to inverter. From junction box(Must have fuse spec.:1000V, 25A fast action) to inverter, voltage drop is about 1-2%. So we suggest the inverter install near PV module, in order to save cable and reduce DC loss. Note！...
- Page 18 Installation Please use PV cable to connect modules to inverter. From junction box(Must have fuse spec.:1000V, 25A fast action) to inverter, voltage drop is about 1-2%. So we suggest the inverter install near PV module, in order to save cable and reduce DC loss. Note！...
- Page 19 Installation L3 L2 L1 10mm Figure 11 AC output area with terminal block for 5 wires of cable Below is the AC cable specification table when select the cable for installation. SolarLake SolarLake SolarLake SolarLake Model 10000TL 12000TL 15000TL 17000TL Cable (Cu) ≥4mm ≥4mm...
-
Page 20: Run The Inverter
Installation Input Output Figure12 Incorrect Connections between Load and Inverter Impedance of SolarLake inverter AC connecting dot should be less than 2 Ω. To ensure reliable anti-islanding function , PV cable should be used to ensure wire loss ＜1% than normal power. Moreover, length between AC side and grid connecting dot should be less than 150m. -
Page 21: Operation Method
Installation&Operation Start inverter a. Turn on DC switch and AC grid. b. Inverter will start up automatically when PV panels generate enough energy. when operating normally, the LED and LCD will indicate normal information which means inverter starting up successfully. If it is the first time start the inverter Please refer to chapter 6.1 .1 LCD commission -ing setup operation steps, if it is not the first time start, find the inverter is malfunction, please refer to chapter 8.1 troubleshooting table. - Page 22 Operation Figure 15 HMI Interface There are two LEDS on the panel. Different LED status means inverter different working statutes. Information List GREEN LED RED LED WaitState FLASH ICheckState FLASH NormalState FaultState PermanentState Table 5 LED status WaitState: Inverter is waiting to CheckState until the end of reconnection time. In this state, the PV voltage is more than 250V and grid voltage value is between the max and min limit;...
-
Page 23: Lcd Commissioning Setup Operation Steps
Operation 6.1.1 LCD commissioning setup operation steps Step1: Start-up screen display When user first time start the inverter, the LCD will display start-up picture. See figure 16. Press OK button to start commissioning procedure. Samil Power Co.,Ltd. < OK > to start Commissioning Figure 16 Start-up screen (step 1) Step2: Language setting Following select display language via UP and DOWN buttons. - Page 24 Operation Commissioning Country Germany GreeceContin. Italy Netherland Australia Belgium Spanish France Czechia Bulgarian GreeceIslands Germany Current : Figure 18 Country and safety setting (Step 3) Step 4: String input connection setting. Next screen is the string input connection setting. User can select the input connection type according to the requirements via UP and DOWN buttons.
- Page 25 Operation Commissioning Time YYYY 2011 - 04 - 03 10 : 04 : 47 Figure 20 Date and time setting (Step 5) Step 6: Check and confirm commissioning setting information. If the setting information are correct, please press OK button to confirm and wait for about 30 seconds to store the setting parameter.
-
Page 26: Main Menu Introduction
Operation Standard 11-04-03 10:12:17 Today 14.6 hours minutes Total 52.7 hours Normal 14.60 kw 15.21 kw 49.99 Hz <ESC> to Main Menu Figure 22 Standard screen (Step 7) 6.1.2 Main menu introduction Enter main screen from standard screen via Pressing ESC button to get into main screen, see figure 23. -
Page 27: Autotest Procedure- Italy Only
Operation detail information(time, error code); press ESC to exit current screen. Move selection on “Setting” press OK button, user will get detail information about the setting items. Press UP and DOWN, LEFT and RIGHT buttons to selection item, finally press OK button to get into that item user select. -
Page 28: Lcd Function
Operation Make sure during commissioning the country is Italy, then inverter can do self-test automatically follow above instructions. Operate a new AutoTest procedure 1.Before performing the AutoTest, confirm the country setting is “Italy” and the inverter is running in normal state. 2.On the display Main Menu find (Settings→... - Page 29 Operation 13.Then, press OK button to start grid S V_min test. Alternatively press ESC button to exit from “New Autotest”. If there is no button operation within 5 seconds, the test will start automatically. If the test has started, key operation is invalid untill this test is over. 14.After grid S V_min test is over, the LCD will show the result and “(OK) to start F_max”, and the inverter will reconnect automatically.
- Page 30 Operation 26.After grid T F_min test is over, the LCD will show the result and “(Esc) to exit”, and the inverter will reconnect automatically. 27.The autotest function is considered successful once all the previous 12 tests have been performed. When LCD shows “(Esc) to exit”, press ESC button to exit from “New Autotest” . Note: If an unexpected disconnection requirement occurs during the autotest, the autotest is interrupted.
- Page 31 Operation Figure 26 Figure 27 29. Select the corresponding models and communication port( PC and the inverter connection port: com1 ~ com9), as shown in Figure 28 and Figure 29. Figure 28 Select inverter module Figure 29 Select communication port 30．Then click "OK"...
- Page 32 Operation Figure 31 31. If you click “OK” button, one warning message as shown in Figure 32 appears, please check the RS-232 communication connection between the Inverter and PC. Figure 32 6.2 LCD Function LCD shows the most of power information user cares. When the inverter operates normally, user touch any button, then the backlight is on, user will see the main screen.
-
Page 33: Communication And Monitoring
Communication and Monitoring 7. Communication and Monitoring 7.1 Communication Interface This product has a communication interface RS232, RS485 and Ethernet interface,( USB and CAN is optional) Samil Power can offer customer USB and CAN communication interface. Operating information like output voltage, current, frequency, fault information, etc., can be delivered to PC or hardware storage devices or other monitoring equipment via communication interface. -
Page 34: Troubleshooting
Communication and Monitoring&Troubleshooting Figure 34 SolarPower Manager Monitoring Diagram USB interface: User can easily get the data into your storage device from this interface. Ethernet communication: User can connect inverter with the router (the router is not special for inverters, user can get any brand in the market.) according to the requirements, then user can check the inverter’s data in any place of the world. - Page 35 Troubleshooting — Are the cables adequately sized and short enough? — Are the input and output connections and wiring in good condition? — Are the configurations settings correct for user particular installation? —Are the display panel and the communications cable properly connected and undamaged? Contact Samil Power Customer Service for further assistance.
- Page 36 Troubleshooting Group IDinGroup Description Suggested operation and solution Commission CommBoardPowerUp CtrlBoradPowerUp No operation CtrlBoradPowerDown RTC2ReadFault RTC2WriteFault EEPROM2ReadFault EEPROM2WriteFault Comm2LoseFault 9~29 NOT USED CommLoseFault RChipFault AuxPower_Fault OverTempFault PLLFault Turn off both AC and DC power to BusVoltLowFault Inverter the inverter, once the inverter has BusVoltOvrFault lost power turn the AC and DC back BusUnbalance...
-
Page 37: Routine Maintenance
Troubleshooting Continued: Group IDinGroup Description Suggested operation and solution Check the PV string connection type, make sure your commis -sioning input setting cor- PvConfigSet_Wrong responding to your actual connection. Exchange the L1 and L2 wire, Inverter Unrecoverphasesequencefault make sure DC switch and AC grid are off before re-wiring. -
Page 38: Decommissioning
Troubleshooting&Decommissioning ●Cooling fin cleaning To ensure inverter performance and long-period usage, back heat emitter needs to be left with available space, side fan cannot be covered with dust or snow as it will affect airflow. Please use compressing air, soft cloth or brush to clean cooling fin, not water, corrosive chemical substance or intense cleaning agent. -
Page 39: Contact Samil Power
Contact Samil Power 10 Contact Samil Power If user has any questions about SolarLake series inverter, please call service support hotline: +86 510 83593131. Please keep following information to better our service for user. a.Inverter’s Model. b.Inverter’s Serial No. c.Communication Method. d.PV modules’...
