enertik BS-550-SLA User Manual

Solar pumping inverter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Solar Pumping Inverter
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BS-550-SLA and is the answer not in the manual?

Questions and answers

Related Manuals for enertik BS-550-SLA

Summary of Contents for enertik BS-550-SLA

  • Page 1 Solar Pumping Inverter User’s Manual...
  • Page 2 Preface In order to give full play to the product performance and guarantee the safety of user and equipment, before installation and use, please carefully read the manual. In order to facilitate daily inspection and maintenance of inverter and understand abnormal reason and solutions, please keep the instruction properly.

  • Page 3: Table Of Contents

    Operation Instruction of BS Series Solar Pumping Inverter Precautions Contents Precautions ..........................II Chapter I Product Introduction .................... 1 1.1 Introduction to SolarPumping System ................1 1.2 Product Characteristics ......................2 1.3 Inverter Specification ........

  • Page 4: Precautions

    Operation Instruction of BS Series Solar Pumping Inverter Precautions Precautions The safe operation of the product is subject to correct transportation, installation, operation, and maintenance. Before conducting these tasks, please pay attention to relevant sa fety instructions. The warnings related to safety in the manual are listed as follows: Grounding Wire of Equipment AC Value DC Value...
  • Page 5 Operation Instruction of BS Series Solar Pumping Inverter Precautions 2. Try to install it in the indoor place with ventilation opening or air interchanger. It is forbidden to install it directly under sunshine. 3. During installation, do not discard residue of drill hole into inve rter cooling find or fan, which may affect heat dissipation.
  • Page 6 Operation Instruction of BS Series Solar Pumping Inverter Precautions Warning 1. Before the first operation, please adjust some control parameters according to operation instruction. Do not alter the control parameters of inverter at random, or else it may damage the equipment. 2.

  • Page 7: Chapter I Product Introduction

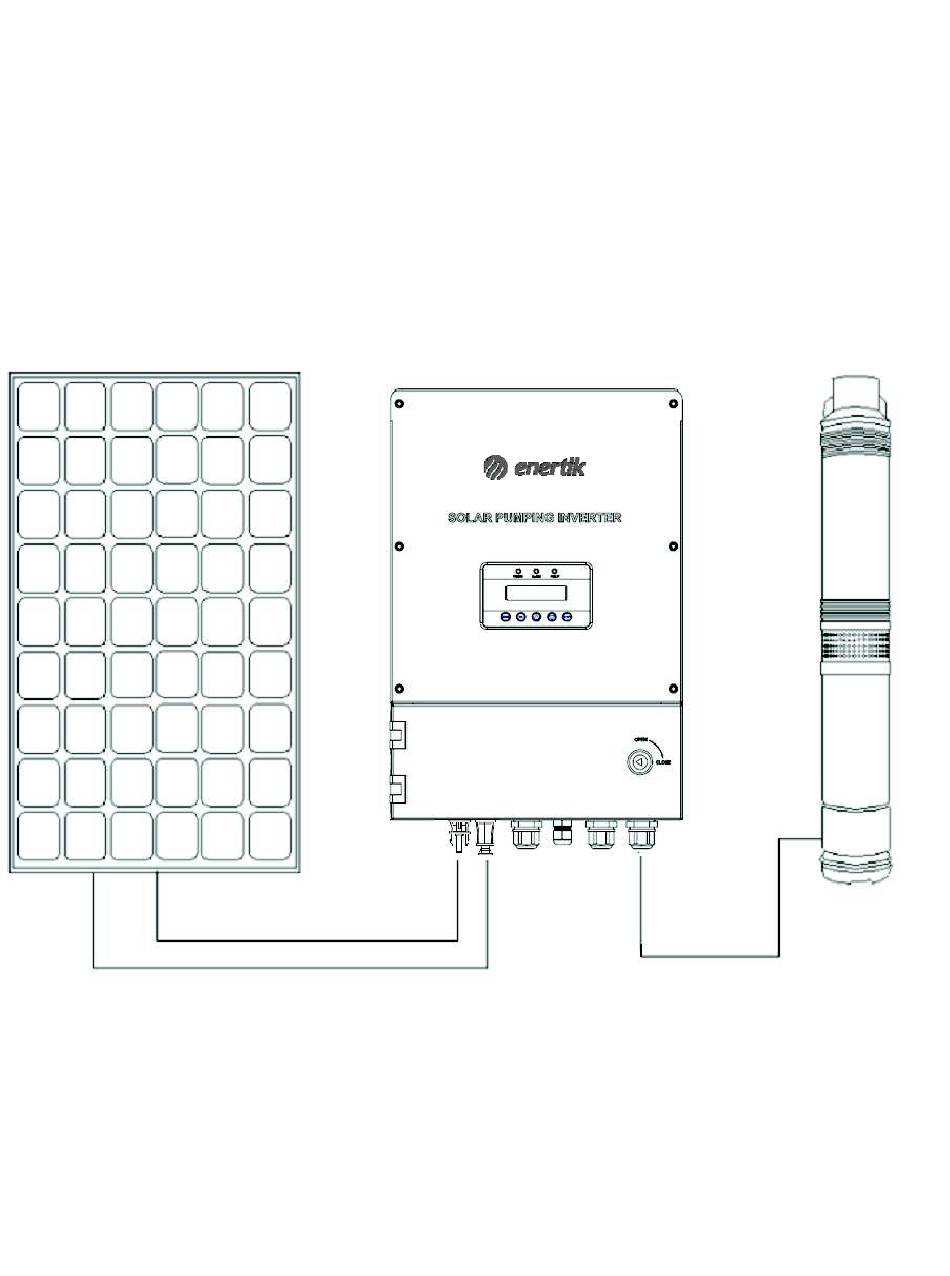

    Operation Instruction of BSSeries Solar Pumping Inverter Product Introduction Chapter I Product Introduction 1.1 Introduction to SolarPumping System Solar Pumping System is widely applied in domestic water, agricultural irrigation, forestry watering, desert control, grassland animal husbandry, island water supply, water treatment project, etc.

  • Page 8: Product Characteristics

    Operation Instruction of BSSeries Solar Pumping Inverter Product Introduction 1.2 Product Characteristics On the basis of many -year research, development, and experiment, the pumping inverter (Figure 1 -2) independently developed and produced by our company has the following advantages: Use independently -developed dynamic VI MPPT (Maximum Power Point Tracking) control method.

  • Page 9: Inverter Specification

    Operation Instruction of BSSeries Solar Pumping Inverter Product Introduction protection, output side phase loss protection, inverter module overheat protection, grounding short cir cuit protection, and underload (anti -dry pumping) protection. The main circuit uses power module (PIM), and the reliability is higher. The small -power model uses completely -new aluminum shell, L CD display operation panel, and directly -insert connection te rminal.
  • Page 10 Operation Instruction of BSSeries Solar Pumping Inverter Product Introduction Figure 1 -3 Introduction to Product Nameplate and Model Identification Introducti o n Product Series Rated Power (W) of Motor S: Single Phase Output Voltage (L: 220V) A: with electric supply function None: without electric supply function Warning: do not rip out product nameplate label.
  • Page 11 Operation Instruction of BSSeries Solar Pumping Inverter Product Introduction 1.3.2 Product Specification and Technical Index Max. Recommen Start Rated Max.AC Output ded MPP DC input Rated output voltage Model output output frequency voltage voltage （ Vac） voltage power （ W） current （...
  • Page 12 Operation Instruction of BSSeries Solar Pumping Inverter Product Introduction BS-2200 -S 280-400 2200 0-50/60 1PH 220V Warning: please select appropriate model according to solarcell array and motor load. Warning: The input power in the above table refers to multi -channel total input power. The maximum input DC current of each group shall not exceed 15A.

  • Page 13: Chapter Ii Installation And Wiring

    Operation Instruction of BS Series Solar Pumping Inverter Installation and Wiring Chapter II Installation and Wiring 2.1 Procurement Inspection Our company has strict quality assurance system in aspects of product manufacturing, packaging, etc. In case of abnormal condition, please contact with our company’s product dealer, or contact with our company’s technical service center.
  • Page 14 Operation Instruction of BS Series Solar Pumping Inverter Installation and Wiring Product Specification Parameter: Appearance and installation dimension (mm) Model Weight（ Kg） BS-550-SL BS-550-SLA BS-750-SL BS-750-SLA BS-1100-SL BS-1100-SLA BS-1500 -SL BS-1500 -SLA BS-2200 -SL BS-2200 -SLA Warning: most models of BSseries are hanging installation. Guarantee that the installation...

  • Page 15: Installation Diagram

    Operation Instruction of BS Series Solar Pumping Inverter Installation and Wiring 2.3 Installation Diagram Figure 2 -2 Installation Dimension of BS-550-SL/SLA to 2200 -SL/SLA Figure 2 -3 InstallSafety Nut...

  • Page 16: Wiring Diagram

    Operation Instruction of BS Series Solar Pumping Inverter Installation and Wiring Figure 2 -4 Correct Arrangement Diagram of Inverter 2.4 Wiring Diagram 2.4.1 Introduction to Crate Socket Figure 2 -5 BS-550-SL/SLA to 1100 -SL/SLA Wiring Terminal PV Input Terminal AC Output Terminal AC Input Terminal Water Level Terminal Figure 2 -6 BS-1500 -SL/SLA to 2200 -SL/SLA Wiring Terminal...
  • Page 17 Operation Instruction of BS Series Solar Pumping Inverter Installation and Wiring 2.4.2 Wiring Diagram of Two -Wire Water Pump Figure 2 -7 BS-550-SL to 1100 -SL Wiring Diagram Figure 2 -8 BS-550-SLA to 1100 -SLA Wiring Diagram...
  • Page 18 Operation Instruction of BS Series Solar Pumping Inverter Installation and Wiring Figure 2 -9 BS-550-SL/SLA to 1100 -SL /SLA Wiring Diagram 2.4.3 Wiring Diagram of Three -Wire Water Pump Figure 2 -10 BS-1500 -SL to 2200 -SL Wiring Diagram...
  • Page 19 Operation Instruction of BS Series Solar Pumping Inverter Installation and Wiring Figure 2 -11 BS-1500 -SLA to 2200 -SLA Wiring Diagram Figure 2 -12 BS-1500 -SL/SLA to2200 -SL/SLA Wiring Diagrams Use key to open the lower cover of crate. There is DC switch, water level sensor connection terminal, GPRS (optional), and AC output terminal.
  • Page 20 Operation Instruction of BS Series Solar Pumping Inverter Installation and Wiring Analog Output Analog Output Relay 1 Output Relay 2 Output Figure 2 -13 A/O Terminal Diagram Figure 2 -14 I/O Terminal Diagram...
  • Page 21 Operation Instruction of BS Series Solar Pumping Inverter Installation and Wiring Terminal Introduction Socket Terminal Introduction Wiring Introduction Connect with the positive pole of solar array Input Connect with the negative pole of solar array Connect with protective ground wire Connect with motor U phase Output Connect with motor V phase...
  • Page 22 ≤ length ≤ Recommende Output d output voltage(V) 120m 150m 180m 210m model current(A) BS-550-SL 1HP 220V 0.75 BS-550-SLA 1HP 220V 0.75 BS-750-SL 1HP 220V 0.75 BS-750-SLA 1HP 220V 0.75 BS-1100-SL 1HP 220V BS-1100-SL 1HP 220V BS-1500 -SL 1HP 220V...

  • Page 23: Assemble Dc Connector

    Operation Instruction of BS Series Solar Pumping Inverter Installation and Wiring BS-2200 -SL 1HP 220V BS-2200 -SL 1HP 220V Note: the unit of above wire diameter is mm ≤50°C. Notice: the environment temperature of the above recommended wire dimension is Notice: large -power wall - mounted model uses multiple -channel DC input.

  • Page 24: Introduction To The Wiring Of Water Level Sensor

    Operation Instruction of BS Series Solar Pumping Inverter Installation and Wiring 2.5.3 Insert contact cable assembly into back of the male and female connector. tight nuts according to the opposite direction. Now wiring is finished Figure 2 -17 2.5.4 The PV importation that will assemble a good DC conjunction machine to make an effort to insert Inverters carries and link OK after hearing the sound of "click"...
  • Page 25 Operation Instruction of BS Series Solar Pumping Inverter Installation and Wiring Notice: connect water level sensor 1 and detect water shortage. Respectively connect two signal lines of sensor with S4 and COM of I/O circuit board. When water level sensor 1 detects that the water level of well is lower than the level set by sensor, the pumping inverter will delay for 60s, then turn off output protection pump.

  • Page 26: Chapter Iii Operation Control

    Operation Instruction of BSSeries Solar Pumpin g Inverter Operation Control Chapter III Operation Control 3.1 Panel Layout and Introduction SolarPumping Inv erter uses LCD operation panel. The operation panel is shown in the figure, including 3 LED lights , LCD displayand 5 keys. Figure 3 -1 Keyboard Layout and Each Part Name Indicator and Key...

  • Page 27: Panel Operation Method

    Operation Instruction of BSSeries Solar Pumpin g Inverter Operation Control Indicator and Key Name Function Introduction 1. Press for a short time to enter programming mode. After altering parameter, “press for a short time” to Confirm/Progra confirm the alteration mming Key 2.
  • Page 28 Operation Instruction of BSSeries Solar Pumpin g Inverter Operation Control Display current operation data Inverter’s busbar ↓ voltage Show: 340.1V Display current operation data Inverter’s output ↓ voltage Show: 219V Display current operation data ↓ Invertor’s output current Show: 6.4A Display current operation data ↓...

  • Page 29: Work Mode

    Operation Instruction of BSSeries Solar Pumpin g Inverter Operation Control 3.3 Work Mode The inverter includes three work modes: keyboard manual mode, fully -automatic work mode, GPRS work mode (optional). The default mode is fully -automatic work mode. 1: Keyboard manual work mode: menu S00. Setting S00.01=0. Press key to operate.
  • Page 30 Operation Instruction of BSSeries Solar Pumpin g Inverter Operation Control Solarcell panel Water level switch DC switch Impounding Reservoir 2. Conduct parameter setting for the motor (a) Setting S00.01=0. Command code channel is keyboard manual mode instruction. (b) Set water pump nameplate parameters: S02.01 motor rated power value; S02.02 motor rated power value;...
  • Page 31 Operation Instruction of BSSeries Solar Pumpin g Inverter Operation Control See the following figure. The settings of nameplate parameters of water pump are listed as follows (for example: 2.2KW inverter drives 1.5KW water pump): Operation Description Display Initial condition: non-control parameter display Enter main interface of ↓...
  • Page 32 Operation Instruction of BSSeries Solar Pumpin g Inverter Operation Control Operation Description Display Press “ON/OFF” key for 2s to turn off inverter. ↓ Show: setting frequency is 50.00Hz Press “OK” key for 2s to enter S00 group parameter ↓ Show: S00 group parameters Press page -up key to enter alter...
  • Page 33 Operation Instruction of BSSeries Solar Pumpin g Inverter Operation Control Operation Description Display Press “page -up” key to enter group ↓ parameters Show: S16 group parameters Press “OK” key to ↓ enter S16.00 Show: S16.00 Press “OK” key to enter S16.00 (the ↓...
  • Page 34 Operation Instruction of BSSeries Solar Pumpin g Inverter Operation Control Operation Description Display ↓ Press “page -up” key to alter parameter as 1 (terminal automatic control module) Show: 1 ↓ Press “OK” key to save setting. display screen will show next Show: S00.03 parameter.
  • Page 35 Operation Instruction of BSSeries Solar Pumpin g Inverter Operation Control Power grid Solarcell panel Water level switch DC switch Impounding Reservoir 2. Turn off Q2 switch, then turn on Q1 switch. 3. After power - on, adjust motor parameter according to Item 2, 3, 4 of Article 3.4.1. 4.
  • Page 36 Operation Instruction of BSSeries Solar Pumpin g Inverter Operation Control...
  • Page 37 Operation Instruction of BSSeries Solar Pumpin g Inverter Operation Control 3.4.3 Introduction to function parameters Name Scope Introduction Factory Value 0: keyboard operation code channel (LED is off) Operation code 1: terminal operation code channel S00.01 channel (LED flickers) 2: communication operation code channel (LED is bright) S00.04~600.00Hz （...

  • Page 38: Chapter Iv: Failure Diagnosis

    Operation Instruction of BSSeries Solar Pumpin g Inverter Operation Control Chapter IV: Failure Diagnosis 4.1 Explanation and Solution for Fault Code BS seriessolar pumping inverter has complete protection. When system suffers failure, the inverter will take protective measures: the general protective measures are to stop the output of drive signal of motor and forbid to re -start within a certain period.
  • Page 39 Operation Instruction of BSSeries Solar Pumpin g Inverter Operation Control Output short circuit Module Check wiring Seek services IGBT shortcut or grounding overcurrent from manufacturer Module damage Air flue is blocked Module Environment Clean air flue or improve Inv Overtemp over-temperatur temperature is too ventilation...

  • Page 40: Chapter V Maintenance

    Chapter V Maintenance 5.1 Daily Inspection and Maintenance Affected by environment temperature, humidity, vibration, and inverter internal component aging, the inverter may suffer some potential problems during operation. In order to stably operate the inverter for a long term, conduct periodical inspection once each year. 5.1.1 Requirements of Inspection and Maintenance 1.

  • Page 41: Inspection And Replacement Of Quick -Wear Parts

    5.2 Inspection and Replacement of Quick -wear Parts 5.2.1 Filter Capacitor The pulsating current of main loop will affect the performance of filter capacitor of aluminium electrolysis. The affected degree and environment temperature are related to service environment. Under normal conditions, the inverter shall change electrolyti c capacitor once every 10 years.

  • Page 42: Quality Assurance

    Quality Assurance Warranty Policy: Warranty period:Our companyprovides series s olarpumping inverter with warranty period of 24 months. The systematic components provided by our company have 12 -month warranty period. Starting date of warranty period: the date when user gets goods from our dealer. Warranty proof:product series number an d local dealer’s shipment invoice.
  • Page 43 If claim exceeds the power quoted in warranty principle, our company shall not undertake legal responsibilities, including the following conditions: claim compensation due t o direct or indirect damaged caused by defective equipment; claim compensation due to the damage caused by removal and installation;...

  • Page 44: Warranty Card

    Warranty Card Contact Client Name Person Client Address ContactTel. Product Procurement Specification Date Warranty Date (since Equipment Code production date) Distribution Unit (Seal) Packing List (1) Main engine quantity: One set (2) Instruction book (including warranty card) quantity: one (3) Patch plug of positive pole of solarcell array quantity: one (4) Patch plug of negative pole of solarcell array quantity: one...

This manual is also suitable for:

Bs-750-slBs-550-slBs-1100-slBs-1500-slBs-1100-slaBs-1500-sla ... Show all
