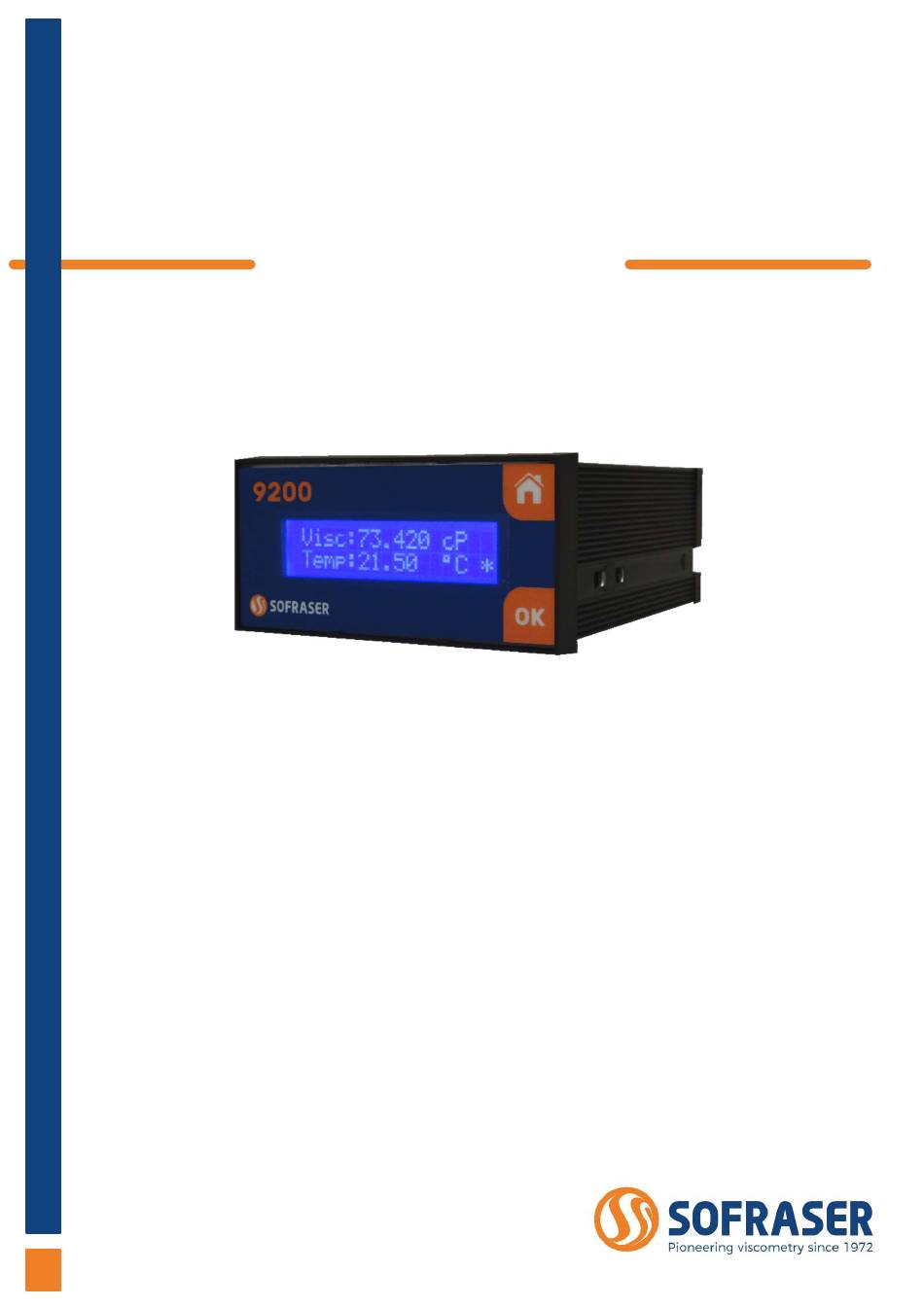

- Page 1 9200 Technical Manual Viscosity and temperature transmitter Original version REF.: 380-5...
- Page 3 Technical Manual 9200 IMPORTANT THE OFFSET ADJUSTMENT IN THE AIR MUST BE THE FIRST TASK COMPLETED. Offset adjustment procedure is detailed in § 3.3. 1. CLEAN AND DRY THE SENSOR ROD. 2. BE SURE THE PROCESS IS EMPTY. THE ROD MUST BE VIBRATING IN THE AIR.
-
Page 4: Table Of Contents
Connections ................................7 2.3.1 Top connector ............................ 8 2.3.2 Bottom connector ........................... 9 THE 9200 OPERATING FUNCTIONS ................10 Start and menus ..............................10 Raw values ..................................11 Offset ....................................11 Viscosity and temperature units ........................12 Check 4-20 mA ................................. 12 Correlation ................................... -
Page 5: Transmitter Principle
Technical Manual 9200 1. Transmitter principle The measuring chain is composed of three inseparable elements: the sensor, its cable and the 9200 transducer that controls it. The sensor cannot be used with another transducer or another cable type or length because they are all a part of the resonant loop so they are matched together as one vibrating system. -
Page 6: Processor Technical Characteristics
Technical Manual 9200 2. Processor technical characteristics Electronic device size The electronic box has the purpose to be fitted in a panel, close to the process line. The collar is the only visible part, composed of a face plate and a LCD screen. It is continuously displaying the viscosity value and, in the case there is a Pt100 probe, the temperature value. -
Page 7: Main Features
Never connect the 4/20 mA outputs to a power supply, an active PLC input or tester 2.2.2 Display The 9200 transmitter device has a 2-line alphanumeric backlighting LCD screen. The effective dimensions of this screen are 64 mm * 15 mm. One line can display 16 digits. This screen is showing the different menus with the help of the 2-button face plate. -
Page 8: Top Connector
Technical Manual 9200 Interface to the outside world (Outputs and power supply) Links to the MIVI sensor and earth grounding 2.3.1 Top connector Connections for the top connector (not cabled in our picture example) have to be made by the user scrupulously respecting the following indications. -
Page 9: Bottom Connector
Technical Manual 9200 2.3.2 Bottom connector The plugging scheme of the bottom connector is as follows: Pins 11 to 14 make the connection between the electronic board and the MIVI sensor itself. This is how the driving signal is generated and how the receiving signal is measured. -
Page 10: The 9200 Operating Functions
Temperature Viscosity Unit Enabled Temperature Unit °C If you keep the Home button pressed during 3 seconds you will automatically move back to the main screen of the 9200 displaying the viscosity and the temperature. REF: 380/5... -
Page 11: Raw Values
Technical Manual 9200 Raw values This menu has two screens. It allows the user to read the raw values of the main measured signals and other information specific of the unit. AMP 1179 COIL 5033 FZW 5853 04/2019 FRQ 287 PROG 530 TC26°C... -
Page 12: Viscosity And Temperature Units
Then redo the zero in the air procedure. If this message remains even after carrying all the precaution recommended by Sofraser, the end- user can anyway validate the Offset value by pressing OK and then OK again after a last validation screen. -
Page 13: Correlation
Correlation Table It is necessary to use the Sofraser Interface Software (SIS, see chapter 5) to choose the type of correlation (Linear with ax + b formula or Table) and to change the values of correlation. When the correlation is activated, an asterisk * appears on the bottom right corner of the main screen (see chapter 2.1). -
Page 14: Enable Or Disable Temperature
Technical Manual 9200 Enable or disable temperature This menu allows the user to enable or disable the display of temperature on the main screen. After positioning on the Temperature menu, change the status by pressing OK and exit by pressing Home when the desired status is reached. -
Page 15: Rs485 Frame Protocol
R: response from the board to the console Viscosity: viscosity in the unit displayed on the 9200 screen (cP, P, mPa.s or Pa.s) Pt100: value in the unit displayed on the 9200 screen (°C or °F) of the temperature read by the probe when there is one... - Page 16 Technical Manual 9200 Example 1: to read the viscosity of a unit which has a slave address 01 (01 in Hexadecimal), with a full- scale range of 100 mPa.s and which measures a viscosity of 67.65 mPa.s S = 01 04...
-
Page 17: Sofraser Interface Software
Sofraser (go to menu “File\Add Sensor” or “F6”). From then on, the SIS installed on this computer will always be able to communicate with the 9200. Different levels of security have been set up in the SIS, so that different users can have different possibilities on the equipment through menu “Options\Connect As”... -
Page 18: Troubleshooting
The value of the current 4-20 mA output is specific notes. not consistent with the measured value Contact Sofraser or your distributor if the 4- displayed on the main screen. 20 mA output range must be modified. There is no signal on the current output.
