- Page 1 V75150X VISE OWNER'S MANUAL...
- Page 2 BILL OF MATERIAL INCLUDED IN BOX ITEM PART DESCRIPTION NUMBER SB3V SHOULDER BOLT 9: THUMBSCREW LOCATING PIN P/N:TS10 M5X10.DP DOWEL PIN 5x10MM V75150X-4RK LEADSCREW REPLACEMENT KIT V75100X-2 TRUCK V75150X-1 V75100X VISE BODY V75100X-5 MASTER JAWS 10: ANTI SIEZE PACKET 76232 SHCS M8x16MM ANTI-SIEZE P/N: LB8008C5-A...
- Page 3 Maintenance and Use • Clean leadscrew with soft brush • Use copper based anti-sieze on leadscrew (Loctite P/N: LB8008C5-A) • Do not let chips build up during use • Do not torque vise past 60 Nm [45 Ft LBS] • Do not side load vise (see illustration below) •...
- Page 4 DIMENSIONS 37.00 2.50 1.457 .098 20.00 23.00 .787 .906 45° 12.00 .472 53.65 56.15 2.112 2.211 35.00 1.378 158.00 6.220 12.014 8.019 52.00 12.004 8.009 2.047 .4730 .3157 .4726 .3153 M8X1.25 FOR PS16F M5X.08 FOR LP8 75.00 2.953 100.00 3.937 150.00 5.906 Page 4...

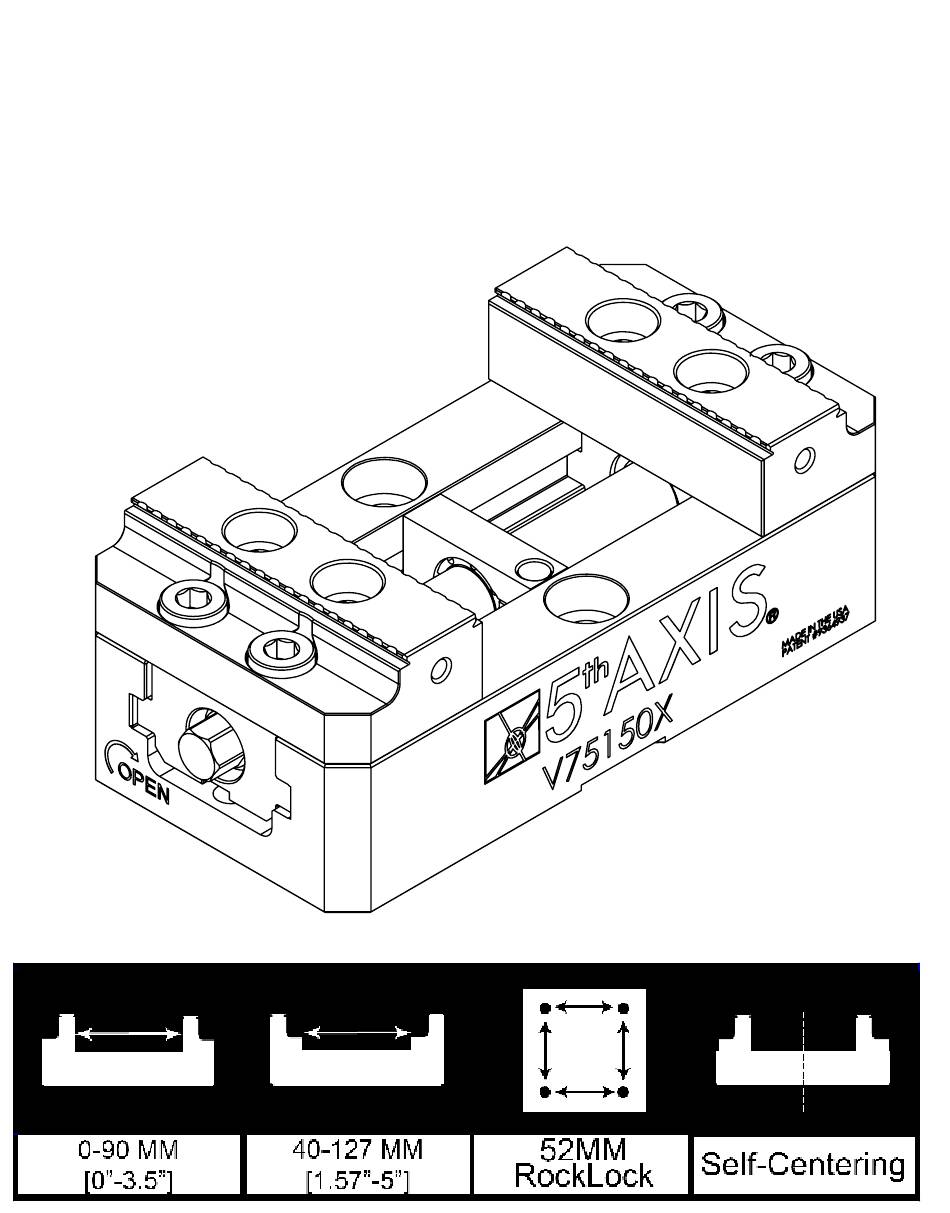

- Page 5 CONFIGURATIONS Use Serrations For: • Softer Materials (Aluminum and soft steels) • Less Aggressive Machining Use Dovetail for: • Harder Materials • Heavier Machining • Parts Larger than the Vise 0-90 mm [0-3.5 in] 40-127 mm [1.57-5 in] (See next page for dovetail stock prep) Page 5...
- Page 6 Dovetail Stock Prep 45.47 Dovetail Cutter 1.790 TO SHARP [R .0381 mm] R .015 DETAIL B SCALE 2 : 1 1.38 2.50 .054 .098 45° Master Jaws Steel Grade: 4140 Steel Hardness: HRC 53-57 P/N:V75100X-5 R0.25 .010 DETAIL C SCALE 4 : 1 Contact Contact DETAIL D...
- Page 7 ACCESSORIES Cutter Details • Shank Diameter (in) 1″ (P/N: DC1750-45) • Shank Diameter (mm) 25mm (P/N: DC1750-M) • Insert Part Number: DC1750-B • 45 Degrees • Material H13 Tool Steel • 5 Flute Cutter • Cutting Diameter: 45.5mm [1.79in] Installing Pull Studs 52mm Pull Studs •...
- Page 8 CONVERT YOUR CENTERING VISE TO A DOUBLE STATION VISE V75150X OWNER'S MANUAL REV A APPROVED 5/15/2019 Available for download at: fifthaxis.com/downloads Ask your distributor about how to upgrade your system to a double station PARTS SOLD SEPERATELY CONVERTING YOUR SELF CENTERING VISE Remove Self-Centering Assembly Install Center...
