Summary of Contents for 5th Axis V75100X

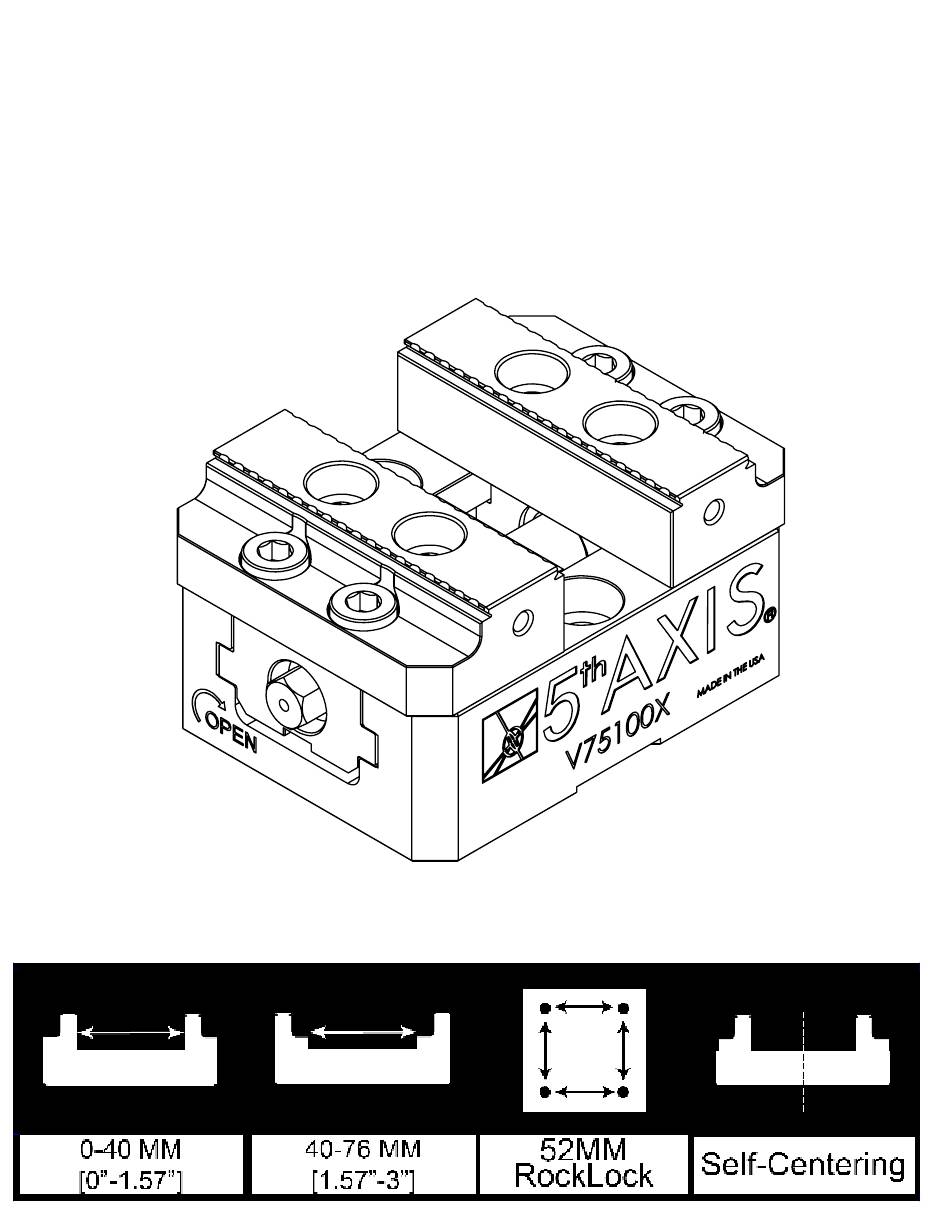

- Page 1 V75100X VISE OWNER'S MANUAL...
- Page 2 SB3V SHOULDER BOLT 9: THUMBSCREW LOCATING PIN P/N:TS10 M5X10.DP DOWEL PIN 5x10MM V75100X-4RK LEADSCREW REPLACEMENT KIT V75100X-2 TRUCK V75100X-1 V75100X VISE BODY V75100X-5 MASTER JAWS 10: ANTI SIEZE PACKET 76232 SHCS M8x16MM ANTI-SIEZE P/N: LB8008C5-A TS10 THUMBSCREW LB8008C5-A ANTI-SIEZE PACKET...
-
Page 3: Maintenance And Use
Maintenance and Use • Clean leadscrew with soft brush • Use copper based anti-sieze on leadscrew (Loctite P/N: LB8008C5-A) • Do not let chips build up during use • Do not torque vise past 60 Nm [45 Ft LBS] • Do not side load vise (see illustration below) •... - Page 4 DIMENSIONS 37.00 2.50 1.457 .098 20.00 23.00 .787 .906 45° 12.00 .472 53.63 56.13 2.111 2.210 35.00 1.378 108.00 4.252 12.014 8.019 .3157 12.004 52.00 8.009 .3153 .4730 2.047 M5X0.8 FOR LP8 .4726 M8X1.25 FOR PS16F 75.00 2.953 60.00 2.362 100.00 3.937 Page 4...
- Page 5 CONFIGURATIONS Use Serrations For: • Softer Materials (Aluminum and soft steels) • Less Aggressive Machining Use Dovetail for: • Harder Materials • Heavier Machining • Parts Larger than the Vise 0-40 mm [0-1.57 in] 40-76 mm [1.57-3 in] (See next page for dovetail stock prep) Page 5...
- Page 6 DETAIL B SCALE 2 : 1 1.38 2.50 .054 .098 45° Master Jaws Steel Grade: 4140 Steel Hardness: HRC 53-57 P/N:V75100X-5 R0.25 .010 DETAIL C SCALE 4 : 1 Contact Contact DETAIL D SCALE 2 : 1.2 .085 .010 (2X/3)
- Page 7 • Hardened S7 Tool Steel surfaces • M8 Threads • Torque to 10 Ft-lbs via bottom hex head Replacement Master Jaws P/N: V75100X-5 • P/N: V75100X-5 • 75mm x 37mm x 21mm Soft Jaws VAJ75X- Aluminium VSJ75X-Steel P/N: VAJ75X P/N: VSJ75X •...
- Page 8 V75100X OWNER'S MANUAL REV A APPROVED 5/1/2019 Available for download at: fifthaxis.com/downloads...
