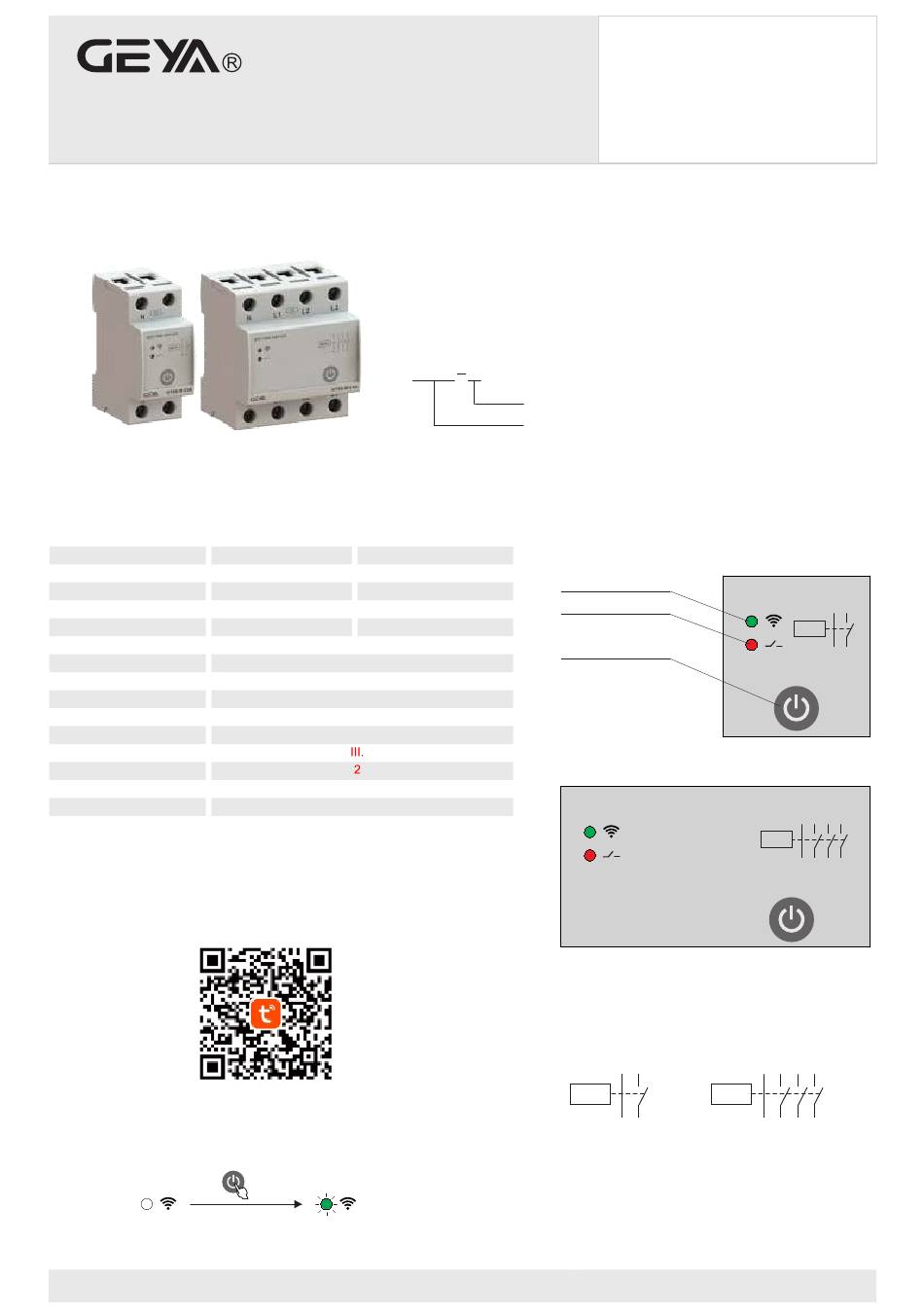

GEYA GTS8-W Instruction Manual

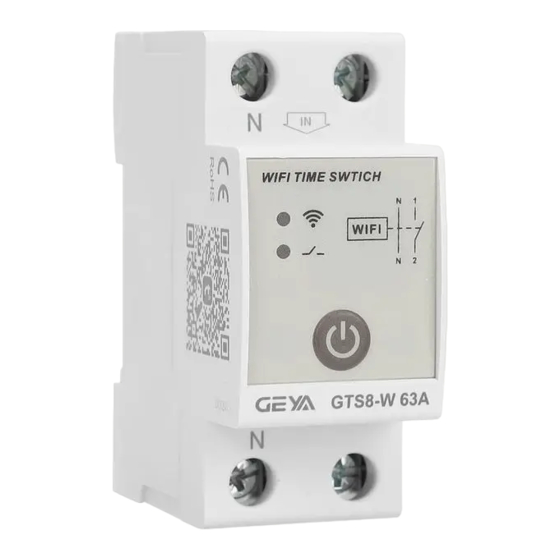

WiFi intelligent switch GTS8-W
Instruction Manual

Technical parameters

Function
Rated supply voltage
Rated supply frequency
Rated operational current 32A,40A,50A,63A,80A（AC1）
Burden
Operating temperature
Storage temperature
Mounting/DIN rail
Protection degree
Operating position
Overvoltage cathegory
Pollution degree
Dimensions
Weight

Networking settings

1.Install App
You can scan this QR code to download Tuya Smart, or search for Tuya Smart
in the App store to download this App.
2.Add device
When used for the first time, the WiFi indicator is off. You need to press and hold the
power button for 5 seconds, and the device will enter the distribution network state.
At this time, the WiFi indicator is flashing.
Offline status

General

■Applications

-It turns on and off the load periodically and regularly, and usually controls
household equipment such as lights and appliances.

■ Function Features

-Support access to Tuya's App Tuya smart.
-The on and off time of the load can be conveniently set through the App.
-On and off can be controlled manually.
-The cycle on / off can be set during the on time.
-1-MODULE,DIN rail mounting.
■Model and connotation
GTS8
2P
WiFi intelligent switch
AC220V AC220V(L-N)
45~65Hz
63A（AC1）
AC max.3VA
-20℃ to +55℃（-4℉ to 131℉）
-35℃ to +75℃（-22℉ to 158℉）
Din rail EN/IEC 60715
IP40 for front panel/IP20 terminals
any
82×36×68mm
130g
370g
5s
Distribution network status
W
WiFi intelligent switch
GTS8 Series
Panel Diagram
4P
GTS8-W 2P
WiFi signal indicator
Switch indicator
ON / OFF button
GTS8-W 2P
VA-Protector
WIFI TIMER SWTICH

Wiring Diagram

GTS8-W 2P
WIFI
-1-
GEYA ELECTRICAL CO.,LTD
Add:Wenzhou Brige Industrial Zone,Beibaixiang Town,
Yueqing,Zhejiang,China 325603
Tel:0086-577-62771036
Fax:0086-577-62711079
Mobile:0086-13567770207
E-mail:sale@cnyeya.com
Web:www.geya.net
VA-Protector
WIFI TIMER SWTICH
WIFI
GTS8-W 4P
N 1 N 1
WIFI
N 2 N 2
N 1
WIFI
N 2
N 1 3 5
N 2 4 6
3 5
4 6
