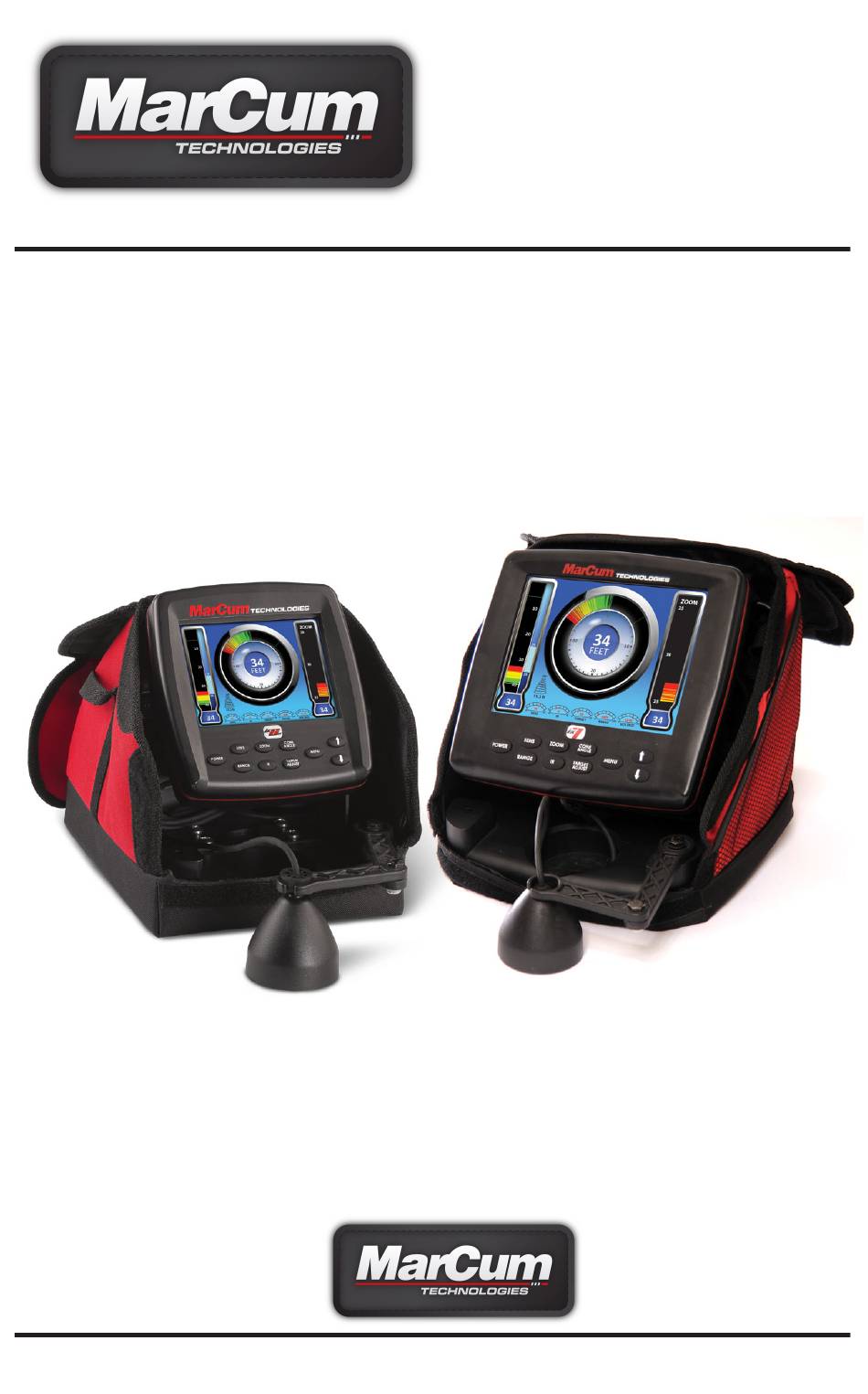

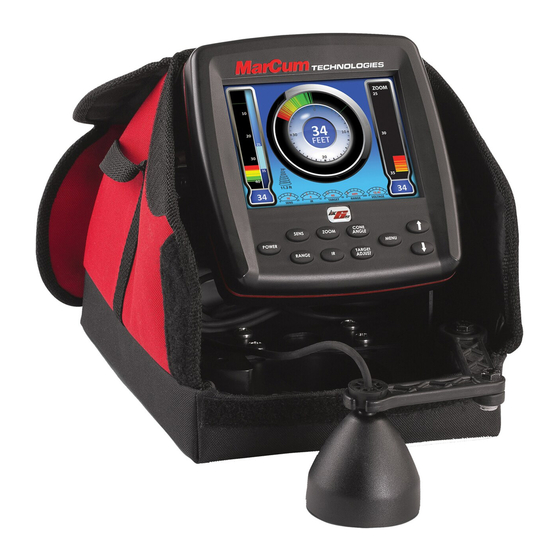

  • Page 1 LX-6s/LX-7 Digital Sonar User Manual Marcum LX-7 Marcum LX-6s...
  • Page 2 Versa Electronics www.marcumtech.com INTRODUCTION Congratulations on purchasing the Marcum Digital Sonar—the most advanced ice sonar system available. When Marcum was founded over a decade ago, we all knew that our original flashers were just the beginning. Every step of the way, we have been designing, improving, building momentum.

  • Page 3: Getting Started

    Versa Electronics www.marcumtech.com GETTING STARTED Ice System Set-Up Your Digital Sonar comes virtually ready to fish. Open the top cover of the soft pack, loosen the knobs and the monitor can now be positioned how you want it. Once the monitor is positioned, tighten the knobs again to hold the monitor in place.
  • Page 4 Versa Electronics www.marcumtech.com When you get home from a trip, put your battery on charge right away and leave it there overnight, or for around 8-12 hours. Likewise, on the night before an ice fishing trip, put it on the charger again, just to make sure. Again, there is no danger of overcharging your battery.
  • Page 5 Versa Electronics www.marcumtech.com water line to get a good reading. When the ice thickness is over two feet, it may be necessary to have your transducer set somewhat farther down. Remember--the less transducer cable you have out, the easier it is to pull it out of the water when bringing in a fish, or to move to a new location.

  • Page 6: Operation

    Versa Electronics www.marcumtech.com OPERATION The Marcum Digital Sonar has many functions and settings that are selected or changed by buttons on the Control Panel. Learning what each of the buttons (POWER, SENS, RANGE, ZOOM, IR, CONE ANGLE, TARGET ADJUST, MENU/ENTER, UP, DOWN) does will enable you to get the most out of your Digital Sonar.
  • Page 7 Versa Electronics www.marcumtech.com DYNAMIC – This Marcum exclusive feature functions similarly to the “Auto Range”, but fine tunes your range setting even farther. The Dynamic Depth will maximize the space on your display by utilizing a variable range that will always be just slightly deeper than the actual depth.
  • Page 8 Versa Electronics www.marcumtech.com CONE ANGLE – All transducers send down a signal that is shaped somewhat like a cone. Your Digital Sonar easily switches from a 20 degree cone angle (good for general use) to a narrow 8 degree cone angle (good for water over 40’, or any time you need a more precise view of what is below you).
  • Page 9 Versa Electronics www.marcumtech.com is the first sub-menu, and it has the following SONAR SETTINGS features that may be adjusted: SENSITIVITY This adjusts the sensitivity. This is described in the Control Panel section above RANGE Select range in the same manner as described above ZOOM DEPTH Here is where you set the upper range of the zoom window.
  • Page 10 Versa Electronics www.marcumtech.com GAUGE DISPLAY Your 5 gauges, as well as your Sonar footprint may be turned on or off here TEMPERATURE Your water temperature display may be turned on or off here. You may also select between Fahrenheit and Celsius here.

  • Page 11: Color Palettes

    Versa Electronics www.marcumtech.com SAVE This is where you can save your favorite screen configuration. When you turn the Digital Sonar on, it will power up to your last screen displayed. You can now change it to the original factory settings by highlighting “Restore Factory”. While out fishing, you may find a particular screen configuration that you like.
  • Page 12 Versa Electronics www.marcumtech.com you to have a magnified view of a selected portion of the water column. Note that when the ZOOM window is open, you can still view the entire water column on one of the other windows. Imagine that you are fishing for walleyes in 30 feet of water, and you are zoomed in on the bottom 5 feet.

  • Page 13: Cone Angle Info

    Versa Electronics www.marcumtech.com select 10 feet. The 20 to 30 foot portion of the water column is now displayed on the Zoom display, and the entire water column is viewable on the flasher window. The Marcum Digital Sonar also features “Chart Zoom” which enables you use a scrolling graph in Zoom mode.
  • Page 14 Versa Electronics www.marcumtech.com Using your Sonar in conjunction with an underwater viewing system is a great way to learn how to interpret your sonar signals. READING FISH— Fish will generally appear as separate targets from the bottom. Depending on the size of the fish and the location within the transmit beam they can show as any of the colors in the palette you are using.
  • Page 15 Versa Electronics www.marcumtech.com Dead Zone – All sonar units will have a dead zone in certain circumstances. This occurs on sharp drop-offs where the transmit beam (cone) hits the shallower edge of the drop-off and returns before the deeper edge returns. This in effect creates an undisplayed area between the shallower and deeper water within the transmit beam.

  • Page 16: Battery Charger Troubleshooting

    Versa Electronics www.marcumtech.com SCROLLING GRAPH (CHART) DISPLAYS— These windows will show not only what is happening below you in real time, but will also enable the user to have a “history” of what has happened. While most commonly used for open water, many anglers are discovering the benefits of using a graph on the ice.

  • Page 17: Software Updates

    This warranty applies to customers who properly complete the online product registration form found on the MarCum Technologies Website: www.marcumtech.com/support If you are unable to use the internet, please fill out and submit the enclosed warranty registration card to be eligible for the two year warranty.

  • Page 18: How To Obtain Service

    Versa Electronics www.marcumtech.com In an effort to best serve our customers, Marcum Technologies has set a standardized battery warranty policy. Battery warranty coverage requires a proof of purchase. Please see our website, www.marcumtech.com/support, for full details. HOW TO OBTAIN SERVICE If your unit is malfunctioning, check the FAQ section of our website.
  • Page 19 Technologies. It is the customer’s full responsibility to track their products sent out in the mail or other forms of delivery service. Marcum Technologies will not be liable for packages lost en route to us. Unless specified otherwise, do not include batteries or other accessories when returning the product for repair.
  • Page 20 MARCUM TECHNOLOGIES 3943 QUEBEC AVE NORTH MINNEAPOLIS, MN 55427 763-512-3987 International 888-778-1208 MarCum User Manuals are available for download from www.marcumtech.com...
