Summary of Contents for Marcum Technologies LX-3TC

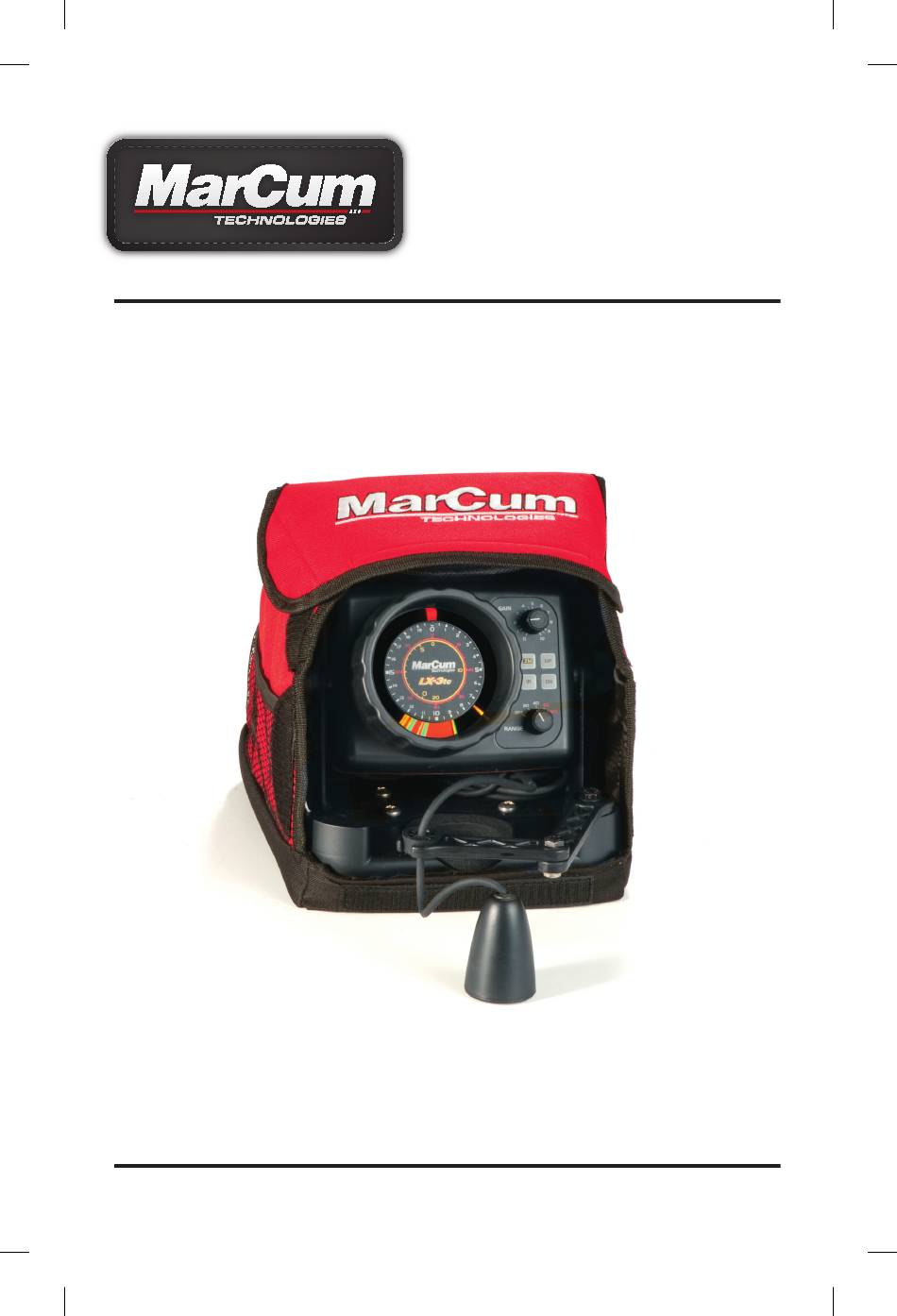

- Page 1 LX-3TC Multicolor Sonar Unit User Manual www.marcumtech.com...
-
Page 2: Table Of Contents
www.marcumtech.com Table of Contents Introduction ........... 3 General Description . -
Page 3: Introduction
This is most prevalent in ice-fishing applications where anglers utilizing sonar are often grouped together within small areas. The LX-3tc offers a Zoom feature that allows the user to hone in on a specific section of water within the water column. The Zoom window (area of water... -
Page 4: Ice System Set-Up
Ice System Set-Up Your LX-3tc comes virtually ready to fish. All you need to do is hook up the positive lead from the LX-3tc power cord to the positive terminal of the battery. Inside the LX-3tc deluxe soft pack is an electronics shuttle that has recessed compartments for the battery and the transducer. - Page 5 LX-3TC, activate the IR feature by depressing the IR key located on the face of the LX-3TC. When you press the key, a beep will be heard. There are 12 levels of interference rejection that can be used to knock out compet- ing signals, and each press of the key will change the level of Interference Rejection.
-
Page 6: Battery Charging
10 feet apart on the inner YELLOW numeric scale in the center of the LX-3tc display. You can then locate the Zoom window at the desired viewing depth. Even though your YELLOW indicator lights are no longer blinking, your Zoom window is still set and in position. -
Page 7: Some Common Sense Safety Tips
www.marcumtech.com to charge their battery after each use for fear that the battery will develop a “memory” and this will lead to a shortened run time—THIS IS FALSE!!! ALWAYS CHARGE YOUR BATTERY AFTER EVERY USE!!! Be sure to use the charger that came with your system, or a similar one that is between .5 amp and 1 amp. -
Page 8: Signal Interpretation
Too much GAIN will flood out the ability to differentiate targets and clutter the display. Reading Lures or Bait - The LX-3TC will pick up and display small objects like lures or bait. When tuning the unit to display your lure or bait, lower the object to the desired depth and turn up the GAIN until you see the lure or bait on the display. -
Page 9: User Tips
20-foot scale. You may need to fine tune the gain each time you move locations, depending on the depth and bottom composition. Signal Interpretation - Sound waves emitted by the LX-3TC bounce off targets and return with the strength of the targets’ density. Denser targets return with a stronger signal, displayed as RED. -
Page 10: Open Water Set-Up
Open Water Set-Up The LX-3TC is an excellent sonar unit for open-water use. To convert the LX-3TC from an ice system to an open water unit, remove the LX-3TC power- head, gimbal bracket and power cord from the softcase. The gimbal bracket can be mounted on any flat surface. -
Page 11: Puck Transducer Installation
For more-detailed installation information, refer to the directions included with the puck transducer. Battery Draw - The LX-3TC has a current draw between 300 and 350mA per hour. With a standard 9-amp hour battery, the LX-3TC should last between 18 and 22 hours if fully charged. -
Page 12: Two-Year Warranty
www.marcumtech.com Two-Year Warranty Versa Electronics warrants this product to be free from defects in materials and workmanship for two years from the date of purchase. This warranty applies to customers who properly fill out and return the warranty card included with this manual. Failure to complete and return the warranty card voids the warranty. - Page 13 www.marcumtech.com ACCESSORIES Soft Pack Shuttle Transducer Arm Ice Ducer 12 v 9 amp Battery Power Cord Battery Charger Snowshield Open water transducers Puck Hi-speed Replacements for these items can be ordered off our website, marcumtech.com or by calling the toll-free number 888-778-1208 - 13 -...
- Page 14 www.marcumtech.com OTHER GREAT PRODUCTS FROM VERSA ELECTRONICS The LX-7 Digital Sonar takes DNA from other fine Marcum sonars –you might say it was “bred” for excellence. Because the LX-7 is digital, we can pack it full of more features than have ever been found in an ice sonar before. With an 8”...
- Page 15 www.marcumtech.com - 15 -...
- Page 16 www.marcumtech.com MarCum User Manuals are available for download from www.marcumtech.com.
