Weight Limit:500Lb/227Kg
KT - 2022/3/22
2022 Dorel Home Products All Rights Reserved
4593149N (Ivory Velvet)
4508049N (Black Velvet)
Thank you for purchasing from DHP!
Questions, concerns, missing parts?
CONTACT OUR CUSTOMER SERVICE DEPARTMENT
BEFORE RETURNING PRODUCT TO THE RETAILER.
If parts are missing or damaged, we will gladly ship your
replacement parts free of charge.
Visit www.dhpfurniture.com/eng/replacement-parts
or call Toll-Free 1-800-267-1739
You can also chat with us at www.dhpfurniture.com
Date of Purchase
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

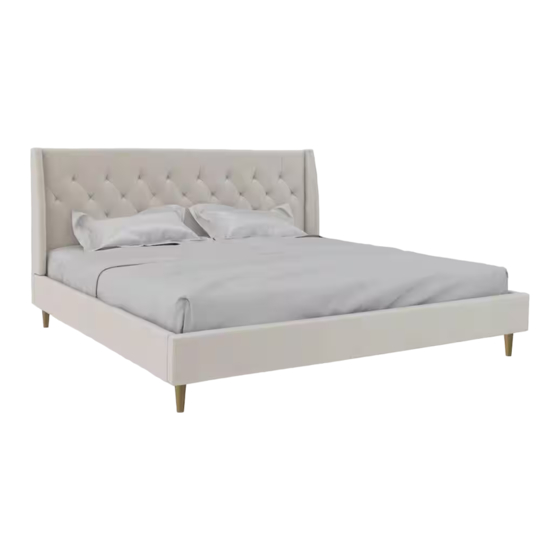

Upholstered Bed
King Size
Lot Number
(TAKEN FROM CARTON)
B344593149N00-KT
1
Advertisement
Table of Contents
Related Manuals for Dorel Home Products 4593149N
Summary of Contents for Dorel Home Products 4593149N
- Page 1 You can also chat with us at www.dhpfurniture.com Date of Purchase Lot Number (TAKEN FROM CARTON) THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. B344593149N00-KT KT - 2022/3/22 2022 Dorel Home Products All Rights Reserved...
-
Page 2: Limited 1-Year Warranty
Limited 1 year Warranty Read Before Beginning Assembly DHP warrants this product to be free from defects in material and workmanship Work in a spacious area and near where the unit will be used, preferably on a and agrees to remedy any such defect. This warranty covers one year from the carpet, or use a piece of the cardboard packaging to protect your floor and product. - Page 3 PARTS...
- Page 4 PARTS LIST - BOX 1/2 Support Leg Headboard Double Slat Cap Single Slat Cap 4 PCS 26 PCS 1 PC 26 PCS PART NUMBERS 4593149N 4508049N PART (Ivory Velvet) (Black Velvet) LABELS T1020270 T1020320 T984550 T984550 T926370 T926370 T926380 T926380 Each part has a unique part number.
- Page 5 2 PCS 1 PC 2 PCS Center Rail Wooden Slats 2 PCS 39 PCS 4 PCS PART NUMBERS 4593149N 4508049N PART Each part has a unique part number. (Ivory Velvet) (Black Velvet) LABELS Please reference the appropriate part T1020280 T1020330...
-
Page 6: Hardware List
16 PCS 14 PCS 20 PCS 1 PC 10 PCS Hardware Pack 4593149N (Ivory Velvet) HP#:T4593149N 4508049N (Black Velvet) Please do not completely tighten all the hardware, until the entire assembly is complete, unless otherwise indicated in the step-by-step instructions. - Page 7 Step 1 1.1 Open the non woven fabric window at the back of Part A. 1.2 Attach A1 and A2 to A with Then fully tighten all the bolts in this step. Close the compartments properly after the assembly. x 10...
- Page 8 Step 2 Attach Z X 2 to D with Fully tighten all bolts in this Step. Note: Holes must be located on upper side. x 12...
- Page 9 Step 3 Attach Z x 4 to A and C with Don't completely tighten the bolts until STEP 5 is complete.
- Page 10 Step 4 Attach J X 2 to F with...
- Page 11 Step 5 Attach F x 2 to A and C with Then properly tighten all the bolts.
- Page 12 Step 6 Attach E x 2 to D x 2 with Fully tighten all bolts in this Step. Note Slat holes on E must be facing up. X 14...
- Page 13 Step 7 Do Not insert caps Y before Step 8. 7.1 Insert P1 into one X;press X into E. 7.2 Repeat the same procedure for the opposite side of the bed with a new P1 and X. Follow the same procedure going backwards for every row of slats.
- Page 14 Step 8 8.1 Insert Y x 2 onto the free end of both P1 assembled in previous step, take a new P1 and insert each end into the other free end of Y x 2; 8.2 Press Y x 2 SIMULTANEOUSLY into F x 2 as illustrated.
-
Page 15: Helpful Hints
CAUTION: This unit is intended for use only with the products and/or maximum Helpful Hints weights indicated. Use with other products and/or products heavier than the maximum weights indicated may result in instability or cause possible injury. Move your new furniture carefully, with two people lifting and carrying the unit to its new location. - Page 16 4593149N (Terciopelo Marfil) Preguntas, inquietudes, partes que faltan? CONTACTE NUESTRO DEPARTAMENTO DE SERVICIO AL CLIENTE ANTES DE DEVOLVER EL PRODUCTO A LA TIENDA. 4508049N (Terciopelo Negro) Si le faltan piezas o las que se incluyen est n da adas, con mucho gusto le enviaremos sus piezas de reemplazo sin cargo extra.
- Page 17 Antes de deshacerse de las cajas de cart n, aseg rese de que est n vac as. Tambi n confirme que ha recibido todos los componentes necesarios para el ensamblaje al compararlos con la tabla de piezas indicadas en la secci n en ingl s. N MERO DE PIEZAS 4593149N 4508049N ETIQUETAS DESCRIPCI N (Terciopelo Marfil)
- Page 18 Instrucciones Paso 1 1.1 Abra la ventana de tela no tejida en la parte posterior de la Parte Limites de peso - Cama : 500Lb/227Kg 1.2 Una A1&A2 con A con , luego apriete completamente todos los pernos en este paso. Consejos tiles Paso 2 Mueva sus muebles nuevos con cuidado, se requiere de dos personas para...
-
Page 19: Informations Sur La Garantie
4593149N (Velours lvoire) Des questions, des pr occupations ou des pi ces manquantes? CONTACTEZ NOTRE SERVICE LA CLIENT LE AVANT DE RETOURNER LE PRODUIT AU D TAILLANT. 4508049N (Velours Noir) Si des pi ces sont manquantes ou endommag es, nous exp dierons volontiers vos pi ces de rechange gratuitement. - Page 20 (illustrations disponibles dans la section en anglais). LISTE DES PI CES 4593149N 4508049N TIQUETTE DESCRIPTION (Velours lvoire) (Velours Noir)
-
Page 21: Conseils Utiles
Instructions tape 1 1.1 Ouvrez la fen tre non tiss e l'arri re de la partie A Limite de Poids - Lit : 500Lb/227Kg 1.2 Attacher A1&A2 A avec , compl tement tous les boulons dans cette tape. tape 2 Conseils utiles Attacher Z X 2 D ave c...
