GIGA-BYTE TECHNOLOGY R282-P92 User Manual

Ampere altra max arm server - 2u dp 24+4-bay
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
R282-P92

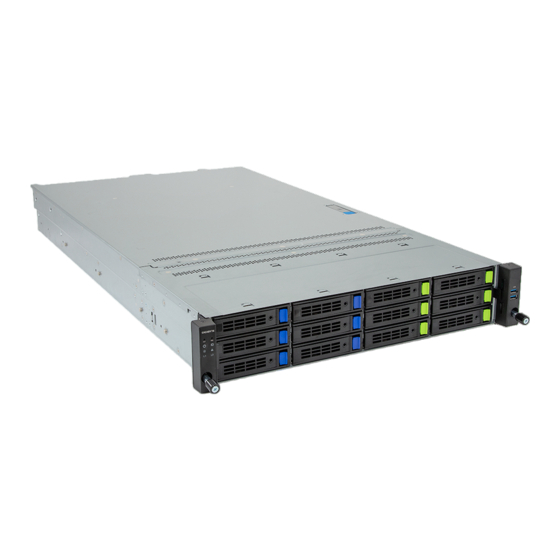

Ampere® Altra® Max ARM GPU Server - 2U DP 12-Bay
User Manual
Rev. 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R282-P92 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GIGA-BYTE TECHNOLOGY R282-P92

Summary of Contents for GIGA-BYTE TECHNOLOGY R282-P92

  • Page 1 R282-P92 Ampere® Altra® Max ARM GPU Server - 2U DP 12-Bay User Manual Rev. 1.0...
  • Page 2 Copyright © 2022 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved. The trademarks mentioned in this manual are legally registered to their respective owners. Disclaimer Information in this manual is protected by copyright laws and is the property of GIGABYTE. Changes to the specifications and features in this manual may be made by GIGABYTE without prior notice.
  • Page 3 Conventions The following conventions are used in this user's guide: NOTE! Gives bits and pieces of additional information related to the current topic. CAUTION! Gives precautionary measures to avoid possible hardware or software problems. WARNING! Alerts you to any damage that might result from doing or not doing specific actions.
  • Page 4 Server Warnings and Cautions Before installing a server, be sure that you understand the following warnings and cautions. WARNING! To reduce the risk of electric shock or damage to the equipment: • Do not disable the power cord grounding plug. The grounding plug is an important safety feature.
  • Page 5 Electrostatic Discharge (ESD) CAUTION! ESD CAN DAMAGE DRIVES, BOARDS, AND OTHER PARTS. WE RECOMMEND THAT YOU PERFORM ALL PROCEDURES AT AN ESD WORKSTATION. IF ONE IS NOT AVAILABLE, PROVIDE SOME ESD PROTECTION BY WEARING AN ANTI-STATIC WRIST STRAP AT- TACHED TO CHASSIS GROUND -- ANY UNPAINTED METAL SURFACE -- ON YOUR SERVER WHEN HANDLING PARTS.
  • Page 6 CAUTION! Risk of explosion if battery is replaced incorrectly or with an incorrect type. Replace the battery only with the same or equivalent type recommended by the manufacturer. Dispose of used bat- teries according to the manufacturer’s instructions.

  • Page 7: Table Of Contents

    Table of Contents Chapter 1 Hardware Installation ..................9 Installation Precautions ..................9 Product Specifications ..................10 System Block Diagram ................... 14 Chapter 2 System Appearance ..................15 Front View ...................... 15 Rear View ....................... 15 Front Panel LEDs and Buttons ............... 16 Power Supply Unit LED ..................
  • Page 8 Chapter 5 BIOS Setup ....................44 The Main Menu ....................46 Advanced Menu ..................... 48 5-2-1 Trusted Computing ....................49 5-2-2 ACPI Settings ......................50 5-2-3 APEI Configuration ....................51 5-2-4 General Watchdog Timer ..................52 5-2-5 X86 Emulator Configuration ...................53 5-2-6 PCI Subsystem Settings ..................54 5-2-7 Info Report Configuration ..................61 5-2-8...

  • Page 9: Chapter 1 Hardware Installation

    Chapter 1 Hardware Installation Installation Precautions The motherboard/system contain numerous delicate electronic circuits and components which can become damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user manual and follow these procedures: • Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or warranty sticker provided by your dealer.

  • Page 10: Product Specifications

    Product Specifications NOTE: We reserve the right to make any changes to the product specifications and product-related information without prior notice. Ampere® Altra® Max Processor Š Dual processors, 7nm technology Š Up to 128-core per processor, TDP 250W Š NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable Secur i t y Ser ver...
  • Page 11 Expansion Slot Riser Card CRS101J: 1 x PCIe x16 slot (Gen4 x16), Full height half-length Š Riser Card CRS101K: Socket Secur i t y Ser ver Oper ating P r oper t i es 1 x PCIe x16 slot (Gen4 x16), Full height half-length Š...
  • Page 12 1 x TPM header with SPI interface Š Optional TPM2.0 kit: CTM010 Š Power Supply 2 x 2000W redundant PSU Š 80 PLUS Platinum Š Socket Secur i t y Ser ver Oper ating P r oper t i es Socket Secur i t y Ser ver...
  • Page 13 Socket Secur i t y Ser ver Oper ating P r oper t i es System Š Dimension 438mm (W) x 87mm (H) x 730mm (D) Power Suppl y Š Hardware Installation - 13 -...

  • Page 14: System Block Diagram

    System Block Diagram 8-Channel DDR4, 16 x DIMMs 8-Channel DDR4, 16 x DIMMs Speed up to 3200 MHz Speed up to 3200 MHz CPU_0 CPU_1 CCIX x16 CCIX x16 Altra ® Altra ® PCIe4.0 x16 Riser Card Riser Card PCIe 4.0 x16 slot PCIe 4.0 x16 slot Riser Card Riser Card...

  • Page 15: Chapter 2 System Appearance

    Chapter 2 System Appearance Front View HDD0 HDD3 HDD6 HDD9 HDD1 HDD4 HDD7 HDD10 HDD2 HDD5 HDD8 HDD11 Description Front Panel LEDs and Buttons 3.5" HDD Bays Front USB 3.0 Ports NOTE! The Green Latch Supports NVMe • Refer to section 2-3 Front Panel LEDs and Buttons for a detailed description of the function of the LEDs.

  • Page 16: Front Panel Leds And Buttons

    Front Panel LEDs and Buttons No. Name Color Status Description Reset Button Press this button to reset the system. Blue Indicates the system identification is active. ID Button with LED Indicates the system identification is disabled. Green Indicates the system is powered on. Power button Green Blink...

  • Page 17: Power Supply Unit Led

    Power Supply Unit LED PSU LED State Description No AC power to all power supplies 0.5Hz Green Blinking AC present / only standby on / Cold redundant mode 2Hz Green Blinking Power supply firmware updateing mode AC cord unplugged or AC power lost; with a second power supply in parallel still with AC input power Amber Power supply critical event causing shut down:...

  • Page 18: Hard Disk Drive Leds

    Hard Disk Drive LEDs HDD Present RAID SKU LED #1 Locate Rebuilding HDD Access Fault (No Access) Green ON(*1) BLINK (*2) Disk LED (LED on Back Panel) Amber No RAID configuration Removed HDD Green ON(*1) (via HBA) Slot (LED on Amber Back Panel) Green...

  • Page 19: Chapter 3 System Hardware Installation

    Chapter 3 System Hardware Installation Pre-installation Instructions Computer components and electronic circuit boards can be damaged by discharges of static electricity. Working on computers that are still connected to a power supply can be extremely dangerous. Follow the simple guidelines below to avoid damage to your computer or injury to yourself.

  • Page 20: System Componenmts

    System Componenmts CPU0 CPU1 FAN1 FAN2 FAN3 FAN4 Hard Disk Drives System Hardware Installation - 20 -...

  • Page 21: Removing And Installing The Chassis Cover

    Removing and Installing the Chassis Cover Before you remove or install the chassis cover • Make sure the system is not turned on or connected to AC power. Follow these instructions to remove the chassis cover: Remove the screw on on the top cover. Unlock the plastic handle and pull the grip handle to open the panel cover.

  • Page 22: Removing And Installing The Fan Duct

    Removing and Installing the Fan Duct Follow these instructions to remove the fan duct: Lift up to remove the fan duct. To reinstall the fan duct, align the fan duct with the guiding groove. Push down the fan duct until it is firmly seated on the system.

  • Page 23: Removing And Installing The Heat Sink

    Removing and Installing the Heat Sink Read the following guidelines before you begin to install the heat sink: • Always turn off the computer and unplug the power cord from the power outlet before installing the heat sink to prevent hardware damage. •...

  • Page 24: Removing And Installing The Cpu

    Removing and Installing the CPU Read the following guidelines before you begin to install the CPU: • Make sure that the motherboard supports the CPU. • Always turn off the computer and unplug the power cord from the power outlet before installing the CPU to prevent hardware damage.

  • Page 25: Removing And Installing Memory

    Removing and Installing Memory Read the following guidelines before you begin to install the memory: • Make sure that the motherboard supports the memory. It is recommended that memory of the same capacity, brand, speed, and chips be used. • Always turn off the computer and unplug the power cord from the power outlet before installing the memory to prevent hardware damage.

  • Page 26: Removing And Installing A Memory Module

    3-6-2 Removing and Installing a Memory Module Before installing a memory module, make sure to turn off the computer and unplug the power cord from the power outlet to prevent damage to the memory module. Be sure to install DDR4 DIMMs on to this motherboard.

  • Page 27: Processor And Memory Module Matrix Table

    3-6-3 Processor and Memory Module Matrix Table CPU0 Memory Q’ty for each CPU E0 E1 F0 F1 G0 G1 H0 H1 D1 D0 C1 C0 B1 B0 A1 A0 1 DIMM 2 DIMM 4 DIMM 6 DIMM 8 DIMM 12 DIMM 16 DIMM CPU1 Memory Q’ty...

  • Page 28: Removing And Installing The Pcie Card

    Removing and Installing the PCIe Card • Voltages can be present within the server whenever an AC power source is connected. This voltage is present even when the main power switch is in the off position. Ensure that the system is powered off and all power sources have been disconnected from the server prior to installing a PCIe card.
  • Page 29 System Hardware Installation - 29 -...

  • Page 30: Removing And Installing The Hard Disk Drive

    Removing and Installing the Hard Disk Drive Read the following guidelines before you begin to install the hard disk drive: • Take note of the HDD tray orientation before sliding it out. • The tray will not fit back into the bay if it is inserted incorrectly. •...

  • Page 31: Replacing The Fan Assembly

    Replacing the Fan Assembly • Voltages can be present within the server whenever an AC power source is connected. This voltage is present even when the main power switch is in the off position. Ensure that the system is powered-down and all power sources have been disconnected from the server prior to replacing a system fan.

  • Page 32: Removing And Installing The Power Supply

    3-10 Removing and Installing the Power Supply Follow these instructions to replace the power supply: Flip up and then grasp the power supply handle. Press the retaining clip on the right side of the power supply unit in the direction indicated. Pull out the power supply unit using the handle.

  • Page 33: Installing And Removing An M.2 Solid State Drive

    3-11 Installing and Removing an M.2 Solid State Drive Follow these instructions to install an optional M.2 solid state drive (SSD): NOTE: To install/remove the M.2 heatsink use a No. 1 Phillips-head screwdriver with a screw torque of 1.5 ± 0.2 kgf*cm Place the solid state drive into the M.2 connector.

  • Page 34: Cable Routing

    3-12 Cable Routing Front Panel USB 3.0 Ports Cable CPU1 CPU0 Front Panel LEDs and Buttons Cable CPU1 CPU0 System Hardware Installation - 34 -...
  • Page 35 Motherboard Power Cable CPU1 CPU0 HDD Backplane Board Power Cable CPU1 CPU0 System Hardware Installation - 35 -...
  • Page 36 HDD Backplane Board Signal Cable CPU1 CPU0 BP_1 SATA 0-3 Cable CPU1 SAT0 CPU0 SL_SAS0 System Hardware Installation - 36 -...
  • Page 37 SATA 4-5 Cable CPU1 SAT1 SL_SAS1 CPU0 NVMe 6-7 Cable CPU1 U.2_7 U.2_6 MCIO_P0_1 CPU0 System Hardware Installation - 37 -...
  • Page 38 NVMe 8-9 Cable U.2_9 CPU1 U.2_9 CPU0 MCIO_P0_0 NVMe 10-11 Cable U.2_11 U.2_10 MCIO_P1_3 CPU1 CPU0 System Hardware Installation - 38 -...
  • Page 39 Riser Cable CPU1 MCIO_P1_0 MCIO_P1_1 CPU0 CPU1 MCIO_P0_2 MCIO_P0_3 CPU0 System Hardware Installation - 39 -...

  • Page 40: Chapter 4 Motherboard Components

    Chapter 4 Motherboard Components Motherboard Components CPU0 CPU1 13 12 Item Description 2 x 4 Pin P12V GPU Power Connector 2 x 3 Pin Power Connector 2 x 7 Pin Power Connector 2 x 4 Pin P12V Power Connector MCIO Connector (MCIO_P1_3/PCIe Gen4) 2 x 2 Pin P12V Backplane Power Connector SlimLine SAS Connector (MCIO_P1_22/PCIe Gen4) SlimLine SAS Connectors...
  • Page 41 Riser Connector #1 (PCIe Gen4/x16 Slot) Riser Connector #2 (PCIe Gen4/x16 Slot) OCP Mezzanine Connector (OCP 3.0/SFF Type/Gen4 x16) RTC Battery MCIO Connectors (MCIO_P0_2/MCIO_P0_3/PCIe Gen4) TPM Module Connector (SPI Interface) M.2 Slot (PCIe Gen4 x4, Support NGFF-22110) G-SCM Module Connector OCP Mezzanine Connector (OCP 3.0/SFF Type/Gen4 x16) MCIO Connectors (MCIO_P1_4/MCIO_P1_5/PCIe Gen4) MCIO Connectors (MCIO_P1_0/MCIO_P1_1/PCIe Gen4)

  • Page 42: Jumper Setting

    Jumper Setting OCP_PWR_SW NCSI_SW OCP power control by OCP card (Default) OCP1 force power on OCP3.0_2 Mezzanine OCP2 force power on OCP3.0_1 Mezzanine OCP1 & OCP2 force power on BMC1 BMC2 BMC Readiness LED Clear CMOS CLR_CMOS Normal Opera on (Default) Clear CMOS data CPU0 CPU1...

  • Page 43: Backplane Board Storage Connector

    Backplane Board Storage Connector 4-3-1 System Front HDD Backplane Board (CBPCBP20C5) Item Description Item Description SlimLine SAS Connector (U.2_0) SlimLine SAS Connector (U.2_8) SlimLine SAS Connector (U.2_1) SlimLine SAS Connector (U.2_9) SlimLine SAS Connector (U.2_2) SlimLine SAS Connector (U.2_10) SlimLine SAS Connector (U.2_3) SlimLine SAS Connector (U.2_11) SlimLine SAS Connector (U.2_4) SlimLine SAS Connector (SL_SAS2)

  • Page 44: Chapter 5 Bios Setup

    Chapter 5 BIOS Setup BIOS (Basic Input and Output System) records hardware parameters of the system in the EFI on the motherboard. Its major functions include conducting the Power-On Self-Test (POST) during system startup, saving system parameters and loading operating system, etc. BIOS includes a BIOS Setup program that allows the user to modify basic system configuration settings or to activate certain system features.
  • Page 45  Main This setup page includes all the items in standard compatible BIOS.  Advanced This setup page includes all the items of AMI BIOS special enhanced features. (ex: Auto detect fan and temperature status, automatically configure hard disk parameters.) ...

  • Page 46: The Main Menu

    The Main Menu Once you enter the BIOS Setup program, the Main Menu (as shown below) appears on the screen. Use arrow keys to move among the items and press <Enter> to accept or enter other sub-menu. Main Menu Help The on-screen description of a highlighted setup option is displayed on the bottom line of the Main Menu.
  • Page 47 Parameter Description Access Level Display the privileges level information. System Product Name Displays the system product name information. System Project Name Displays the system project name information. Project Name Displays the motherboard project name information. Project Version Displays version number of the BIOS setup utility. Build Date and Time Displays the date and time when the BIOS setup utility was created.

  • Page 48: Advanced Menu

    Advanced Menu The Advanced menu display submenu options for configuring the function of various hardware components. Select a submenu item, then press [Enter] to access the related submenu screen. BIOS Setup - 48 -...

  • Page 49: Trusted Computing

    5-2-1 Trusted Computing Parameter Description Configuration Select Enabled to activate TPM support feature. Security Device Support Options available: Enable/Disable. Default setting is Enable. Disable Block Sid Options available: Enabled/Disabled. Default setting is Disabled. BIOS Setup - 49 -...

  • Page 50: Acpi Settings

    5-2-2 ACPI Settings Parameter Description ACPI Settings Enable or disable BIOS ACPI auto configuration. Enable ACPI Auto Configuration Options available: Enabled/Disabled. Default setting is Enabled. Enable or disable CPPC. Enable CPPC Options available: Enable/Disable. Default setting is Enabled. Enable DVFS Mode Options available: Enabled/Disabled.

  • Page 51: Apei Configuration

    5-2-3 APEI Configuration Parameter Description APEI Configuration Enable/Disable ACPI Platform Error Interface support. APEI Enable Options available: Enabled/Disabled. Default setting is Disabled. BIOS Setup - 51 -...

  • Page 52: General Watchdog Timer

    5-2-4 General Watchdog Timer Parameter Description General Watchdog Timer Timeout when SCP will reset system if it doesn't receive response from ARMv8. Secure Watchdog Timeout Options available: 5 minutes/6 minutes/10 minutes/15 minutes/20 minutes. Default setting is Disable. Options available: 5 minutes/6 minutes/10 minutes/15 minutes/20 minutes. BIOS Watchdog Timeout Default setting is Disable.

  • Page 53: X86 Emulator Configuration

    5-2-5 X86 Emulator Configuration Parameter Description X86 Emulator Configuraiton Enable/Disable X86 Emulator support. X86 Emulator Enable Options available: Enabled/Disabled. Default setting is Disabled. BIOS Setup - 53 -...

  • Page 54: Pci Subsystem Settings

    5-2-6 PCI Subsystem Settings BIOS Setup - 54 -...
  • Page 55 Parameter Description AMI PCI Bus Driver Version Displays the AMI PCI Bus Driver version information. PCI Settings Common for all Devices: If the system has SR-IOV capable PCIe devices, this item SR-IOV Support Enable/Disable Single Root IO Virtualization Support. Options available: Enabled/Disabled. Default setting is Enabled. Change Settings of the Following PCI Devices PCI Latency Timer...
  • Page 56 5-2-6-1 PCI Express GEN 1 Settings Parameter Description PCI Express GEN1 Device Register Settings Relaxed Ordering Š – Enable or disable PCI Express Device Relaxed Ordering. Options available: Enabled/Disabled. Default setting is Enabled. Extend Tag Š – If enabled, allows device to use 8-bit Tag field as a requester.
  • Page 57 Parameter Description PCI Express Device Link Register Settings Maximum Read Request Š – Set Maximum Read Request of PCI Express Device or allow System BIOS to select the value. Options available: Auto/128 /256/512/1024/2048/4096 Bytes. Default setting is Auto. Extended Synch Š...
  • Page 58 5-2-6-2 PCI Express GEN 2 Settings BIOS Setup - 58 -...
  • Page 59 Parameter Description PCI Express GEN2 Device Register Settings Completion Timeout Š – In device Functions that support Completion Timeout programmability, allows system software to modify the Completion Timeout value. 'Default' 50us to 50ms. If 'Shorter' is selected, software will use shorter timeout ranges supported by hardware.
  • Page 60 Parameter Description PCI Express GEN2 Device Register Settings IDO Request Enable Š – If supported by hardware and set to 'Enabled', this permits setting the number of ID-Based Ordering (IDO) bit (Attribute[2]) requests to be initiated. Options available: Enabled/Disabled. Default setting is Disabled. IDO Completion Enable Š...

  • Page 61: Info Report Configuration

    5-2-7 Info Report Configuration Parameter Description Info Report Configuration Post Report Enable/Disable Post Report support. Post Report Options available: Enabled/Disabled. Default setting is Enabled. Options available: 0/1/2/3/4/5/6/78/9/10/Util Press ESC. Delay Time Default setting is 1. Error Message Report Enable/Disable Info Error Message support. Info Error Message Options available: Enabled/Disabled.

  • Page 62: Usb Configuration

    5-2-8 USB Configuration Parameter Description USB Configuration USB Module Version Displays USB module version information. USB Controller Displays the supported USB controllers. USB Devices: Displays the USB devices connected to the system. Enable/Disable the XHCI (USB 3.0) Hand-off support. XHCI Hand-off Options available: Enabled/Disabled.

  • Page 63: Network Stack Configuration

    5-2-9 Network Stack Configuration Parameter Description Enable/Disable the UEFI network stack. Network Stack Options available: Enabled/Disabled. Default setting is Enabled. PXE Retry Options available: Enabled/Disabled. Default setting is Disabled. Enable/Disable the Ipv4 PXE feature. Ipv4 PXE Support Options available: Enabled/Disabled. Default setting is Enabled. Enable/Disable the Ipv4 HTTP feature.

  • Page 64: Ip Configuration

    5-2-10 IP Configuration Parameter Description IP Configuration Settings Provide the Options to Configure the IP Address Options available: Disabled/Every Boot/On Demand. Default setting is Auto Configuration Disabled. BIOS Setup - 64 -...

  • Page 65: Nvme Configuration

    5-2-11 NVMe Configuration Parameter Description NVMe controller and Drive Displays the NVMe devices connected to the system. Information Allows user to set IP. Auto Configuration Options available: Every Boot/On Demand/Disabled. Default setting is Disabled. BIOS Setup - 65 -...

  • Page 66: Sata Configuration

    5-2-12 SATA Configuration Parameter Description SATA Configuration SATA Controlers: Displays the installed HDD devices information. System will automatically Port_# detect HDD type. BIOS Setup - 66 -...

  • Page 67: Graphic Output Configuration

    5-2-13 Graphic Output Configuration Parameter Description UEFI Configuration Select output device. Options available: First loaded Device,Onboard Device,External Device, Output Device Type Specific Device. Default setting is Onboard Device. Options available: Controlled by OS/Onboard VGA. OS graphics output Default setting is Controlled by OS. BIOS Setup - 67 -...

  • Page 68: Power Restore Configuration

    5-2-14 Power Restore Configuration Parameter Description Specify what state when power is re-applied after a power failure (G3 state). Power Restore Options available: Last State/Power On/Power Off. Default setting is Last State. BIOS Setup - 68 -...

  • Page 69: Intel(R) I350 Gigabit Network Connection

    5-2-15 Intel(R) I350 Gigabit Network Connection BIOS Setup - 69 -...
  • Page 70 Parameter Description Press [Enter] to configure advanced items. Link Speed Š – Allows for automatic link speed adjustment. – Options available: Auto Negotiated/10 Mbps Half/10 Mbps Full/100 Mbps Half/100 Mbps Full. Default setting is Auto Negotiated. NIC Configuration Wake On LAN Š...

  • Page 71: Mac Ipv4 Network Configuration

    5-2-16 MAC IPv4 Network Configuration Parameter Description Configured Options available: Enabled/Disabled. Default setting is Disabled. (Note) Options available: Enabled/Disabled. Default setting is Enabled. Enable DHCP Local IP Address Press [Enter] to configure local IP address. Local NetMask Press [Enter] to configure local NetMask. Local Gateway Press [Enter] to configure local Gateway Local DNS Servers...

  • Page 72: Mac Ipv6 Network Configuration

    5-2-17 MAC IPv6 Network Configuration Parameter Description Enter Configuration Menu Press [Enter] for configuration of advanced items. BIOS Setup - 72 -...

  • Page 73: Driver Health

    5-2-18 Driver Health Parameter Description Driver Health Displays driver health status of the devices/controllers if installed BIOS Setup - 73 -...

  • Page 74: Chipset Setup Menu

    Chipset Setup Menu Chipset Setup menu displays submenu options for configuring the function of the North Bridge. Select a submenu item, then press [Enter] to access the related submenu screen. Parameter Description CPU Configuration Press [Enter] for configuration of advanced items. RAS Configuration Press [Enter] for configuration of advanced items.

  • Page 75: Cpu Configuration

    5-3-1 CPU Configuration Parameter Description CPU Configuration Numbers of processor Displays the number of installed processor information. enabled Numbers of core enabled Displays the core of installed processor information. Inter Socket Connection 0/1 Displays the inter socket 0/1 connection information. Control Link Speed for Inter Socket Connection.
  • Page 76 Option available: Enhanced Least Recently Used/Linear-Feedback Shift SLC Replacement Policy Register. Default Setting is Enhanced Least Recently Used. L1C I/D Displays the technical specifications for the installed processor. Warranty BIOS Setup - 76 -...

  • Page 77: Ras Configuration

    5-3-2 RAS Configuration Parameter Description RAS Configuration Option available: Enabled/Disabled. Hardware EINJ Default setting: Disabled. Option available: Enabled/Disabled. DRAM EINJ No Trigger Default setting: Disabled. Option available: Enabled/Disabled. Enable AGDI Default setting: Disabled. Option available: Enabled/Disabled. PCIe AER Firmware First Default setting: Disabled.

  • Page 78: Memory Slot Information

    5-3-3 Memory Slot Information BIOS Setup - 78 -...
  • Page 79 Parameter Description Memory Configuration Total Memory Effective Memory Displays the technical specifications for the installed DIMM. Memory Speed Memory Operating Speed Option available: Auto/2133/2400/2666/2933/3200. Default setting: Auto. Selection Enable Slave 32bit memory Option available: Enabled/Disabled. Default setting: Disabled. region Fine Granularity Refresh Select DDR Fine Granularity Refresh (FGR) mode.
  • Page 80 5-3-3-1 Memory RAS and Performance Configuration Parameter Description Memory RAS and Performance Configuration Option available: Disabled/SECDED/Symbol ECC Mode Default setting: SECDED. Defer uncorrectable read Option available: Enabled/Disabled. Default setting: Disabled. errors Option available: Enabled/Disabled. Fault handling interrupt Default setting: Enabled. Option available: 1..24.
  • Page 81 5-3-3-2 NVDIMM-N Configuration Parameter Description NVDIMM-N Configuration Socket0/1 Configuration Select NVDIMM-N Mode. Mode Selection Option available: Non-NVDIMM/Non-Hashed/Hashed/Auto. Default setting: Auto. BIOS Setup - 81 -...

  • Page 82: Serialport Console

    5-3-4 Serialport Console Parameter Description Serialport console To enable or disable the Console Redirection for UART0. Serialport console or UART0 Option available: Enabled/Disabled. Default setting: Enabled. To enable or disable the Console Redirection for UART2. Serialport console or UART2 Option available: Enabled/Disabled. Default setting: Enabled.

  • Page 83: Pcie Root Complex Configuration

    5-3-5 PCIE Root Complex Configuration Parameter Description PCIE Root Complex Configuration Option available: Manual/Default. PCIe Lanes Bifurcation Default setting: Default. Enable/Disable PMU feature for SMMU. SMMU Pmu Option available: Enabled/Disabled. Default setting: Disabled. Enable/Disable on-board VGA. On-board VGA Option available: Enabled/Disabled. Default setting: Enabled.

  • Page 84: Server Management Menu

    Server Management Menu Parameter Description Enable/Disable interfaces to communicate with BMC. BMC Support Options available: Enabled/Disabled. Default setting is Enabled. System Event Log Press [Enter] to configure advanced items. BMC self test Press [Enter] to configure advanced items. View FRU Press [Enter] to view the advanced items.

  • Page 85: System Event Log

    5-4-1 System Event Log Parameter Description Enabling / Disabling Options Change this item to enable or disable all features of System Event SEL Components Logging during boot. Options available: Enabled/Disabled. Default setting is Enabled. Erasing Settings Choose options for erasing SEL. Erasing SEL Options available: No/Yes, On next reset/Yes, On every reset.

  • Page 86: Bmc Self Test

    5-4-2 BMC self test Parameter Description log area usage =00 out of 20 logs Options available: No/Yes, On next reset/Yes, On every reset. Erase Log Default setting is No. Configuration for reactions to a full log. When Log is full Option available: Do not log any more/Clear Log.

  • Page 87: View Fru Information

    5-4-3 View FRU Information The FRU page is a simple display page for basic system ID information, as well as System product information. Items on this window are non-configurable. (Note) The model name will vary depends on the product you purchased. BIOS Setup - 87 -...

  • Page 88: Bmc Network Configuration

    5-4-4 BMC Network Configuration Parameter Description BMC network configuration Lan Channel 1 Select to configure LAN channel parameters statically or dynamically (DHCP). Do nothing option will not modify any BMC network parameters Configuration Address source during BIOS phase. Options available: Unspecified/Static/DynamicBmcDhcp. Default setting is DynamicBmcDhcp.

  • Page 89: Security Menu

    Security Menu The Security menu allows you to safeguard and protect the system from unauthorized use by setting up access passwords. There are two types of passwords that you can set: • Administrator Password Entering this password will allow the user to access and change all settings in the Setup Utility. •...

  • Page 90: Media Sanitization

    5-5-1 Media Sanitization Parameter Description Media Sanitization Configuration Device Name Display device name. Select which method apply for this drive. Method Type Options available: Clear/Purge. Default settings: Clear. Start This Device Sanitization Start sanitizating this device with setup configsuraiton. BIOS Setup - 90 -...

  • Page 91: Secure Boot

    5-5-2 Secure Boot Parameter Description System Mode Displays the system is in User mode or Setup mode. Secure Boot requires all the applications that are running during the booting process to be pre-signed with valid digital certificates. This way, the system knows all the files being loaded before Windows loads and gets to the login screen have not been tampered with.
  • Page 92 Parameter Description Press [Enter] to configure advanced items. Please note that this item is configurable when Secure Boot Mode is set to Custom. Provision Factory Defaults Š – Allows to provision factory default Secure Boot keys when system is in Setup Mode.

  • Page 93: Boot Menu

    Boot Menu The Boot menu allows you to set the drive priority during system boot-up. BIOS setup will display an error message if the legacy drive(s) specified is not bootable. Parameter Description Boot Configuration Number of seconds to wait for setup activation key. 65535 (0xFFFF) Setup Prompt Timeout means indefinite waiting.
  • Page 94 Parameter Description Dump full Setup Data Dump non-default Setup Data Restore Setup Date New UEFI OS Boot Option Option available: Default/Place First/Place Last. Default setting is Place First/. Policy FIXED BOOT ORDER Priorities Press [Enter] to configure the boot priority. By default, the server searches for boot devices in the following sequence: Boot Option #1 / #2 / #3 / #4 /...

  • Page 95: Save & Exit Menu

    Save & Exit Menu The Exit menu displays the various options to quit from the BIOS setup. Highlight any of the exit options then press Enter. Parameter Description Save Options Saves changes made and closes the BIOS setup. Save Changes and Exit Options available: Yes/No.

  • Page 96: Bios Post Beep Code (Ami Standard)

    BIOS POST Beep code (AMI standard) 5-8-1 PEI Beep Codes # of Beeps Description Memory not Installed. Memory was installed twice (InstallPeiMemory routine in PEI Core called twice) Recovery started DXEIPL was not found DXE Core Firmware Volume was not found Recovery failed S3 Resume failed Reset PPI is not available...
