GIGA-BYTE TECHNOLOGY R182-P91 User Manual

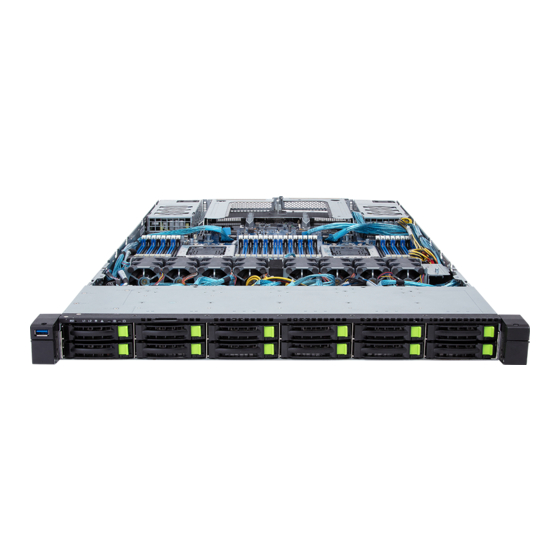

Ampere altra max arm server - 1u 12-bay server
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
R182-P91
Ampere® Altra® Max ARM Server - 1U 12-Bay Server
User Manual
Rev. 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R182-P91 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GIGA-BYTE TECHNOLOGY R182-P91

Summary of Contents for GIGA-BYTE TECHNOLOGY R182-P91

  • Page 1 R182-P91 Ampere® Altra® Max ARM Server - 1U 12-Bay Server User Manual Rev. 1.0...
  • Page 2 Copyright © 2022 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved. The trademarks mentioned in this manual are legally registered to their respective owners. Disclaimer Information in this manual is protected by copyright laws and is the property of GIGABYTE. Changes to the specifications and features in this manual may be made by GIGABYTE without prior notice.
  • Page 3 Conventions The following conventions are used in this user's guide: NOTE! Gives bits and pieces of additional information related to the current topic. CAUTION! Gives precautionary measures to avoid possible hardware or software problems. WARNING! Alerts you to any damage that might result from doing or not doing specific actions.
  • Page 4 Server Warnings and Cautions Before installing a server, be sure that you understand the following warnings and cautions. WARNING! To reduce the risk of electric shock or damage to the equipment: • Do not disable the power cord grounding plug. The grounding plug is an important safety feature.
  • Page 5 Electrostatic Discharge (ESD) CAUTION! ESD CAN DAMAGE DRIVES, BOARDS, AND OTHER PARTS. WE RECOMMEND THAT YOU PERFORM ALL PROCEDURES AT AN ESD WORKSTATION. IF ONE IS NOT AVAILABLE, PROVIDE SOME ESD PROTECTION BY WEARING AN ANTI-STATIC WRIST STRAP AT- TACHED TO CHASSIS GROUND -- ANY UNPAINTED METAL SURFACE -- ON YOUR SERVER WHEN HANDLING PARTS.
  • Page 6 CAUTION! Risk of explosion if battery is replaced incorrectly or with an incorrect type. Replace the battery only with the same or equivalent type recommended by the manufacturer. Dispose of used bat- teries according to the manufacturer’s instructions.

  • Page 7: Table Of Contents

    Table of Contents Chapter 1 Hardware Installation ...................10 Installation Precautions .................. 10 Product Specifications ..................11 System Block Diagram ................... 14 Chapter 2 System Appearance ..................15 Front View ...................... 15 Rear View ....................... 16 Front Panel LED and Buttons ................ 17 Rear System LAN LEDs .................
  • Page 8 4-3-1 DCR110 ........................42 Backplane Board Storage Connector ............43 4-4-1 CBP10C0 ........................43 Chapter 5 BIOS Setup ....................44 The Main Menu ....................46 Advanced Menu ..................... 49 5-2-1 Trusted Computing ....................50 5-2-2 ACPI Settings ......................51 5-2-3 APEI Configuration ....................52 5-2-4 General Watchdog Timer ..................53 5-2-5 X86 Emulation Configuration ..................54 5-2-6...
  • Page 9 Save & Exit Menu ................... 94 BIOS POST Beep code (AMI standard) ............96 5-8-1 PEI Beep Codes .....................96 5-8-2 DXE Beep Codes ....................96 - 9 -...

  • Page 10: Chapter 1 Hardware Installation

    Chapter 1 Hardware Installation Installation Precautions The motherboard/system contain numerous delicate electronic circuits and components which can become damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user manual and follow these procedures: • Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or warranty sticker provided by your dealer.

  • Page 11: Product Specifications

    Product Specifications NOTE: We reserve the right to make any changes to the product specifications and product-related information without prior notice. System Š 438 x 43.5 x 730 (W x H x D, mm) Dimension Š Socket Security Ampere® Altra® Max Processor Š...
  • Page 12 Internal I/O 1 x M.2 slot Š 1 x TPM header Š 1 x Front panel header Š 1 x HDD/SSD backplane board header Š Socket Security 1 x PMBus connector Š 1 x IPMB connector Š 1 x Clear CMOS jumper Š...
  • Page 13 System Aspeed® AST2600 management controller Management GIGABYTE Management Console (AMI MegaRAC SP-X) web interface Dashboard Š Security cket HTML5 KVM Š Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.) Š Sensor Reading History Data Š FRU Information Š SEL Log in Linear Storage / Circular Storage Policy Š...

  • Page 14: System Block Diagram

    System Block Diagram Hardware Installation - 14 -...

  • Page 15: Chapter 2 System Appearance

    Chapter 2 System Appearance Front View HDD10 HDD2 HDD4 HDD6 HDD8 HDD0 HDD11 HDD1 HDD3 HDD5 HDD7 HDD9 Description Front USB 3.0 Port Front Panel LEDs and Buttons 2.5" HDD Bays NOTE! Green HDD Latch Supports NVMe • Go to the section for detail description of function 2-3 Front Panel Buttons and LEDs LEDs.

  • Page 16: Rear View

    Rear View Slot3 PSU2 PSU1 Slot4 Slot2 Slot1 Description PCIe Card Slot x 2 Mezzanine Card Slot (Option/OCP 3.0/SFF) Server Management LAN Port GbE LAN Port x 2 USB 3.0 Port x 2 Mini DP Port Mezzanine Card Slot (Option/OCP 3.0/SFF) System Appearance - 16 -...

  • Page 17: Front Panel Led And Buttons

    Front Panel LED and Buttons Name Color Status Description Green System is powered on Green Blink System is in ACPI S1 state (sleep mode) Power button • System is not powered on or in ACPI S5 state with LED (power off) •...

  • Page 18: Rear System Lan Leds

    Rear System LAN LEDs Name Color Status Description Yellow 1 Gbps data rate 1GbE Speed Green 100 Mbps data rate 10 Mbps data rate Link between system and network or no access Green 1GbE Link / Blink Data transmission or reception is occurring. Activity LED No data transmission or reception is occurring.

  • Page 19: Power Supply Unit (Psu) Led

    Power Supply Unit (PSU) LED PSU LED State Description No AC power to all power supplies 1Hz Green Blinking AC present / only standby on / Cold redundant mode 2Hz Green Blinking Power supply firmware updating mode AC cord unplugged or AC power lost; with a second power supply in parallel still with AC input power Amber Power supply critical event causing shut down:...

  • Page 20: Hard Disk Drive Leds

    Hard Disk Drive LEDs HDD Present RAID SKU Rebuilding LED1 Locate HDD Fault Access (No Access) Disk LED Green ON(*1) BLINK (*2) (LED on Back Panel) Amber No RAID configuration Green ON(*1) (via HBA) Removed HDD Slot (LED on Back Panel) Amber Green BLINK (*2)

  • Page 21: Chapter 3 System Hardware Installation

    Chapter 3 System Hardware Installation Pre-installation Instructions Computer components and electronic circuit boards can be damaged by electrostatic discharge. Working on computers that are still connected to a power supply can be extremely dangerous. Follow the simple guidelines below to avoid damage to your computer or injury to yourself.

  • Page 22: Removing And Installing The Chassis Cover

    Removing and Installing the Chassis Cover Before you remove or install the chassis top cover • Make sure the system is not turned on or connected to AC power. Follow these instructions to remove/install the chassis cover: Remove the screws on both sides of the back chassis cover. (Note: For safe shipping, installation screws are added and should be removed before deployment/putting it in the server cabinet.) Remove the screw securing the back chassis cover.

  • Page 23: Removing And Installing The Fan Duct

    Removing and Installing the Fan Duct Follow these instructions to remove/install the fan duct: Lift up to remove the fan duct To install the fan duct, align the fan duct with the guiding groove. Push down the fan duct into chassis until its firmly seat.

  • Page 24: Removing And Installing The Heat Sink

    Removing and installing the Heat Sink Read the following guidelines before you begin to remove/install the heat sink: • Always turn off the computer and unplug the power cord from the power outlet before installing the heat sink to prevent hardware damage. •...

  • Page 25: Installing The Cpu

    Installing the CPU Read the following guidelines before you begin to install the CPU: • Make sure that the motherboard supports the CPU. • Always turn off the computer and unplug the power cord from the power outlet before installing the CPU to prevent hardware damage.

  • Page 26: Installing The Memory

    Installing the Memory Read the following guidelines before you begin to install the memory: • Make sure that the motherboard supports the memory. It is recommended that memory of the same capacity, brand, speed, and chips be used. • Always turn off the computer and unplug the power cord from the power outlet before installing the memory to prevent hardware damage.

  • Page 27: Installing The Memory

    3-5-2 Installing the Memory Before installing a memory module, make sure to turn off the computer and unplug the power cord from the power outlet to prevent damage to the memory module. Be sure to install DDR4 DIMMs on this motherboard. Follow these instructions to install the Memory: Insert the DIMM memory module vertically into the DIMM slot, and push it down.

  • Page 28: Altra Platform Ddr4 Suggest Configuration Table

    3-5-4 Altra Platform DDR4 Suggest Configuration Table Memory Q’ty CPU0 CPU1 for each CPU E0 E1 F0 F1 G0 G1 H0 H1 D1 D0 C1 C0 B1 B0 A1 A0 M0 M1 N0 N1 O0 O1 P0 P1 L1 L0 K1 K0 J1 J0 I1 I0 1 DIMM 2 DIMM 4 DIMM...

  • Page 29: Installing The Pci Expansion Card

    Installing the PCI Expansion Card • Voltages can be present within the server whenever an AC power source is connected. This voltage is present even when the main power switch is in the off position. Ensure that the system is powered-down and all power sources have been disconnected from the server prior to installing a PCIe card.

  • Page 30: Installing The Mezzanine Card

    Installing the Mezzanine Card 3-7-1 OCP 3.0 Use of the following type of OCP 3.0 NIC is recommended: • OCP 3.0 SFF with Pull Tab • OCP 3.0 SFF with Ejector Latch Follow these instructions to install an OCP 3.0 mezzanine card: Remove the two screws securing the mezzanine card slot cover.

  • Page 31: Installing The Hard Disk Drive

    Installing the Hard Disk Drive Read the following guidelines before you begin to install the hard disk drive: • Take note of the drive tray orientation before sliding it out. • The tray will not fit back into the bay if inserted incorrectly. •...

  • Page 32: Installing The M.2 Device And Heat Sink

    Installing the M.2 Device and Heat Sink WARNING: Installation of the thermal pad over the M.2 device is required when installing an M.2 device. Lack of the thermal pad may result in the system overheating and throttle the system performance. CAUTION The position of the stand-off screw will depend on the size of the M.2 device.

  • Page 33: Replacing The System Fan Module

    3-10 Replacing the System Fan Module CAUTION! Before you remove or install the system fans follow these steps: • Make sure the system is not turned on or connected to AC power. • Disconnect all necessary cable connections. Failure to observe these warnings could result in personal injury or damage to the equipment Follow these instructions to replace the fan assembly: Lift up the fan assembly from the chassis.

  • Page 34: Removing And Installing The Power Supply

    3-11 Removing and Installing the Power Supply CAUTION! • In order to reduce the risk of injury from electric shock, disconnect AC power from the power supply before removing the power supply from the system Follow these instructions to replace the power supply: Flip and then grasp the power supply handle.

  • Page 35: Cable Routing

    3-12 Cable Routing Front Switch Cable/Front LED Cable Front Panel USB 3.0 Cable System Hardware Installation - 35 -...
  • Page 36 HDD Backplane Board Power Cable HDD Backplane Board Signal Cable System Hardware Installation - 36 -...
  • Page 37 ATX Power Cable SlimLine SAS to SATA Cable System Hardware Installation - 37 -...
  • Page 38 NVMe Cable System Hardware Installation - 38 -...

  • Page 39: Chapter 4 Motherboard Components

    Chapter 4 Motherboard Components Motherboard Components CPU0 CPU1 13 12 Item Description 2 x 4 Pin P12V GPU Power Connector 2 x 3 Pin Power Connector 2 x 7 Pin Power Connector 2 x 4 Pin P12V Power Connector MCIO Connector (MCIO_P1_3/PCIe Gen4) 2 x 2 Pin P12V Backplane Power Connector SlimLine SAS Connector (MCIO_P1_22/PCIe Gen4) SlimLine SAS Connectors...
  • Page 40 Item Description IPMB Connector Riser Connector #1 (PCIe Gen4/x16 Slot) Riser Connector #2 (PCIe Gen4/x16 Slot) OCP Mezzanine Connector (OCP 3.0/SFF Type/Gen4 x16) RTC Battery MCIO Connectors (MCIO_P0_2/MCIO_P0_3/PCIe Gen4) TPM Module Connector (SPI Interface) M.2 Slot (PCIe Gen4 x4, Support NGFF-22110) G-SC Module Connector OCP Mezzanine Connector (OCP 3.0/SFF Type/Gen4 x16) MCIO Connectors (MCIO_P1_4/MCIO_P1_5/PCIe Gen4)

  • Page 41: Jumper Setting

    Jumper Setting OCP_PWR_SW OCP power control by OCP card (Default) OCP1 force power on OCP2 force power on OCP1 & OCP2 force power on NCSI_SW OCP3.0_2 Mezzanine OCP3.0_1 Mezzanine Clear CMOS CLR_CMOS Normal Opera on (Default) Clear CMOS data Motherboard Components - 41 -...

  • Page 42: G-Sc Module

    G-SC Module 4-3-1 DCR110 BMC1 BMC2 BMC Readiness LED Motherboard Components - 42 -...

  • Page 43: Backplane Board Storage Connector

    Backplane Board Storage Connector 4-4-1 CBP10C0 Item Description SlimLine Connector (U_2_0) SlimLine Connector (U_2_1) SlimLine Connector (U_2_2) SlimLine Connector (U_2_3) SlimLine Connector (U_2_4) SlimLine Connector (U_2_5) SlimLine Connector (U_2_6) SlimLine Connector (U_2_7) SlimLine Connector (U_2_8) SlimLine Connector (U_2_9) SlimLine Connector (U_2_10) SlimLine Connector (U_2_11) SlimLine Connector (SL_SAS0) SlimLine Connector (SL_SAS1)

  • Page 44: Chapter 5 Bios Setup

    Chapter 5 BIOS Setup BIOS (Basic Input and Output System) records hardware parameters of the system in the EFI on the motherboard. Its major functions include conducting the Power-On Self-Test (POST) during system startup, saving system parameters, loading the operating system etc. The BIOS includes a BIOS Setup program that allows the user to modify basic system configuration settings or to activate certain system features.
  • Page 45  Main This setup page includes all the items of the standard compatible BIOS.  Advanced This setup page includes all the items of AMI BIOS special enhanced features. (ex: Auto detect fan and temperature status, automatically configure hard disk parameters.) ...

  • Page 46: The Main Menu

    The Main Menu Once you enter the BIOS Setup program, the Main Menu (as shown below) appears on the screen. Use arrow keys to move among the items and press <Enter> to accept or enter other sub-menu. Main Menu Help The on-screen description of a highlighted setup option is displayed on the bottom line of the Main Menu.
  • Page 47 Parameter Description BIOS Information Access Level Displays the privileges level information. System Project Name Displays the system project name information. Project Name Displays the motherboard project name information Project Version Displays version number of the BIOS setup utility. Build Date and Time Displays the date and time when the BIOS setup utility was created.
  • Page 48 Parameter Description System Language Option: English. System Date Sets the date following the weekday-month-day-year format. System Time Sets the system time following the hour-minute-second format. BIOS Setup - 48 -...

  • Page 49: Advanced Menu

    Advanced Menu The Advanced Menu displays submenu options for configuring the function of various hardware components. Select a submenu item, then press <Enter> to access the related submenu screen. BIOS Setup - 49 -...

  • Page 50: Trusted Computing

    5-2-1 Trusted Computing Parameter Description Configuration Enable/Disable BIOS support for security device. OS will not show security device. TCG EFI protocol and INT1A interface will not be Security Device Support available. Options available: Enable, Disable. Default setting is Enable. Override to allow SID authentication in TCG Storage device. Disable Block Sid Options available: Enabled, Disabled.

  • Page 51: Acpi Settings

    5-2-2 ACPI Settings Parameter Description ACPI Settings Enable/Disable BIOS ACPI auto configuration. Enable ACPI Auto Configuration Options available: Disabled, Enabled. Default setting is Enabled. Enable CPPC Options available: Disabled, Enabled. Default setting is Enabled. (Note) Enable DVFS Mode Default setting is Disabled. Enable LPI Options available: Disabled, Enabled.

  • Page 52: Apei Configuration

    5-2-3 APEI Configuration Description Parameter APEI Configuration Enable/Disable ACPI platform Error Interface support. APEI Enable Options available: Disabled, Enabled. Default setting is Disabled. BIOS Setup - 52 -...

  • Page 53: General Watchdog Timer

    5-2-4 General Watchdog Timer Description Parameter General Watchdog Timer Timeout when SCP will reset system if it doesn't receive response from ARMv8. Options available: Disable, 5 minutes, 6 minutes, 10 minutes, 15 minutes, 20 Secure Watchdog Timeout minutes. Default setting is Disable. Options available: Disable, 5 minutes, 6 minutes, 10 minutes, 15 minutes, 20 BIOS Watchdog Timeout minutes.

  • Page 54: X86 Emulation Configuration

    5-2-5 X86 Emulation Configuration Description Parameter X86 Emulator Configuration Enable/Disable X86 Emulator support. X86 Emulator Enable Options available: Enabled, Disabled. Default setting is Disabled. BIOS Setup - 54 -...

  • Page 55: Pci Subsystem Settings

    5-2-6 PCI Subsystem Settings BIOS Setup - 55 -...
  • Page 56 Parameter Description AMI PCI Driver Version Displays the AMI PCI Bus Driver version information PCI Settings Common for all Devices: Enable/Disable Single Root IO virtualization support. SR-IOV Support Options available: Disabled, Enabled. Default setting is Enabled. Change Settings of the following PCI Devices: Press [Enter] to configure advanced items.
  • Page 57 5-2-6-1 PCI Express GEN 1 Settings Parameter Description PCI Express Device Register Settings Enable/disable PCI Express Device Relaxed Ordering. Relaxd Ordering Options available: Enabled, Disabled. Default setting is Enabled. If enabled, allows device to use 8-bit tag field as a requester. Extended Tag Options available: Enabled, Disabled.
  • Page 58 Parameter Description If supported by hardware and set to "Enabled", the device is permitted to use CLKREQ# signal for power management of Link Clock Power Management clock in accordance to protocol defined in appropriate form factor specification. Options available: Enabled, Disabled. Default setting is Disabled. Defines number of Retry attempts software will take to retrain the Link Training Retry link if previous training attempt was unsuccessful.
  • Page 59 5-2-6-2 PCI Express GEN 2 Settings Parameter Description PCI Express GEN2 Device Register Settings I n d e v i c e f u n c t i o n s t h a t s u p p o r t c o m p l e t i o n t i m e o u t programmability, allows system software to modify the completion timeout value.
  • Page 60 Parameter Description If supported by hardware and set to 'Enabled', outbound AtomicOp Egress Blocking AtomicOp Requestsvia Egress Ports will be blocked. Options available: Enabled, Disabled. Default setting is Disabled. If supported by hardware and set to 'Enabled', this permits setting the number of ID-Based Ordering (IDO) bit (Attribute[2]) requests IDO Request Enable to be initiated.

  • Page 61: Info Report Configuration

    5-2-7 Info Report Configuration Description Parameter Post Report Enable/disable post report support. Post Report Options available: Enabled, Disabled. Default setting is Enabled. Options available: 0,1,2,3,4,5,6,7,8,9,10, Until Press ESC. Delay Time Default setting is 1. Error Message Report Enable/disable Info error message support. Info Error Message Options available: Enabled, Disabled.

  • Page 62: Usb Configuration

    5-2-8 USB Configuration Parameter Description USB Configuration USB Module Version Displays the USB module version information. USB Controllers Displays the supported USB controllers. USB Devices: Displays the USB devices connected to the system. Enable/Disable the XHCI (USB 3.0) Hand-off support. XHCI Hand-off Options available: Enabled, Disabled.

  • Page 63: Network Stack Configuration

    5-2-9 Network Stack Configuration Parameter Description Enable/Disable the UEFI network stack. Network Stack Options available: Enabled, Disabled. Default setting is Enabled. PXE Retry Options available: Enabled, Disabled. Default setting is Disabled. (Note) Enable/Disable the Ipv4 PXE feature. Ipv4 PXE Support (Note) Options available: Enabled, Disabled.

  • Page 64: Ip Configuration

    5-2-10 IP Configuration Parameter Description IP Configuration Settings Provides the Options to Configure the IP Address Options available: Disabled, Every Boot, On Demand. Auto Configuration Default setting is Disabled. BIOS Setup - 64 -...

  • Page 65: Nvme Configuration

    5-2-11 NVMe Configuration Parameter Description NVMe controller and Drive Displays the NVMe devices connected to the system information BIOS Setup - 65 -...

  • Page 66: Sata Configuration

    5-2-12 SATA Configuration Parameter Description Displays the installed HDD devices information. System will automatically SATA Configuration detect HDD type. BIOS Setup - 66 -...

  • Page 67: Graphic Output Configuration

    5-2-13 Graphic Output Configuration Parameter Description Graphic Output Configuration Selects output device type. Output Device Type Options available: First loaded Device, Onboard Device, External Device, Specific Device. Default setting is Onboard Device. Use Onboard graphics output under OS (BMC KVM requires onboard graphics output).

  • Page 68: Power Restore Configuration

    5-2-14 Power Restore Configuration Parameter Description Specifies what state when power is re-applied after a power failure (G3 state). Power Restore Options available: Power Off, Power On, Last State. Default setting is Last State. BIOS Setup - 68 -...

  • Page 69: Intel(R) I350 Gigabit Network Connection

    5-2-15 Intel(R) I350 Gigabit Network Connection BIOS Setup - 69 -...
  • Page 70 Description Parameter Press [Enter] to configure advanced items. Link Speed Š – Allows for automatic link speed adjustment. – Options available: Auto Negotiated, 10 Mbps Half, 10 Mbps Full, 100 Mbps Half, 100 Mbps Full. Default setting is Auto Negotiated. Wake On LAN NIC Configuration Š...

  • Page 71: Mac Ipv4 Network Configuration

    5-2-16 MAC IPv4 Network Configuration Parameter Description Indicates whether network address is configured successfully or not. Configured Options available: Enabled, Disabled. Default setting is Disabled. Options available: Enabled, Disabled. Default setting is Enabled. Enable DHCP (Note) Local IP Address Press [Enter] to configure local IP address. (Note) Press [Enter] to configure local NetMask.

  • Page 72: Mac Ipv6 Network Configuration

    5-2-17 MAC IPv6 Network Configuration Parameter Description Press [Enter] to configure advanced items. Displays the MAC Address information. Š Interface ID Š – The 64 bit alternative interface ID for the device. The string is colon separated. e.g. ff:dd:88:66:cc:1:2:3. DAD Transmit Count Š...

  • Page 73: Driver Health

    5-2-18 Driver Health Parameter Description Driver Health Displays health status of the drivers/controllers if installed. BIOS Setup - 73 -...

  • Page 74: Chipset Setup Menu

    Chipset Setup Menu Chipset Setup menu displays submenu options for configuring the function of North Bridge. Select a submenu item, then press <Enter> to access the related submenu screen. Parameter Description CPU Configuration Press [Enter] for configuration of advanced items. Memory Slot Information Press [Enter] for configuration of advanced items.

  • Page 75: Cpu Configuration

    5-3-1 CPU Configuration Parameter Description CPU Configuration Number of processors/cores Displays the number of installed processor information. enabled Inter Socket Connection: Displays the Inter socket connection information. Link0/1 Controls Link speed for Inter socket connection. Inter Socket Connection Speed Options available: Default, 16GT/s, 20GT/s, 25GT/s. Default setting is Configured Default.
  • Page 76 Parameter Description Enable/Disable L1/L2 Prefetch for each core. L1/L2 Prefetch Options available: Enabled, Disabled. Default setting is Enabled. Enable/Disable PPTT to indicate SLC as L3$. This is limited to only 1P SLC as L3$ Monolithic mode. Options available: Enabled, Disabled. Default setting is Disabled. L1C I/D Displays the technical specifications for the installed processor Warrenty...

  • Page 77: Ras Configuration

    5-3-2 RAS Configuration Parameter Description RAS Configuration Hardware EINJ Options available: Disabled, Enabled. Default setting is Disabled. Options available: Disabled, Enabled. Default setting is Disabled. DRAM EINJ No Trigger Enable AGDI Options available: Disabled, Enabled. Default setting is Disabled. Options available: Disabled, Enabled. Default setting is Disabled. PCIe AER Firmware First Processor OS-first Options available: Disabled, Enabled.

  • Page 78: Memory Slot Information

    5-3-3 Memory Slot Information BIOS Setup - 78 -...
  • Page 79 Parameter Description Memory Configuration Total Memory/ Effective Displays the technical specifications for the installed memory module. Memory/ Memory Speed Memory Operating Speed Options available: Auto, 2133, 2400, 2666, 2933, 3200. Default setting is Selection Auto. Enable Slave 32bit memory Options available: Disabled, Enabled. Default setting is Disabled. region Fine Granularity Refresh (FGR) Options available: 1x, 2x, 4x.

  • Page 80: Serialport Console

    5-3-4 Serialport console Parameter Description Serialport console Serialport console for UART0 Options available: Disabled, Enabled. Default setting is Enabled. (COM1/SOL) Options available: Disabled, Enabled. Default setting is Enabled. Serialport console for UART2 BIOS Setup - 80 -...

  • Page 81: Pcie Root Complex Configuration

    5-3-5 PCIE Root Complex Configuration Parameter Description PCIE Root Complex Configuration PCIe Lanes Bifurcation Mode Options available: Manual, Default. Default setting is Default. Options available: Disabled, Enabled. Default setting is Disabled. SMMU Pmu On-board VGA Options available: Disabled, Enabled. Default setting is Enabled. Root Complex # Press [Enter] to view advanced items.

  • Page 82: Server Management Menu

    Server Management Menu Parameter Description BMC Self Test Status/ BMC Device ID/ BMC Device Revision/ Displays the technical specification of the BMC controller. BMC Firmware Revision/ IPMI Version/ BMC Interface(s) BMC Support Options available: Enabled, Disabled. Default setting is Enabled. System Event Log Press [Enter] to configure advanced items.

  • Page 83: System Event Log

    5-4-1 System Event Log Parameter Description Enabling / Disabling Options Change this item to enable or disable all features of System Event SEL Components Logging during boot. Options available: Enabled, Disabled. Default setting is Enabled. Erasing Settings Choose options for erasing SEL. Erase SEL Options available: No/Yes, On next reset/Yes, On every reset.

  • Page 84: Bmc Self Test Log

    5-4-2 Bmc self test log Parameter Description Log area usage = 00 out of 20 logs Erase Log Options available: Yes, On every reset/ No. Default setting is No. Options available: Clear Log, Do not log any more. Default setting is Do When log is full not log any more.

  • Page 85: View Fru Information

    5-4-3 View FRU Information The FRU page is a simple display page for basic system ID information, as well as System product information. Items on this window are non-configurable. (Note) The model name will vary depends on the product you purchased BIOS Setup - 85 -...

  • Page 86: Bmc Network Configuration

    5-4-4 BMC Network Configuration Parameter Description BMC network configuration Lan Channel 1 Selects to configure LAN channel parameters statically or dynamically (DHCP). Do nothing option will not modify any BMC network parameters Configuration Address source during BIOS phase. Options available: Unspecified, Static, DynamicBmcDhcp. Default setting is DynamicBmcDhcp.

  • Page 87: Security Menu

    Security Menu The Security menu allows you to safeguard and protect the system from unauthorized use by setting up access passwords. There are two types of passwords that you can set: • Administrator Password Entering this password will allow the user to access and change all settings in the Setup Utility. •...

  • Page 88: Media Sanitization

    5-5-1 Media Sanitization Parameter Description Select the drive need to be sanitized. Device Name Š Method Type Š Media Santitization – Options available: Clear, Purge. Default setting is Clear. Start This Device Sanitization Š – Start sanitizating this device with setup configsuraiton. BIOS Setup - 88 -...

  • Page 89: Secure Boot

    5-5-2 Secure Boot The Secure Boot submenu is applicable when your device is installed the Windows 8 (or above) operating ® system. Parameter Description System Mode Displays if the system is in User mode or Setup mode. Enable/ Disable the Secure Boot function. Secure Boot Options available: Enabled, Disabled.
  • Page 90 Parameter Description Press [Enter] to configure advanced items. Please note that this item is configurable when Secure Boot Mode is set to Custom. Factory Key Provision Š – Allows to provision factory default Secure Boot keys when system is in Setup Mode.
  • Page 91 Parameter Description Authorized TimeStamps (DBT) Š – Displays the current status of the Authorized TimeStamps Database. – Press [Enter] to configure a new DBT or load additional DBT from storage devices. Key Management – Options available: Update, Append. (continued) OsRecovery Signatures Š...

  • Page 92: Boot Menu

    Boot Menu The Boot menu allows you to set the drive priority during system boot-up. BIOS setup will display an error message if the legacy drive(s) specified is not bootable. Parameter Description Boot Configuration Number of seconds to wait for setup activation key. 65535 (0xFFFF) Setup Prompt Timeout means indefinite waiting.
  • Page 93 Parameter Description FIXED BOOT ORDER Priorities Press [Enter] to configure the boot priority. By default, the server searches for boot devices in the following sequence: Hard drive. Boot Option #1 / #2 / #3 / #4 / #5 CD-COM/DVD drive. USB device.
  • Page 94 Save & Exit Menu The Save & Exit menu displays the various options to quit from the BIOS setup. Highlight any of the exit options then press <Enter>. Parameter Description Save Options Saves changes made and closes the BIOS setup. Save Changes and Exit Options available: Yes, No.
  • Page 95 Parameter Description Loads the default settings for all BIOS setup parameters. Setup Defaults are quite demanding in terms of resources consumption. If you are using low-speed memory chips or other kinds of low-performance components Restore Defaults and you choose to load these settings, the system might not function properly.
  • Page 96 BIOS POST Beep code (AMI standard) 5-8-1 PEI Beep Codes # of Beeps Description Memory not Installed. Memory was installed twice (InstallPeiMemory routine in PEI Core called twice) Recovery started DXEIPL was not found DXE Core Firmware Volume was not found Recovery failed S3 Resume failed Reset PPI is not available...
