DCD 50500-010 Installation And Operating Specification

Home fiber cage

OPERATING SPECIFICATIONS

READ AND UNDERSTAN

THESE INSTRUCTIONS

BEFORE USING

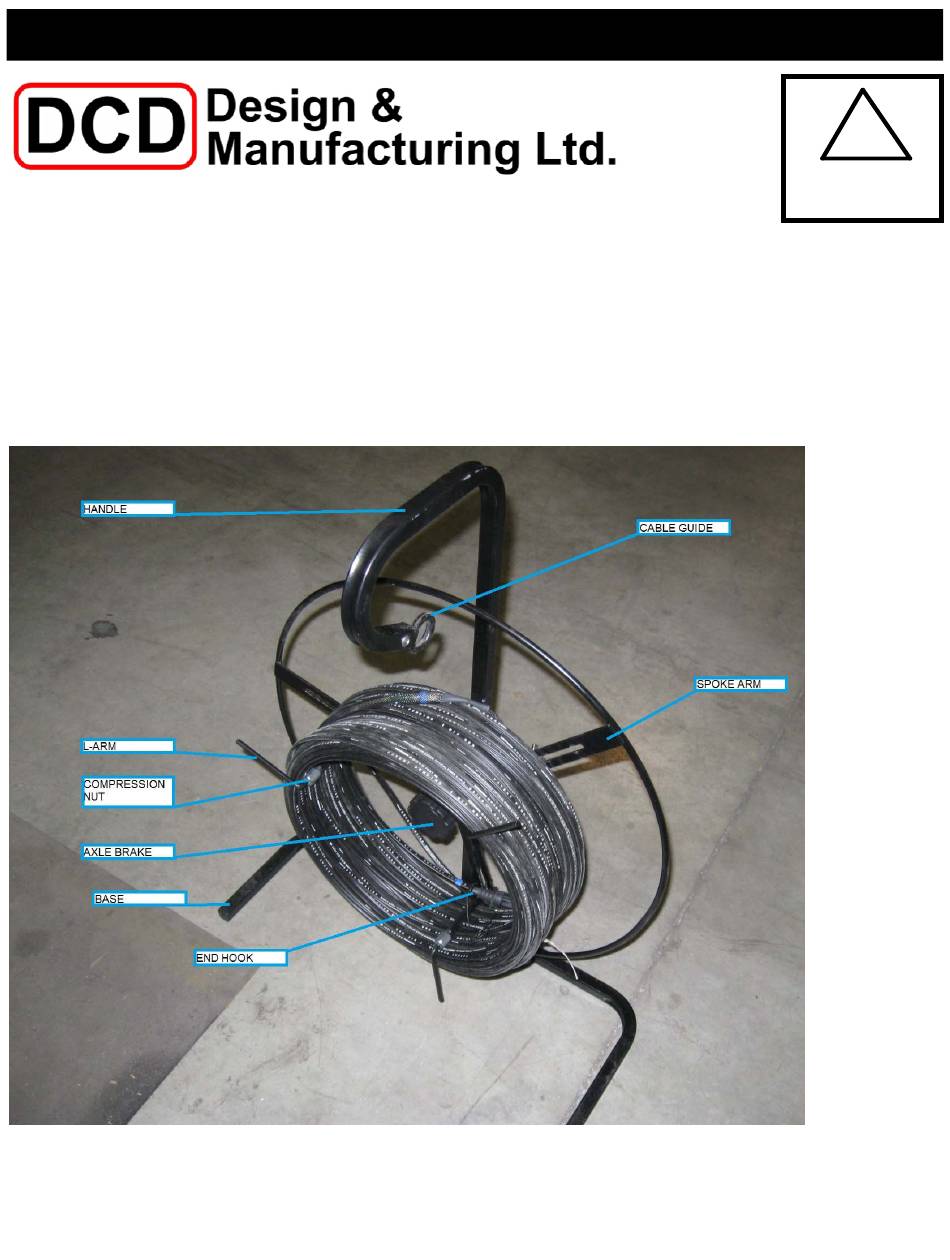

50500-010 – HOME FIBER CAGE

THESE PRODUCTS

Originally designed for Optical Fiber Cable to be installed in the home, this product allows the installer to pull a bundle of

cable without its own spool. Cable can be removed from its original packaging and secured into place on the frame,

keeping the cable organized when the product is payed-out. The brake built into the axle provides controlled resistance

when pulling out cable to ensure cable doesn't cascade off the frame during operation. Ideal for 60m and 120m bundles

of Optical Fiber Cable, but can be used with any cable, wire, rope or hose that is spooled from the outer diameter.

The adjustable arms can be moved by hand, and allow for loading/unloading of a spool and operating the frame without

any tools. An additional handle for cranking the unit (not shown) also makes it very convenient to spool cable, extension

cords, rope or hoses back onto the frame for quick jobsite cleanup. The bundle can be left on the frame for storage or

zip-tied and removed for convenient bundling.

6/25/2013

Table of Contents

Do you have a question about the 50500-010 and is the answer not in the manual?

Page 1 READ AND UNDERSTAN THESE INSTRUCTIONS BEFORE USING 50500-010 – HOME FIBER CAGE THESE PRODUCTS Originally designed for Optical Fiber Cable to be installed in the home, this product allows the installer to pull a bundle of cable without its own spool. Cable can be removed from its original packaging and secured into place on the frame, keeping the cable organized when the product is payed-out.
Page 2 CAPACITIES The Home Fiber Cage has adjustable arms that all varying sizes of rope or cable to be bundled on or off the frame. Use the following diagram as a guide for possible bundle sizes. Note: to achieve a 4” minimum bundle ID, remove the handle from the frame. 6/25/2013...
Page 3 OPERATION Un-spooling a bundle of cable: 1. Place the Home Fiber Cage on a flat level surface. Anchor the frame if required or step on the frame base to hold securely in place when spooling. 2. Turn the adjustable L-arms in towards the center of the frame. Place the bundle of fiber optic cable on the three arms.
Page 4 Re-spooling a bundle of cable: 1. Feed the cable through the cable guide if desired and anchor the end of your cable through one of the end hooks. 2. Adjust the three arms to the desired diameter and lock in place. 3.
