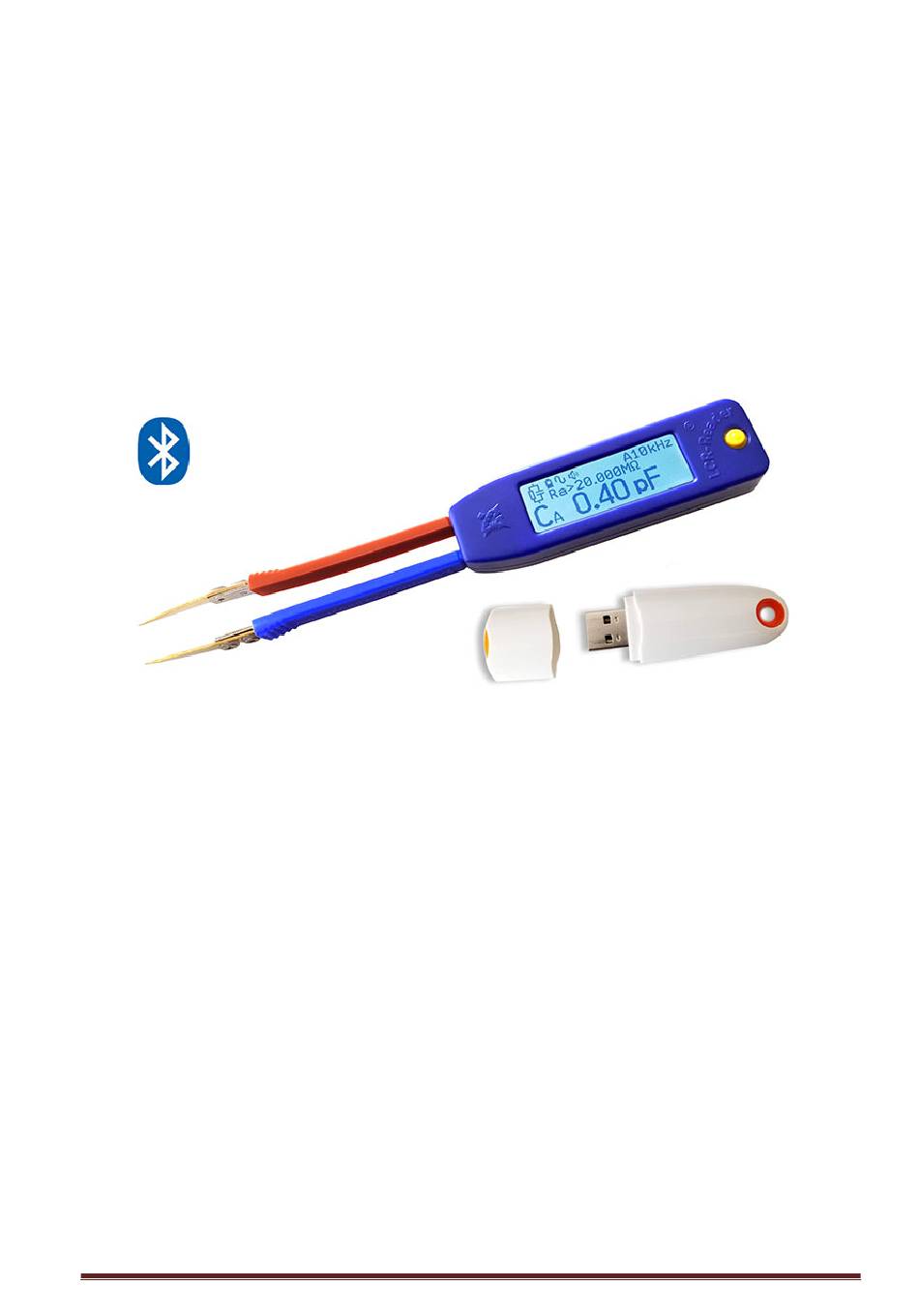

- Page 1 Digital Multimeter LCR-Reader-MPA-BT Bluetooth Data Acquisition Tool User’s Manual Version 2.1 Firmware Version © 2020 Siborg Systems Inc Page 1...
- Page 2 7. Uninstall software ......................5 1. Introduction The Data Logger for the LCR-Reader-MPA-BT multimeter is an application program that provides a graphical user interface for controlling test parameters and recording data from the LCR-Reader-MPA-BT multimeter. You can download it on the website http://www.lcr-...
- Page 3 RLCD: Turns on RLCD regime for measuring LCR and Diodes using AC RD: DC measurement regime for C, R Diodes and LEDs U: AC/DC Voltage regime Brightness: turns on / off the backlight of the LCR-Reader-MPA-BT device screen. Hold: Enables/disables Hold mode. Sound: Turns on/off the sound.
- Page 4 Excel” and “Clear” buttons. Measurements start when you press the Start button and stop when you press the Stop button. Alternatively, you may press Space Bar on the keyboard to make a single measurement. © 2020 Siborg Systems Inc Page 4...
- Page 5 To transfer data from the screen table to the EXCEL file, click the button Export to Excel file. The Clear button - clears the table. 7. Uninstall software Go to the Windows Control Panel, Select Programs and components, Select LCR-MPA- BT-Logger and click the Uninstall. © 2020 Siborg Systems Inc Page 5...
