Wireless Diffraction Scanner

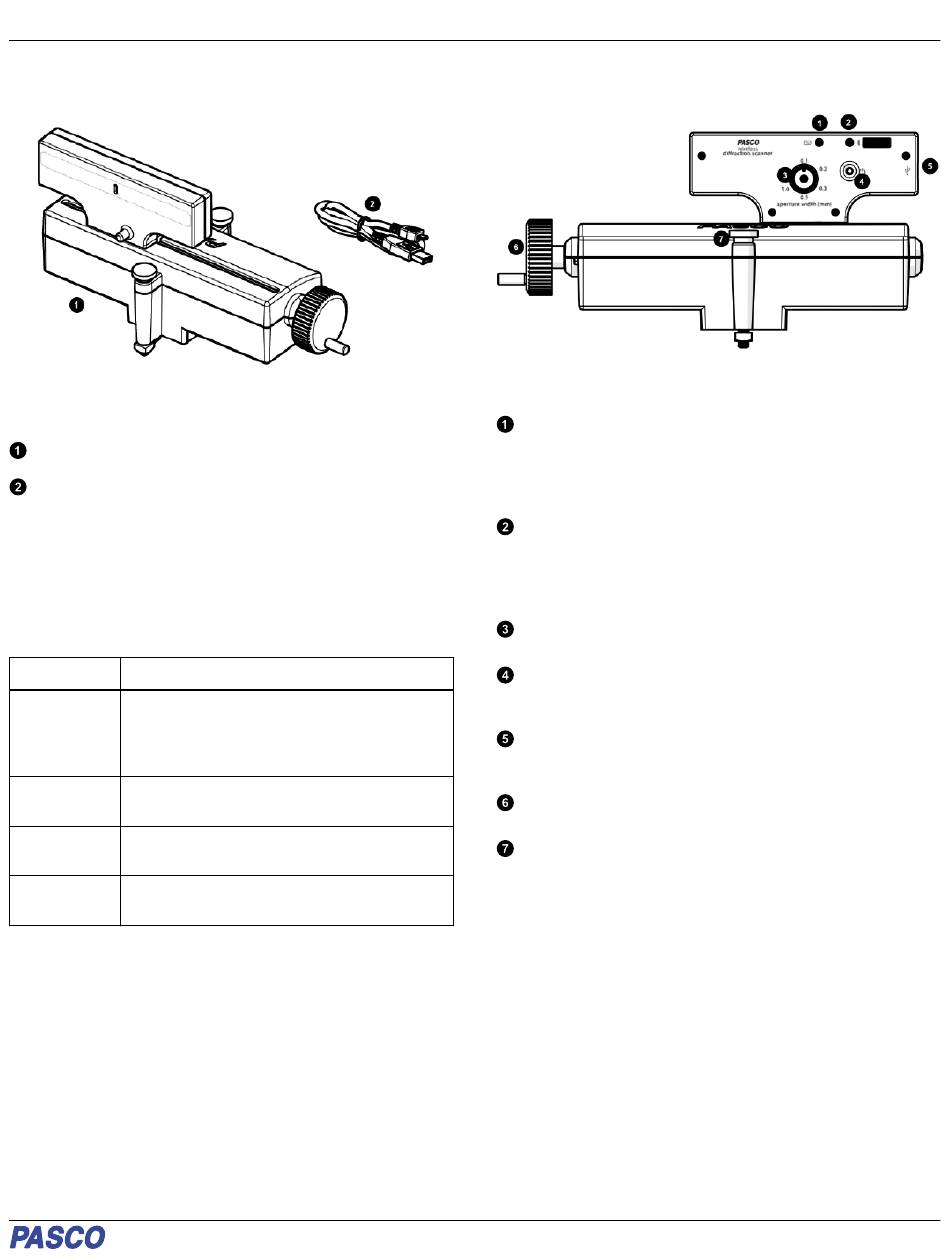

Included Equipment
Wireless Diffraction Scanner
Micro USB cable
For connecting the accessory to a USB charger, or to a USB
port of a computer.
Required Equipment
The following table lists the equipment required to perform
experiments with the Wireless Diffraction Scanner. Only one of
the options provided for each item is required.
Item
Options
Track
OS-8508 1.2 m Optics Track
ME-9493 1.2 m Aluminum Dynamics Track
ME-9779 2.2 m Aluminum Dynamics Track
ME-6960 PAStrack
Laser
OS-8525 Red Diode Laser
OS-8458 Green Diode Laser
Diffraction
OS-8442 Diffraction Slits
Slits
OS-8453 Precision Diffraction Slits
Software
PASCO Capstone
SPARKvue
1. Requires the OS-8472A Dynamics Track Optics Carriages.
1
1
1
Components
Battery status LED
Red blink
Battery needs to be recharged soon.
Green solid
Battery is fully charged.
Yellow solid
Battery is charging.
Bluetooth status LED
Red blink
Ready to be paired with software.
Green blink
Paired with software.
Yellow blink
Remotely logging data.
Aperture selection knob
Turn the knob to adjust the light sensor aperture width.
Power button
Press and hold to turn the power on or off. This button is also
used to start and stop remotely logging data.
Micro USB port
For connecting the included USB cable to a charger or the USB
port of a computer.
Crank
Turn to change the position of the diffraction scanner head.
Thumbscrew
For mounting the Diffraction Scanner to an optics track or an
optics carriage.
Product Guide | 012-16243C
(OS-8441)
1
Advertisement
Table of Contents
Related Manuals for PASCO OS-8441
Summary of Contents for PASCO OS-8441
- Page 1 Product Guide | 012-16243C Wireless Diffraction Scanner (OS-8441) Components Included Equipment Battery status LED Wireless Diffraction Scanner Red blink Battery needs to be recharged soon. Green solid Battery is fully charged. Micro USB cable Yellow solid Battery is charging. For connecting the accessory to a USB charger, or to a USB port of a computer.
- Page 2 The device can remain connected to a power source when fully Experimental Setup charged without damaging the battery. The Diffraction Scanner is designed to be used with a PASCO To update PASCO data collection software laser, diffraction slits, and track (see Required Equipment). The Diffraction Scanner can be mounted to an optics track, or to a 1.
- Page 3 To obtain the best data, turn the crank at a slow rate. Replacement Parts Figure 3. Diffraction Scanner mounted to two Dynamics Optics Replacement parts can be purchased from the PASCO website. Carriages. Contact Technical Support if the part you need is not listed below.
- Page 4 PASCO scientific, is prohibited. Trademarks PASCO and PASCO scientific are trademarks or registered trademarks of PASCO scientific, in the United States and in other countries. All other brands, products, or service names are or may be trademarks or service marks of, and are used to identify, products or services of, their respective owners.
