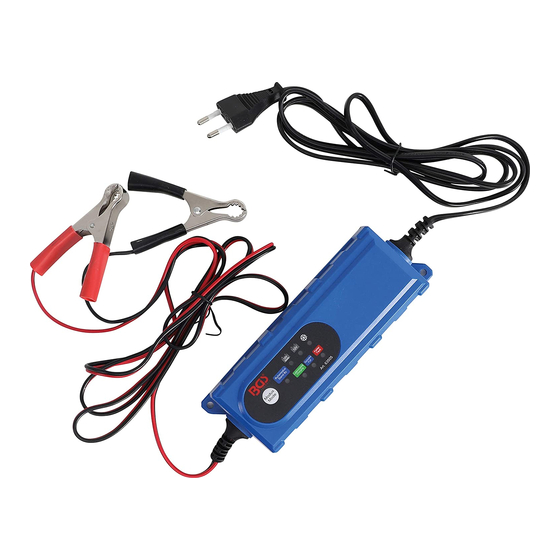

BGS technic 63505 Instruction Manual

Car Battery Charger, 12V 1.2 - 120 Ah

Summary

This charger is designed for charging a varieties of SLA batteries widely used in car, motorbike and
some other vehicles, such as WET, GEL, AGM and so on, whose capacity ranges from 12V/1.2AH to
12V/120AH. The specialized design of the device, which is so called "the three stages charging
strategy", permit the battery to be recharged to almost 100% capacity, and make it possible for long
time connection of the battery to the charger when not use, to keep it always in perfect state without
damaging it. Three charging modes are available for charging different batteries under different
circumstance temperature, which is much considerate for the user to select a better one to charge the
battery more efficiently and safely. Compared with normal battery charger, this device contains a
special function of rescuing dead battery, with which, a deep discharged battery can be charged up
again. Full protections of against wrong connection and short circuit ensure the charging operation is
much safe. By the electronic switch embedded in it, the charger won't act immediately when a battery
connected to it until some charging mode is selected. Through this way, the spark, often appearing in
the connecting course, is avoided as a result. Furthermore, this device is controlled by a MCU in it,
which make it more smart and reliable. With the grade of IP65 on against dust and proof water.

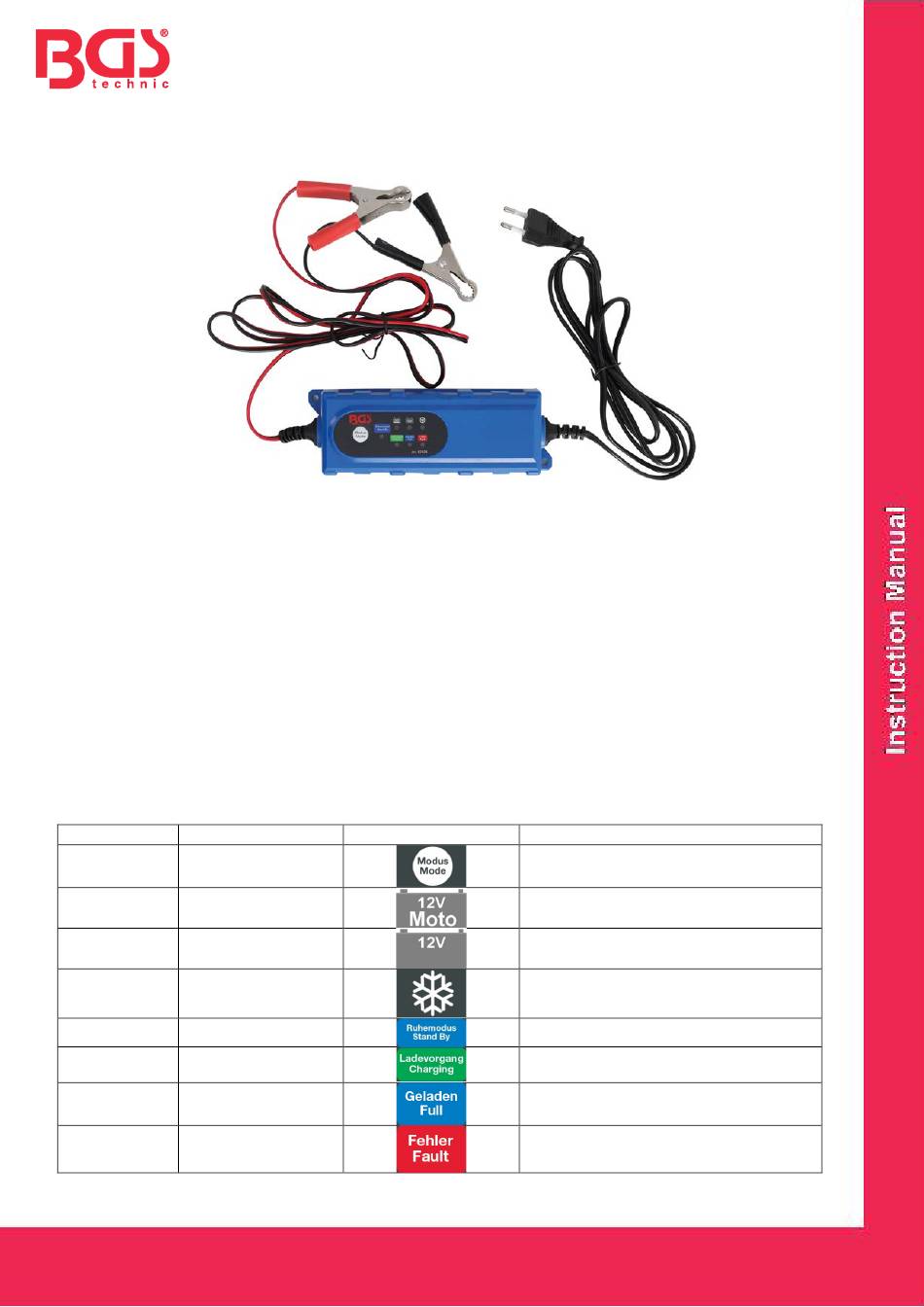

Indication

Indication
BUTTON
LED 1
LED 2
LED 3
LED 4
LED 5
LED 6
LED 7
BGS technic KG
Bandwirkerstr. 3
D-42929 Wermelskirchen
State
SELECTION
MODE 1
MODE 2
MODE 3
STANDBY
CHARGING
MAINTENACE
REVERSE
Tel.: 02196 720480
Fax.: 02196 7204820
mail@bgs-technic.de
Icon
Switching between Modes
Battery capacity smaller 14Ah
Battery capacity higher 14Ah
BGS 63505
Remark
14,5V / 0,8A
14,5V / 4.2A
14,7V / 4.2A
Cold condition
Device in idle status
Charging
Full charged
Wrong polarity
