Summary of Contents for UK Beauty Machines LS10
- Page 1 Triple 755nm 808nm 1064nm Diode Laser Hair Removal System Operation Manual Model Name: LS10...
-
Page 2: Chapter 1: Introduce

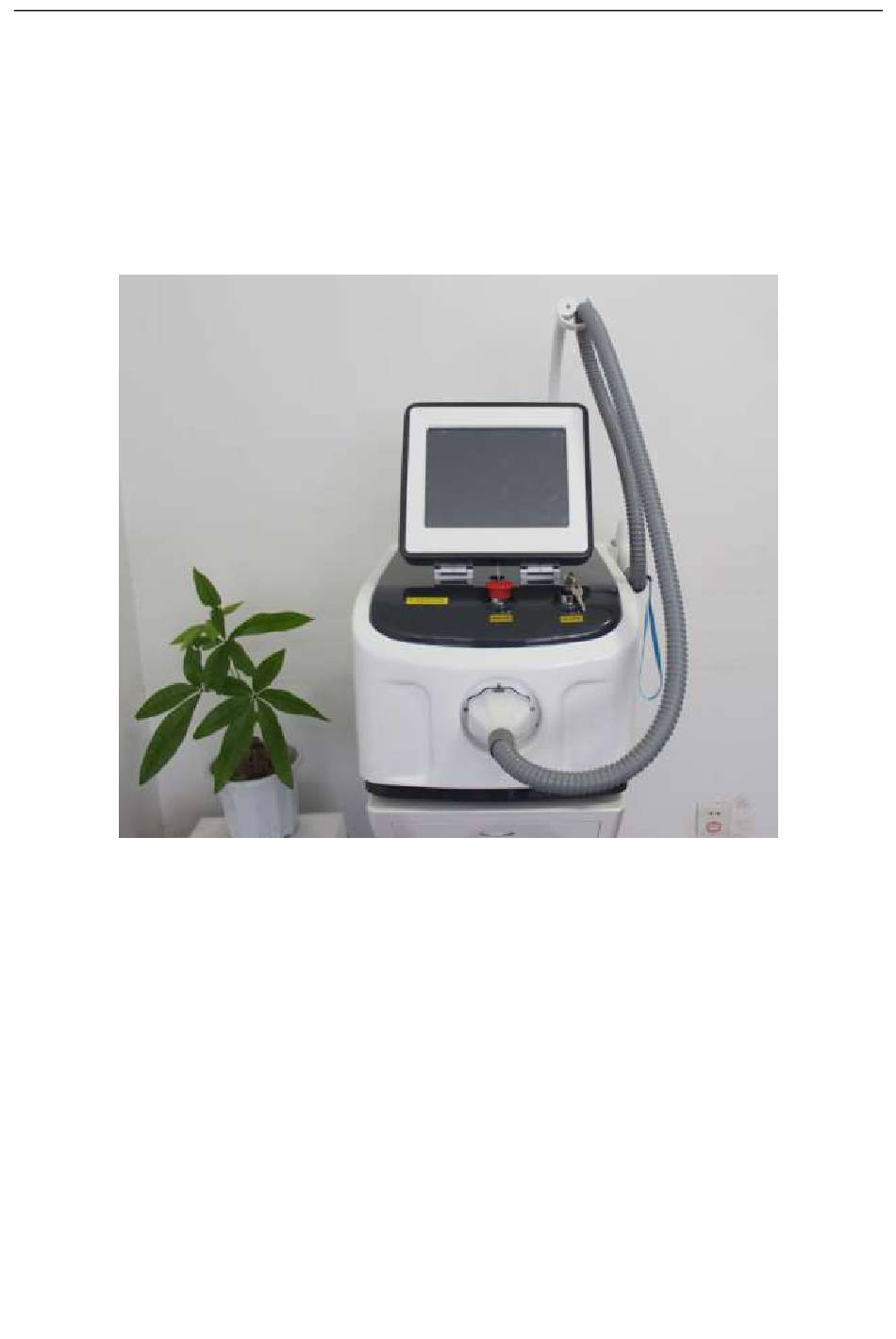

Chapter 1: Introduce 10.4’’ movable touch screen Emergency 808 diode laser handpiece Key Switch Front View Water Overflow hole Electrical power port Water Filter Interlock Water Injection and Discharge hole Back view... -
Page 3: Chapter 2 Installation
Chapter 2 Installation 1. Remove the 7 water plugs firstly. - Page 4 7 plugs 2. Install the Water Filter Water must be discharged when to change new water filter. It is better to change new water filter per month. Water should be changed per month too. So they can change together. Discharge water - change new filter - inject new water. 3.
- Page 5 There are two buttons on both above and below of each handpiece. The two buttons may be in the upspring or press-down state. Before connect it onto the machine, it must be in the press-down state. So press down the 2 buttons firstly. 2.1.2 Connect it in the right direction.
- Page 6 can hear the click – the button springs and it locks. Then you can try to pull the handpiece connector slightly to check whether or not it locks well. Then hang up the two handpieces onto handpiece holders. 5. Water Injection 1) Pure water or distilled water is needed.
-
Page 7: Chapter 3. Operation
Press the button on the Water Injection plug mouth, the water pipe pops out automatically. The small white plastic screw shall never be plugged again on the machine. Please read the following sticker: this hole must be OPEN, otherwise, the machine may have problem!!!. - Page 8 2. Turn on the air switch 3. Turn on key switch and emergency switch ① Turn on the screen and enter Figure one as below:...
- Page 9 HR is hair removal. SR is skin rejuvenation ② Click HR, into treatment interface Energy: 1-100 adjustable; Pulse Width: 10-400 adjustable; Frequency: 1-10 adjustable. You can also adjust the contact cooling on handpiece:...
-
Page 10: Chapter 4. Treatment
this area can store settings. How to store settings? E.g, you have got a good settings as below for a skin type. You will click to return to the last menu to choose HR or SR. In this way, the settings are stored. Chapter 4. - Page 11 2) Seat the patient in the treatment chair after make him wear the protective glasses. The operator should also wear protective glasses. The operator then chooses the best operating position between the treatment range and the touch control screen. 3) Paste 1-2mm cold gel on the area need treatment, by doing this will help the skin to remain cool under the laser pulse and increase the rate of the penetration.
- Page 12 4) Switch the key clockwise to start the machine, and then the screen will display the main page. 5) Choose treatment parameters according to the specific conditions of the patient. 6) After you have adjusted all parameters, press “READY”. Then the machine is in working condition.
- Page 13 7) Take the handle piece. Press the switch on the handle piece to shot the laser pulses. Keep pressing the button and the laser output will continue. Do not press & release for single pulse. Press the switch Sliding fast hair removal treatment 8) After you finish or pause the treatment, please press “STANDBY”.
- Page 14 life of the machine, so it should be kept clean all the time. You can use soft clothes to wipe it, and then put the laser treatment head back to the groove. 10) Switch the key inverse clock to turn off the machine. NOTE : Any sudden situations, press the Quick-stop button to stop the laser, and then turn off the key.
-
Page 15: Chapter 5: Maintenance And Warranty
The skin must be shaved before treatment. The handle piece is better to be operated at SCANNING mode. It is faster for treatment. Skin contact gel is no necessary for treatment. It won’t make the treatment better or improve the skin feeling. You need to wait for several minutes before the cooling tip becomes cold. - Page 16 2) Power up the system without connecting the handle piece. 3) Regular drops of the handle piece. 4) Wrong input VAC. 5) Other manual operating mistakes. Cleaning the main unit Using soft wet cotton ball to clean the crust of the machine at least once a week, neutral cleanser is permitted, but do not let the liquid to permeate into the inside of the machine Cleaning Treatment Heads The treatment head should always be kept clean, clean of the tr...
-
Page 17: Chapter 6 Parameters
4. Voltage failure Contact the maintenance engineer 5. Open failure Contact the maintenance engineer A. Close the system, let the machine become cool, 6. Comparative high temperature of then restart it the cooling system B. Contact the maintenance engineer 7. Reduced power of the treatment It implies that the treatment head is near the limit head of useful life. - Page 18 7.2. Indications and contraindications 7.2.1. Indications permanent hair removal (beard, armpit hair, four limbs hair, etc.) 7.2.2. Contraindications Warning Do not treat its implementation if patients found the following characteristics 1, local and body inflammation; 2, immune system defects; 3, the physical scars patients; 4, photosensitive skin and people using photosensitive drugs;...
- Page 19 1, Physicians should conduct a comprehensive examination on their patients before the treatment time .According to the specific situation of patients,firstly give their patients a test spot in need of treatment area, (particularly for patients with dark spot test,spot test very necessary); 2, pregnant women, epilepsy, people with mild sexual measles, recent sunburn , treated by chemotherapy and broken capillaries,should follow doctors’...
- Page 20 4), find out why patients seek treatment and his / her expectations. 5) discuss the 808nm laser hair removed treatment plan with the patient. 7.4.2 explanation Newly diagnosed, the attending physician should tell the patient the following(or other qualified medical personnel): •...
- Page 21 cases, clinical experts should be consulted.) 6) • in the course of treatment, when patients need referral for additional treatment, can appropriately increase the energy density to obtain better results according to requirement. However, before the start of treatment still need to launch the test spot to observe. 7) •...
- Page 22 Appear in darker skin or people affected by sunlight exposure may, or vitamin C aqueous solutions by ultrasound BFGF import or whitening care in the slow fade. 5) hypopigmentation or depigmentation, may be related to high energy radiation, generally self-healing; 7.6.6, end of treatment When the end of the treatment depends on the doctor.
- Page 23 808nm laser hair removal technology is a new optical technology, the technology for beauty. The energy density is about 10-100J/cm2 in order to achieve hair removal results. The strong laser pulse with specific wavelength and spectrum can penetrate skin, directly effect on the hair follicle tissue, and make the hair remove effectively.
