Single Use XactTrace™ Belt System User Instructions

Attaching the Belts to the Patient

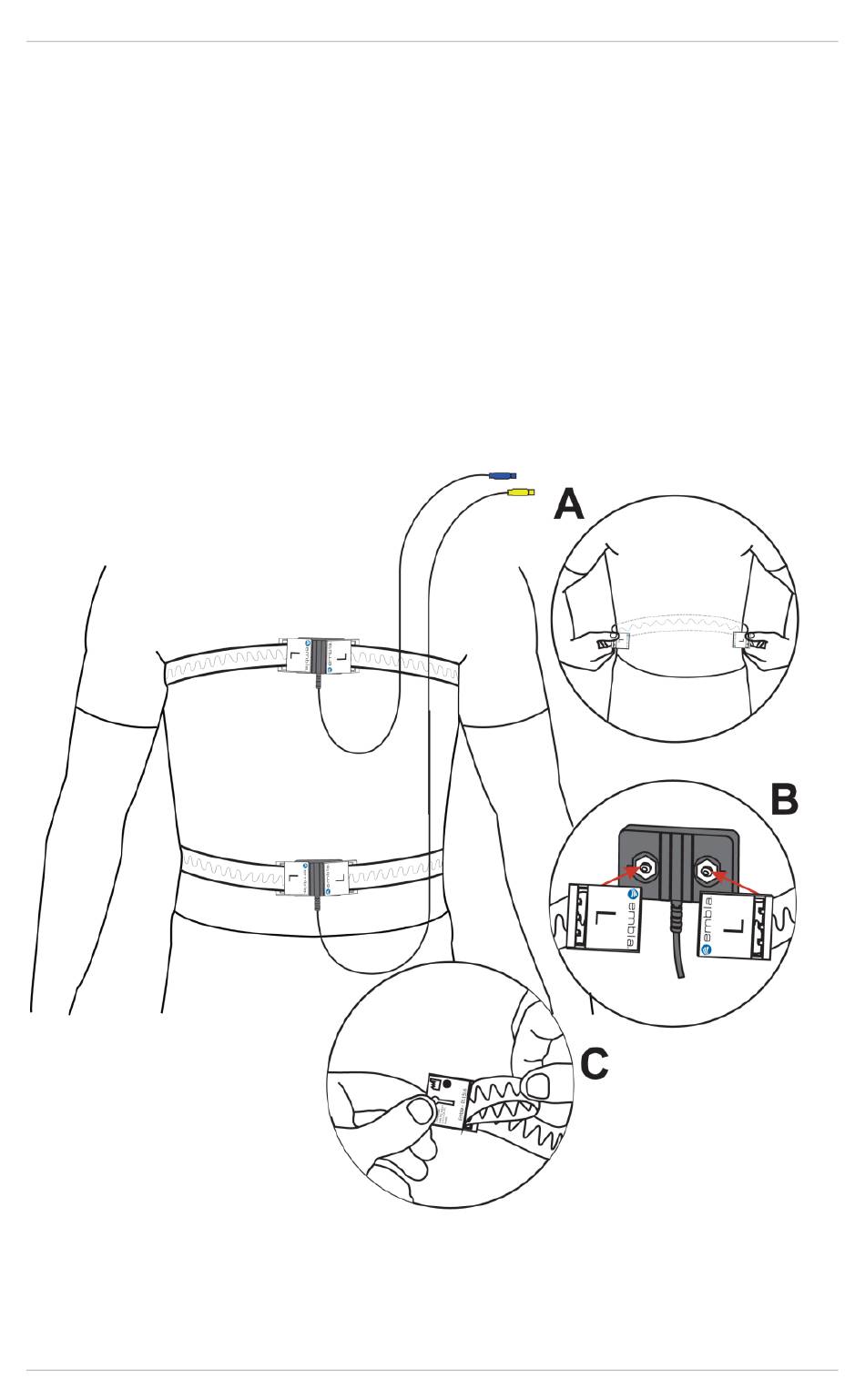

1. Encircle the belt around the patient chest and secure the snap
ends of the belt to the buckle with the "blue" connector as shown
in the figure below. The belt should fit snugly without being
uncomfortably tight.
2. Prepare the abdomen belt in the same manner, only this time, fit
the belt around the patients stomach and attached the snap ends
of the belt to the buckle with the "yellow" connector.
3. Connect the abdominal (yellow) and the thoracic (blue)
XactTrace connectors to the appropriate color-coded inputs on
the recording device.
