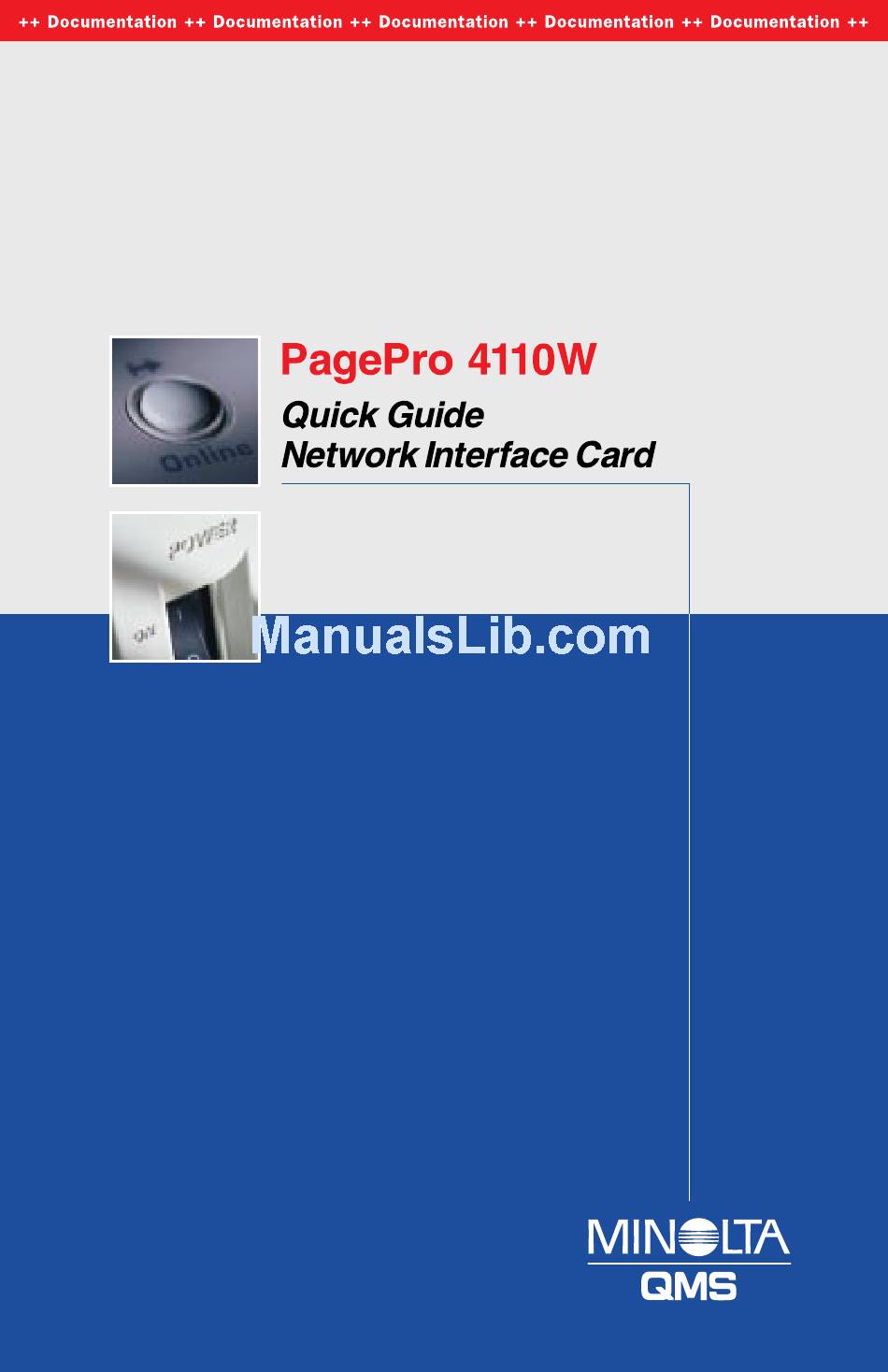

MINOLTA-QMS PagePro 4110W Quick Manual

Network interface card
Hide thumbs Also See for PagePro 4110W:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual, Installation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PagePro 4110W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MINOLTA-QMS PagePro 4110W

Summary of Contents for MINOLTA-QMS PagePro 4110W

  • Page 2 Copyright © 2001 by MINOLTA-QMS, Inc. All Rights Reserved. P/N 1800654-001A...

  • Page 3: License Agreement

    Program License Agreement Notice to the User Please carefully read the License Agreement before using or copying the software package in this documentation set. The right to use this software product is conditional on your agreement on the following terms. Copying and using this software indicates that you have accepted these terms and conditions.
  • Page 4 Should QMS be unable to replace the media within a reasonable amount of time, your alternate rem- edy shall be refund of the license fee upon return of the product and all copies. These are your sole remedies for any breach of warranty. Except as specifically provided above, QMS MAKES NO WARRANTY OR REPRESENTATION, EITHER EXPRESS OR IMPLIED, PERFORMANCE MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

  • Page 5: Table Of Contents

    Contents Step 1 Unpacking ... 4 Step 2 Installing the Network Card... 6 Step 3-a Step 3-b Step 3-c Peer-to-peer Printing Using TCP/IP ... 9 Peer-to-peer Printing Using IPX/SPX... 15 Printing Via a NetWare Print Server... 16...

  • Page 6: Step 1 Unpacking

    Note • Utility software for this Network Card is contained in the CD-ROM that comes with the printer. When you install any utility software, have the CD-ROM that comes with the printer on hand. 1. Network Card 2.

  • Page 7: Serial Number

    Step 1 Remove the Network Card from its anti-static bag. Make a note of the Net- work Card’s serial number (S/N) and MAC address (LAN ADDR). Serial number MAC address S/N: XXXXXX LAN ADDR: XXXXXXXXXXXX...

  • Page 8: Step 2 Installing The Network Card

    Installing the Network Card Turn off the printer (O), and unplug the power cord from the printer. If there is a parallel cable connected to the printer, disconnect it. Remove the two screws that secure the cover on the back of the printer in place, and then remove the back cover of the printer.
  • Page 9 Aligning the Network Card with the guide rails inside the printer, slide it into place. Next, use the two cover screws to secure the Network Card into place. Plug the network cable into the connector on the Network Card. Reconnect the power cord to the printer.
  • Page 10 • Printing via a NetWare print server Note • Before continuing to the next step, you should first install the printer driver on the computer that you will be using for printing. See the printer’s User’s Manual , which is contained in the CD-ROM that comes with your printer, for details about installing the printer driver.

  • Page 11: Step 3-A Peer-To-Peer Printing Using Tcp/Ip

    • To use MAP, your computer must have TCP/IP and IPX/SPX-compatible protocol in- stalled. See Appendix A - Installing and Setting Up Network Protocol (Windows) in the Network Interface Card User’s Manual on the CD-ROM that comes with your printer for information about installing TCP/IP and IPX/SPX under Windows.
  • Page 12 This displays a Web browser screen that shows a list of printers on the net- work. Click the URL or the serial number of the printer you want to use. This displays a Network Card setup Web browser page. Click Network at the top of the link menu.
  • Page 13 After setting TCP/IP parameters, type a password into the Password box, and then click the Apply button. The initial default password is sysadm. After setting up the Network Card, turn the printer off and then back on again. Step 3-a...
  • Page 14 • To use BOOTP Lite, your computer must have TCP/IP protocol installed. See Appendix A - Installing and Setting Up Network Protocol (Windows) in the Network Interface Card User’s Manual on the CD-ROM that comes with your printer for infor- mation about installing TCP/IP under Windows.
  • Page 15 IP address is displayed. Next, click the Apply button. Note • If IP address of the printer does not appear in the Print to the following port list, you have to use the IP Peer-to-Peer Printing program to set up the printer. For details, see 7-2-1 IP Peer-to-Peer Printing Program (Windows) in the Network Interface Card Us- er’s Manual on the CD-ROM that comes with your printer.
  • Page 16 IP address is displayed. Next, click the OK button. Note • If IP address of the printer does not appear in the Print to the following port(s) list, you have to use the IP Peer-to-Peer Printing program to set up the printer. For details, see 7-2-1 IP Peer-to-Peer Printing Program (Windows) in the Network Interface Card User’s Manual on the CD-ROM that comes with your printer.

  • Page 17: Ipx/Spx

    Note • If the serial number of the printer does not appear in the Print to the following port list, you have to use the IPX Peer-to-Peer Printing program to set up the printer. For details, see 7-2-2 IPX Peer-to-Peer Printing Program (Windows) in the Network Inter- face Card User’s Manual on the CD-ROM that comes with your printer.

  • Page 18: Step 3-C Printing Via A Netware Print

    On the Start menu, point to Nwsetup and then click NWSETUP to launch the NWSetup program. This displays a list of serial numbers of printers found on the network. Select the printer you want to use in the list. NWSetup Utility for Windows 95/98/Me/ Step 3-c...
  • Page 19 For full details on each parameter, see 7-4 NWSetup (Windows) in the Net- work Interface Card User’s Manual on the CD-ROM that comes with your printer. After you finish making NWSetup settings, turn the printer off, and then back on again. Step 3-c...
  • Page 20 Configuring a Windows 95/98/Me Client On the Start menu, point to Settings, and then click Printers. Click the icon of the printer you want to use, and then select Properties on the File menu. Display the Details tab of the printer properties.
  • Page 22 2000...
