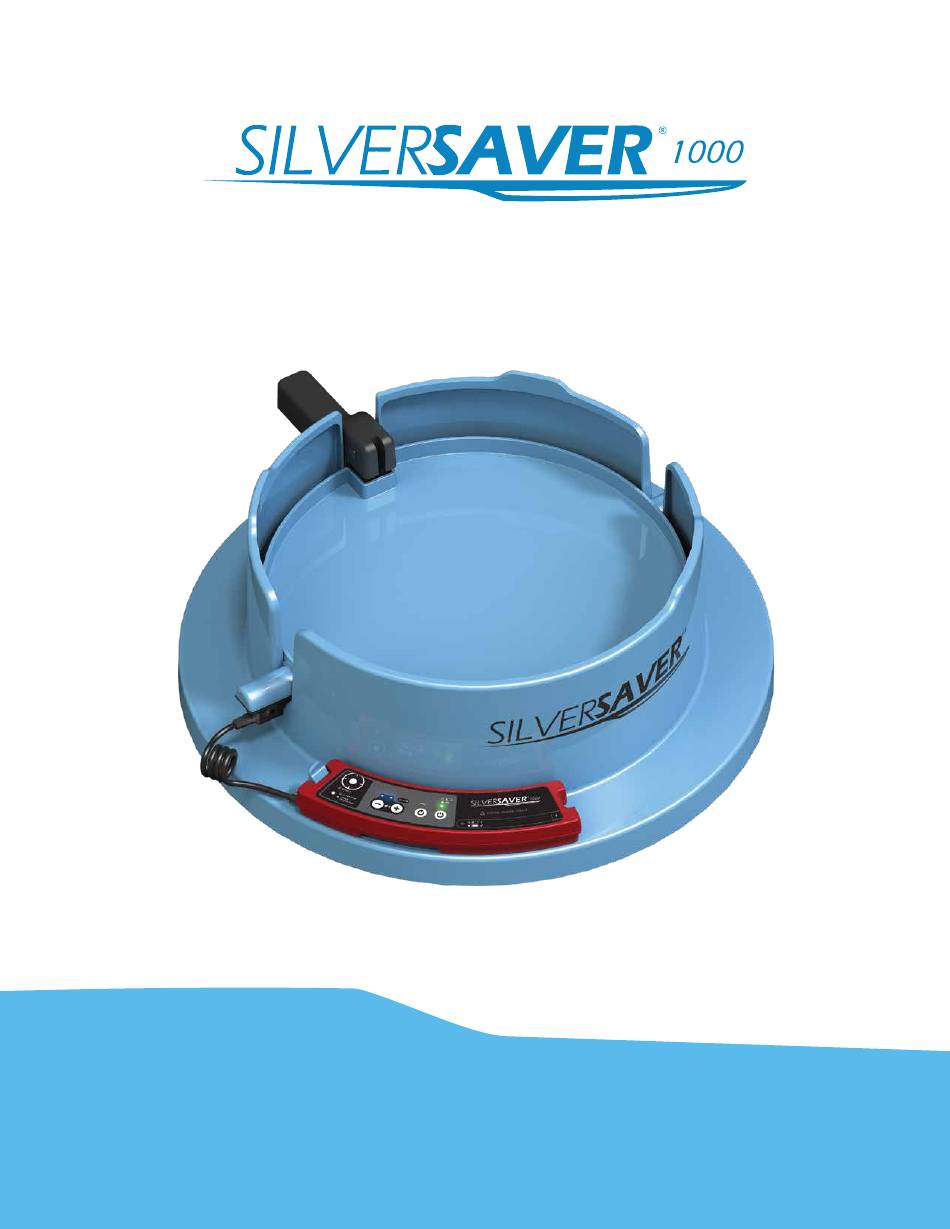

- Page 1 Smart Flatware Detector SilverSaver 1000 ® User Manual...
-
Page 2: Table Of Contents
You have purchased the most effective restaurant utensil recovery system in the industry. Please read this operation manual before you start to use your SilverSaver 1000. It will help you understand its operation, maintenance, and ® cleaning procedures to ensure maximum savings and years of reliable use. -
Page 3: Silversaver ® 1000 Parts
SilverSaver 1000 Parts ® Axle Slots Handle Tray Body Tray Control Axle Magnetic Connector and Connector Pads Snap Clip Cradle Trash Can (not included) SilverSaver 1000 User Manual ®... -
Page 4: Control Box
Solid on Power On Flashing Tray is open Magnetic Connector Solid on Reset Button disconnected Detection Mode Light (blue) Detection Light (red) Full Detection Mode Reduced Detection Flashing Metal object detected Solid on Mode (RDM) SilverSaver 1000 User Manual ®... -
Page 5: Assembly
Assembly 1. Place the SilverSaver 1000 Body on top of a ® 32 or 44-gallon round trash can. CAUTION: Use of other trash cans may result in instability and injury! 2. Insert the Control Box into the Cradle on the Body by first sliding the right end under the right-side clip. - Page 6 Magnetic Connector onto the Connector Pads on the Tray Axle. Test for a solid connection by pressing lightly down on the cable near the Magnetic Connector to ensure that the Magnetic Connector remains connected. SilverSaver 1000 User Manual ®...
-
Page 7: Powering Up The Silversaver ® 1000
Powering Up the SilverSaver 1000 ® 1. Position the trash can so that it is not touching or underneath any metal counters or walls. 2. Ensure Tray is latched, with no metal objects on the Tray. 3. Press and the Volume Level Lights (green) will begin to flash. The Power On Light (green) will illuminate solid within 2 seconds. -
Page 8: Operation
Operation 1. Be sure the SilverSaver Tray is in the horizontal and latched position. Empty entire contents of ® plate onto the Tray. 2. If metal is detected (Detection Light (red) flashes and alarm sounds), remove all metal items from the Tray until the alarm stops. -
Page 9: False Alarms
The SilverSaver 1000 is initially set to Full Detection Mode, so will detect all metal items that are on ® the Tray including foil. If detection of scrap foil is a problem, we recommend that supplies with foil be re-sourced to exclude the foil. -
Page 10: Tips For Best Results
® consistently — for this reason, do not leave a spare bagged trash can within easy reach of the cleaning station. This is to discourage use of a trash can that does not have a SilverSaver ® attached. Never allow any waste to enter the trash can without passing through the SilverSaver ®... -
Page 11: Ramekins
Ramekins Ramekin Savers are adhesive labels that can be applied to the underside of non-metallic ramekins and other non-metallic valuable items so that they can be detected by the SilverSaver 1000. ® Ramekin Savers are specifically designed and manufactured to maximize detection and to maintain strong adhesion for thousands of wash cycles in high-pressure dishwashing machines and when exposed to high temperatures. -
Page 12: Cleaning
CAUTION: DO NOT CLEAN THE CONTROL BOX IN A DISHWASHING MACHINE. THIS WILL DAMAGE THE ELECTRONICS AND VOID YOUR WARRANTY! 1. Ensure the SilverSaver 1000 is turned off. ® 2. Disconnect the Control Box from the Tray. To do this, slide the Magnetic Connector directly away from the Tray until it releases. - Page 13 Cleaning the Body Hand washing of the Body is recommended, as it is too large to fit into the typical dishwashing machine without being damaged. SilverSaver 1000 User Manual ®...
-
Page 14: Batteries And Charging
Low Battery audible alarm will sound every 30 seconds. The SilverSaver 1000 will indicate the Low Battery state when there is 10% or less charge remaining. ® The unit will continue to run normally while in the Low Battery state until the battery is fully depleted. - Page 15 WARNING: • Risk of explosion if battery is replaced by incorrect type. • If operating the SilverSaver 1000 during charging, cables must be routed to avoid tripping ® hazards. All electrical connections must be waterproofed for the kitchen environment. • Do not allow children to play with the SilverSaver 1000.
-
Page 16: Troubleshooting
Battery is totally discharged Solution Charge the battery. To test, connect the Control Box to the supplied AC adaptor and then turn on the Control Box. If the problem persists, contact a Service Center for repair. SilverSaver 1000 User Manual ®... - Page 17 3. Try switching the Detection Mode to ‘Reduced Detection Mode’ (see‘False Alarms’ on page Cause 2 The SilverSaver® is detecting metal from another location. Solution Reset the Control Box and wait for the Volume Level Lights to stop flashing (approximately 5 seconds).
-
Page 18: Technical Specifications
SilverSaver is a trademark of Minelab Electronics Pty Ltd. ® Disclaimer Equipment may vary according to the model or items ordered with your SilverSaver 1000. ® SilverSaver reserves the right to respond to ongoing technical progress by introducing changes in ®... -
Page 19: Reference Card
Reference Card Ensure there are no metal items on or under the Tray, then power on the SilverSaver ® by pressing the Power Button. Scrape all table scraps onto tray. If Detection alarm is activated, look for and remove valuables. - Page 20 4901-0375-2.01 Contact 1-877-767-6522 | mail@GetSilverSaver.com www.GetSilverSaver.com...
