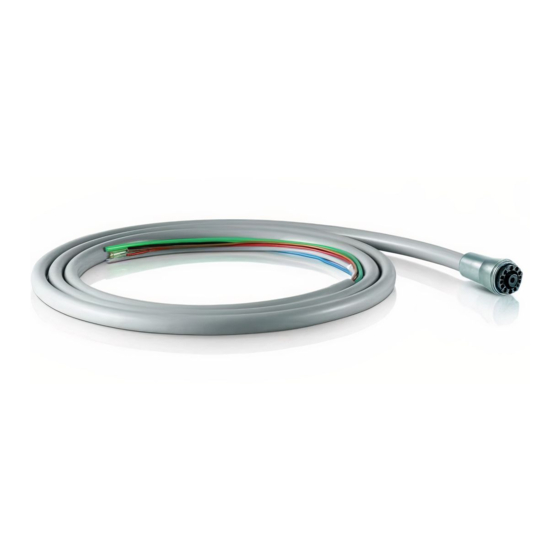

- Page 1 HOSES MCX & MCX c.l. MCX-400 & MCX-400 c.l. B-MCX Do not sterilize ENG INSTRUCTIONS FOR USE. Other languages available on https://dental.bienair.com/IFU Rx Only REF 2100230-0004/2022.05...
- Page 2 REF 1600756-001 REF 1600920-001 HOSE B-MCX GREY HOSE MCX 400 GREY REF 1600824-001 REF 1601081-001 HOSE MCX GREY 400° Ø20.2x40 HOSE MCX 400° gf. REF 1601096-001 REF 1601141-001 REF 2100230-0004/2022.05 HOSE MCX & MCX-400 & B-MCX • © Bien-Air Dental SA...
- Page 3 Optional accessories O-RING 3.20x0.60 O-RING 1.5x0.75 REF 705.02.31-010 REF 705.02.62-010 O-RING 4x0.6 COUPLING SOCKET B B-MX2 REF 705.01.77-010 REF 1600753-001 MAINT SPRAYNET® (BOX OF 6 CANS) REF 1600036-006...
-
Page 4: Table Of Contents
Table of contents 5.1 Maintenance – General in- 1 Symbols formation 1.1 Description of symbols used 5.2 Cleaning 2 Identification & Intended Use 6 5.3 Rinsing 2.1 Identification 5.4 Drying 2.2 Intended use 5.5 Packing and storage 2.3 Intended patientpopulation 5.6 Servicing 2.4 Intended user 6 Transport &... -
Page 5: Symbols
ENG INSTRUCTIONS FOR USE 1 Symbols 1.1 Description of symbols used Symbol Description Symbol Description Manufacturer. Catalogue number. Consult instructions for use or consult electronic CE Marking with number of the notified body. instructions for use. WARNING: hazard that could result in serious injury or damage to the device if the safety instructions Medicaldevice. -
Page 6: Identification & Intended Use
2 Identification & tient according to the specific clinical ap- plication. Intended Use 2.4 Intended user 2.1 Identification Product intended for professional use Medical devices manufactured by Bien- only. Used by dentists and dental pro- Air Dental SA. fessionals. 2.5 Use environment Type: Professional healthcare facility en- HOSE MCX GREY... -
Page 7: User And Patient Safety: Warnings And Precautions For Use
To prevent any risk of infection, the Electrical safety in conformance with warning below must be observed: IEC 60601-1 can only be claimed when the device is used with Bien-Air Dental compatible devices (drive motors and WARNING motors). In addition, only medical... - Page 8 To prevent any material damage the cautions below must be observed: CAUTION Do not use the hose to pull the unit or the cart. This misuse could damage the internal wires and/or the external sheath. It is essential to use dry, purified compressed air in the dental unit in order to ensure the long work- ing life of the device.
-
Page 9: Description
They may not give rise to any claim. The original language of those instructions for use is English. For any further information, please contact Bien-Air Dental SA at the address given on the back cover. -
Page 10: Assembly And Preparation
FIG. 2 FIG. 3 4.2 Assembly and preparation Pictogram used Move fully to the stop, in the Move in the direction indicated. direction indicated. 1. Check that the rear of the motor and the hose connector are clean and dry. 2. Position the motor and its proprietary hose as shown in FIG. 2. Rotate it to find the exact position and push it into the motor. -
Page 11: Assembly
FIG. 4 4.3 Assembly FIG. 4 Preserve the initial alignment of the wires and tubes. Place the sheath (10) in the chucking zone FIG. 4a. The securing cord must be attached to the chassis of the unit or table-top device to avoid any traction on the wires and tubes FIG. 4b. The outer tube must not be wrinkled after installation. -
Page 12: Installing The Socket In The Unit
4.4 Installing the socket in the unit FIG. 5-6 Drilling for the wall Ø 18 mm ± 0.2 Machine a countersink for the catch FIG. 5. Tighten nut (150 Ncm maximum) Minimum wall thickness 1.5 mm Maximum wall thickness 6 mm Quick connector on unit side only for Ø 18 mm hole, with rotation prevention notch. -
Page 13: Accessories
4.5 Accessories For rotating connectors (± 200°), FIG. 7 & 8: O-ring connections REF 705.02.62-010 and 705.01.77-010. FIG. 8 FIG. 7 For bayonet connectors, FIG.9 : O- ring connections REF 705.02.31- 010 and 705.02.62-010. FIG. 9... -
Page 14: Technical Data
4.6 Technical data CAUTION These hoses are not suitable for pressure higher than 5 bar (500 kPa, 72 psi). Standard length 1.70 m Special length (REF 1600920-001) 2.20 m Note : See the technical data of the micromotor MOT MCX (REF 1600751-001) for more information. -
Page 15: Maintenance And Servicing
5 Maintenance and servicing 5.1 Maintenance – General information CAUTION Non-sterilizable. Never submerge the hose in disinfectant solutions (the connectors should never be completely submerged). Do not use an ultrasonic cleaner. 5.2 Cleaning Clean with a clean cloth moistened with either tap water, sterile demineralized (de- ionized) water or any appropriate product for dissolving protein and blood residues. -
Page 16: Servicing
If the medical device has been stored refrigerated, allow it to warm up to room temperature prior to its use. 5.6 Servicing Bien-Air Dental SA recommends that the user change the hose every two years. CAUTION Never disassemble the device. For any inquiry, contact your regular supplier or Bien-Air Dental service centre. -
Page 17: General Information
The warranty period is: 12 months from the date of invoicing. In the event of justified claim, Bien-Air Dental or its authorised representative will fulfil the company’s obligations under this guarantee by repairing or replacing the product free of charge. - Page 18 Tel. +41 (0)32 344 64 64 Fax +41 (0)32 344 64 91 dental@bienair.com Other addresses available at www.bienair.com Bien-Air France Sàrl 19-21 rue du 8 mai 1945 94110 Arcueil France REF 2100230-0004/2022.05 HOSE MCX & MCX-400 & B-MCX • © Bien-Air Dental SA...
