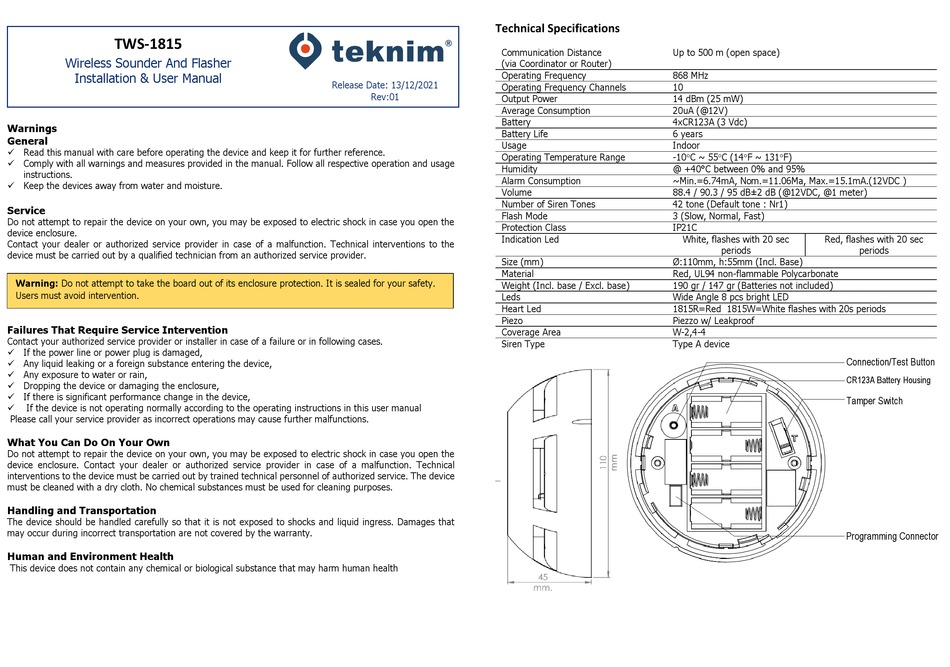

Teknim TWS-1815 Installation & User Manual

TWS-1815

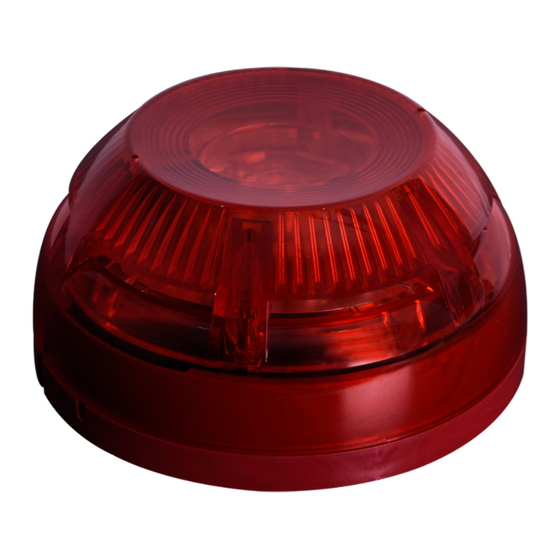

Wireless Sounder And Flasher
Installation & User Manual

Warnings

General

✓ Read this manual with care before operating the device and keep it for further reference.
✓ Comply with all warnings and measures provided in the manual. Follow all respective operation and usage
instructions.
✓ Keep the devices away from water and moisture.

Service

Do not attempt to repair the device on your own, you may be exposed to electric shock in case you open the
device enclosure.
Contact your dealer or authorized service provider in case of a malfunction. Technical interventions to the
device must be carried out by a qualified technician from an authorized service provider.
Warning: Do not attempt to take the board out of its enclosure protection. It is sealed for your safety.
Users must avoid intervention.

Failures That Require Service Intervention

Contact your authorized service provider or installer in case of a failure or in following cases.
✓ If the power line or power plug is damaged,
✓ Any liquid leaking or a foreign substance entering the device,
✓ Any exposure to water or rain,
✓ Dropping the device or damaging the enclosure,
✓ If there is significant performance change in the device,
If the device is not operating normally according to the operating instructions in this user manual
✓
Please call your service provider as incorrect operations may cause further malfunctions.

What You Can Do On Your Own

Do not attempt to repair the device on your own, you may be exposed to electric shock in case you open the
device enclosure. Contact your dealer or authorized service provider in case of a malfunction. Technical
interventions to the device must be carried out by trained technical personnel of authorized service. The device
must be cleaned with a dry cloth. No chemical substances must be used for cleaning purposes.

Handling and Transportation

The device should be handled carefully so that it is not exposed to shocks and liquid ingress. Damages that
may occur during incorrect transportation are not covered by the warranty.

Human and Environment Health

This device does not contain any chemical or biological substance that may harm human health

Technical Specifications

Communication Distance
(via Coordinator or Router)
Operating Frequency
Release Date: 13/12/2021
Operating Frequency Channels
Rev:01
Output Power
Average Consumption
Battery
Battery Life
Usage
Operating Temperature Range
Humidity
Alarm Consumption
Volume
Number of Siren Tones
Flash Mode
Protection Class
Indication Led
Size (mm)
Material
Weight (Incl. base / Excl. base)
Leds
Heart Led
Piezo
Coverage Area
Siren Type
Up to 500 m (open space)
868 MHz
10
14 dBm (25 mW)
20uA (@12V)
4xCR123A (3 Vdc)
6 years
Indoor
-10C ~ 55C (14F ~ 131F)
@ +40°C between 0% and 95%
~Min.=6.74mA, Nom.=11.06Ma, Max.=15.1mA.(12VDC )
88.4 / 90.3 / 95 dB±2 dB (@12VDC, @1 meter)
42 tone (Default tone : Nr1)
3 (Slow, Normal, Fast)
IP21C
White, flashes with 20 sec Red, flashes with 20 sec
periods
Ø:110mm, h:55mm (Incl. Base)
Red, UL94 non-flammable Polycarbonate
190 gr / 147 gr (Batteries not included)
Wide Angle 8 pcs bright LED
1815R=Red 1815W=White flashes with 20s periods
Piezzo w/ Leakproof
W-2,4-4
Type A device
Connection/Test Button
CR123A Battery Housing
Tamper Switch
Programming Connector
periods
