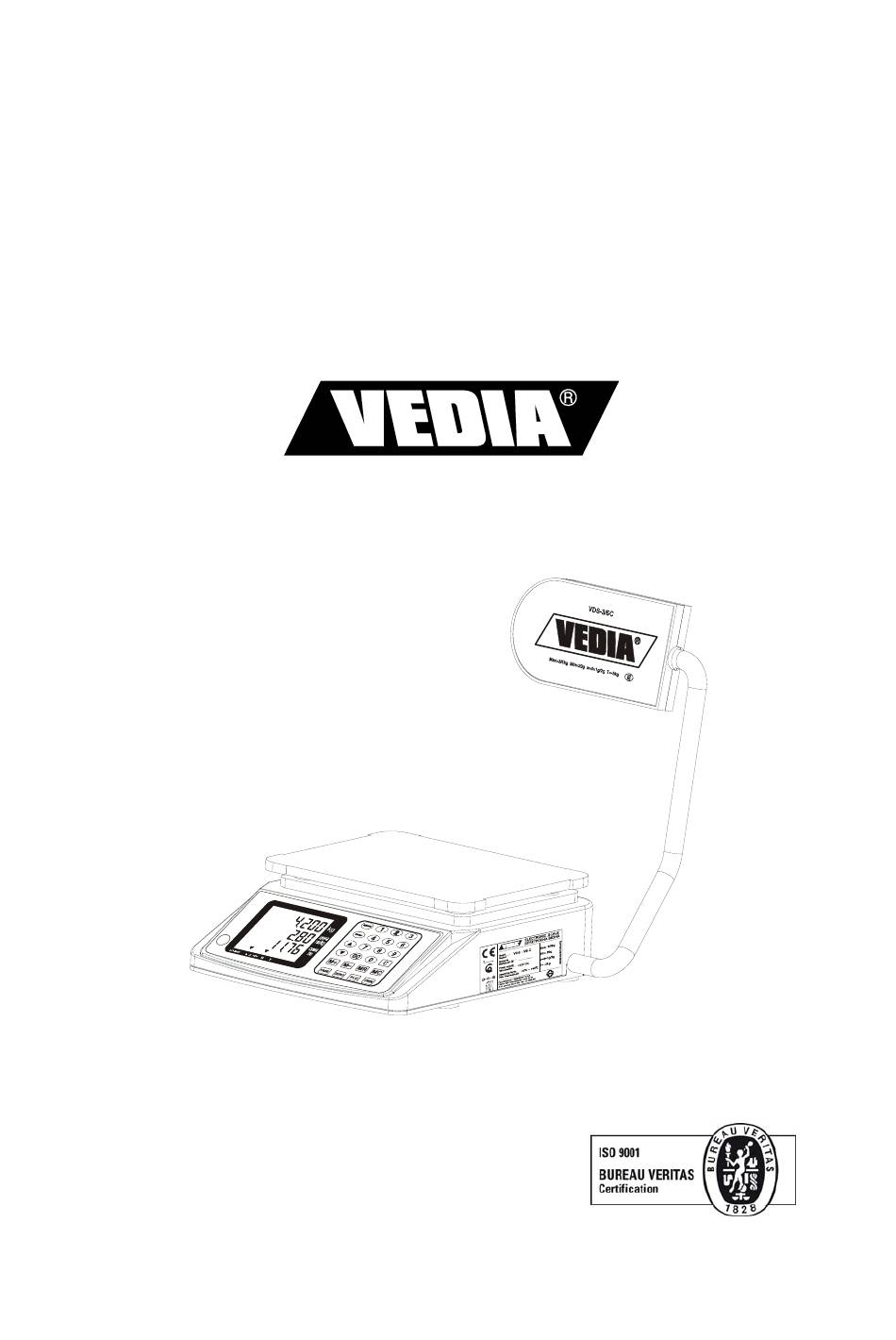

- Page 1 User Manual ELECTRONIC SCALE The product is designed and produced in the terms of applied Quality Management System ISO 9001:2008...
-
Page 2: Table Of Contents
I. Contents of the package After unpacking the scale, please check whether there are all components and documents listed below: 1. Electronic scale VEDIA (with required marking) 2. Platform (pan) 3. Adaptor 4. User’s manual 5. -
Page 3: Brief Introduction
The VEDIA VDS range of scales consists of eight types, which vary in maximum capacity (3/6 kg, 6/15 kg, 6/30 kg и 15/30 kg). The mark “C” means this scale is price computing, the mark “Р”... -
Page 4: Technical Characteristics
III. Technical characteristics VDS 3/6C VDS 6/15C VDS 6/30C VDS 15/30C Модел** VDS 3/6CP VDS 6/15CP VDS 6/30CP VDS 15/30CP Accuracy class III –In conformity to EN45501/2001 Maximum capacity 15kg 30kg 30kg Minimal capacity 20g (5g)* 40g (10g)* 40g (10g)*... -
Page 5: Instructions For Operation
LAYOUT OF THE SCALES “VEDIA” VDS… C(P) LCD display V.Instruction for operation 1.Environment requirements: Operation temperature range: - 10С ÷ + 40С; Storage temperature: - 25С ÷ + 40С; Permissible relative humidity: < 80%. Condense is not allowed. - Page 6 2.Preparation for work and scale maintenance : Before start using the scale, check whether the set is full. Check for mechanical damages which may have occurred during transportation. For the right functioning of the scale it is necessary to be placed on stable and flat surface; the four adjustable feet are used to level the scale.
- Page 7 4. Operation with the scale in weighing mode: 4.1. Turn on and Turn off - Turning on and turning off is done by the On ff s witch, which is on the right at the bottom of the case. First the ind a test starts, then for short the display shows t he model and the...
- Page 8 .6. Price computing – Before or after the load is placed on the scale, the price can be entered from the keypad. The entered price will be displayed on the second line of the LC isplay and on the third line will be displayed the alculated “Price to pay”.
- Page 9 The sustained protocols are: OFF – the port is turned off; Pr1 – Protocol VEDIA with continuous weight transmission; Pr2 – Protocol VEDIA with a single time weight transm ission after external command or pressing key Enter;...
- Page 10 4. nCal – The display shows the number of the performed actions in service mode. 6. Operation with the rechargeable battery The charging of the rechargeable battery is mad e with an adapter, bought together with the scale. The adapter should be plugged in the 12V DC jack that is on the right side of t he case.
-
Page 11: Warranty Card
VEDICOM LTD BULGARIA 1784 Sofia 131 “Tzrigradsko shoes” Str. „АТМ centre” AD, 5 floor, office 526 tel./fax: +359 2 965 85 57/58 5800 Pleven 21 “San Stefano” Str., office 5 tel: + 359 64 846 080 fax: + 359 64 845 445 e-mail: office@vedicom.org http://www.vedicom.org...
