Summary of Contents for Vedia VDI 3/6

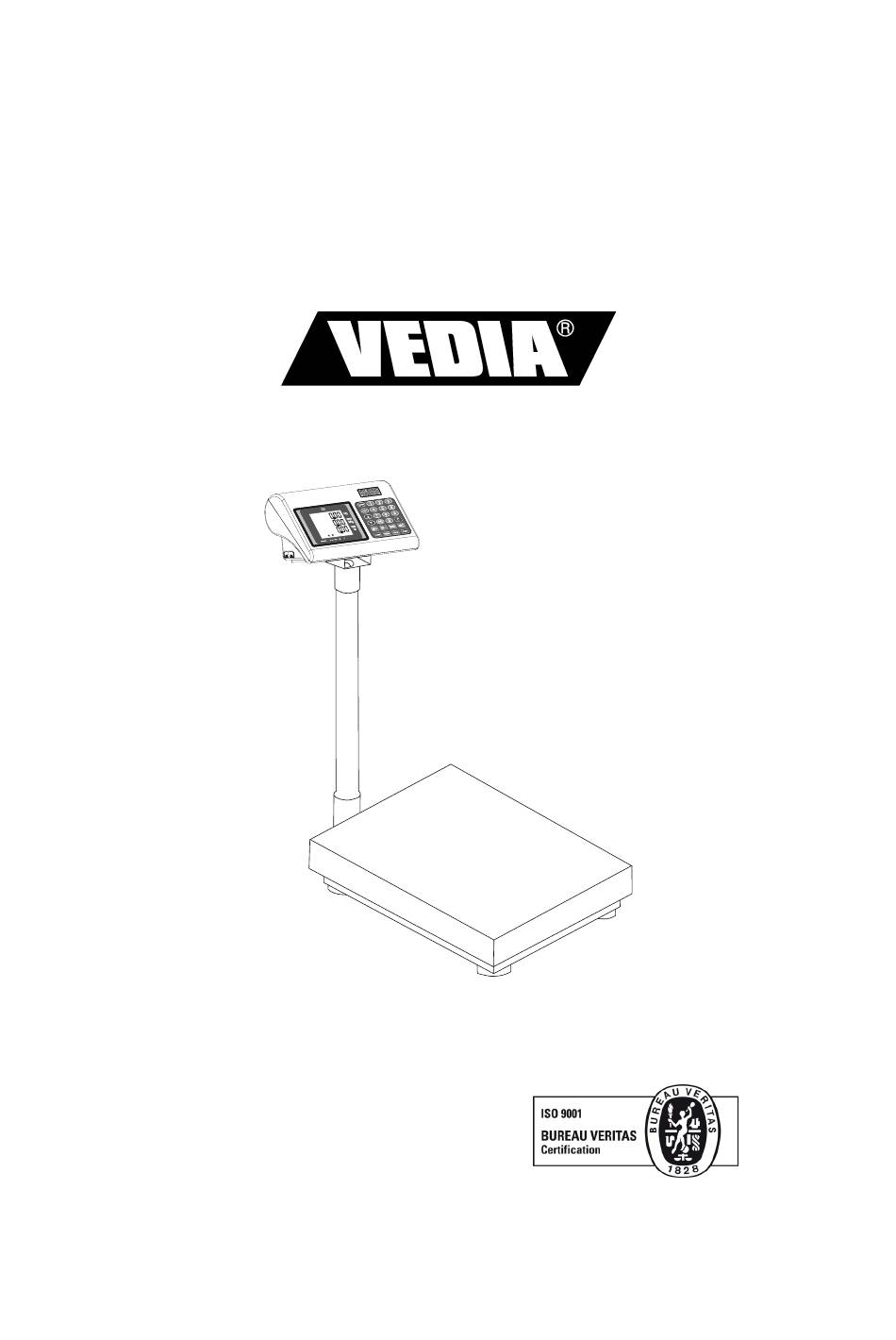

- Page 1 User Manual ELECTRONIC SCALE The product is designed and produced in the terms of applied Quality Management System ISO 9001:2008...
- Page 2 The VEDIA VDI range of scales is of 4 types varying in maximum capacity 30/60 kg and 60/150 kg. The mark “C” stands for price-computing scale, the mark “Р” stands for scale for...
- Page 3 Total “Price to pay” calculation for multiple measurements; Reverse entered account; Built-in thermometer. III. Technical characteristics Platform size No. of Load Model Max. capacity Division Built-in battery (mm) Cells VDI 3/6 3/6kg 1g/2g 350/450 VDI 6/15 6/15kg 2g/5g 350/450 VDI 6/30 6/30kg 2g/10g 350/450...
- Page 4 IV. Layout of the scale and its components Keyboard: Display:...
- Page 5 V. Instruction for operation 1. Environment requirements: Operation temperature range: - 10С ÷ + 40С; Storage temperature: - 25С ÷ + 40С; Permissible relative humidity: < 80%. Condense is not allowed. 2.Preparation for work and scale maintenance : Before start using the scale, check whether the set is full.
- Page 6 Clear the current account Set and confirm PLU number. Print the data from the current measure via label printer. Clear the entered price 4. Operation with the scale in weighing mode: 4.1. Turn on and Turn off – Turning on and turning off is done by the ON/Off switch, which is on the right at the bottom of the case.
- Page 7 OFF – the port if turned off; Pr1 – Protocol VEDIA with uninterrupted weight transmission; Pr2 – Protocol VEDIA with a single time weight transmission after external command or pressing key key Pr3 – Protocol for Datecs cash-registers;...
- Page 8 The sustained protocols are: OFF – the port is turned off; Pr1 – Protocol VEDIA with uninterrupted weight transmission; Prn – Protocol for connection with label printer. After each change of the protocol, the scale is restarted.
- Page 9 Err5 – It is shown on the display with turning on the scale when data incorrectness in the memory is detected. “-HI-“ – overloading indication –a load over the maximum capacity is placed on the platform VEDICOM LTD BULGARIA 1784 Sofia №...
