Green Power GPCC1524 Owner's Manual

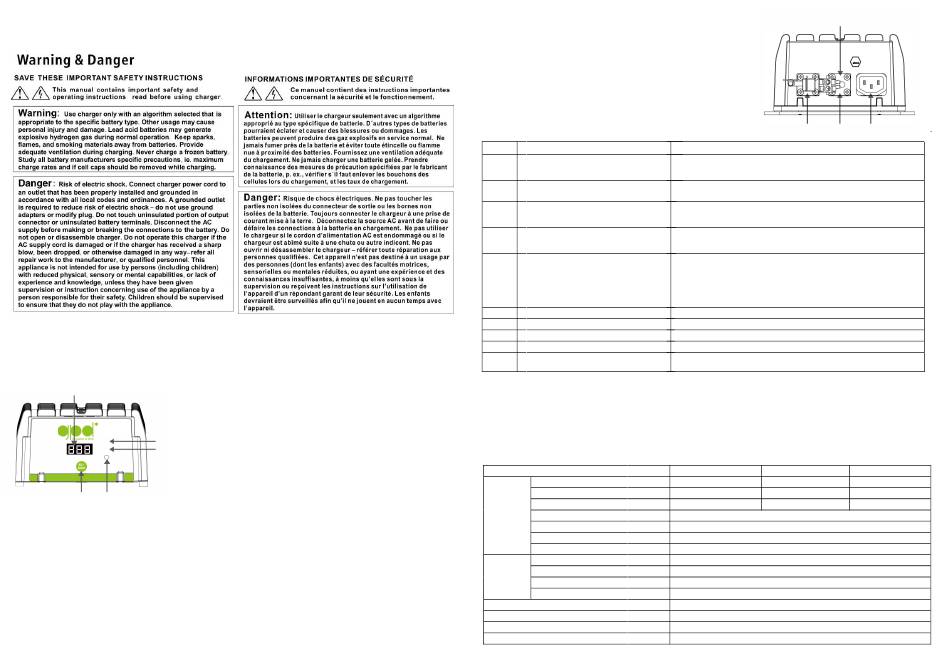

Owner's Manual
Operation Instructions
1. LED indicator and seven-segment digital display
Connect the charger to the battery. Turn on the mains. The charger enters the charging mode (the battery type indicator shows the default battery
type). The status indicator - % Percent, Battery Voltage, Charging Current and the seven-segment digital display will show the charging status.
Seven-segment digital display
＠
Battery capacity % indicator
%
Q
v
Q
Battery voltage indicator
Powering A
everyday
everywhere!
5 s: Change charging profile
Press
10 s: Start EQ mode (Wet Battery)
Select button Charging current indicator
2. Common Mode(Default) & BMS Mode
a. The charger enters BMS mode when being connected to lithium-ion battery through Can Bus;
b. For safety reason, the charger will flash "bnS" if being reconnected to Lead-acid battery under a BMS mode;
c. Press & hold the Select button for 3 seconds in BMS mode to release the curve number, that is, switch back to normal mode.Press & hold
the Select button for 1 seconds to choose the desired profile.
3. Status indicator and seven-segment digital display:
% Percent: Battery capacity % indicator. i.e. 10, 20, 30...... 100 (%)
Battery Voltage (V): Battery voltage indicator. i.e. 24.0(V)
Charging Current (A): Charging current indicator. i.e.15 (A)
To change the charging profile, press & hold the Select button
for 5 seconds, then press the Select button to choose the
desired profile. Once selected, press & hold the Select key for
5 seconds, and the charging profile selection will be completed.
To start EQ mode, press & hold the Select button for 10
seconds, and display will show EQ mode. The next charging
cycle will go into EQ mode. If you want to quit the EQ mode,
hold the Select button for 10 seconds. When display shows
OFF, the charger will quit the EQ mode.
Note: Each operation interval is 5 seconds. If the operation
interval exceeds 5 seconds, it will automatically return to the
default setting.
4. The instruction for cable connection:
1 Connect the battery. 2 Interlock Cable (When charger is charging, the interlock
cables will form an open circuit with no voltage. When charger is not charging, the
interlock cable will form a short circuit with no voltage).
3 Connect AC input wires.
4 Connect CANBUS or LED light wire (Optional function)
Warning: Assure the battery connection cable is
well connected with the charger before it is connected to the battery. Otherwise, the
battery short circuit may occur and cause personal injury or damage to the battery.
Fault Indicator
fault code Fault Cause
E01 The battery is not well connected
or battery reversely connected or
battery damaged.
E02 Abnormal AC Power Input (Voltage).
Charger High Temperature
E03
Protection.
E04 Battery High
Temperature Protection.
1) Discharging activities during charging cycle.
E05
2) Battery low voltage detected during charging
cycle.
3) Output current is too high
(E05 will reappear even after unit reset).
Battery Voltage is too high.
E06
Address declaration failure
E07
Internal error in product.
E08
Relay Fault
E10
Battery error (battery damaged or
E11
battery system error)
Maintenance Instructions
1. Do not expose charger to oil, dirt, mud or direct heavy water spray when cleaning vehicle.
2. The enclosure of the charges has been tested successfully to IEC 60529, meeting IP66
3. If the detachable input power supply cord set is damaged, replace with a cord that is a safety approved detachable cord, 3 conductor, 1.5
mm² minimum, and rated appropriate for use in the country of destination and, on the other end, an output grounding type IEC 60320 C14 plug.
Product Specifications
Model
Voltage-Range(V)
Current-Range(V)
Output Power(W)
Power Error(%)
DC Output
Applicable to Battery
Reverse Polarity
Short Circuit
Voltage-Range(V)
Frequency(Hz)
AC Input
Current-max(A)
Full Load AC Power Factor
Dimensions
Weight
Operating Temperature
Storage Temperature
。
2
。 。
1 4
DC OUTPUT CANBUS/LED AC INPUT
Solution
1) Check battery connection is correct.
2) Check charger connection is correct.
3) Check each battery is good..
1) Check AC input cord is connected between charger and AC outlet.
2) Make sure AC plug is tightly inserted into AC outlet.
1) Charger shuts down and enters protection mode due to charger/environmental
temperature is too high. Please place the charger in a well-ventilated environment.
2) Disconnect the charger and wait for 15-20mins before reconnecting for charging.
1) Charger will reduce current even stop charging to prevent the battery from
overheating when battery temperature exceeds the preset value.
2) When the battery temperature drops, the charger will restart automatically.
1) Make sure no discharging activity during chargingoperation.
2) Reset charger (disconnect AC power and reconnect for a 2nd charge cycle).
3) If E05 reappear within 10 minutes, please return charger to factory for repairing.
Check and assure that the correct output battery voltage is connected.
Return to the factory for repairing.
Return to the factory for repairing.
Return to the factory for repairing.
Replace battery
or IP67 (see silk screen of the device).
GPCC1524 GPCC1724
0-34V 0-34V
0-15A 0-17A
510W 578W
1%
AGM, WET, GEL, Lithium
Electronic protection-auto-reset
Electronic protection-auto-reset
100-240V
50-60Hz
5A
>0.98
22.6*15.2*8.1cm
2.5KG
-40℃~+65℃
-40℃~+70℃
INTERLOCK
。
3
GPCC3012
0-17V
0-30A
510W
