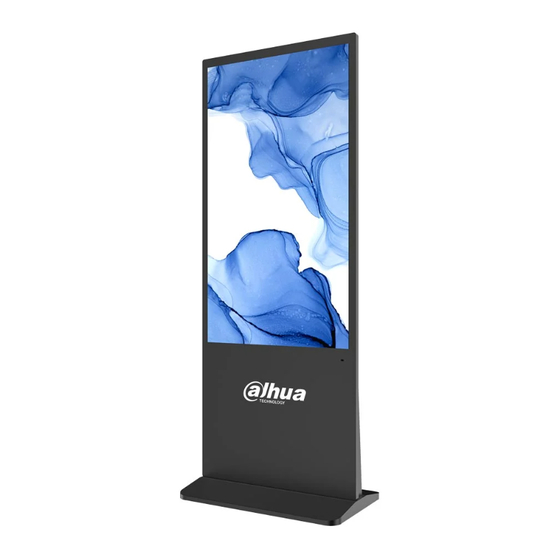

Digital Signage
User's Manual
V1.0.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LDV55-SAI400K and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dahua LDV55-SAI400K

Summary of Contents for Dahua LDV55-SAI400K

  • Page 1 Digital Signage User's Manual V1.0.0...

  • Page 2: Foreword

    Foreword General This manual introduces the functions and operations of the digital signage (hereinafter referred to as the "Signage"). Safety Instructions The following signal words might appear in the manual. Signal Words Meaning Indicates a high potential hazard which, if not avoided, will result in DANGER death or serious injury.
  • Page 3 The manual will be updated according to the latest laws and regulations of related jurisdictions.  For detailed information, see the paper user’s manual, use our CD-ROM, scan the QR code or visit our official website. The manual is for reference only. Slight differences might be found between the electronic version and the paper version.

  • Page 4: Important Safeguards And Warnings

    Important Safeguards and Warnings This chapter introduces the contents covering proper handling of the Signage, hazard prevention, and prevention of property damage. Read the content carefully before using the Signage, comply with the manual when using it, and keep the manual well for future reference. Operating Requirements The Signage is a class-A product.

  • Page 5: Table Of Contents

    Table of Contents Foreword ................................II Important Safeguards and Warnings ......................IV 1 Overview ................................ 1 2 Structure ................................ 2 43-inch ......................................2 55-inch ......................................3 65-inch ......................................4 3 Installation ..............................5 4 Basic Operations ............................7 Starting and Shutting Down ..............................7 Initializing the Signage ................................

  • Page 6: Overview

    Overview The Signage is an innovative, intelligent cloud information terminal that features multimedia content release, advertisement and network access, and has LCD display and audio power amplifier. The Signage is applicable for use in government buildings, office parks, shopping malls, and more.

  • Page 7: Structure

    Structure 43-inch Figure 2-1 Appearance Table 2-1 Appearance description Name Description USB 2.0 Connects to a mouse or USB storage device. ON: Turn on power.  Power switch OFF: Turn off power.  Power input Inputs 100–240 VAC power. Network port Connects the Signage to the network through the Ethernet cable.

  • Page 8: 55-Inch

    55-inch Figure 2-2 Appearance Table 2-2 Appearance description Name Description USB 2.0 Connects to a mouse or USB storage device. ON: Turn on power.  Power switch OFF: Turn off power.  Power input Inputs 100–240 VAC power. Network port Connects the Signage to the network through the Ethernet cable.

  • Page 9: 65-Inch

    65-inch Figure 2-3 Appearance Table 2-3 Appearance description Name Description USB 2.0 Connects to a mouse or USB storage device. ON: Turn on power.  Power switch OFF: Turn off power.  Power input Inputs 100–240 VAC power. Network port Connects the Signage to the network through the Ethernet cable.

  • Page 10: Installation

    Installation Prerequisites Prepare a work table with a clean and flat surface. We recommend you stack some foam or other soft materials on the table to prevent screen from getting scratched. Procedure Step 1 Put the Signage on the table and then attach the base to both sides of the screen using a hexagon wrench and screws.
  • Page 11 Figure 3-3 Erect for use...

  • Page 12: Basic Operations

    Basic Operations The Signage is developed based on the Android system. You can connect the Signage to the media publishing system (hereinafter referred to as "MPS") for releasing multi-media projects, turning on/off the Signage, restarting the Signage, and more. You can perform operations such as local release, app management, and system settings.
  • Page 13 Figure 4-1 Device initialization (2) Step 4 On the Password Protection page, select questions, enter answers to the questions, and then click Save and Next. Click Skip to skip setting security questions. Figure 4-2 Password protection On the Terminal Info page, configure device information. Step 5 Click to set the name that identifies the Signage.
  • Page 14 Figure 4-3 Device information On the Network Setting page, configure the network. Step 6 Click Skip to skip setting the network. Connect your device to the network by Ethernet. Two methods are available to plan your device IP.  DHCP: When there is a DHCP server on the network, after selecting the DHCP option, the Signage automatically obtains IP address from the DHCP server.

  • Page 15: Login

    Click Save and Next. On the Platform Registration page, register the Signage to the platform (MPS). Step 7 Click Skip to skip platform registration. Platform is required when multiple signages are used in a solution. Figure 4-5 Platform registration Enter the IP address or domain name of the platform (MPS). Click Complete.

  • Page 16: Resetting Password

    Figure 4-7 Login Step 2 Enter your password. If you forgot your password, click Forgot Password to reset the password after answering the security questions. Click OK. Step 3 The main menu or the interface before the system is locked is displayed. When the password is incorrectly entered, a note reminding you of the remaining tries ...

  • Page 17: Changing Password And Security Questions

    Figure 4-8 Verify security questions Changing Password and Security Questions We recommend updating the login password and security questions regularly to ensure device security. 4.5.1 Changing Password On the home page, select Settings > Password Setting > Password Setting. Step 1 Step 2 Enter old password and new password, and then confirm your new password.

  • Page 18: Quick Toolbar

    Figure 4-10 Modify security question Step 2 Change answers to the security questions. To change security questions, correctly answer the questions, and then click Clear to clear the answers first, and then set them again. Click Setting. Step 3 Quick Toolbar Move your mouse pointer to the bottom of the page, and the quick toolbar will be displayed.

  • Page 19: Releasing Project

    Icon Description Disconnect your USB drive from the Signage. Releasing Project You can release projects locally or through MPS. Releasing projects locally is ideal for scenarios with a single required Signage.  If multiple Signages and media (pictures, videos) are involved, and network connection is ...
  • Page 20 Figure 4-13 Network setting Step 2 Connect your device to the network by Ethernet. Two methods are available to plan your device IP. DHCP: When there is a DHCP server on the network, after selecting the DHCP option,  the Signage automatically obtains IP address from the DHCP server. Static IP: After selecting Static IP, respectively click IP Address, Gateway or Netmask, ...
  • Page 21 The IP address that you have added is displayed. You can repeat 1)–3) to add multiple IP addresses to your allowlist. 4.7.1.3 4.7.1.3 Registering the Signage to MPS Connect the Signage to MPS, and then you can release projects through the MPS and play the projects on the Signage.

  • Page 22: Local Release

    Figure 4-16 Platform address Step 3 Enter the IP address or domain name of the platform (MPS), and ID of the department that Signage is in. You can confirm the department ID on the web interface of MPS. Click OK. Step 4 After successful registration, the icon on the lower-right corner changes to 4.7.1.4 4.7.1.4 Releasing Project...
  • Page 23 Table 4-3 Configuration flow (general template) Release Procedure Description Mode Create a USBPLAY folder in the USB drive. Name the media (pictures, videos) to be played in the Define project play order to create a custom project. Move the custom project to the USBPLAY folder. Quick play Insert the USB Insert the USB drive with the defined project into the USB port of...
  • Page 24 Release Procedure Description Mode Create project by Add the media and then create projects according to special using special templates. For details, see "4.7.2.3.2 Configuring Other Special template Templates". 4.7.2.2 4.7.2.2 Releasing Projects by General Templates 4.7.2.2.1 4.7.2.2.1 Quick Play Use the given templates to quickly release projects.
  • Page 25 Figure 4-20 Customized play Step 2 Click a template that you want to define. The template configuration page is displayed. Step 3 Define the template. Click to configure this region’s display sequence and content. Figure 4-21 Add media Click Select a picture or a video, and configure the picture play duration as needed. Pictures are displayed for 10 seconds by default and videos to the end.
  • Page 26 If there are multiple regions in your template, to make the template effective, you need to repeat 1)–4) to add projects to other regions. (Optional) Click Preview to preview the project to be played. Step 4 Step 5 Click Publish to play your project immediately. 4.7.2.3 4.7.2.3 Releasing Projects by Special Templates Special templates include Catering &...
  • Page 27 Figure 4-22 Configure face attendance template Click Edit on the upper-right corner. Step 3 You can add video channels, video recordings and pictures to the template.  Only one kind of media can be played at the same time.  Step 4 Add a channel, and then configure other parameters.
  • Page 28 Figure 4-24 Add channel Table 4-5 Description of adding channel Parameter Description You can select from Acquisition (IP camera, IVSS (intelligent video surveillance Protocol server)), DSS, and PSS (SmartPSS), depending on the device connected. IP address of device (IP camera, IVSS), DSS, or PSS, depends on the Protocol that you IP Address select.
  • Page 29 Parameter Description Click to add media (video or picture). Play Media Select media, and then click to delete it.  Drag the media to sort them.  Pictures are displayed for 10 seconds by default and videos to the end. ...
  • Page 30 Figure 4-25 Add media Click Select a picture, and configure the picture play duration as needed. Pictures are displayed for 10 seconds by default and videos to the end.  You can repeat 2)–3) to upload multiple pictures or videos. After adding the media ...
  • Page 31 Figure 4-26 My project 4.7.2.5 4.7.2.5 Scheduled Project Configure which and when projects will be played. On the home page, select Local Release > Scheduled Project. Step 1 , and then on the page displayed, click Add order play period. Step 2 Click Figure 4-27...

  • Page 32: App Manager

    Figure 4-29 Add project Click Save. Step 5 The system goes back to the Add order play period page. Repeat Step 2–Step 4 to add multiple order play periods.  Up to 30 periods can be added.  Click Save. Step 6 You can also click Publish to play the project immediately.

  • Page 33: Installing App

    Figure 4-30 App center 4.8.1 Installing App Install an app to the Signage, and then you can manage and operate the app. Prerequisites Insert the USB drive with the installation package (.apk) into the Signage. Procedure On the home page, select App Manager > App Center > Install App. Step 1 Figure 4-31 Select location...

  • Page 34: File Manager

    The installation starts. Follow the onscreen instructions to finish the installation. You can use and view the app you have installed in App Center. 4.8.2 File Manager View and manage different types of files. Step 1 On the home page, select App Manager > App Center > File Manager. Figure 4-33 File manager Step 2...

  • Page 35: System Settings

    System Settings Setting Date & Time You can set time and date for the Signage. Remember to select a correct time zone based on where the Signage lies. On the home page, select Settings > Date & Time. Step 1 Step 2 Set date, time, and time zone.

  • Page 36: Configuring Visual & Audio Parameters

    Step 2 Select input source. Local: Displays videos or pictures released locally or through MPS.  HDMI: Displays images from HDMI input source.  Step 3 Configure HDMI waiting time. If HDMI is selected, but there is no signal, the Signage displays NO SIGNAL. In this case, if the defined waiting time ends, the Signage will count down 10 seconds, and then display videos or pictures released locally.

  • Page 37: System Language

    Item Description When your device is not playing any projects, you can set a device idle time (the time when you do not operate the device), beyond which your device will be Auto Lock locked. Screen You can select locking your device after 1min, 3min, 10min, or select Never to keep your device unlocked.

  • Page 38: Maintenance And Update

    Maintenance and Update Maintenance Requirements To keep the Signage running normally, you need to: Change the user password every three months.  Restart the Signage regularly.  Update firmware regularly.  Restoring Factory Defaults Restore your device to factory settings to handle problems such as storage insufficiency and system error.

  • Page 39: Configuring Auto Maintenance Time

    After being updated, your device restarts. Figure 6-2 System update Configuring Auto Maintenance Time By default, the Signage auto restarts at 1:00 a.m. each day. You can also set the time that the system auto restarts, and click Save. The system auto restarts at the specified time. On the home page, select Settings >...

  • Page 40: Turning The Signage On/Off At Fixed Time

    Turning the Signage On/Off at Fixed Time On the home page, select Settings > Maintenance and Upgrade > Timing Device Turn Step 1 Step 2 Click to enable turning the Signage on by week or customized time. means enabled. Custom settings come first when Custom and Week are enabled at the same time. Step 3 Click to configure the specific date and time.
  • Page 41 Figure 6-5 Device information...

  • Page 42: Appendix 1 Remote Control

    Appendix 1 Remote Control For Signage of specified models, you can use remote controls to operate them. Appendix figure 1-1 Remote control appearance Appendix table 1-1 Buttons description Operation Item Buttons Needed Turning on/off Press device Turn on/off Hold for three seconds. device screen Volume up: Press and press right arrow button.
  • Page 43 Operation Item Buttons Needed Representing the frequently Press , and operate the left/right arrow keys to select a function you want. used tool bar...

  • Page 44: Appendix 2 Cybersecurity Recommendations

    Appendix 2 Cybersecurity Recommendations Mandatory actions to be taken for basic device network security: Use Strong Passwords Please refer to the following suggestions to set passwords: The length should not be less than 8 characters.  Include at least two types of characters; character types include upper and lower case ...
  • Page 45 the risk of ARP spoofing. Assign Accounts and Privileges Reasonably According to business and management requirements, reasonably add users and assign a minimum set of permissions to them. Disable Unnecessary Services and Choose Secure Modes If not needed, it is recommended to turn off some services such as SNMP, SMTP, UPnP, etc., to reduce risks.
