Summary of Contents for Compo Closet CUDDY

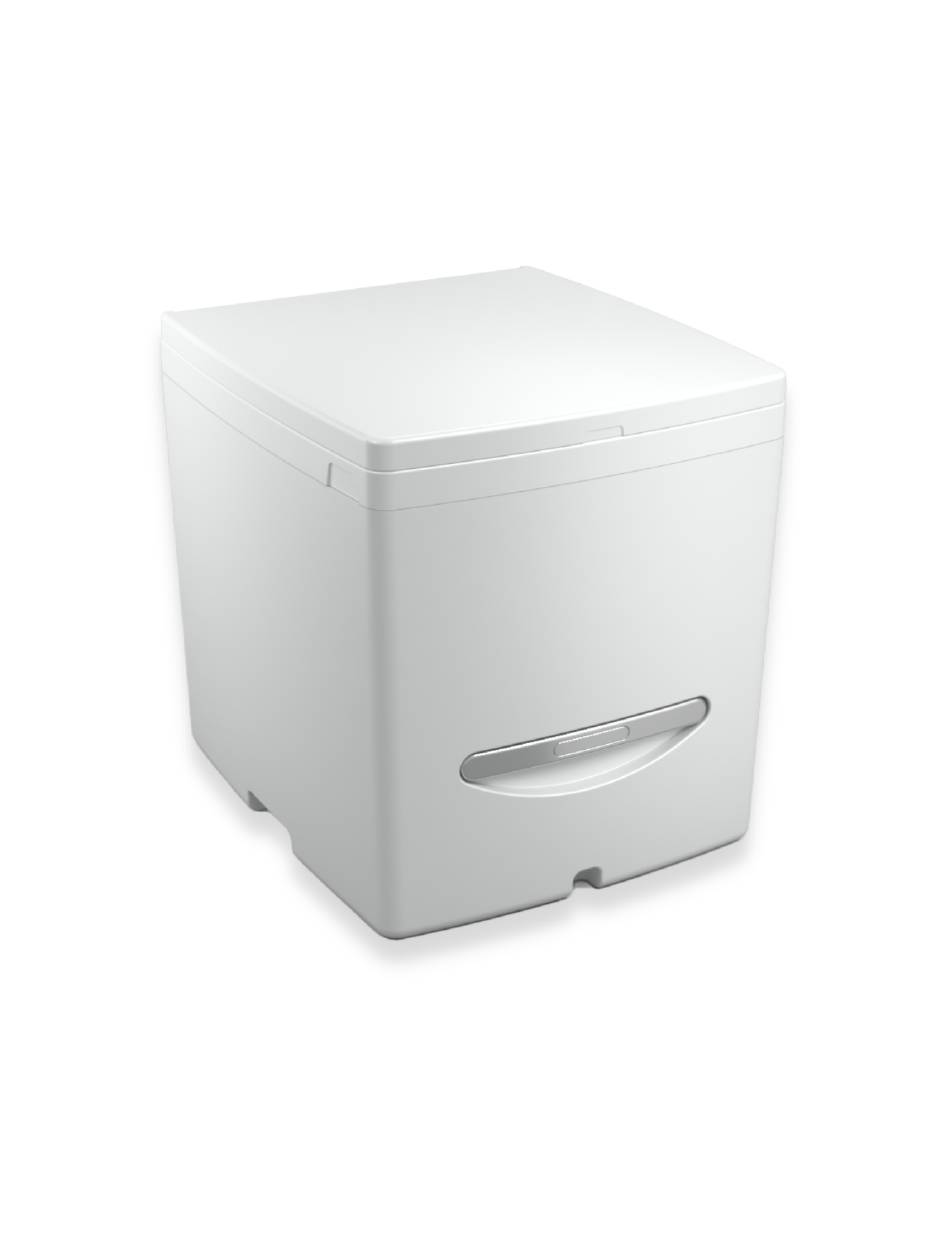

- Page 1 CUDDY™ By Compo Closet™ Manual July 05, 2022...
-
Page 2: Table Of Contents
Emptying the solids bin. Installation Options Tie-me-down: Securing CUDDY™ in place Configuring the Liquid-full LED indicator for 12V operation. Get outta here - Configuring CUDDY™ to Vent Externally Shore-can! - Configuring CUDDY™ with mains power Maintenance Cleaning your CUDDY™ Composting Toilet Refilling the carbon filter... -
Page 3: Welcome To The Compo Crew
Welcome to the Compo Crew! At Compo Closet, we’re committed to diversity, sustainability, and the environment. CUDDY was inspired by Vanife but is now the product of the combined input from a community of travelers, sailors, tiny-dwellers, and environmental enthusiasts. -
Page 4: Safety Warning
He does not like swimming. Ensure water does not contact the power connector at the rear. California residents Prop65 warning Some of CUDDY’s internal components contain chemicals that cause cancer and reproductive harm. For further details see https://oehha.ca.gov/proposition-65. July 05, 2022... -
Page 5: Important
IMPORTANT When performing maintenance on a used CUDDY composting toilet, be sure to wear appropriate safety equipment: Gloves Eye protection ● Always wash your hands after performing any maintenance or repairs to a used toilet. ● We recommend using a soft cloth or sponge when cleaning your CUDDY composting toilet. -
Page 6: What's In The Box
What’s in the Box? A CUDDY™ Composting Toilet, of course. Reusable carbon filter 4ft/120cm power cable (For the fan) 9V battery connector (in the battery housing) Quickstart guide. (THIS) ADVENTURE July 05, 2022... -
Page 7: Dimensions - What Size Is Cuddy
Dimensions - What size is CUDDY™? July 05, 2022... -
Page 8: Quickstart Guide
Quickstart Guide Orientation Seat Handle Base Liquid Level Contact Springs Seat Cover Battery Housing Cover Plates / 'Drop Zone' Battery Cover Knob for Cover Plates Drain Chute Urine Diverter Hinge Liquid Full Indicator Hinge Support Rod Agitator Handle Solids Bin Finger Pull Agitator July 05, 2022... - Page 9 Main Solids Bin Handle Bottom Solids Bin Handle Liquids Bottle Drain Cap Valve Valve Retaining Ring Liquid Level Contacts Power Input Optional Exhaust Vent Securing Eyelets July 05, 2022...
-
Page 10: Steps
Steps ● Step 1 take your CUDDY out of the box. ● Lift the top seat of CUDDY to see the magic inside. ● Remove the carbon filter from its packaging and ensure both end caps are clear of obstruction. - Page 11 ● Connect the 12V power cable to an appropriately fused power supply. CUDDY draws 0.1A, so a low amperage fuse is recommended. ● Insert the male connector into the power connection at the rear of CUDDY as shown ● Confirm the fan is operational by feeling the flow of air at the back of the unit.
- Page 12 ● Orientate the agitator legs downwards and replace the solids bin. ● Just in case - give CUDDY a good wipe down to remove any dirt or debris left over from the manufacturing and shipping process… It’s your bum after all! ●...
-
Page 13: Register Your Cuddy™ / Warranty
Upon approval of your claim, Compo Closet will repair or replace the item(s) without charge. At this time Compo Closet will decide whether or not to have the items returned postage prepaid to Compo Closet or if they should be according to local laws properly disposed of. - Page 14 e. Misuse, abuse, negligence, accident, alteration of a part or the product, f. or any external cuases g. Or to any accessories, materials, products, or parts not manufactured or supplied by Compo Closet Ltd. LIMITATION OF LIABILITY Expect as provided in this warranty and to the maximum extent permitted by applicable law, Compo Closet Ltd.
-
Page 15: Using Your Cuddy
Top Tip - We recommend that everyone sits down when using CUDDY. People with internal genitalia can adjust how they sit so that the majority of liquid is captured in the urine collection area at the front. - Page 16 Instead, we suggest folding each used piece of tissue one extra time after use, and then placing it in a bag for disposal separately. After using CUDDY, close the plates, extend the handle and rotate the agitator several times each direction to mix the contents of the solids bin.
-
Page 17: Emptying The Solids Bin
Emptying the solids bin. Emptying the solids bin is nobody’s favorite task, but with CUDDY, we’ve tried to make it as quick and painless as possible. To help you out, we’ve placed handy handles on the base for speedy emptying and shaking it like a polaroid picture. -
Page 18: Installation Options
● Lift CUDDY’s seat and carefully lay the unit on its side. ● Drill through the four eyelets in the base. ● Place CUDDY upright and in the desired position. Mark the floor with a pencil through the holes in the base. -
Page 19: Configuring The Liquid-Full Led Indicator For 12V Operation
Victory Beverage Optional Materials: 8mm or 3/8 Drill To configure your CUDDY to use the main 12V power for the LED indicator: ● Disconnect the 12V power input from CUDDY - this can be checked by confirming the fan is not running. -
Page 20: Get Outta Here - Configuring Cuddy™ To Vent Externally
Get outta here - Configuring CUDDY™ to Vent Externally When he arrives, CUDDY is configured to recirculate air through the carbon filter to reduce odors. CUDDY can be configured to vent externally if desired. -
Page 21: Shore-Can! - Configuring Cuddy™ With Mains Power
5.5mm x 2.1mm 12V 1A power adapter. Victory Beverage ● CUDDY takes power for the fan via a 5.5 x 2.1mm DC power supply. These are commonly available worldwide for all domestic power supplies. ● To connect CUDDY to mains power, obtain an appropriate 5.5 x 2.1mm 12V adapter for your domestic power supply in either 1A or 2A power rating. -
Page 22: Maintenance
Soapy water Victory Beverage Nobody likes cleaning a toilet so your CUDDY composting toilet is designed to be easy to clean. Start by putting on some rubber gloves - they’ll help protect you from any germs. Cleaning CUDDY does not require an abrasive cleaning agent a soft cloth or ordinary sponge will suffice. -
Page 23: Refilling The Carbon Filter
Refilling the carbon filter Your CUDDY comes with a carbon filter to reduce odors. Activated carbon is a natural material with many microscopic pores. These pores trap odors and prevent them from escaping. Over time, these pores become full - like a car park where the cars never leave. We recommend replacing the carbon in the filter every 6-12 months. -
Page 24: Troubleshooting
Fruit Flies If you find that you are attracting small flies in your CUDDY composting toilet the first step is to try to determine how they are getting inside. If you are venting externally, the most likely entry point is the external vent hose not having a suitable filter. - Page 25 Check that the fan is not blocked from rotating by any debris. If you still experience difficulty, please contact us for assistance. If the fan needs to be replaced, a free replacement will be sent. Agitator Handle not turning - Do not forcefully turn the handle! Check that nothing is under the solids bin to misalign the agitator in the bin and the drive shaft.
- Page 26 Than with the power on, pinch the spring contacts together, so they touch. If this activates the light, check that there is no obstruction between the springs and the contact screws on the urine bottle or that the springs and contacts are not rusty. Check that the springs and contacts are not rusty.
