Sensor Technology TorqSense RWT410 Series User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

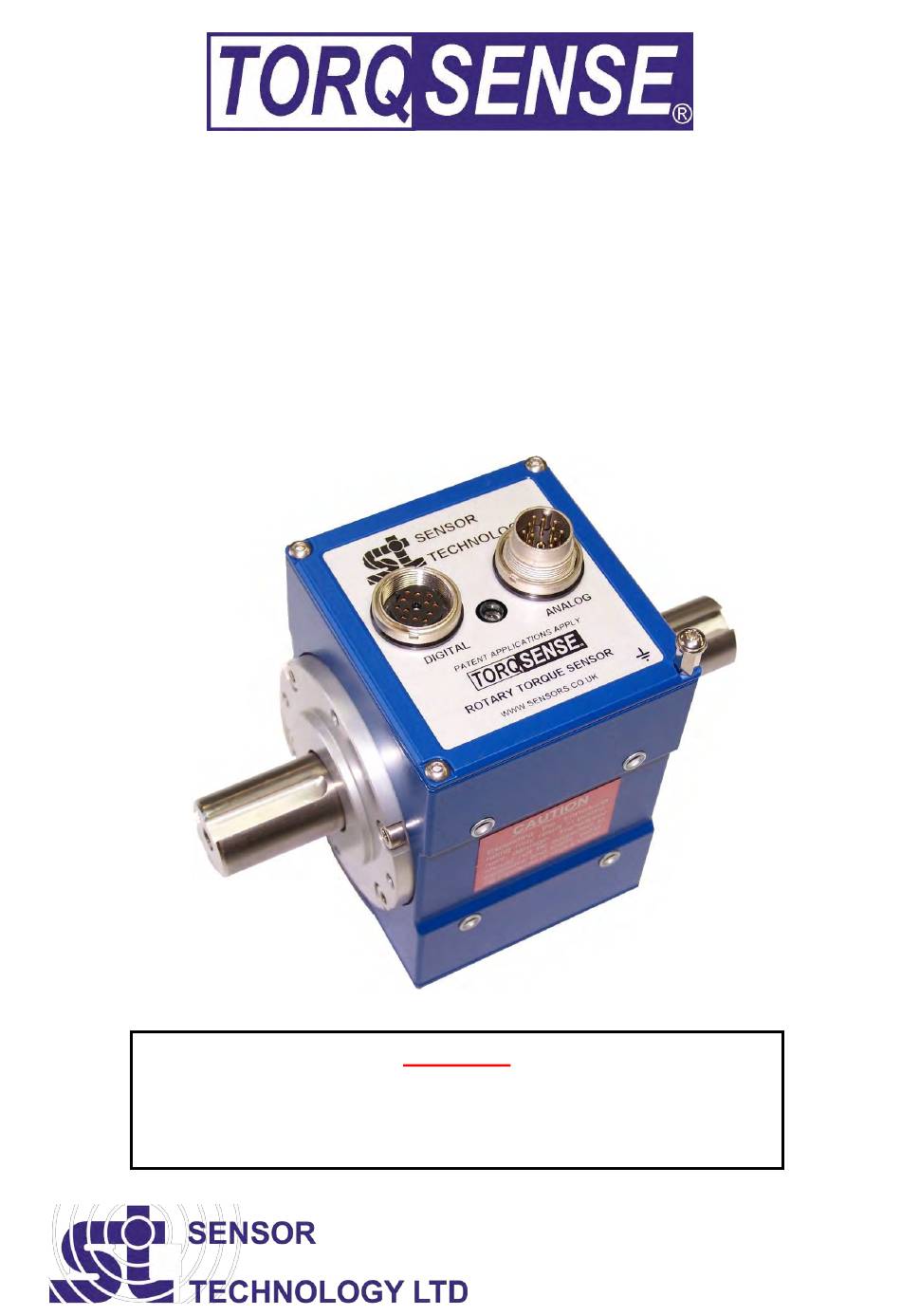

RWT410/420 SERIES
TRANSDUCER
USER MANUAL
CAUTION
This instruction manual should be read carefully and the
safety instructions observed before installing or operating
the equipment related to this manual.
Apollo Park, Ironstone Lane, Wroxton, Banbury
Oxon, OX15 6AY
Tel: +44 (0)1869 238400
Fax: +44 (0)1869 238401
Email: info@sensors.co.uk Web: www.sensors.co.uk

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TorqSense RWT410 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sensor Technology TorqSense RWT410 Series

Summary of Contents for Sensor Technology TorqSense RWT410 Series

  • Page 1 RWT410/420 SERIES TRANSDUCER USER MANUAL CAUTION This instruction manual should be read carefully and the safety instructions observed before installing or operating the equipment related to this manual. Apollo Park, Ironstone Lane, Wroxton, Banbury Oxon, OX15 6AY Tel: +44 (0)1869 238400 Fax: +44 (0)1869 238401 Email: info@sensors.co.uk Web: www.sensors.co.uk...
  • Page 2 While every precaution has been exercised in the compilation of this document to ensure the accuracy of its contents, Sensor Technology Ltd, assumes no responsibility for any errors or omissions. Additionally, no liability is assumed for any damages that may result from the use of the information contained in this document.

  • Page 3: Table Of Contents

    Transducer Connections ....................20 Analog ..........................20 Digital ..........................20 Data Specification Attached Appendices (RWT420/440 series ONLY) RWT420/440 Series Transducer Control Utility Attachments (the following documents may also be attached) TorqView User Guide Page 2  Sensor Technology 2016 RWT3745V (Rev 2)

  • Page 4: Getting Started

    The RWT series transducers should not be operated in an environment where that operation could be life threatening or a danger to personnel. CAUTION In electrically noisy environments, the RWT series transducers should be earthed using the earthing post located on the transducer. Page 3  Sensor Technology 2016 RWT3745V (Rev 2)

  • Page 5: Mechanical Installation

    When using a pulley or pulleys it is recommended a bearing block or blocks should be used to ensure bending loads are not transmitted to the transducer. Double membrane coupling (Rigid mounting) Lastly, consider using a guard over the transducer and couplings Page 4  Sensor Technology 2016 RWT3745V (Rev 2)

  • Page 6: Operating Principles

    (side with the internally fitted spring). Excessive end loads must be avoided and it is recommended that appropriate couplings be used to compensate for axial and radial misalignment. Page 5  Sensor Technology 2016 RWT3745V (Rev 2)

  • Page 7: Operation

    4. Zero the transducer, refer to the Zeroing the transducer section. 5. The transducer is ready for use, examples of different ways to extract data can be found in the Examples of reading/collecting data section. Page 6  Sensor Technology 2016 RWT3745V (Rev 2)

  • Page 8: Built In Test (Bit)

    If the Zero Input has been wired it is possible to display the Built In Test output, to do this switch the Zero Input ON until the transducer starts flashing RED. Page 7  Sensor Technology 2016 RWT3745V (Rev 2)

  • Page 9: Normal Operation

    The Analog Scaling status message is shown when a user defined data or voltage scale has been applied to either analog channel. This message is only relevant on RWT420/440 series transducers. Page 8  Sensor Technology 2016 RWT3745V (Rev 2)

  • Page 10: Warning Signals

    This Head Disconnect warning is only relevant for transducers with separate heads. For example, the following sequence would indicate warnings for ‘Analog Fault CH0’ and ‘Zero Offset High‘: Page 9  Sensor Technology 2016 RWT3745V (Rev 2)

  • Page 11: Error Signals

    When the peak input is toggled, i.e. off-on-off or on-off-on, all internal peak values on both analog and digital interfaces will be reset to defaults. A peak input toggle will also clear any latched fault condition. Page 10  Sensor Technology 2016 RWT3745V (Rev 2)

  • Page 12: Analog Outputs

    If unconnected or if Peak is OFF the channel is assigned with Torque, if Peak is ON the channel is assigned with Torque – Peak. Refer to the Peak Input section for more details. Page 11  Sensor Technology 2016 RWT3745V (Rev 2)

  • Page 13: Fail Output

    LED to the output. In firmware prior to version 5 the fail output is shared with the limits module. If the limits module is active the fail output is overridden. Page 12  Sensor Technology 2016 RWT3745V (Rev 2)

  • Page 14: Limit Output

    In firmware prior to version 5 the limits module does not have a dedicated output pin, instead the limit output is routed to the Fail Output pin (11). When the limits module is active the fail out signal is overridden. Page 13  Sensor Technology 2016 RWT3745V (Rev 2)

  • Page 15: Zeroing The Transducer

    4 - 6 Seconds 1 Hz Green Flash Average Zero Transducer will save the current zero Greater than offset so that it is remembered across 6 Seconds 2 Hz Green Flash power cycles. Page 14  Sensor Technology 2016 RWT3745V (Rev 2)

  • Page 16: Resetting Transducer To Factory Default

    3. Allow the transducer to carry out its BIT procedure. 4. When the LED is solid green all user-adjusted parameters will have been reset to the factory defaults. Page 15  Sensor Technology 2016 RWT3745V (Rev 2)

  • Page 17: Examples Of Reading/Collecting Data

    Examples of reading/collecting data For diagrammatic purposes only the RWT410/420 model is shown. Page 16  Sensor Technology 2016 RWT3745V (Rev 2)

  • Page 18: Optional Accessories

    Further information on the Transducer DLL Programmers Guide is available from the factory or as a download from our website: www.sensors.co.uk/documents Page 17  Sensor Technology 2016 RWT3745V (Rev 2)

  • Page 19: Leads

    Zero Input (low = zero) Peak Input (low = peak) Reserved Limit Output Fail Output Do NOT supply any voltage to these ports. Closure to ground only Female 12 way Female 15 way ‘D’ Lumberg Page 18  Sensor Technology 2016 RWT3745V (Rev 2)

  • Page 20: Digital Lead - Pin Out (Rwt420/440 Series Only)

    USB + USB - USB 0V USB Power Fail Output +5V OUT Zero Angle RWT420/440 Series ONLY RWT420/440 Series ONLY Male 12 way Lumberg Male 15 way ‘D’ DIN45321 0332 12 Page 19  Sensor Technology 2016 RWT3745V (Rev 2)

  • Page 21: Transducer Connections

    Transducer Connections Analog Do NOT supply any voltage to these ports. Closure to ground only Digital Page 20  Sensor Technology 2016 RWT3745V (Rev 2)
  • Page 22 Declaration of Conformity EC Directives We, Sensor Technology Ltd, hereby declare that the products named below, to which this Declaration of Conformity relates, is in conformity to the requirements of EC Council Directives and Standards as listed: 2004/108/EC (Electromagnetic compatibility).
  • Page 24 Bus - to achieve a Torque reading output rate of 10KHz, the Speed reading output rate must be reduced to 100Hz. © Sensor Technology Ltd 2015 RWT3722R (Rev5) Data parameters measured at +20°C Sensor Technology Ltd reserves the right to change specification and dimensions without notice.
  • Page 25 0.14 0.14 0.15 0.15 0.15 0.36 0.37 0.40 0.41 approx Transducer with shaft weight, approx Data parameters measured at +20°C Sensor Technology Ltd reserves the right to change specification and dimensions without notice. © Sensor Technology Ltd 2015 RWT3722R (Rev5)
  • Page 26 Static safe load 300 (of rated torque) breaking Shaft weight, approx Transducer with shaft weight, approx Data parameters measured at +20°C Sensor Technology Ltd reserves the right to change specification and dimensions without notice. © Sensor Technology Ltd 2015 RWT3722R (Rev5)
  • Page 27 Shaft weight, 10.2 10.6 11.2 approx Transducer with 13.4 13.8 14.4 shaft weight, approx Data parameters measured at +20°C Sensor Technology Ltd reserves the right to change specification and dimensions without notice. © Sensor Technology Ltd 2015 RWT3722R (Rev5)
  • Page 28 Note 10: Transducers fitted for IP65 will have running speeds considerably reduced, increased drag torque and accuracy can be affected. Data parameters measured at +20°C Sensor Technology Ltd reserves the right to change specification and dimensions without notice. © Sensor Technology Ltd 2015 RWT3722R (Rev5)
  • Page 29 RS232 (ACC 5) / CANbus (ACC 9) 15 W ay D Type (connects to ACC4) Power Data parameters measured at +20°C Sensor Technology Ltd reserves the right to change specification and dimensions without notice. © Sensor Technology Ltd 2015 RWT3722R (Rev5)
  • Page 30 Please see relevant part of the Datasheet and User Manual. Data parameters measured at +20°C Sensor Technology Ltd reserves the right to change specification and dimensions without notice. © Sensor Technology Ltd 2015 RWT3722R (Rev5)
  • Page 31 Transducer Control 5 User Manual Revision 5 – December 2016...
  • Page 32 Analog Setup ................... 8 Digital Setup ..................15 Zero Offset ....................21 Transducer Test ................... 22 Output Monitor ..................22 Transducer Status ..................23 Contact Details Sensor Technology Ltd, Apollo Park, Ironstone Lane, Wroxton, BANBURY, OX15 6AY, United Kingdom. Sales Email: stlsales@sensors.co.uk...

  • Page 33: Introduction

    Transducer Control 5 User Manual (RWT3746IM) Introduction Transducer Control is an all-round application to unlock the advanced functionality of the ORT/RWT Series Transducers. Transducer Control enables the user to exploit the flexibility of the advanced transducer series by configuring the run time parameters of the transducer to best suit their application.

  • Page 34: Installation

    Transducer Control 5 User Manual (RWT3746IM) Installation To install Transducer Control 5: 1. Insert the Sensor Technology Installation CD into your CD-ROM drive. The following screen will be displayed. 2. Click the ‘Install’ button next to “Transducer Control 5”. 3. Follow the onscreen instructions.

  • Page 35: Running Transducer Control & Connecting To A Transducer

    2. Connect the transducer to the computer using either RS232 or USB. 3. Run the Transducer Control program by clicking on the ”Start”/”Windows” button, then “Programs”/”All apps” > “Sensor Technology” > “Transducer Control 5”. When Transducer Control starts the “Search for connected transducers” dialog box will be displayed.
  • Page 36 Transducer Control 5 User Manual (RWT3746IM) The options prefixed with “AUTO” will search for multiple transducers, whereas the COMx options will search for a single transducer on a specific port. AUTO AUTO will search for connected transducers on all available ports. AUTO RS232 AUTO RS232 will search for connected transducers on RS232 ports only.

  • Page 37: Using Transducer Control

    Transducer Control 5 User Manual (RWT3746IM) Using Transducer Control The main screen will be displayed once a transducer has been selected, use the menu at the top of the screen to select an option. Menu Tree The menu structure below outlines the functionality of the different menu options. File Exit –...

  • Page 38: Transducer Configuration

    Transducer Control 5 User Manual (RWT3746IM) Transducer Configuration User Configuration Analog Setup The “Analog Setup” tab of the user configuration allows the user to configure the transducers analog outputs. All transducers have dual analog outputs with equal capability on both. Analog Data Select The Analog Data Select section allows the user to assign an internal data variable to the output, and select a data range to be applied to the Analog Voltage Scaling.
  • Page 39 Transducer Control 5 User Manual (RWT3746IM) Torque – Peak Peak torque value captured since the last reboot or reset. Torque – Auto Reset Peak torque value captured since the last reboot or reset. Auto Reset mode automatically resets the peak torque when the current torque drops below a percentage of the peak value.
  • Page 40 Transducer Control 5 User Manual (RWT3746IM) Data Ranges The data range parameters control how data from the selected internal variable is taken and scaled. This feature is useful when the user is working in a specific measurement area and requires a greater change in analog output. The low and high range values effectively rescale to the Zero and FSD voltages set in the Analog Voltage Scaling section.
  • Page 41 Transducer Control 5 User Manual (RWT3746IM) The following graphs illustrate some examples of how the range selection works. Torque (100Nm FSD), Standard Range (0 Nm - 100 Nm), ±10v Scale.  +10V -10V +100Nm -100Nm Zero Torque  Torque (100Nm FSD), User Defined Range (50 Nm - 100 Nm), ±10v Scale. +10V -10V +100Nm...
  • Page 42 Transducer Control 5 User Manual (RWT3746IM) Range effects on resolution The range selection will in no way effect or increase the resolution of the transducer. The value expansion is artificial and aids only to give the user a greater change in analog output value.
  • Page 43 Transducer Control 5 User Manual (RWT3746IM) Predefined Current Scales (Option ‘F’ - Current Output) Revision 5, December 2016 - Page 13...
  • Page 44 Transducer Control 5 User Manual (RWT3746IM) User Defined Voltage If a custom analog output scaling is required select the “User Defined Voltage” option from the “Voltage Scale Select” combo box, then use the “Zero Offset” and “Voltage Swing” slider bars to configure the required scaling. The text boxes to the right of the respective slider bars will display the configured voltage.

  • Page 45: Digital Setup

    Transducer Control 5 User Manual (RWT3746IM) Digital Setup The “Digital Setup” tab of the User Configuration allows the user to control some of the operational parameters that effect the processing and output of data. Filters The torque and speed filters provide data smoothing for conditions where there may be erratic torque and speed readings.
  • Page 46 Transducer Control 5 User Manual (RWT3746IM) Limits The limits feature allows the user to configure the transducer to control external processes based on predefined operational parameters. Control is accomplished via an open collector output on the transducers analog connector. There are numerous ways this feature could be utilised, some examples include, system shutdown on overload or triggering a conveyor belt when a nut/bolt has been tightened to the correct torque.
  • Page 47 Transducer Control 5 User Manual (RWT3746IM) To enable Limits click the “Enable Limits” checkbox. Channel Select The “Channel Select” option selects the control channel to be used with the limits feature. The user can select between torque and speed. Output Mode The “Output Mode”...
  • Page 48 Transducer Control 5 User Manual (RWT3746IM) If torque is selected as a control channel then the slider will be scaled from –FSD (counter clockwise full-scale) to +FSD (clockwise full-scale) in increments of 1% of FSD. If speed is selected as a control channel then the slider bar will be scaled from 0 to FSD in increments of 1% of FSD.
  • Page 49 Transducer Control 5 User Manual (RWT3746IM) Misc RS232 The RS232 settings control the RS232 functionality of the connected transducer. Baud Rate The baud rate option selects the RS232 transmit and receive rate for the connected transducer. It is recommended that the user select the fastest mode possible (115200bps), as lowering the speed will reduce the throughput and add latency to programs interrogating the transducer.
  • Page 50 Transducer Control 5 User Manual (RWT3746IM) when the current torque value drops below the “Reset Percentage” of the stored peak value. To configure the percentage, use the slider bar to select a value between 5% and 95%. Update Transducer The “Update Transducer” button will upload the settings to the Transducer. Transducer Control will validate the settings before transmission to ensure that there are no errors.

  • Page 51: Zero Offset

    Transducer Control 5 User Manual (RWT3746IM) Zero Offset The Zero Offset feature sets a fixed torque offset value. The zero offset can be used to remove any offset that may have been introduced from its mechanical installation or from idle torque present. It must be stressed that the zero offset is no substitute for correct installation.

  • Page 52: Transducer Test

    Transducer Control 5 User Manual (RWT3746IM) Transducer Test Output Monitor The Output Monitor displays the capture data generated by the transducer. The peak, min and max values are generated by the transducer based on the torque, speed and power readings captured. Zero The “Zero”...

  • Page 53: Transducer Status

    Transducer Control 5 User Manual (RWT3746IM) Transducer Status The Transducer Status segment displays the current transducer status. The status code is extracted from the transducer and displayed on screen. The transducer LED status sequence is derived from this status code. System Status The System Status represents the overall status of the transducer.
  • Page 54 Transducer Control 5 User Manual (RWT3746IM) The meaning of each category and flag is described in the following sections. Information Information flags inform the user of operational conditions. Peak ON Peak switch is ON. Custom Analog Scaling A non-standard analog output setup is being used. Limits Triggered The limits feature is in an active/triggered state.
  • Page 55 Transducer Control 5 User Manual (RWT3746IM) Error Error flags indicate that a system fault has been detected. System faults cannot be corrected by the user. If a fault condition does occur, try power cycling the transducer. If the fault does not clear the transducer will have to be returned for service.
  • Page 56 Transducer Control 5 User Manual (RWT3746IM) Maximum Operating Conditions Exceeded The maximum operating conditions exceeded section reports on conditions that the transducer has been subjected to which are beyond normal operating parameters. Torque Exceeded Count Count of the number of times the torque level has gone over FSD. Maximum Recorded Maximum recorded torque value over FSD.
  • Page 57 TSE3168V Rev 7 USER MANUAL Apollo Park, Ironstone Lane, Wroxton, Oxon, UK OX15 6AY Tel: +44 (0)1869 238400 Fax: +44 (0)1869 238401 Email: info@sensors.co.uk Web: www.sensors.co.uk...
  • Page 58 About Screen towards the end of this manual. Recommended minimum system requirements Sensor Technology recommends a PC running Windows 10/8/7 with a minimum of 1GB of RAM; a minimum screen resolution of 1024 x 768 pixels; a Pentium 4 or equivalent processor;...
  • Page 59 If more than one transducer has been found it will display all of them in a drop down menu. Select which transducer to use. Page 2 Revision 7 Jan 17  Sensor Technology 2012 TSE3168V...
  • Page 60 Click “RECORD” to start recording data. (See Setup Screen for details on how to set parameters and record/save a file). Record button will be disabled until a file has been configured. Function buttons will change to a darker grey when switched on. Page 3 Revision 7 Jan 17  Sensor Technology 2012 TSE3168V...
  • Page 61 The Temp dial displays the temperature inside the transducer. See the Data sheet for limitations. The Power dial displays the power as a function of the torque and speed applied. Page 4 Revision 7 Jan 17  Sensor Technology 2012 TSE3168V...
  • Page 62 The blue coloured bar displays the actual data, whereas the orange coloured bar, as an underlay of the blue coloured bar, displays peak value. Actual and Peak values are also displayed as numeric values under the coloured display bars. Page 5 Revision 7 Jan 17  Sensor Technology 2012 TSE3168V...
  • Page 63 The “Export Chart” button allows the chart’s current data to be exported as several picture formats or to the clipboard. These settings are adjustable on the Setup Screen. Use the Zoom tools to export a specific section of the chart. Page 6 Revision 7 Jan 17  Sensor Technology 2012 TSE3168V...
  • Page 64 ‘SET’ button is pressed then the value will return to the last saved value after a power cycle. Select Transducer: If more than one transducer is connected, select one from the drop down menu and click on ‘Select’ for it to be active and connected. Page 7 Revision 7 Jan 17  Sensor Technology 2012 TSE3168V...
  • Page 65 Type in the box the samples you require and it will give you an approximate file size that will be created. Once done click Next. Page 8 Revision 7 Jan 17  Sensor Technology 2012 TSE3168V...
  • Page 66 The software will keep recording until the stop condition is met. If this was stop with button, click the button to stop the record. Page 9 Revision 7 Jan 17  Sensor Technology 2012 TSE3168V...
  • Page 67 If you select yes, the record wizard will start again, if you select no you will be given the option of running TorqView or exiting the program. If you select TorqView, the program will close and TorqView will start. Page 10 Revision 7 Jan 17  Sensor Technology 2012 TSE3168V...
  • Page 68 Green to Yellow or from Green to Red, then always refer to the About Screen and, in particular, the Transducer Status Lights for more information. See the table below for an interpretation and possible actions. Page 11 Revision 7 Jan 17  Sensor Technology 2012 TSE3168V...
  • Page 69 However, if LabVIEW is installed and there is a requirement to make unique programs or allow TorqView to communicate with other LabVIEW programmes, VI’s are available from Sensor Technology on the website www.sensors.co.uk at: http://sensors.co.uk/products/pages/labvi.html Page 12 Revision 7 Jan 17  Sensor Technology 2012 TSE3168V...

This manual is also suitable for:
