Summary of Contents for Zanussi ZMSN4C

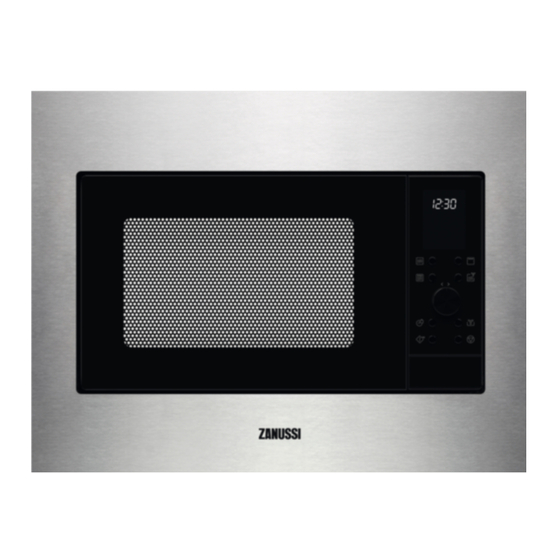

- Page 1 User Manual GETTING STARTED? EASY. EASY. ZMSN4C EN User manual Microwave Oven...
-
Page 2: Table Of Contents
CONTENTS SAFETY INFORMATION......................3 INSTALLATION ..........................7 PRODUCT DESCRIPTION .....................11 OPERATION..........................13 HINTS AND TIPS ........................16 TROUBLESHOOTING......................18 TECHNICAL INFORMATION ....................19 ENVIRONMENT CONCERNS ....................19... -
Page 3: Safety Information
SAFETY INFORMATION This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. - Page 4 Only use microwave-safe containers and utensils. Metallic containers for food and beverages are not allowed during microwave cooking. Do not leave the oven unattended when using disposable plastic, paper or other combustible food containers. The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.
- Page 5 Oven interior: For cleaning, wipe any splatters or spills with a soft damp cloth or sponge after each use while the oven is still warm. For heavier spills, use a mild soap and wipe several times with a damp cloth until all residues are removed. Do not remove the waveguide cover.
- Page 6 IMPORTANT! Clean the oven at regular intervals and remove any food deposits. Failure to maintain the oven in a clean condition could lead to a deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
-
Page 7: Installation
INSTALLATION INSTALLING THE APPLIANCE 1. Remove all packaging and check carefully for any signs of damage. 2. Fit the fixing bracket to the right hand side of the kitchen cupboard using the installation sheet and two screws supplied. 3. Fit the appliance into the kitchen cupboard slowly and without force until it clips into the brackets. - Page 9 CONNECTING THE APPLIANCE TO THE POWER SUPPLY • The electrical outlet should be readily accessible so that the unit can be unplugged easily in an emergency. Or it should be possible to isolate the oven from the supply by incorporating a switch in the fixed wiring in accordance with the wiring rules.
- Page 10 ADDITIONAL ADVICE Do not use the microwave oven to heat oil for deep Do not use plastic containers for microwaving if the frying. The temperature cannot be controlled and oven is still hot from using the GRILL & the oil may catch fire. To make popcorn, only use CONVECTION modes because they may melt.
-
Page 11: Product Description
PRODUCT DESCRIPTION MICROWAVE OVEN Grill heating element Front trim Oven light Control panel Door open button Waveguide cover Oven cavity Door seals and sealing surfaces ACCESSORIES Check to make sure the following accessories are provided: Turntable Turntable support High rack Low rack Baking plate •... - Page 12 CONTROL PANEL Digital display indicators: Power level button Grill button Multi stage Micro. + grill button cooking Micro. + convection Clock set button Time/menu knob Clock setting Clock/weight button Convection button Weight Start/quick start button Auto Defrost Stop/cancel button Door open button Microwave Grill Child safety lock...
-
Page 13: Operation
OPERATION Micro. + grill Microwave Grill button 30 % 70 % fish, Co - 1 potatoes, au gratin 55 % 45 % pudding, Co - 2 omelette, baked potatoes, poultry Power Level Power Level Button 100 % (P100) 80 % (P-80) 60 % (P-60) 40 % (P-40) 20 % (P-20) - Page 14 To cook with convection: AUTO COOK Example: To cook at 180℃ for Auto cook automatically works out the correct 40 minutes. cooking mode and cooking time. You can choose 1. Open the oven door and place the food inside. from 8 menus. Close the door.
- Page 15 MULTI-STAGE COOKING A sequence of 3 stages (maximum) can be programmed. Example: To cook: Stage 1: 2 minutes 30 seconds at 40 % Stage 2: 5 minutes grill 1. Open the oven door and place the food inside. Close the door. 2.
-
Page 16: Hints And Tips
HINTS AND TIPS MICROWAVE SAFE COOKWARE Microwave Cookware Comments safe Aluminium foil/ 3 / 7 Small pieces of aluminium foil can be used to shield food from containers overheating. Keep foil at least 2 cm from the oven walls, as arcing may occur. Foil containers are not recommended unless specified by the manufacturer. - Page 17 MICROWAVE COOKING ADVICE Microwave cooking advice Composition Foods high in fat or sugar (e.g. Christmas pudding, mince pies) require less heating time. Care should be taken as overheating can lead to fire. Size For even cooking make all the pieces the same size. Temperature of The initial temperature of food affects the amount of cooking time needed.
-
Page 18: Troubleshooting
TROUBLESHOOTING Problem Check if . . . The microwave appliance is • The fuses in the fuse box are working. not working properly? • There has not been a power outage. • If the fuses continue to blow, please contact a qualified electrician. The microwave mode is not •... -
Page 19: Technical Information
Convection 1950 W Microwave Frequency 2450 MHz (Group 2/Class B) Outside Dimensions: ZMSN4C 595 mm (W) 460 mm (H) 378 mm (D) Cavity Dimensions 340 mm (W) x 220 mm (H) x 344 mm (D) Oven Capacity 25 litres Turntable ø... - Page 20 WWW.ZANUSSI.COM/SHOP...
