DHP C018112 Quick Start Manual

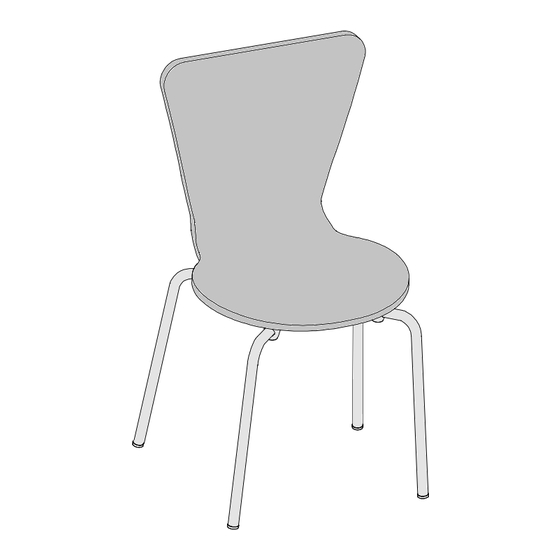

Bentwood dining chair
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
dHp
dorel home products
Weight Limit: 200 Lb / 90 Kg
N.C. - 7/7/2016
2014 Dorel Home Products All Rights Reserved
X 2
Bentwood Dining Chair
Thank you for purchasing from DHP!
DO NOT RETURN TO THE STORE !
If parts are missing or damaged, we will gladly ship your
replacement parts free of charge.
Visit www.dhpfurniture.com/eng/support-home
or call Toll-Free 1-800-267-1739
Date of Purchase
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
C018112
Lot Number
B34C01811200-197776
Grey
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C018112 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DHP C018112

Summary of Contents for DHP C018112

  • Page 1 Grey dorel home products Weight Limit: 200 Lb / 90 Kg Thank you for purchasing from DHP! DO NOT RETURN TO THE STORE ! If parts are missing or damaged, we will gladly ship your replacement parts free of charge.

  • Page 2: Warranty Information

    Warranty Information Read Before Beginning Assembly DHP warrants this product to be free from defects in material and workmanship and Call our toll free number if you need assistance. agrees to remedy any such defect. This warranty covers one year from the date of Work in a spacious area and near where the unit will be used, preferably on a original purchase.
  • Page 3 B34C01811200...
  • Page 4 Parts Replacement Parts, Visit www.dhpfurniture.com/eng/support-home This item is packed in 1 box! Before you throw the package, please use the Check Box to identify the parts and ensure that you have all the parts needed for the assembly. Foot Bar 1 Seat T803480 T803510...
  • Page 5 Hardware Pack Hardware Pack #: T 3332096-02 1/4" x 1/2" 1/4" x 1 5/16" 1/4" x 1 3/8" Leg support Hardware Note: Please do not completely tighten all the hardware, until the entire assembly is completed, unless Metal plate otherwise indicated in the step-by-step instructions.
  • Page 6 Step 1 Insert LEG SUPPORT 4 into Leg (B), align with first holes, as shown. B34C01811200...
  • Page 7 Step 2 Insert LEG SUPPORT 4 into Leg (C), align with first holes, as shown. B34C01811200...
  • Page 8 Step 3 Attach subassembly from STEP 1 to (A) with BOLTS 1 & WASHERS 7. Please respect the direction of the arrow as shown in detail view and DO NOT completely tighten the bolts until STEP 6 is completed. B34C01811200...
  • Page 9 Step 4 Attach subassembly from STEP 2 to (A) with BOLTS 1 & WASHERS 7. Please respect the direction of the arrow as shown in detail view and DO NOT completely tighten the bolts until STEP 6 is completed. B34C01811200...
  • Page 10 Step 5 Insert SPACER 6 between (A) & (B), then attach the METAL PLATE 9 to the Chair with BOLT 2 & WASHER 7. B34C01811200...
  • Page 11 Step 6 Fix the metal plate 9 to (B) and (C) with BOLTS 3 and WASHERS 7. Please make sure all hardware is properly tightened. B34C01811200...
  • Page 12 Step 7 Insert Plastic Caps 5 into each leg as shown. B34C01811200...

  • Page 13: Helpful Hints

    Move your new furniture carefully, with two people lifting and carrying the unit to its new location. Your DHP furniture can be disassembled and reassembled to move. To clean, use a soft or slightly damp cloth, then wipe with a clean, dry cloth. DO NOT USE harsh chemicals or abrasive cleaners.
  • Page 14 Garant a Gracias por su compra DHP! DHP garantiza que este producto est libre de defectos de material y de fabricaci n, comprometi ndose a corregirlos en caso de ser hallados. Esta garant a es valida por Registra tu producto y participa para ganar! un a o a partir de la fecha de compra original.
  • Page 15 Lea antes de comenzar a ensamblar Partes Llame a nuestro n mero gratuito si necesita asistencia. Trabaje en un rea espaciosa y cerca de donde su producto ser utilizado, preferiblemente sobre una alfombra o utilice el cart n del empaque para proteger su Todo se incluye en 1 caja grande! piso y su producto.
  • Page 16 Inserte 4 dentro de (C) y alinee con los primeros orificios como se muestra. Sus muebles DHP se pueden desmontar y volver a ensamblar en caso de mudanza. Paso 3 Limpie el producto con un pa o suave.

  • Page 17: Garantie

    Numero de lot IMPORTANTES. Garantie DHP garantit que ce produit est exempt de tout vice de matériaux et de fabrication et s'engage à remédier à un tel défaut. Cette garantie couvre un an à compter de la Enregistrez votre produit et date d'achat originale.

  • Page 18: Avant De Commencer L'assemblage

    Avant de commencer l'assemblage Pi ces ● Si vous avez besoin d'aide, appelez notre service à la clientèle sans frais. Pi ces de rechange, visitez www.dhpfurniture/fre/support-home ● Travailler dans un endroit spacieux et pr s du lieu o l'unit sera utilis e, pr f rablement sur un tapis, ou sur un morceau de l'emballage pour prot ger le Tout dans 1 grosse bo te! plancher et le produit.

  • Page 19: Conseils Utiles

    D placez votre nouveau mobilier avec soin, nous recommandons deux Insérer 4 dans (C) et aligner avec les premiers trous. personnes pour soulever et transporter le mobilier vers son nouvel emplacement. Votre mobilier DHP peut tre d mont et reassembl pour faciliter les tape 3 d m nagements.
