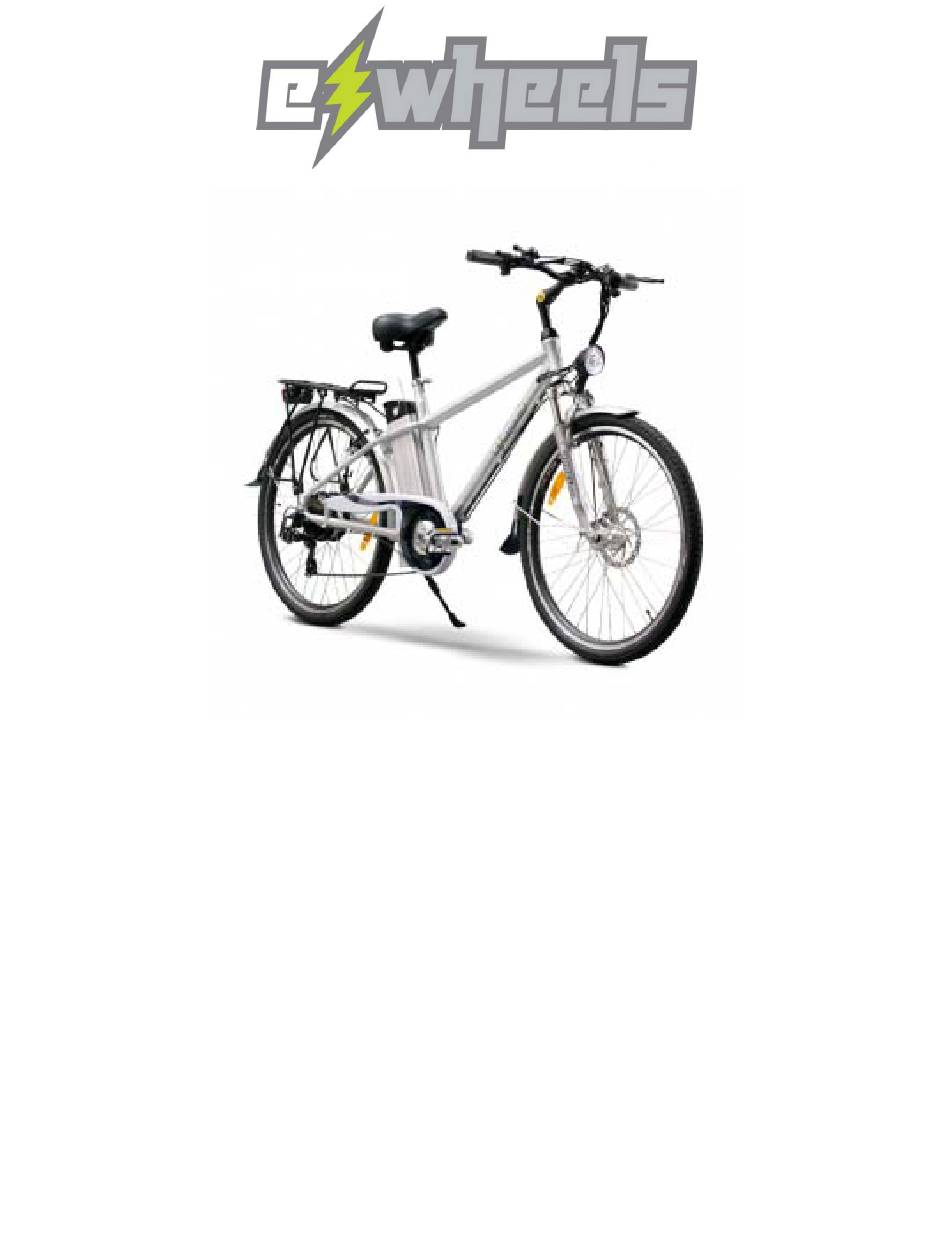

- Page 1 Assembly and Setup Instructions EW-1500 ewheelsdealers.com - 888-305-0881 (Toll Free) - 5000 Birch St West Tower- Suite 3000, Newport Beach, CA 92660...
- Page 2 4. 6mm Allen Wrench 1. Remove the EW-1500 from its carton. Lift the bike out of the carton, assistance will be needed. If no assistance available start by opening the top to allow access to the inside of the carton. Use a knife to cut each corner from the inside out (Figure A).
- Page 3 1. After you have placed the bike make sure you have all the components in the bike. Components included on the EW-1500 A. Front Wheel B. Fender C. Charger with tool kit D. Pedals E. Seat ewheelsdealers.com - 888-305-0881 (Toll Free) - 5000 Birch St West Tower- Suite 3000, Newport Beach, CA 92660...
- Page 4 Handlebar Installation Tools you will need to attach the Handlebar - 6mm Allen Wrench 1. Insert handlebar and align steering correspondingly (Figure A). 2. Use the 6mm Allen Wrench to tighten the steering wheel until it is fully tightened (Figure A). ewheelsdealers.com - 888-305-0881 (Toll Free) - 5000 Birch St West Tower- Suite 3000, Newport Beach, CA 92660...
-
Page 5: Front Wheel Installation
Front Wheel Installation -Prior Front Wheel installation made sure disc brake is on the correct side as shown in Figure A. -Fasten nuts on each side of the fork. ewheelsdealers.com - 888-305-0881 (Toll Free) - 5000 Birch St West Tower- Suite 3000, Newport Beach, CA 92660... -
Page 6: Fender Installation
Fender Installation -Remove Screw located in the middle of steering wheel fork and insert the fender with the headlight (Figure A). -Insert the bottom part of fender and secure it with screw as shown (Figure B). ewheelsdealers.com - 888-305-0881 (Toll Free) - 5000 Birch St West Tower- Suite 3000, Newport Beach, CA 92660... - Page 7 Pedals Installation Tools you will need to attach the Pedals -15mm Wrench 1. Check each pedal for their corresponding side (L) Left and (R) Right (Figure A). 2. Insert pedal into place and tighten it using the 15mm Wrench (Figure B). ewheelsdealers.com - 888-305-0881 (Toll Free) - 5000 Birch St West Tower- Suite 3000, Newport Beach, CA 92660...
- Page 8 How to properly remove the Battery Pack 1. Unlock the Battery lock located on Battery Pack with the key. 2. Loosen up the seat lock and remove the seat (Figure A). 3. Use Battery pack handle to remove Battery Pack (Figure B). ewheelsdealers.com - 888-305-0881 (Toll Free) - 5000 Birch St West Tower- Suite 3000, Newport Beach, CA 92660...
- Page 9 Charging the Battery 1. Plug Charger into Battery Pack (Figure A). 2. Leave Battery pack charge Until green light on charger appears Warning! (1) Charge in dry and airiness place, forbidden to charge in room. (2) Charging far away clothing,, gasoline, alcohol, gas and so on the flammable things. (3) When charging, the charger must not be touched by children.
- Page 10 How to accelerate -Turn the throttle down to accelerate ewheelsdealers.com - 888-305-0881 (Toll Free) - 5000 Birch St West Tower- Suite 3000, Newport Beach, CA 92660...
