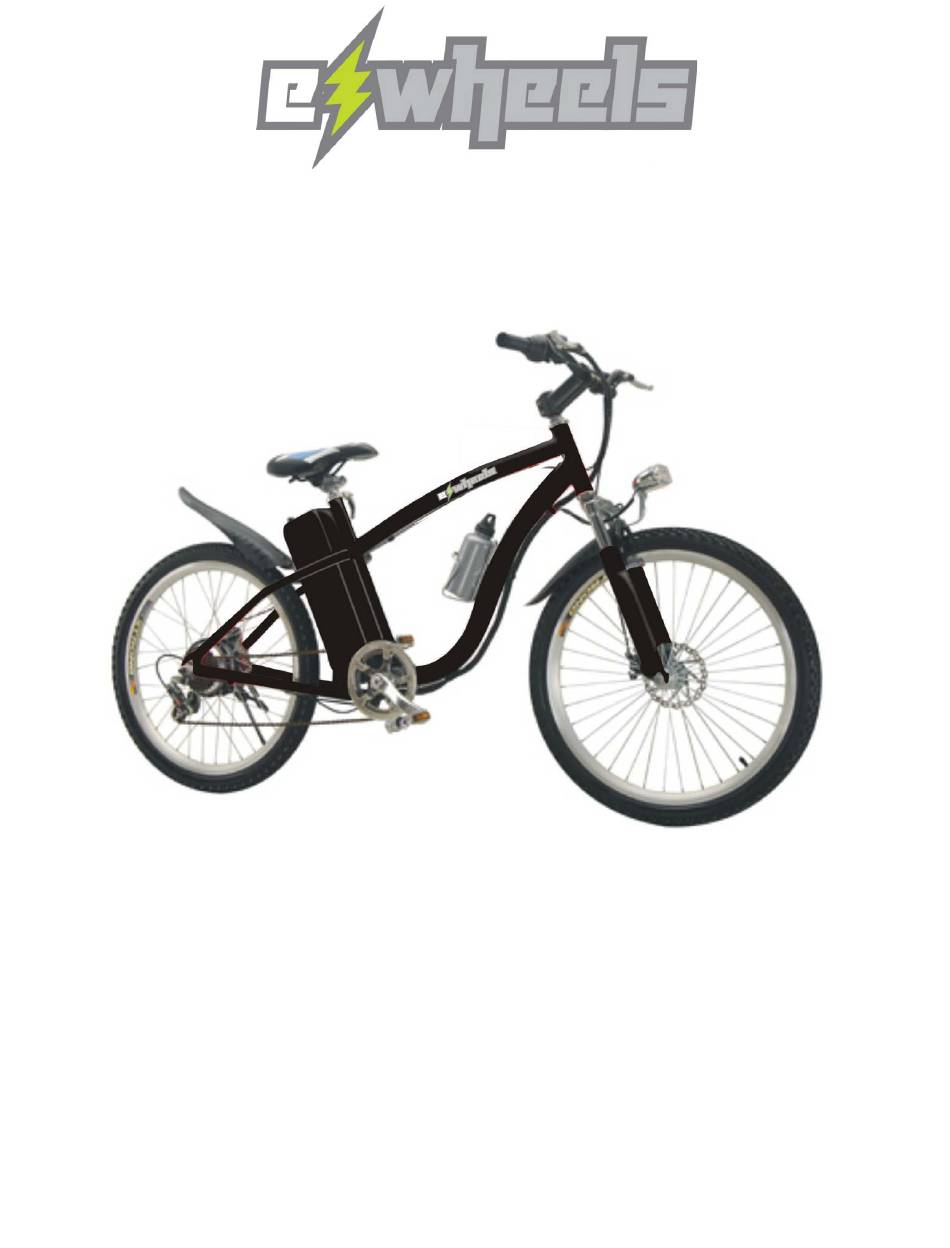

- Page 1 Assembly and Setup Instructions EW-624 ewheelsdealers.com - 888-305-0881 (Toll Free) - 5000 Birch St West Tower- Suite 3000, Newport Beach, CA 92660...
- Page 2 4. 6mm Allen Wrench 1. Remove the EW-624 from it’s carton. Lift the bike out of the carton, assistance will be needed. If no assistance available start by opening the top to allow access to the inside of the carton. Use a knife to cut each corner from the inside out (Figure A).
- Page 3 3. After you have placed the bike on it’s kickstand make sure you have all the components in the bike as shown in Figure C. Components included on the EW-620 A. 15mm wrench B. 6mm Allen Wrench C. Derailleur D. Charger. E.
- Page 4 Pedals Installation Tools you will need to attach the Pedals -15 mm Wrench 1. Make sure you insert each pedal with its correspondent side (Figure A). 2. Hands tighten each pedal and tighten with 15 mm wrench (Figure B). ewheelsdealers.com - 888-305-0881 (Toll Free) - 5000 Birch St West Tower- Suite 3000, Newport Beach, CA 92660...
- Page 5 Adjusting the Seat 1. Adjust seat to desired height, tighten it by turning seat lever clockwise until secure (Figure A). Installing the Derailleur Guard Tools you will need to attach the Derailleur Guard -Philips Screwdriver 1. Remove the two screws as shown in Figure A. 2.
- Page 6 How to properly remove the Battery Pack 1. Unlock the Battery lock located at the bottom of the Battery Pack. 2. Press on the lever underneath the seat to unlock the sea (Figure A). 3. Use Battery pack handle to remove Battery Pack (Figure B). ewheelsdealers.com - 888-305-0881 (Toll Free) - 5000 Birch St West Tower- Suite 3000, Newport Beach, CA 92660...
- Page 7 Charging the Battery 1. Plug Charger into Battery Pack (Figure A). 2. Leave Battery pack charge Until green light on charger appears Warning! (1) Charge in dry and airiness place, forbidden to charge in room. (2) Charging far away clothing,, gasoline, alcohol, gas and so on the flammable things. (3) When charging, the charger must not be touched by children.
- Page 8 How to Turn the Bike on Insert Key in ignition located on Battery Pack and turn to the right (Figure A). ewheelsdealers.com - 888-305-0881 (Toll Free) - 5000 Birch St West Tower- Suite 3000, Newport Beach, CA 92660...
- Page 9 How to accelerate -Turn the throttle down to accelerate How to turn Light on/off -Press on button as show in figure below ewheelsdealers.com - 888-305-0881 (Toll Free) - 5000 Birch St West Tower- Suite 3000, Newport Beach, CA 92660...
