1819407COM

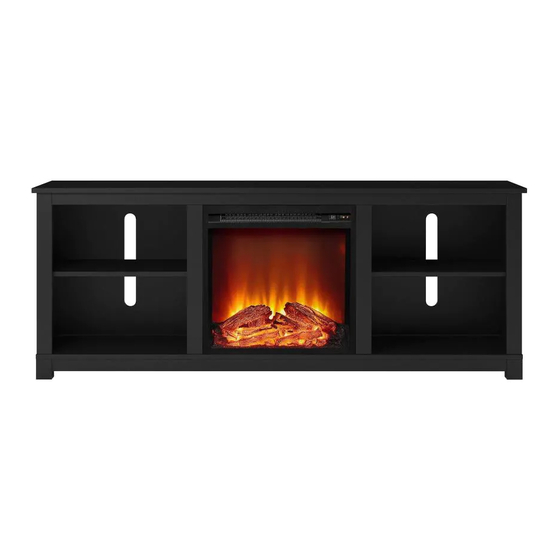

Fireplace / TV Stand
Date of Purchase ___ / ___ / ___
Lot Number:
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Do Not Return This Product!
Contact our customer service team for help first.
Call: 1-800-489-3351 (toll free)
Monday-Friday 9am - 5pm CST
Visit: www.ameriwoodhome.com
WARNING
- Unit can tip over causing severe injury or death.
- Anchor unit to stud in wall (if instructed to).
- Do Not allow children to climb on unit.
- Put heavy items on lower shelves or drawers.
Easy
Assembly Difficulty Meter
Follow Ameriwood Home
You
Tube
B341819407COM0
Tough
Advertisement
Related Manuals for Ameriwood HOME 1819407COM
Summary of Contents for Ameriwood HOME 1819407COM
- Page 1 Tough Visit: www.ameriwoodhome.com Assembly Difficulty Meter WARNING Follow Ameriwood Home - Unit can tip over causing severe injury or death. - Anchor unit to stud in wall (if instructed to). - Do Not allow children to climb on unit. Tube...
-
Page 2: Helpful Hints
Contact Us! Do NOT return this product! Contact our friendly customer service team first for help. Assembly Tips Call us! 1-800-489-3351 Monday-Friday 9am - 5pm CST Tube Visit ameriwoodhome.com to view the limited warranty valid in the U.S. and Canada. Helpful Hints PEOPLE NEEDED FOR ASSEMBLY: 1-2 ESTIMATED ASSEMBLY TIME: 1 HOUR... -
Page 3: Before You Start
Before You Start Read through each step carefully and follow the proper order Separate and count all your parts and hardware Give yourself enough room for the assembly process Have the following tools: Flat Head Screwdriver, #2 Phillips Head Screwdriver and Hammer Caution: If using a power drill or power screwdriver for screwing, please be aware to slow down and stop when screw is tight. -
Page 4: Board Identification
Board Identification Not actual size Left Panel Right Partition Right Panel Left Partition 31819407010 31819407040 31819407020 31819407030 Bottom Adjustable Shelf (x2) 31819407060 31819407050 31819407070 Partition Rail (x2) End Panel Rail (x2) Back (x2) 31819407100 31819407090 31819407080 Side Kick (x2) 31819407130 Top Rail Kick (x2) 31819407110... - Page 5 Board Identification Not actual size Foot (x4) TV Rail 31819407140 31819407150 ameriwoodhome.com Tube...
-
Page 6: Part List
Part List Actual Size (x16) (x12) (x12) (x18) (x12) (x12) #A22620 #A22610 #A21660 #A53510 #A22920 #A22910 cam lock cam bolt wood dowel angle bracket connector connector bolt (x39) (x8) (x12) #A23030 #A12120 #A80250 confirmat screw 7/16" screw shelf support Not Actual Size (x2) (x1) (x6) - Page 7 STEP 1 Quick Assembly (x2) (x3) (x3) #A22620 #A21660 #A22920 Proper orientation of CAM LOCK You will need to tap the connector (4) with a hammer to fully insert. Be sure the connector is positioned as shown before tapping into hole. ameriwoodhome.com...
- Page 8 STEP 2 Quick Assembly (x2) (x3) (x3) #A21660 #A22920 #A22620 Proper orientation of CAM LOCK You will need to tap the connector (4) with a hammer to fully insert. Be sure the connector is positioned as shown before tapping into hole. ameriwoodhome.com...
- Page 9 STEP 3 (x6) #A22910 ameriwoodhome.com...
- Page 10 STEP 4 Turn screw clockwise to lock in place. end view end view ameriwoodhome.com...
- Page 11 STEP 5 Quick Assembly (x3) (x2) (x3) #A22620 #A21660 #A22920 Proper orientation of CAM LOCK You will need to tap the connector (4) with a hammer to fully insert. Be sure the connector is positioned as shown before tapping into hole. ameriwoodhome.com...
- Page 12 STEP 6 Quick Assembly (x2) (x3) (x3) #A22620 #A21660 #A22920 Proper orientation of CAM LOCK You will need to tap the connector (4) with a hammer to fully insert. Be sure the connector is positioned as shown before tapping into hole. ameriwoodhome.com...
- Page 13 STEP 7 (x2) (x6) #A21660 #A22910 ameriwoodhome.com...
- Page 14 STEP 8 Ends will be flush. Turn screw clockwise to lock in place. end view Ends will be flush. end view ameriwoodhome.com...
- Page 15 STEP 9 (x8) #A21660 ameriwoodhome.com...
- Page 16 STEP 10 (x4) #A23030 finished surface finished edge NOTE: Paper seam surface on foot will face to back. ameriwoodhome.com...
- Page 17 STEP 11 (x4) #A23030 finished edge ameriwoodhome.com...
- Page 18 STEP 12 finished surface ameriwoodhome.com...
- Page 19 STEP 13 (x4) #A23030 Press the partitions against the edge of the backs (H), making sure the wood dowels insert into the holes in the partitions. Then attach the partitions to the bottom using screws. ameriwoodhome.com...
- Page 20 STEP 14 (x8) #A22610 ameriwoodhome.com...
- Page 21 STEP 15 (x4) (x4) (x8) #A22610 #A53510 #A12120 ameriwoodhome.com...
- Page 22 STEP 16 ameriwoodhome.com...
- Page 23 STEP 17 ameriwoodhome.com...
- Page 24 STEP 18 (x12) (x24) #A12120 #A53510 With the help of another person, turn unit onto it's top. ameriwoodhome.com...
- Page 25 STEP 19 (x2) (x6) #A43100 #A43490 ameriwoodhome.com...
- Page 26 STEP 20 Insert fireplace into opening as shown. Fasten flange of fireplace to partition rails (J) with screws (7). You will screw into the groove of the partition rails (J). (x6) #A12120 Groove in partition rail. ameriwoodhome.com...
- Page 27 STEP 21 Secure the fireplace insert into the opening by attaching one bracket (16) onto the bottom (E). Tighten bracket so it is snug against the fireplace insert. (x1) (x1) #A53655 #A12120 ameriwoodhome.com...
- Page 28 STEP 22 (x8) #A80250 finished edge ameriwoodhome.com...
- Page 29 Maximum Loads This unit has been designed to support the maximum loads shown. Exceeding these load limits could cause sagging, instability, product collapse, and/or serious injury. No CRT (tube type) TV permitted. This item is designed for most flat panel TV's having up to 64" (162.6cm) diagonal screen size. TV warning label 95 lbs 43.2 kg...
- Page 30 Visit your local retailer's website, rate your purchased product and leave us some feedback! We would like to extend a big "Thank You" to all of our customers for taking the time to assemble this Ameriwood Home product, and to give us your valuable feedback. ameriwoodhome.com...
- Page 31 Español Cubierta Delantera Este libro de instrucciones contiene información IMPORTANTE de seguridad. Por favor lea y manténgalo para referencia en el futuro. No Regrese este producto! Comuniquese con nuestro amistoso equipo de servicio al cliente para obtener ayuda. Llamenos al: 1-800-489-3351 (Gratis) Lunes - Viernes 9am - 5pm CST Visitar: www.ameriwoodhome.com PRECAUCION Este mueble puede volcarse y causar graves heridas y/o muerte.
- Page 32 Español Página 7, 8, 11, 12 Necesitará golpear el conector (4) con un martillo para insertarlo completamente. Asegúrese de que el conector esté colocado como se muestra antes de golpear el orificio. Página 10 Gire el tornillo en el sentido de las agujas del reloj para fijarlo en su sitio. Página 14 Los extremos estarán enrasados.
- Page 33 Visite el sitio web de su tienda local, califique su comprado y denos sus comentarios! Nos gustaría enviar un gran "Agradecimiento" a todos nuestros clientes por tomarse el tiempo de ensamblar este producto de Ameriwood Home, y por darnos sus valiosos comentarios. Gracias ameriwoodhome.com...
- Page 34 Français Couverture Avant CE LIVRET D'INSTRUCTION CONTIENT DES INFORMATIONS IMPORTANTES SUR LA SÉCURITÉ. VEUILLEZ LIRE ET GARDER POUR UNE RÉFÉRENCE FUTURE Ne retournez pas ce produit! Contactez notre équipe de service à la clientèle amicale d'abord pour obtenir de l'aide. Appelez-nous: 1-800-489-3351 (sans frais) du Lundi au Vendredi de 9h à...
- Page 35 Français Page 7, 8, 11, 12 Vous devrez taper sur le connecteur (4) avec un marteau pour l'insérer complètement. S'assurer que le connecteur est positionné comme indiqué avant de le tapoter dans le trou. Page 10 Tourner la vis dans le sens des aiguilles d'une montre pour verrouiller en place. Page 14 Les pointes seront affleurantes.
- Page 36 Visitez le site Web de votre détaillant local, évaluez votre produit acheté et laissez-nous quelques commentaires ! Nous tenons à offrir un grand "Merci" à tous nos clients pour avoir pris le temps d'assembler ce produit "Ameriwood Home", et de nous donner vos commentaires précieux. Merci ameriwoodhome.com...
