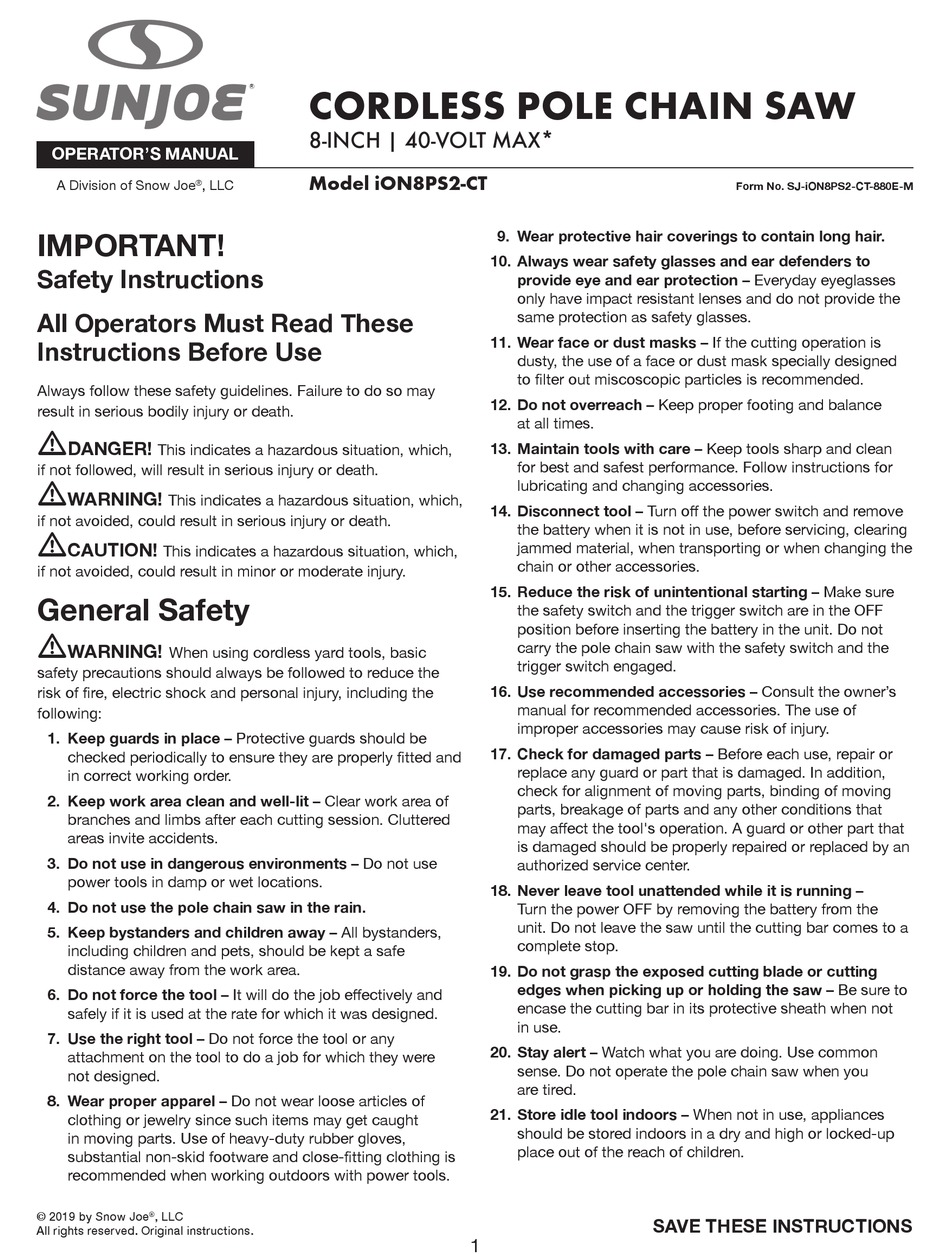

OPERATOR'S MANUAL
A Division of Snow Joe
, LLC
®
IMPORTANT!
Safety Instructions
All Operators Must Read These
Instructions Before Use
Always follow these safety guidelines. Failure to do so may
result in serious bodily injury or death.
m
DANGER!
This indicates a hazardous situation, which,
if not followed, will result in serious injury or death.
m
WARNING!
This indicates a hazardous situation, which,
if not avoided, could result in serious injury or death.
m
CAUTION!
This indicates a hazardous situation, which,
if not avoided, could result in minor or moderate injury.
General Safety
m
WARNING!
When using cordless yard tools, basic
safety precautions should always be followed to reduce the
risk of fire, electric shock and personal injury, including the
following:
1. Keep guards in place – Protective guards should be
checked periodically to ensure they are properly fitted and
in correct working order.
2. Keep work area clean and well-lit – Clear work area of
branches and limbs after each cutting session. Cluttered
areas invite accidents.
3. Do not use in dangerous environments – Do not use
power tools in damp or wet locations.
4. Do not use the pole chain saw in the rain.
5. Keep bystanders and children away – All bystanders,
including children and pets, should be kept a safe
distance away from the work area.
6. Do not force the tool – It will do the job effectively and
safely if it is used at the rate for which it was designed.
7. Use the right tool – Do not force the tool or any
attachment on the tool to do a job for which they were
not designed.
8. Wear proper apparel – Do not wear loose articles of
clothing or jewelry since such items may get caught
in moving parts. Use of heavy-duty rubber gloves,
substantial non-skid footware and close-fitting clothing is
recommended when working outdoors with power tools.
© 2019 by Snow Joe
, LLC
®
All rights reserved. Original instructions.
CORDLESS POLE CHAIN SAW
R
8-INCH | 40-VOLT MAX*
Model iON8PS2-CT
9. Wear protective hair coverings to contain long hair.
10. Always wear safety glasses and ear defenders to
provide eye and ear protection – Everyday eyeglasses
only have impact resistant lenses and do not provide the
same protection as safety glasses.
11. Wear face or dust masks – If the cutting operation is
dusty, the use of a face or dust mask specially designed
to filter out miscoscopic particles is recommended.
12. Do not overreach – Keep proper footing and balance
at all times.
13. Maintain tools with care – Keep tools sharp and clean
for best and safest performance. Follow instructions for
lubricating and changing accessories.
14. Disconnect tool – Turn off the power switch and remove
the battery when it is not in use, before servicing, clearing
jammed material, when transporting or when changing the
chain or other accessories.
15. Reduce the risk of unintentional starting – Make sure
the safety switch and the trigger switch are in the OFF
position before inserting the battery in the unit. Do not
carry the pole chain saw with the safety switch and the
trigger switch engaged.
16. Use recommended accessories – Consult the owner's
manual for recommended accessories. The use of
improper accessories may cause risk of injury.
17. Check for damaged parts – Before each use, repair or
replace any guard or part that is damaged. In addition,
check for alignment of moving parts, binding of moving
parts, breakage of parts and any other conditions that
may affect the tool's operation. A guard or other part that
is damaged should be properly repaired or replaced by an
authorized service center.
18. Never leave tool unattended while it is running –
Turn the power OFF by removing the battery from the
unit. Do not leave the saw until the cutting bar comes to a
complete stop.
19. Do not grasp the exposed cutting blade or cutting
edges when picking up or holding the saw – Be sure to
encase the cutting bar in its protective sheath when not
in use.
20. Stay alert – Watch what you are doing. Use common
sense. Do not operate the pole chain saw when you
are tired.
21. Store idle tool indoors – When not in use, appliances
should be stored indoors in a dry and high or locked-up
place out of the reach of children.
1
Form No. SJ-iON8PS2-CT-880E-M
SAVE THESE INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iON8PS2-CT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for sunjoe iON8PS2-CT

  • Page 1 OPERATOR’S MANUAL Model iON8PS2-CT A Division of Snow Joe , LLC ® Form No. SJ-iON8PS2-CT-880E-M IMPORTANT! 9. Wear protective hair coverings to contain long hair. 10. Always wear safety glasses and ear defenders to Safety Instructions provide eye and ear protection – Everyday eyeglasses...
  • Page 2: Before Using

    Specific Safety Rules For 16. Carry the pole chain saw by the handle with the unit turned off. When transporting or storing the pole chain Pole Chain Saws saw, always use the chain saw cover. Proper handling of the pole chain saw will reduce possible personal injury. WARNING! 17.
  • Page 3: After Using

    • Never try cutting through two branches at the same time. WARNING! To reduce the time of exposure to vibration Only cut one at a time. and noise, it is preferable to use the machine with frequent breaks and limit the duration of continuous work. •...
  • Page 4: Battery + Charger Safety Instructions

    They must be purchased separately. sure that the extension cord is in good electrical condition. Model iON8PS2-CT is compatible with the 40V iONMAX • Charger iCHRG40 is rated for 120 volt AC only – The System batteries and chargers. See page 22 for more charger must be plugged into an appropriate receptacle.
  • Page 5 Information about the charger and the • Store your battery pack and charger in a cool, dry place – Do not store the battery pack or charger where charging process temperatures may exceed 104ºF (40ºC), such as in direct 1. Please check the data marked on the rating plate of the sunlight or inside a vehicle or metal building during battery charger.
  • Page 6 Protection from environmental infuences 1. Wear suitable work clothes. Wear safety goggles. 2. Protect your cordless tool and the battery charger from moisture and rain. Moisture and rain can cause dangerous cell damage. 3. Do not use the cordless tool or the battery charger near vapors and flammable liquids.
  • Page 7: Safety Symbols

    Safety Symbols The following table depicts and describes safety symbols that may appear on this product. Read, understand and follow all instructions on the machine before attempting to assemble and operate. Symbols Descriptions Symbols Descriptions READ THE OPERATOR'S MANUAL(S) – Read, understand and follow all Keep bystanders and children instructions in the user...
  • Page 8 15. Rear handle 7. Hex key wrench/blade screwdriver 16. Battery compartment 8. Oil level indicator window 17. Trigger switch 9. Multi-angle head adjustment dial SOLD SEPARATELY Battery + Charger options available at sunjoe.com iCHRG40-DPC iBAT40-LTE iBAT40-LT iBAT40 iBAT40XR iBAT40XRP iCHRG40...
  • Page 9: Carton Contents

    NOTE: In order to operate this cordless pole chain saw you will Charge level button need 40V iONMAX System batteries and chargers. See page 22 for battery options and specifications, or visit sunjoe.com. The battery is at 30% capacity and requires charging 1.
  • Page 10: Charger Operation

    In order to operate this cordless pole chain saw you will need a 40V iONMAX System battery and charger. See page 22 for battery and charger options and specifications, or for more information visit sunjoe.com. green This equipment is powered by a lithium-ion battery.
  • Page 11 Installing/Replacing the Guide Bar Fig. 4 and Chain WARNING! Always wear heavy-duty gloves when handling the bar and chain. Mount the bar and chain very carefully so as not to impair the safety and efficiency of the machine. If in doubt, contact an authorized Snow Joe ®...
  • Page 12 3. Remove the cutting bar and chain from the mounting surface (Fig. 7). Fig. 9 Fig. 7 Cutting bar Chain Fig. 10 4. Remove the old chain from the bar. 5. Lay out the new saw chain in a loop and straighten any kinks.
  • Page 13: Preparing To Work

    11. Tighten the end cover nut completely using the hex key wrench. (Fig. 15). Fig. 12 Chain tensioner Fig. 15 End cover nut Blade screwdriver Chain/sprocket end cover 9. Replace the chain/sprocket end cover by inserting the rear tab first into the rear tab slot and position the cover onto the saw head.
  • Page 14: Operation

    • Starting, stopping and restarting the motor repeatedly rapidly back toward the operator. Either of these reactions within a few seconds can generate a great deal of heat can cause loss of saw control, which can throw the operator and damage the motor. To protect the life of your cordless off balance and result in serious injury.
  • Page 15 4. Lock the pole in position by closing the cam-lock (Fig. 22), Fig. 19 and ensure that the pole is secure. If the pole telescopes when the cam-lock is closed, the nut may need tightening. Safety lock switch Fig. 22 Cam-lock Trigger switch 6.
  • Page 16: Cutting Tips

    Basic Cutting Procedure Fig. 24 This unit is designed for trimming small branches and limbs up to 7.5 in. (19 cm) in diameter depending on the wood type. Practice cutting a few small limbs using the following technique to get the “feel” of using the saw before you begin a major sawing operation.
  • Page 17: Maintenance

    • Release the trigger ON/OFF switch as soon as the cut is • Always grip the pole and handle firmly with both hands completed. Failure to follow proper cutting procedures will when the unit is running. Place one hand on the pole and result in the bar and chain binding and becoming pinched your other hand on the molded handle with your thumbs or trapped in the limb.
  • Page 18: Motor Cooling

    Sun Joe recommends model 24V-CSSHRP-LTE Cordless • Use protective gloves when handling the bar and chain. Chain Saw Sharpener, available on sunjoe.com, by phone at 1-866-SNOWJOE (1-866-766-9563) (Fig. 29). • Keep the bar encased in its sheath, except when working directly on the bar or the chain.
  • Page 19: Guide Bar Maintenance

    You can purchase replacement parts for your Sun Joe Fig. 30 ® iON8PS2-CT cordless pole chain saw by ordering online at sunjoe.com or, to order by phone, contact Snow Joe ® Sun Joe customer service at 1-866-SNOWJOE ®...
  • Page 20: Battery Caution + Disposal Information

    DO NOT USE the tool. Instead, have If your Sun Joe iON8PS2-CT cordless pole chain saw requires ® it serviced at an authorized Snow Joe + Sun Joe ®...
  • Page 21: Federal Communications Commission (Fcc)

    Federal Communications Commission (FCC) WARNING! Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Class B device: NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
  • Page 22: Optional Accessories

    NOTE: Accessories are subject to change without any obligation on the part of Snow Joe + Sun Joe . Accessories can be ® ® ordered online at sunjoe.com or via phone by contacting the Snow Joe + Sun Joe customer service center at 1-866-SNOWJOE ® ®...
  • Page 23 SNOW JOE + SUN JOE CUSTOMER PROMISE ® ® ABOVE ALL ELSE, Snow Joe + Sun Joe are dedicated to you, our customer. We strive to make your experience as pleasant ® ® as possible. Unfortunately, there are times when a product does not work or breaks under normal operating conditions. We think it’s important that you know what you can expect from us.
  • Page 24 sunjoe.com...
