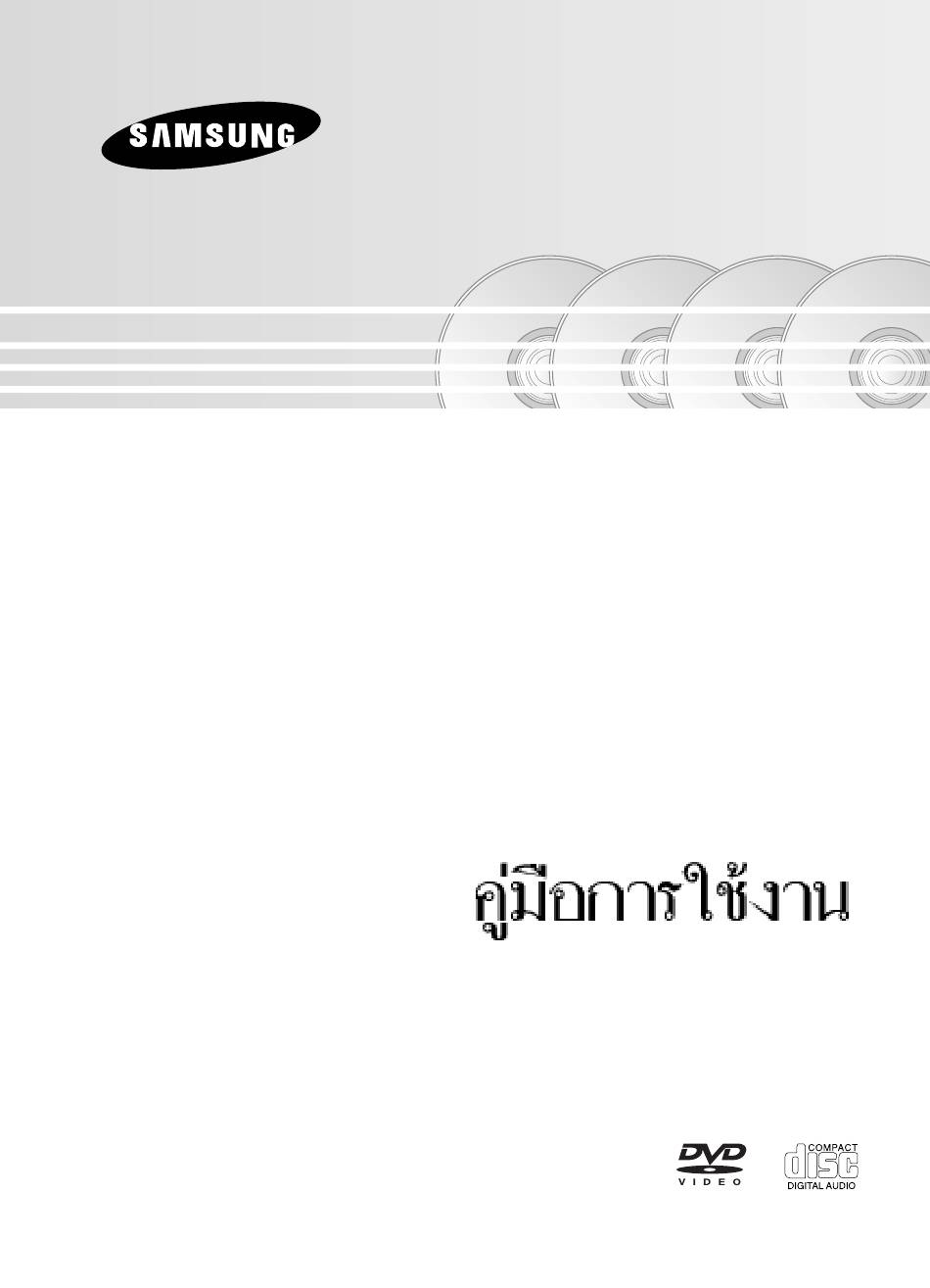

Page 1 DVD Player DVD-P170 www.samsung.com/th...
Page 2 �� ...
Page 3 �� � �� � �� � �� � �� � �� � �� � �� � �� � �� � �� � �� � �� � �� � �� � �� � .. �� � �� � �� � �� � ��...
Page 6 Description Front Panel Controls 5. DISPLAY 1. STANDBY/ON ( Operation indicators are displayed here. When STANDBY/ON is pressed on, the indicator goes 6. SKIP ( ) SEARCH out and the player is turned on. Allow you to search forward/backward through 2.
Page 7 Rear Panel AUDIO OUT JACKS COMPONENT VIDEO OUT JACKS - Connect to the Audio input jacks of your television or - Use these jacks if you have a TV with Component audio/video receiver. Video in jacks. These jacks provide P and Y video.
Page 8 CANCEL CANCEL CANCEL CANCEL...
Page 9 CONNECTIONS CONNECTIONS Choosing a Connection The following shows examples of connections commonly used to connect the DVD player with a TV and other components. Before Connecting the DVD Player - Always turn off the DVD player, TV, and other components before you connect or disconnect any cables. - Refer to the user’s manual of the additional components you are connecting for more information on those particular components.
Page 10 Connection to a TV (Interlace) - Connecting to your TV using Component video cables. - You will enjoy high quality and accurate color reproduction images. Component video separates the pic- ture element into black and white(Y), blue(P ), red(P ) signals to present clear and clean images. (Audio signals are delivered through the audio output.) Using component video cables (not included), connect the COMPONENT VIDEO OUT terminal on the rear of the...
Page 11 Connection to a TV (Progressive) Using component video cables (not included), connect the COMPONENT VIDEO OUT terminal on the rear of the DVD player to the COMPONENT IN terminal of TV. GREEN BLUE Using the audio cables, connect the AUDIO (red and white) OUT terminals on the rear of the DVD player to the AUDIO (red and white) IN terminals of TV.
Page 12 Connection to an Audio System (2 Channel Amplifier) Using the audio cables, connect the AUDIO (red and white) OUT terminals on the rear of the DVD player to the AUDIO (red and white) IN terminals of the Amplifier. Using the video signal cable(s), connect the VIDEO or COMPONENT OUT terminals on the rear of the DVD play- er to the VIDEO or COMPONENT IN terminal of your TV as described on pages 9 to 12.
Page 13 Connection to an Audio System (Dolby digital, MPEG2 or DTS Amplifier) If using a coaxial cable (not included), connect the DIGI- TAL AUDIO OUT (COAXIAL) terminal on the rear of the DVD player to the DIGITAL AUDIO IN (COAXIAL) termi- nal of the Amplifier.
Page 15 CANCEL To access the desired Bookmark or Angle To access the desired Bookmark or Angle Shortcut * �� Bookmark �� Angle Shortcut * �� Bookmark �� Angle function.
Page 16 PouÏití nabídek Disc (Disk) Repeat Play (Opakované pﬁehrávání) PouÏití nabídek Disc (Disk) Repeat Play (Opakované pﬁehrávání) a Title (Titul) Opakování aktuální stopy, kapitoly, titulu, vybraného a Title (Titul) Opakování aktuální stopy, kapitoly, titulu, vybraného úseku (A-B) nebo celého disku. PouÏití nabídky Disc (DVD) úseku (A-B) nebo celého disku.
Page 17 ENTER ANCEL ��   ��  � � � �� � �� � ��  � ��  � � ��  � �� ...
Page 18 2. To remove the AUDIO icon, press the CANCEL or RETURN button. DVDs. - A DVD Jika menggunakan 4:3 TV Catatan languag - Fungsi ini tergantung pada bahasa yang - To have Untuk disk dengan aspek rasio 16:9 dikodekan pada disk dan tidak bekerja pada Note whenev f you are using a 4:3 TV...
Page 19 1. During remote 2. Press th screen Enter Shortcut - Durin Enter Shortcut 2X/4X 3. Press the �/� buttons to select Bookmark(except VCD), - Durin then press the ENTER button. 2X/4X 4. When you reach the scene you want to mark, press the ��...
Page 20 CD Audio Using the Zoom Function (DVD/VCD) 1. During play or pause mode, press the ZOOM button on the remote control, press the ENTER button. 2. Press the �� buttons to select the part of the Enter �� � ��  � � � � ��  � Shortcut Enter Shortcut...
Page 21 �� � �� /VCD �� � �� CD Audio ANCEL ANCEL Popis funkce MPEG4 Pﬁehrávání obrázkÛ CD �� � ��  � � � � ��  � Zvolte poÏadovanou sloÏku. Funkce Popis Stránka Stisknutím tlaãítka �/�...
Page 22 obrázkÛ. DivX5 • : Obrázek se zmûní automaticky v pﬁibliÏnû 6sekundovém intervalu. pﬁi 30 snímcích • : Obrázek se zmûní automaticky v pﬁibliÏnû pﬁi 25 snímcích 12sekundovém intervalu. • : Obrázek se zmûní automaticky v pﬁ ibliÏnû pﬁenosová 18 sekundovém intervalu. Mb/s ��...
Page 23 �� � MP3-JPEG ��  � JPEG ��  � ��  ��  � ��  MP3 ��  � ENTER ��...
Page 24 Setup Enter Return Menu Setup English Enter Return Menu Setup Setup Enter Return Menu Enter Return Menu Setup Hindi Enter Return Menu Japanese Russian Turkish Korean Setup Enter Return Menu...
Page 25 Video Output Video Output & Video Output & & Video Output 4:3 Letter Box 4:3 Pan&Scan & 16:9 & 4:3 Letter Box Setup 4:3 Letter Box 4:3 Pan&Scan 4:3 Pan&Scan 16:9 16:9 Enter Return Menu Setup Setup Setup Enter Return Menu Enter Return...
Page 26 Parental Setup ENTER MENU Setup ENTER Setup & Enter Return Menu Rating Level Setup ENTER Enter Return Menu 4:3 Letter Box Parental 4:3 Pan&Scan Setup ENTER 16:9 Setup Setup Enter Return Menu Enter Return Menu Setup - �� � ��  � ��  � �� � � � 0000 Enter Return Menu...
Page 27 Video Output Video Output Parental Setup Parental Setup ENTER ENTER Setup Enter Return Menu Setup Setup Enter Return Menu Enter Return Menu Rating Level Rating Level ENTER ENTER S-Video S-Video Setup I-SCAN Setup I-SCAN P-SCAN P-SCAN Setup Setup Enter Return Menu Enter Return...
Page 28 40 sekund objeví nápisy ERASE V‰EOBECNÉ INFORMACE a WRITE V‰EOBECNÉ INFORMACE V‰EOBECNÉ INFORMACE V‰EOBECNÉ INFORMACE Úvod Spoleãnost Samsung vydává ãasté aktualizace soft- ERASE waru, které maximálnû zvy‰ují v˘kon této jednotky. RETR 00 MENU Naleznete je na internetov˘ch stránkách spoleãnosti Aktualizace firmwaru...
Page 29 Ω Ω Ω Ω 25 26 Ω Ω P24~28 26 27 P25~26...
Page 30 Contact SAMSUNG WORLD WIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre. Region Country Customer Care Center Web Site CANADA 1-800-SAMSUNG (7267864) www.samsung.com/ca North America MEXICO 01-800-SAMSUNG (7267864) www.samsung.com/mx U.S.A 1-800-SAMSUNG (7267864) www.samsung.com...
Page 31: Precautions
PRECAUTIONS PRECAUTIONS 1. Setting up ture until the inside of the player becomes dry and operational. - Refer to the identification label located on the rear of your player for its proper operat- 4. Disc ing voltage. - Do not clean disc using record-cleaning - Install your player in a cabinet with ade- sprays, benzene, thinner, or other volatile quate ventilation holes.
Page 32: Table Of Contents
BEFORE ABLE OF BEFORE ABLE OF CONTENTS CONTENTS Precautions....... 2 Accessories Before you start .
Page 33: General Features
NECTION TO THE ‘STANDARD DEFINITION’ OUT- Instant Skip (DVD) PUT. IF THERE ARE QUESTIONS This function skips playback ahead 10 seconds REGARDING YOUR TV SET COMPATIBILITY WITH THIS MODEL 525p DVD PLAYER, PLEASE CONTACT SAMSUNG'S CUSTOMER SERVICE CENTER.”...
Page 34: Disc Type And Characteristics
Disc Type and Characteristics This DVD player is capable of playing the following types of discs with the corresponding logos: Disc Types (Logos) Recording Types Disc Size Max. Playing Time Characteristics - DVD contains excellent sound and Single-sided 240 min. 12 Cm video due to Dolby Digital and MPEG- Double-sided 480 min.
Page 35: Description
Description Front Panel Controls DISPLAY STANDBY/ON ( Operation indicators are displayed here. When STANDBY/ON is pressed on, the indicator goes SKIP ( ) SEARCH out and the player is turned on. Allow you to search forward/backward through STANDBY indicator a disc. Use to skip the title, chapter or track. When the unit is first plugged in, this indicator lights.
Page 36 Rear Panel AUDIO OUT JACKS COMPONENT VIDEO OUT JACKS - Connect to the Audio input jacks of your television or - Use these jacks if you have a TV with Component audio/video receiver. Video in jacks. These jacks provide P and Y VIDEO OUT JACK video.
Page 37: Tour Of The Remote Control
Tour of the Remote Control INSTANT REPLAY Button This function is used to replay the previous 10 seconds of a movie from the current position. SKIP Buttons ( Use to skip the title, chapter or track. STOP Button ( MENU Button Brings up the DVD player’s menu.
Page 38: Connections
CONNECTIONS CONNECTIONS Choosing a Connection The following shows examples of connections commonly used to connect the DVD player with a TV and other components. Before Connecting the DVD Player - Always turn off the DVD player, TV, and other components before you connect or disconnect any cables. - Refer to the user’s manual of the additional components you are connecting for more information on those particular components.
Page 39 Connection to a TV (Interlace) - Connecting to your TV using Component video cables. - You will enjoy high quality and accurate color reproduction images. Component video separates the pic- ture element into black and white(Y), blue(P ), red(P ) signals to present clear and clean images. (Audio signals are delivered through the audio output.) Using component video cables (not included), connect the COMPONENT VIDEO OUT terminal on the rear of the...
Page 40 Connection to a TV (Progressive) Using component video cables (not included), connect the COMPONENT VIDEO OUT terminal on the rear of the DVD player to the COMPONENT IN terminal of TV. GREEN BLUE Using the audio cables, connect the AUDIO (red and white) OUT terminals on the rear of the DVD player to the AUDIO (red and white) IN terminals of TV.
Page 41 Connection to an Audio System (2 Channel Amplifier) Using the audio cables, connect the AUDIO (red and white) OUT terminals on the rear of the DVD player to the AUDIO (red and white) IN terminals of the Amplifier. Using the video signal cable(s), connect the VIDEO or COMPONENT OUT terminals on the rear of the DVD play- er to the VIDEO or COMPONENT IN terminal of your TV as described on pages 9 to 11.
Page 42 Connection to an Audio System (Dolby digital, MPEG2 or DTS Amplifier) If using a coaxial cable (not included), connect the DIGI- TAL AUDIO OUT (COAXIAL) terminal on the rear of the DVD player to the DIGITAL AUDIO IN (COAXIAL) termi- nal of the Amplifier.
Page 43: Basic Functions
BASIC FUNCTIONS BASIC FUNCTIONS 4. Stopping Play Playing a Disc Press the STOP ( ) button during play. Before Play 5. Removing Disc - Turn on your TV and set it to the correct Video Press the OPEN/CLOSE ( ) button. Input by pressing TV/VIDEO button on the TV 6.
Page 44: Using The Search And Skip Functions
Using the Search and Skip Using the Display Function Functions When Playing a DVD/VCD During play, you can search quickly through a chapter or 1. During play, press the INFO button on the remote control. track, and use the skip function to jump to the next selection. 2.
Page 45: Using The Disc And Title Menu
Using the Disc and Title Repeat Play Menu Repeat the current track, chapter, title, a chosen section (A-B), or all of the disc. Using the Disc Menu When playing a DVD/VCD 1. During Stop mode, press the MENU button on the remote 1.
Page 46: Slow Play
Slow Play ANCED ANCED This feature allows you slowly to repeat scenes containing sports, dancing, musical instruments being played etc., so FUNCTIONS FUNCTIONS you can study them more closely. When playing a DVD Adjusting the Aspect Ratio 1. During play, press the PLAY/PAUSE ( ) button.
Page 47: Selecting The Audio Language
If you are using a 4:3 TV Note - This function depends on audio languages are encoded on the disc and may not work. For 16:9 aspect ratio discs - 4:3 Letter Box - A DVD disc can contain up to 8 audio lan- guages.
Page 48: Changing The Camera Angle
Changing the Camera Using the Bookmark Angle Function When a DVD contains multiple angles of a particular This feature lets you bookmark sections of a DVD or scene, you can use the ANGLE function. VCD (Menu Off mode) so you can quickly find them Using the ANGLE button (DVD) at a later time.
Page 49: Using The Zoom Function
5. Press the CANCEL button to delete a bookmark number. : MP3 file icon. < > : WMA file icon. CLEAR : JPEG file icon Using the Zoom Function : CD Audio file icon. Using the Zoom Function (DVD/VCD) : Folder icon. 1.
Page 50: Mp3/Wma/Cd Audio Playback
MP3/WMA/CD Audio - Use a decompression transfer rate of at least 64Kbps when recording WMA files. Playback Sound quality with WMA files basically depends on the rate of 1. Open the disc tray. Place the disc on the tray. Close the tray. compression/decompression you choose.
Page 51 Rotation - Kodak Picture CD: The JPEG files in the pictures folder can : Each time the ENTER button is pressed, the be played automatically. picture rotates 90 degrees clockwise. - Konica Picture CD: If you want to see the Picture, select the Zoom JPEG files in the clips menu.
Page 52: Changing Setup Menu
Setting Up the Language Features CHANGING SETUP CHANGING SETUP If you set the player menu, disc menu, audio and subtitle MENU MENU language in advance, they will come up automatically every time you watch a movie. Using the Setup Menu Using the Player Menu Language The Setup menu lets you customize your DVD player by 1.
Page 53: Setting Up The Audio Options
Setting Up the Audio Using the Audio Language Options 1. With the unit in Stop mode, press the MENU button. 2. Press the π π /† † buttons to select Setup, then press the ® Audio Options allows you to setup the audio device or ENTER button.
Page 54: Setting Up The Display Options
❺ PCM Down Sampling - 4:3 Pan&Scan : Select this for conventional - On : Select this when the Amplifier connected to the player size TVs when you want to see the central por- tion of the 16:9 screen. (Extreme left and right is not 96KHz compatible.
Page 55: Setting Up The Parental Control
DISPLAY SETUP PARENTAL SETUP Rating Level : Kids Safe TV Aspect : 4:3 L-Box Change Password Screen Messages : On Black Level : Off Enter Password TV System √ I-SCAN Video Output P-SCAN Setup Enter Return Menu 6. Press the π π /† † buttons to select the Rating Level you want, •...
Page 56 PARENTAL SETUP Rating Level :Kids Safe Change Password Enter Password Setup Enter Return Menu PARENTAL SETUP Rating Level :Kids Safe Change Password Enter New Password Setup Enter Return Menu Note If you have forgotten your password, see “Forgot Password” in the Troubleshooting Guide.
Page 57: Reference
Playback can only support English Subtitle. If you have any question or any problem, please ERASE feel free to contact your nearest SAMSUNG RETR 00 Service Center and agency. How to make an upgrade disc Write the downloaded file onto a blank CD-R disc, using the following settings.
Page 58: Troubleshooting
Troubleshooting Before requesting service (troubleshooting), please check the following. Page Problem Action • Check the batteries in the remote control. They may need replacing. No operations can be • Operate the remote control at a distance of no more than 20 feet. performed with the •...
Page 59: Specifications
96 kHz Sampling : 4 Hz to 44 kHz Audio *S/N Ratio 110 dB Output *Dynamic Range 100 dB *Total Harmonic Distortion 0.004 % *: Nominal specification - Samsung Electronics Co., Ltd reserves the right to change the specifications with out notice. - Weight and dimensions are approximate.
Page 60 Contact SAMSUNG WORLD WIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre. Region Country Customer Care Center Web Site CANADA 1-800-SAMSUNG (7267864) www.samsung.com/ca North America MEXICO 01-800-SAMSUNG (7267864) www.samsung.com/mx U.S.A 1-800-SAMSUNG (7267864) www.samsung.com...
Page 61 Contact SAMSUNG WORLD WIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre. ☎ 1800-29-3232/02-689-3232/ www.samsung.com/th AK68-01385E...
