5GHz 14dBi High Gain Dual Polarization Directional Antenna
1. Package Contents
ANT-FP14AD x 1 unit
Accessory (including screws and brackets) x 1 set
2. Specifications
Electrical Specifications
Frequency Range
Max. Gain
Antenna Type
V.S.W.R.
Polarization
HPBW / Horizontal
HPBW / Vertical
Input Impedance
Connector
Environment & Mechanical Characteristics
Survival Wind Speed
Radome Color
Radome Material
Dimensions (W x D x H) 228 x 15 x 228mm (Connector excluded)
Weight
Weatherproof
Mount Type
Outlook:
5.15 ~ 5.85GHz
14dBi
Uni-directional, Flat Panel
<1.5
Horizontal and Vertical (Dual Polarization)
30 degrees
30 degrees
50Ω
N-Type (Female) x 2
Greater than 150MPH
Gray-white
ABS, UV resistant
550g
IP55
Pole Mount
ANT-FP14AD
Installation Guide
228
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Planet Networking & Communication ANT-FP14AD
Summary of Contents for Planet Networking & Communication ANT-FP14AD

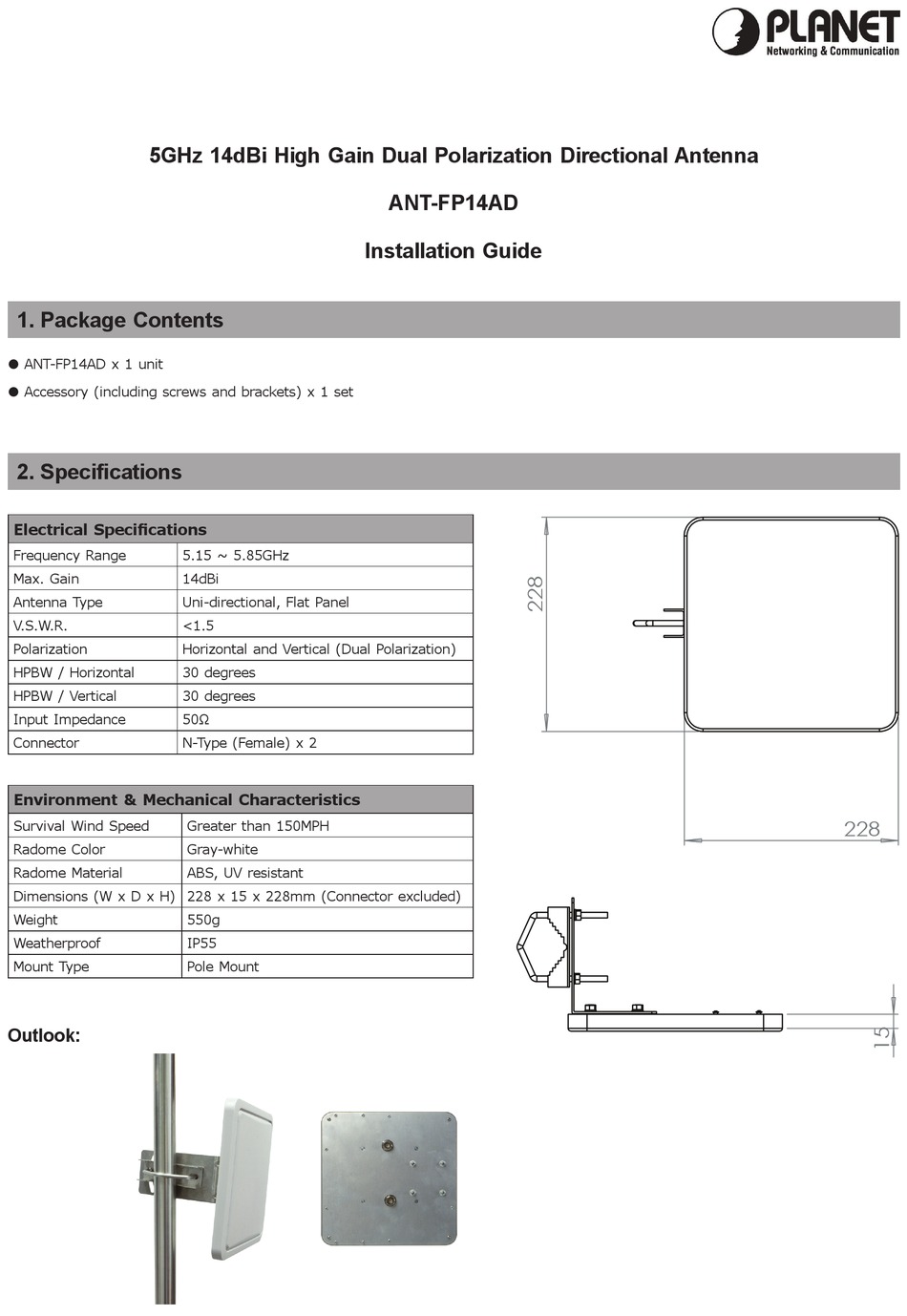

- Page 1 5GHz 14dBi High Gain Dual Polarization Directional Antenna ANT-FP14AD Installation Guide 1. Package Contents ANT-FP14AD x 1 unit Accessory (including screws and brackets) x 1 set 2. Specifications Electrical Specifications Frequency Range 5.15 ~ 5.85GHz Max. Gain 14dBi Antenna Type Uni-directional, Flat Panel V.S.W.R.
