5GHz 15dBi High Gain Dual Polarization Directional Antenna
1. Package Content
Thank you for choosing PLANET ANT-FP15AD. Before installing the Antenna, please verify the contents inside the package box.
ANT-FP15AD x 1 unit
Accessory (included screws and brackets) x 1 set
2. Specifications
Electrical Specifications
Frequency range
Max. Gain
Antenna Type
V.S.W.R.
Polarization
HPBW / Horizontal
HPBW / Vertical
Front to back ratio
Isolation
Input Impedance
Cable
Connector
Power handling
Lightning Protection
Environment & Mechanical Characteristics
Survival Wind Speed
Temperature
Humidity
Radome Color
Radome Material
Dimension (L x W x H)
Weight
Weatherproof
Mount Type
5.150 – 5.875GHz
15 ~ 16dBi
Uni-directional, Flat Panel
2.0:1 (max.)
Linear, ±90°
15° ~ 19°
17° ~ 21°
-20dB (max.)
25dB
50Ω
RG223, 150mm
N-Type (Female) x 2
6W (cw)
DC ground
216Km/hr
-40 ~ 80 Degree C
95% @ 55 Degree C
Gray-white
ABS, UV resistant
210 x 210 x 73mm
800g
IP55
Pole Mount or Wall Mount
ANT-FP15AD
Installation Guide
Outlook:
Advertisement
Related Manuals for Planet Networking & Communication ANT-FP15AD
Summary of Contents for Planet Networking & Communication ANT-FP15AD

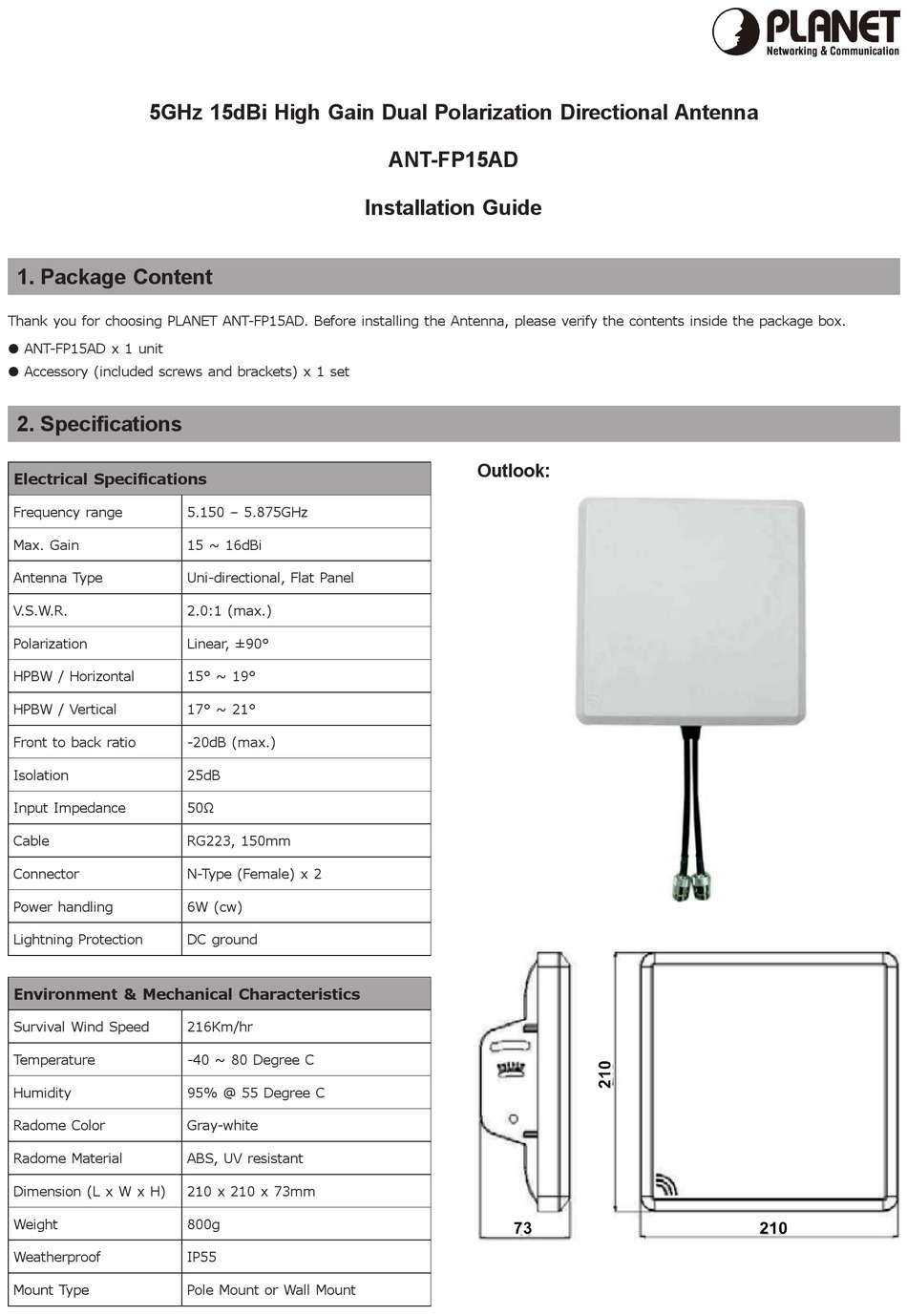

- Page 1 5GHz 15dBi High Gain Dual Polarization Directional Antenna ANT-FP15AD Installation Guide 1. Package Content Thank you for choosing PLANET ANT-FP15AD. Before installing the Antenna, please verify the contents inside the package box. ANT-FP15AD x 1 unit Accessory (included screws and brackets) x 1 set 2. Specifications...
