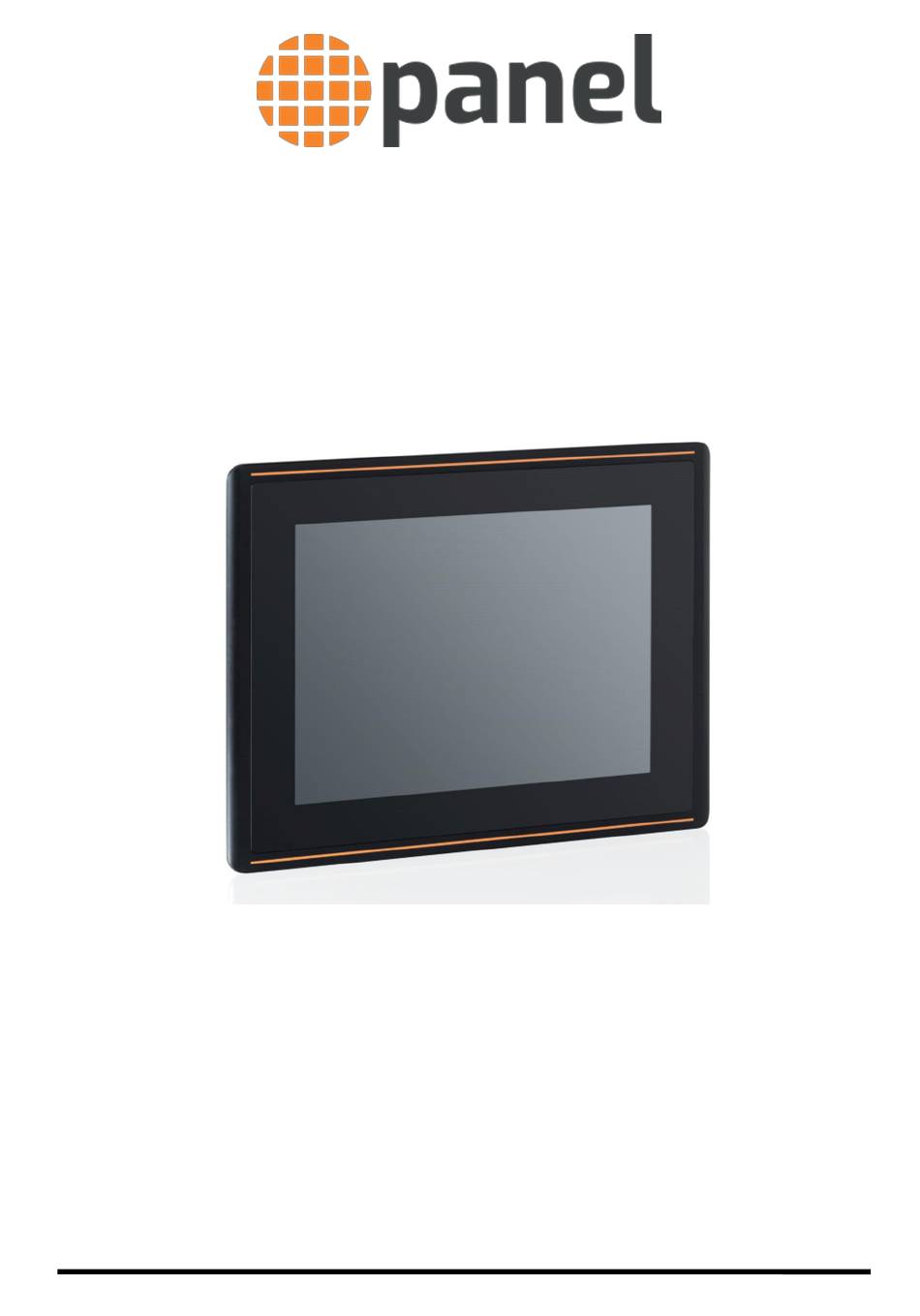

Panel PC PSG3-EP series
Intel® Core™ i3, i5, i7
Capacitive touchscreen
User's manual
Version 1.2
All information contained in this manual, including all photographs, illustrations and software, is protected under international copyright laws, with all
rights reserved. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written
consent from Panel S.r.l. The information contained herein is believed to be accurate as of the date of publication; however, Panel S.r.l, makes no
warranty, ex- pressed or implied, with regard to the products or documentation contained within this manual. Panel S.r.l. reserves the right to change
the contents of this manual without notice. Panel shall not be liable for direct, indirect, special, incidental, or consequential damages arising out of the
use of any product, nor for any infringements upon the rights of third parties, which may result from such use. Any implied warranties of
merchantability or fitness for any particular purpose is also disclaimed. Soft- ware names, hardware names and trademarks are registered by their
respective companies.
www.panel.it
1
1
Advertisement
Table of Contents
Related Manuals for panel PSG3-EP Series
Summary of Contents for panel PSG3-EP Series
- Page 1 No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written consent from Panel S.r.l. The information contained herein is believed to be accurate as of the date of publication; however, Panel S.r.l, makes no warranty, ex- pressed or implied, with regard to the products or documentation contained within this manual.
-
Page 2: Table Of Contents
4.4 Mini PCI-E and mSATA module installation ..........18 4.5 WI-FI module installation ................... 19 4.6 PCIe module installation ..................20 Chapter 5: Jumpers and connectors 5.1 Motherboard layout…………………………………………………………………………. 21 5.2 PSG3 I/O connectors ..................23 5.3 Motherboard jumpers setup ................24 www.panel.it... - Page 3 Chapter 6: System setup 6.1 Installing operating system ................25 6.2 Bios setup ........................25 6.3 Touchscreen driver and calibration ............25 Chapter 7: Maintenance 7.1 Cleaning........................26 7.2 Lithium battery ......................26 7.3 Spare parts ....................... 26 www.panel.it...
-
Page 4: Safety Rules
1.1 Safety rules All the Panel PC PSG3 series have been designed and built taking into account all the issues associated with an industrial environment such as that where it is necessary to ensure the operation of the system in the presence of vibration, moisture, dust and critical heat conditions. -
Page 5: Package Content
The following items are included in the PSG3 unit’s package. Before using the PSG3, please check all the items match the manual list. PSG312/327 AC power supply PSG312/327 DC power supply Qty 1 Panel PC Qty 1 Panel PC Qty 1 Quick guide Qty 1 Quick guide Qty 1 Power cable (IT) 1.8m... -
Page 6: Warranty And Rma
2 years, beginning on the date of invoice by Panel. PANEL will engage to repair or eventually replace, at its discretion, the whole device or its components, which show construction defects or malfunction if these are pointed out in writing during the warranty period. -
Page 7: Chapter 2: Technical Data
Chapter 2: Technical data 2.1 Introduction Panel PC fanless extremely compact. The PSG3-EP is provided with Intel® Core™ i3, i5, i7 CPU. The front panel is a tempered IP66 glass supplied with projected capacitive multi-touch screen 2.2 Products specifications Models PSG312 PSG315... -
Page 8: Touchscreen Specifications
Operating Temperature: -25 to 85 ℃ Storage Temperature: -25 to 85 ℃ Relative Humidity: 95% at 60 ℃, RH Non-condensing Interface: USB: 1.1 Full Speed Resolution: 4096×4096 resolution Report rate: USB: Max. 100 points/sec Response time: Max. 25 ms MTBF: 200,000 hrs www.panel.it... -
Page 9: Mechanical Dimensions
15.0” projected capacitive touch PSG315 250.5 15.6” projected capacitive touch PSG316 250.5 17.0” projected capacitive touch PSG317 63.5 250.5 18.5” projected capacitive touch PSG318 250.5 21.5” projected capacitive touch PSG322 125.5 250.5 27.0” projected capacitive touch PSG327 172.5 250.5 www.panel.it... -
Page 10: Mechanical Cut-Out
Number of retaining clips 12.1” projected capacitive touch PSG312 15.0” projected capacitive touch PSG315 15.6” projected capacitive touch PSG316 17.0” projected capacitive touch PSG317 18.5” projected capacitive touch PSG318 21.5” projected capacitive touch PSG322 27” projected capacitive touch PSG327 www.panel.it... -
Page 11: Chemicals And Solvents Resistance
Methylene chloride Projected capacitive touchscreen The touch panel is securely affixed onto the frontal glass. The glass is much more resistant to corrosion than most materials, so much so that it is easy to think of it as corrosion-proof. Optional graphic customization... -
Page 12: Chapter 3: Installation And Wiring
30° When installing the PSG3 in a slanted panel, and the panel face inclines more than 30°, the surrounding air temperature must not exceed 40°C. You may need to use forced air cooling (fan, A/C) to ensure the surrounding air temperature is 40°C or below. -
Page 13: Fasten Psg3
3.3 Fasten PSG3 Insert the PSG3 into the panel cut. When inserted, fix the Panel PC as shown: (1) Insert each of the fasteners, as shown. (2) Be sure to pull the fastener back until it is flush with the rear of the attachment hole. -
Page 14: Connecting Dc Power
All supplied power must be disconnected before removing device covers or components or installing/removing accessories, hardware or cables. The power cable must be disconnected from the device and from the voltage supply. Verify the correct rated input 110 - 230 VAC, input voltage limits 90…..264 VAC. www.panel.it... -
Page 15: Functional Ground
To avoid excess noise, make the power cord as short as possible. This section describes the precautions for grounding the PSG3 unit: Exclusive grounding (BEST) Exclusive grounding (OK) Common grounding (NOT OK) Important! The motherboard ground and others devices is connected with PSG3 ground. www.panel.it... -
Page 16: Chapter 4: Hardware Upgrade
Chapter 4: Hardware upgrade 4.1 Removing the rear cover Warning! Disconnect the power supply to the Panel PC (disconnect the power cable). Isolate the system from all potential sources of electrical power!. Discharge any electrostatic charge on the ground connection... -
Page 17: Hdd-Ssd Installation
Firmly insert the SO-DIMM into the slot until the retaining clips at both ends fully snap back in place and the SO-DIMM is properly seated. 4.3 HDD-SSD installation SATA SSD installation area Unplug the two SATA cables. Then, unscrew the two screws marked above. On the sides of the drive bay there are two more screws that lock the SSD unit www.panel.it... -
Page 18: Mini Pci-E And Msata Module Installation
3) Remove the bracket facing the slot that you intend to use. Keep the screws for later use. 4) Align the card connector with the slot and press firmly until the card is completely seated on the slot. 5) Fasten the card to the chassis with screws. 6) Replace the system cover www.panel.it... -
Page 19: Wi-Fi Module Installation
4) Align the card connector with the slot and press firmly until the card is completely seated on the slot. 5) Fasten the card to the chassis with screws. 6) Connect the antenna cable to the main connector of the device: 7) Replace the system cover www.panel.it... -
Page 20: Pcie Module Installation
3) Pull off the card holding plate and the bracket. 4) Insert the PCIe card and the card holding plate, then lock them with the three screws removed before. 5) Replace the PCIe rear cover and the motherboard rear cover. Rear covers Bracket Card holding plate Bracket removing www.panel.it... -
Page 21: Chapter 5: Jumpers And Connectors
Chapter 5: jumpers and connectors 5.1 Motherboard IMB-190 layout www.panel.it... - Page 22 13 : Digital Input / Output Power Select (JGPIO_PWR1) 14 : Digital Input / Output Default Value Setting (JGPIO_SET1) 15* : LVDS Panel Connector (Only for IMB-190 / IMB-191) * eDP Connector (on the Backside of PCB) (Only for IMB-190-E)
-
Page 23: Psg3 I/O Connectors
P – Gigabit LAN 3 (optional) F – RS232 (COM 3) Q – Supply Connector G – Audio Output R – Expansion Slot H – Mic-in S – WI-FI Antenna (optional) J – Gigabit LAN 2 K – Gigabit LAN 1 www.panel.it... -
Page 24: Motherboard Jumpers Setup
Please be noted that the password, date, time, user default profile and MAC address will be cleared only if the CMOS battery is removed. Default PSG3 factory setting: 1-2 www.panel.it... -
Page 25: Chapter 6: System Setup
The system is delivered with the optimized defaults preconfigured state and is operational. Changes in the BIOS settings may only be implemented by appropriately trained staff. 6.3 Touchscreen driver and calibration PSG2 touch screen devices are already calibrated by factory. No calibration is needed. www.panel.it... -
Page 26: Chapter 7: Maintenance
Best Management Practices (BMP). When you discard the Lithium battery in California, USA and the rest of the world, please follow the related regulations in advance. 7.3 Spare parts It is recommended to install only original Panel spare parts. If the customer mount not original spare parts, we can’t grant the correct work of the device. www.panel.it...
