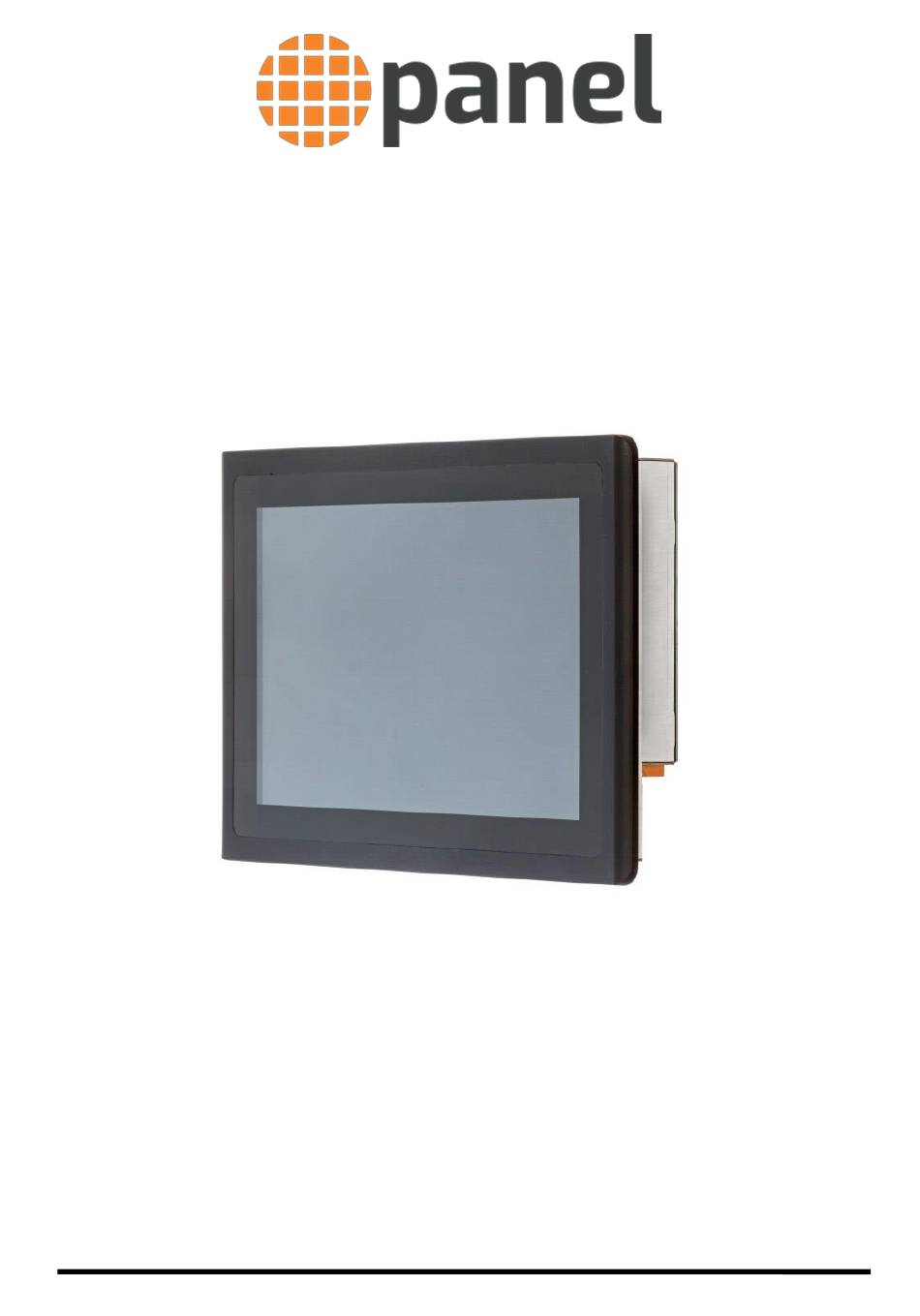

Panel PC PSG201-FM series
Celeron J1900
Capacitive touchscreen
User's manual
Version 1.1
All information contained in this manual, including all photographs, illustrations and software, is protected under international copyright laws, with all
rights reserved. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written
consent from Panel S.r.l. The information contained herein is believed to be accurate as of the date of publication; however, Panel S.r.l, makes no
warranty, ex- pressed or implied, with regard to the products or documentation contained within this manual. Panel S.r.l. reserves the right to change
the contents of this manual without notice. Panel shall not be liable for direct, indirect, special, incidental, or consequential damages arising out of the
use of any product, nor for any infringements upon the rights of third parties, which may result from such use. Any implied warranties of
merchantability or fitness for any particular purpose is also disclaimed. Soft- ware names, hardware names and trademarks are registered by their
respective companies.
www.panel.it
1
1
Advertisement
Table of Contents
Related Manuals for panel PSG201-FM Series
Summary of Contents for panel PSG201-FM Series
- Page 1 No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written consent from Panel S.r.l. The information contained herein is believed to be accurate as of the date of publication; however, Panel S.r.l, makes no warranty, ex- pressed or implied, with regard to the products or documentation contained within this manual.
-
Page 2: Table Of Contents
4.3 HDD-SSD installation ..................17 4.4 Mini PCI-E and mSATA module installation ..........18 4.5 WI-FI module installation ................... 19 Chapter 5: Jumpers and connectors 5.1 Motherboard layout…………………………………………………………………………. 20 5.2 PSG201 I/O connectors ..................22 5.3 Motherboard jumpers setup ................23 www.panel.it... - Page 3 Chapter 6: System setup 6.1 Installing operating system ................24 6.2 Bios setup ........................24 6.3 Touchscreen driver and calibration ............24 Chapter 7: Maintenance 7.1 Cleaning........................25 7.2 Lithium battery ......................25 7.3 Spare parts ....................... 25 www.panel.it...
-
Page 4: Safety Rules
1.1 Safety rules All the Panel PC PSG201 series have been designed and built taking into account all the issues associated with an industrial environment such as that where it is necessary to ensure the operation of the system in the presence of vibration, moisture, dust and critical heat conditions. -
Page 5: Package Content
The following items are included in the PSG201 unit’s package. Before using the PSG201, please check all the items match the manual list. PSG201 DC power supply Qty 1 Panel PC Qty 1 Quick guide Qty 1 Connector DC supply Qty 4 Retaining clips 1.4 Declaration of conformity... -
Page 6: Warranty And Rma
2 years, beginning on the date of invoice by Panel. PANEL will engage to repair or eventually replace, at its discretion, the whole device or its components, which show construction defects or malfunction if these are pointed out in writing during the warranty period. -
Page 7: Chapter 2: Technical Data
Panel PC fanless extremely compact. The PSG201-FM is provided with Intel® Bay Trail Celeron Quad Core 2.0 GHz CPU. The front panel is a tempered IP66 glass supplied with projected capacitive multi-touch screen. 2.2 Products specifications Models PSG201 Technology construction... -
Page 8: Touchscreen Specifications
Operating Temperature: -25 to 85 ℃ Storage Temperature: -25 to 85 ℃ Relative Humidity: 95% at 60 ℃, RH Non-condensing Interface: USB: 1.1 Full Speed Resolution: 4096×4096 resolution Report rate: USB: Max. 100 points/sec Response time: Max. 25 ms MTBF: 200,000 hrs www.panel.it... -
Page 9: Mechanical Dimensions
2.5 Mechanical dimensions PSG201 display units with retaining clips All dimensions are specified in mm Display size Model 10.1” projected capacitive touch PSG201 130,5 29,5 www.panel.it... -
Page 10: Mechanical Cut-Out
2.6 Mechanical cut-out All dimensions are specified in mm The cut-out tolerance values are +1 mm / -1 mm Display size Model Zmin Zmax Number of retaining clips 10.1” projected capacitive touch PSG201 www.panel.it... -
Page 11: Chemicals And Solvents Resistance
Methylene chloride Projected capacitive touchscreen The touch panel is securely affixed onto the frontal glass. The glass is much more resistant to corrosion than most materials, so much so that it is easy to think of it as corrosion-proof. Optional graphic customization... -
Page 12: Chapter 3: Installation And Wiring
30° When installing the PSG201 in a slanted panel, and the panel face inclines more than 30°, the surrounding air temperature must not exceed 40°C. You may need to use forced air cooling (fan, A/C) to ensure the surrounding air temperature is 40°C or below. -
Page 13: Fasten Psg201
3.3 Fasten PSG201 Insert the PSG201 into the panel cut. When inserted, fix the Panel PC as shown: (1) Insert each of the fasteners, as shown. (2) Be sure to pull the fastener back until it is flush with the rear of the attachment hole. -
Page 14: Connecting Dc Power
Verify the correct rated input 24 VDC, input voltage limits 9…..36 VDC. The DC power cable must be secured in the terminal block (power connector) as shown in the image. Wires with a cross section of 0.75 mm to 2.5 mm www.panel.it... -
Page 15: Functional Ground
To avoid excess noise, make the power cord as short as possible. This section describes the precautions for grounding the PSG201 unit: Exclusive grounding (BEST) Exclusive grounding (OK) Common grounding (NOT OK) Important! The motherboard ground and others devices is connected with PSG201 ground. www.panel.it... -
Page 16: Chapter 4: Hardware Upgrade
Chapter 4: Hardware upgrade 4.1 Removing the rear cover Warning! Disconnect the power supply to the Panel PC (disconnect the power cable). Isolate the system from all potential sources of electrical power!. Discharge any electrostatic charge on the ground connection... -
Page 17: Hdd-Ssd Installation
Firmly insert the SO-DIMM into the slot until the retaining clips at both ends fully snap back in place and the SO-DIMM is properly seated. 4.3 HDD-SSD installation SATA SSD installation area Unscrew the three screws marked above then unplug the two SATA cables. On the rear of the drive bay there are further four screws that lock the SSD unit. www.panel.it... -
Page 18: Mini Pci-E And Msata Module Installation
3) Remove the bracket facing the slot that you intend to use. Keep the screws for later use. 4) Align the card connector with the slot and press firmly until the card is completely seated on the slot. 5) Fasten the card to the chassis with screws. 6) Replace the system cover www.panel.it... -
Page 19: Wi-Fi Module Installation
4) Align the card connector with the slot and press firmly until the card is completely seated on the slot. 5) Fasten the card to the chassis with screws. 6) Connect the antenna cable to the main connector of the device: 7) Replace the system cover www.panel.it... -
Page 20: Chapter 5: Jumpers And Connectors
Chapter 5: jumpers and connectors 5.1 Motherboard SBC-210 layout www.panel.it... - Page 21 List of all motherboard connectors and headers: 1 : Panel Power Selection (PNL_PWR1) 2 : ATX Power Connector 3 : Backlight Power Selection (BKT_PWR1) 4 : USB2.0 Headers (USB0_1, USB2_3, USB4_5) 5 : m-SATA Selection 6 : Inverter Power Control Wafer (BLT_PWR1) 7 : SATA2 Connectors (SATAII_1, SATAII_2) 8 : Backlight &...
-
Page 22: Psg201 I/O Connectors
D – Gigabit LAN 1 L – RS232/422/485 (COM 1) E – Gigabit LAN 2 M – WI-FI antenna (optional) F – 2x USB 3.0 N – RS232 (COM 2) G – Audio Output O – RS232 (COM 3 - optional) www.panel.it... -
Page 23: Motherboard Jumpers Setup
Please be noted that the password, date, time, user default profile and MAC address will be cleared only if the CMOS battery is removed. Default PSG201-FM factory setting: 1-2 www.panel.it... -
Page 24: Chapter 6: System Setup
The system is delivered with the optimized defaults preconfigured state and is operational. Changes in the BIOS settings may only be implemented by appropriately trained staff. 6.3 Touchscreen driver and calibration PSG201 touch screen devices are already calibrated by factory. No calibration is needed. www.panel.it... -
Page 25: Chapter 7: Maintenance
Best Management Practices (BMP). When you discard the Lithium battery in California, USA and the rest of the world, please follow the related regulations in advance. 7.3 Spare parts It is recommended to install only original Panel spare parts. If the customer mount not original spare parts, we can’t grant the correct work of the device. www.panel.it...
