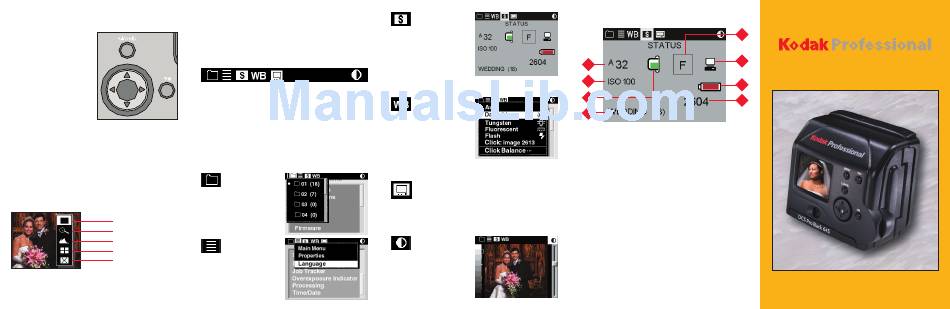

Kodak DCS Pro Back 645 Quick Start Manual

Using the Digital Controls
Turning the Image
LCD On and Off
Press the OK button
to turn on the LCD.
Images from the
selected folder
appear in a Display
mode. Press the
Cancel button to turn off the LCD.
Selecting a Display Mode and
Navigating through Images
Turn on the Image LCD or press the Cancel
button to return to Display mode. Press the
top or bottom of the Four-way switch to
change the Display mode.
Single
Zoom
Histogram
Multiple
Delete
Press the left or right of the Four-way switch
to navigate through images.
Display the Menu Bar and
Select a Menu Icon
In Display mode, press the Menu button to
display the Menu bar.
Press the left or right of the Four-way switch
to highlight a Menu icon.
Menu Bar
To make a Menu selection, press the top or
bottom of the Four-way switch to highlight
your choice. Press the OK button.
Folder Icon
Menu Icon
Status Screen
Status Screen
Icon
1
2
3
White Balance
4
Icon
1. Estimate of the number of images that can be
2. ISO setting.
3. Fill level (in color) indicates the approximate
Video Icon
4. Name of the active folder and the number of
This icon appears on the Menu bar only when
video is enabled.
5. Current image format – full frame, horizontal,
6. Appears if the DCS 645 is connected to a
Contrast Icon
7. DCS 645 Battery level.
8. Number of the currently selected image.
5
6
7
8
captured to the installed CF Card.
amount of space available on the active card.
images in that folder.
or vertical.
computer and flashes if the KODAK
PROFESSSIONAL DCS Capture Studio or DCS
Camera Manager software is not running.
DCS Pro Back 645
