Voltage Set/Current Set
Setting windows for the voltage and current values. Change the value with the arrows.
Voltage Set/Current Set rotating knob
Setting knob for the voltage and current values.
OCP – OVP – ON – OFF
Setting buttons (OCP: Over-Current Protection, OVP: Over-Voltage Protection).
M1 – M2 – M3 – M4 – M5
Recalling buttons to recall the saved output parameters.
Voltage waveform diagram
Displays the voltage wave curve.
Current waveform diagram
Displays the current wave curve.

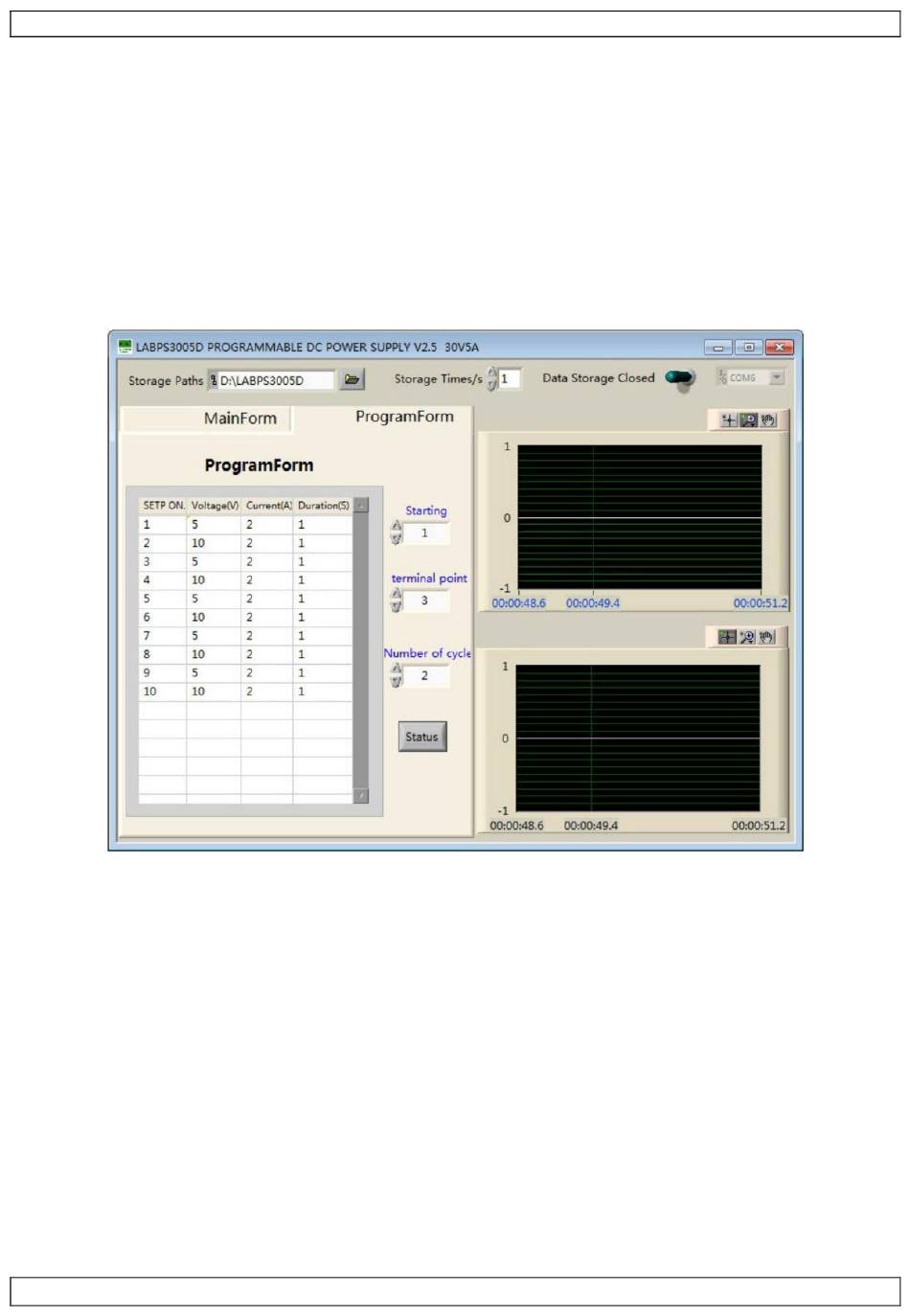

ProgramForm tab
SETP ON.
Interface number.
Voltage (V)
Voltage parameters.
Current (A)
Current parameters.
Duration (S)
Timeout for every parameter.
Starting
Starting point of the programming output.
terminal point
Ending point of the programming output.
Number of cycle
Number of cycles of the programming output.
Status
On-off button for the programming output.
