SGW2828-EVK Evaluation Kit
PC Software User Manual
October 2020 V1.0
SG Wireless™ Confidential

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SGW2828-EVK and is the answer not in the manual?

Questions and answers

Related Manuals for SG Wireless SGW2828-EVK

Summary of Contents for SG Wireless SGW2828-EVK

  • Page 1 SGW2828-EVK Evaluation Kit PC Software User Manual October 2020 V1.0 SG Wireless™ Confidential...

  • Page 2: Table Of Contents

    USGA6.02-V1.0 SGW2828-EVK Evaluation Kit PC Software User Manual Contents 1. Introduction 2. Required Tools 3. Operation Guide a. Preparation b. Configuration of PC Software c. User Application Mode d. Engineering Mode e. Firmware Update 4. Related Documents and Useful Links 5.

  • Page 3: Introduction

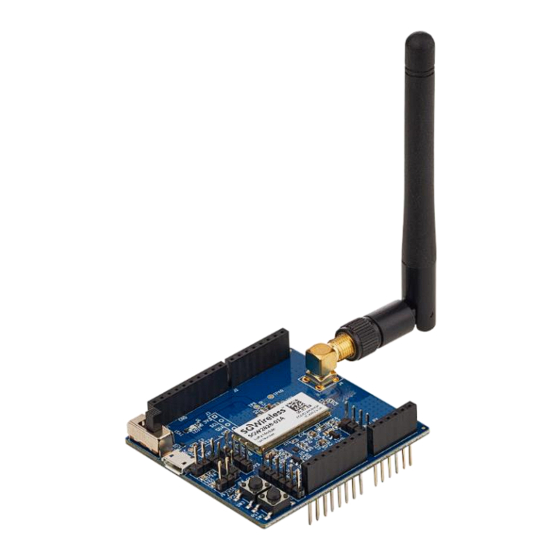

    SGW2828-EVK Evaluation Kit PC Software User Manual 1. Introduction The SGW2828-EVK is a evaluation kit designed for the development and PoC testing of applications based on the SGW2828-01A LoRa Module. With the associated PC software, testing is easily enabled when two or more users are connected and using the same frequency channel.

  • Page 4: Operation Guide

    Tool.7z. Extract the file for the SGW2828-PC-Tool program (SGW2828-PC-Tool.exe). 2. Prepare the SGW2828-EVK by screwing on the antenna, then connect the SGW2828-EVK to the PC with the micro USB cable (Figure 2). Toggle the power switch to ON. 3. Run the SGW2828-PC-Tool program.
  • Page 5 2. Configure the RF Parameter, if needed. Users can use the default parameter settings or configure their own at Menu > Configuration > RF Parameter (Figure 4). Data transmission is enabled when users use the same parameter settings. • ‘Read’: Read current parameter settings of connected SGW2828-EVK • ‘Write’: Save customized settings •...

  • Page 6: User Application Mode

    Figure 5: Toggle to Application Mode LED (Figure 6) Click ‘LED1’ and ‘LED2’ to toggle the LEDs on or off on remote users’ SGW2828-EVK. Messages will show up in the message boxes of both local and remote users’ PC Tool.

  • Page 7: Engineering Mode

    USGA6.02-V1.0 SGW2828-EVK Evaluation Kit PC Software User Manual iii. File Transfer (Figure 8) Click ‘FileDir’ and select your desired file. The file size and estimated transfer time based on the se- lected RF parameter settings will be shown. Click ‘Transfer’ to send the file to remote users’ PC Tool.
  • Page 8 USGA6.02-V1.0 SGW2828-EVK Evaluation Kit PC Software User Manual Get Firmware Version (Figure 10) Type command AT+VERSION=? In the command input box and click ‘Send’. The firmware name and version number will be shown in message box. Figure 10: AT Command for Firmware Version ii.
  • Page 9 USGA6.02-V1.0 SGW2828-EVK Evaluation Kit PC Software User Manual On the local PC Tool, the sent message will be shown in Hex format in the message box on the left, while details of data received and sent will be shown in the message box to the right (Figure 12).

  • Page 10: Firmware Update

    Figure 14: Firmware Upgrade 4. Related Documents and Useful Links 1. PC Software Download: https://sgwireless.com/static/tools/SGW2828-PC-Tool.7z. 2. SG Wireless SGW2828-01A LoRa Module: https://sgwireless.com/product/SGW2828. 3. SG Wireless SGW2828 LoRa Module AT Command User Manual: https://sgwireless.com/uploads/ueditor/upload/file/20201013/USGA5.03- V1.0%20SGW2828%20LoRa%20Module%20AT%20Command%20User%20Manual.pdf. 4. Semtech SX1276 Documentation: https://www.semtech.com/products/wireless-rf/lora-transceiv- ers/sx1276.

  • Page 11: Revision History
