Diamond Systems JUPITER-MM-SIO User Manual

Dc/dc power supply pc/104 module with 2 rs-232/422/485 serial ports
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
JUPITER-MM-SIO
DC/DC Power Supply PC/104 Module
With 2 RS-232/422/485 Serial Ports
User Manual V1.3
© Copyright 2001
DIAMOND SYSTEMS CORPORATION
8430-D Central Ave.
Newark, CA 94560
Tel (510) 456-7800
Fax (510) 456-7878
techinfo@diamondsystems.com
www.diamondsystems.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JUPITER-MM-SIO and is the answer not in the manual?

Questions and answers

Related Manuals for Diamond Systems JUPITER-MM-SIO

Summary of Contents for Diamond Systems JUPITER-MM-SIO

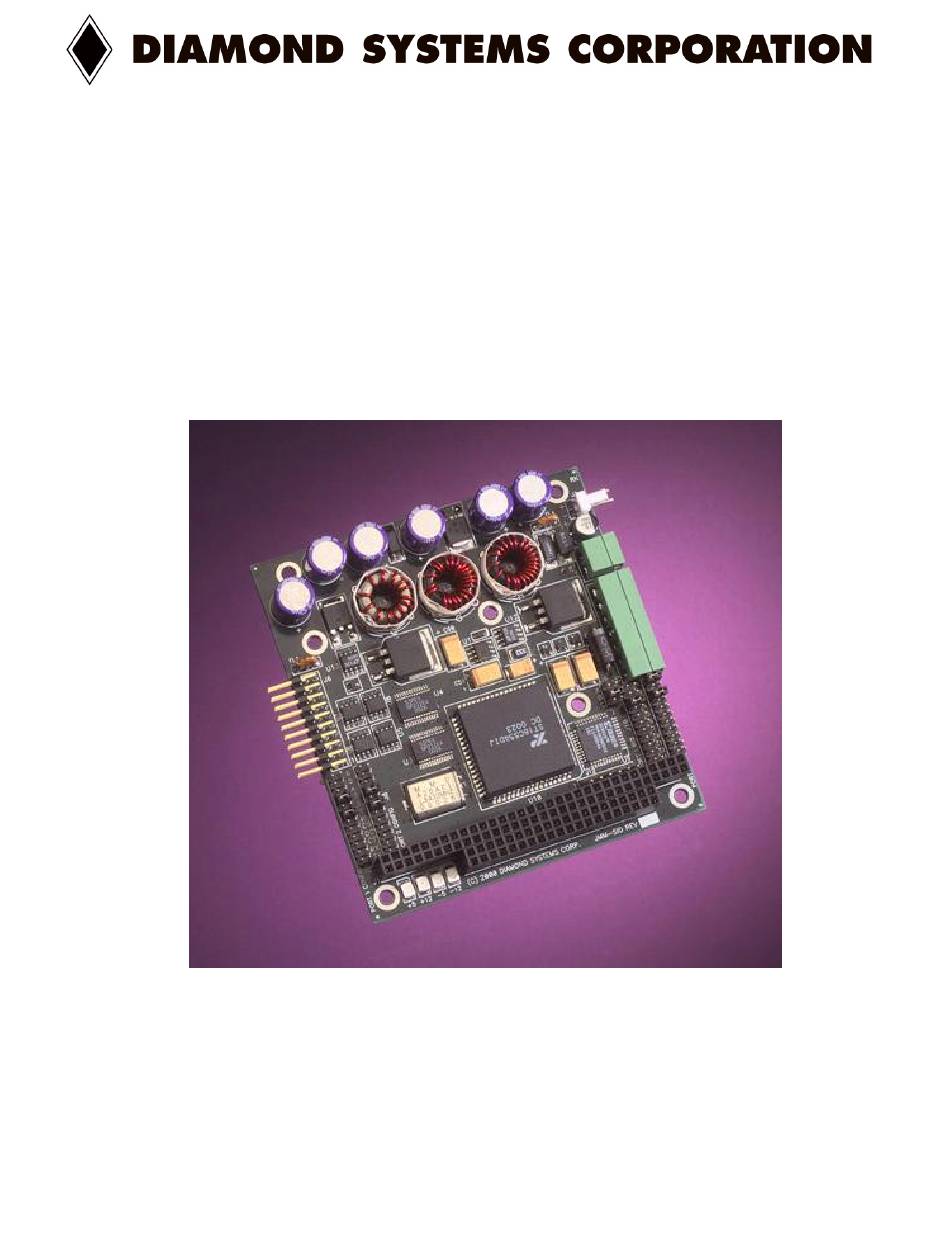

  • Page 1 JUPITER-MM-SIO DC/DC Power Supply PC/104 Module With 2 RS-232/422/485 Serial Ports User Manual V1.3 © Copyright 2001 DIAMOND SYSTEMS CORPORATION 8430-D Central Ave. Newark, CA 94560 Tel (510) 456-7800 Fax (510) 456-7878 techinfo@diamondsystems.com www.diamondsystems.com...

  • Page 2: Table Of Contents

    NTERRUPT ULLDOWN ESISTOR ........................ 11 NTERRUPT TATUS EGISTER ..........................11 EFAULT ETTINGS RS-485 T ......................11 RANSMITTER ONTROL INSTALLATION ..........................12 OUTPUT VOLTAGES AND CURRENTS .................... 13 SPECIFICATIONS..........................14 Copyright 2001 Diamond Systems Corp. Jupiter-MM-SIO User Manual V1.3 p. 2...

  • Page 3: Description

    DC/DC Power Supply PC/104 Module With 2 Serial Ports 1. DESCRIPTION JUPITER-MM-SIO is a PC/104-format power supply module designed for mobile as well as stationary embedded applications. The JUPITER-MM-SIO design incorporates a high efficiency DC/DC converter circuit to provide power with minimum losses. Power supply performance and reliability have been optimized through the use of precision surface mount components.

  • Page 4: Board Drawing

    Power input/output connector Serial port connector J7, J8 Serial port protocol configuration Serial port address configuration J10, J11 Serial port interrupt level configuration Factory use only (for programming Xilinx PLD) Copyright 2001 Diamond Systems Corp. Jupiter-MM-SIO User Manual V1.3 p. 4...

  • Page 5: I/O Header Pinouts

    3. I/O HEADER PINOUTS Jupiter-MM-SIO provides connections for input, input/output, remote on/off control, and PC/104 bus. All power I/O connectors except the PC/104 bus connectors are located along the right side of the board. The serial port connector is on the left side of the board.

  • Page 6: Main Input Power - J4

    J5 board mount connector 7 pins, 0.15”, RA Phoenix Contact 1803329 277-1211 J5 screw terminals 7 pins, 0.15” Phoenix Contact 1803620 277-1166 Digi-Key is at www.digikey.com or (800) 344-4539 (800-Digikey). Copyright 2001 Diamond Systems Corp. Jupiter-MM-SIO User Manual V1.3 p. 6...

  • Page 7: Serial Port Connector - J6

    Serial Port Connector – J6 Jupiter-MM-SIO provides a 20-pin header labeled J6 on the left side of the board for the 2 serial ports. The pinouts below show both serial ports with the same protocol for illustration purposes only. Each port can be configured independently.
  • Page 8 TXD+, TXD- Differential Transmit Data Output RXD+, RXD- Differential Receive Data Input RS-485: TXD/RXD+ Differential Transmit/Receive + Bi-directional TXD/RXD- Differential Transmit/Receive - Bi-directional Common to all protocols: Ground Not Connected Copyright 2001 Diamond Systems Corp. Jupiter-MM-SIO User Manual V1.3 p. 8...

  • Page 9: Serial Port Configuration

    Each peripheral board in the computer system must have a unique I/O address or block of addresses. The Jupiter-MM-SIO actually uses five I/O address blocks: one for each of the four serial ports and one for the interrupt status register. Each port’s address block consists of 8 consecutive addresses, while the interrupt status register occupies a single address.

  • Page 10: Configuration For Rs-422 And Rs-485 Modes

    This technique avoids contention by two devices trying to drive the same line with opposing logic levels. Jupiter-MM-SIO uses this technique for the two serial ports. To use the same interrupt level for both serial ports, install a jumper in the same number location for both ports and install a jumper in the R location for only one port.

  • Page 11: Interrupt Status Register

    On the Jupiter-MM-SIO, an RS-485 port’s transmitter enable signal is controlled by that port’s RTS signal. The RTS signal must be asserted (driven low) to enable the transmitter and deasserted (driven high) to turn off the transmitter.

  • Page 12: Installation

    5. INSTALLATION All Jupiter-MM-SIO power supplies are load tested prior to shipping. The supplies ship with all the external connectors required to start using your supply immediately. Any connector not needed can be removed. 1. Select the serial port base addresses using J9. Refer to page 9 for instructions.

  • Page 13: Output Voltages And Currents

    6. OUTPUT VOLTAGES AND CURRENTS Jupiter-MM-SIO provides either 4 output voltages. The outputs appear on the PC/104 bus headers J1 / J2 as well as on the auxiliary I/O connector J5. The table below lists the maximum ratings for each output voltage.

  • Page 14: Specifications

    Mechanical Size 3.55” x 3.775” PC/104 bus J1 (64 pins) and J2 (40 pins) stackthrough connectors installed Environmental Operating temperature -40 to +85 Operating humidity 5 to 95% non-condensing Copyright 2001 Diamond Systems Corp. Jupiter-MM-SIO User Manual V1.3 p. 14...
