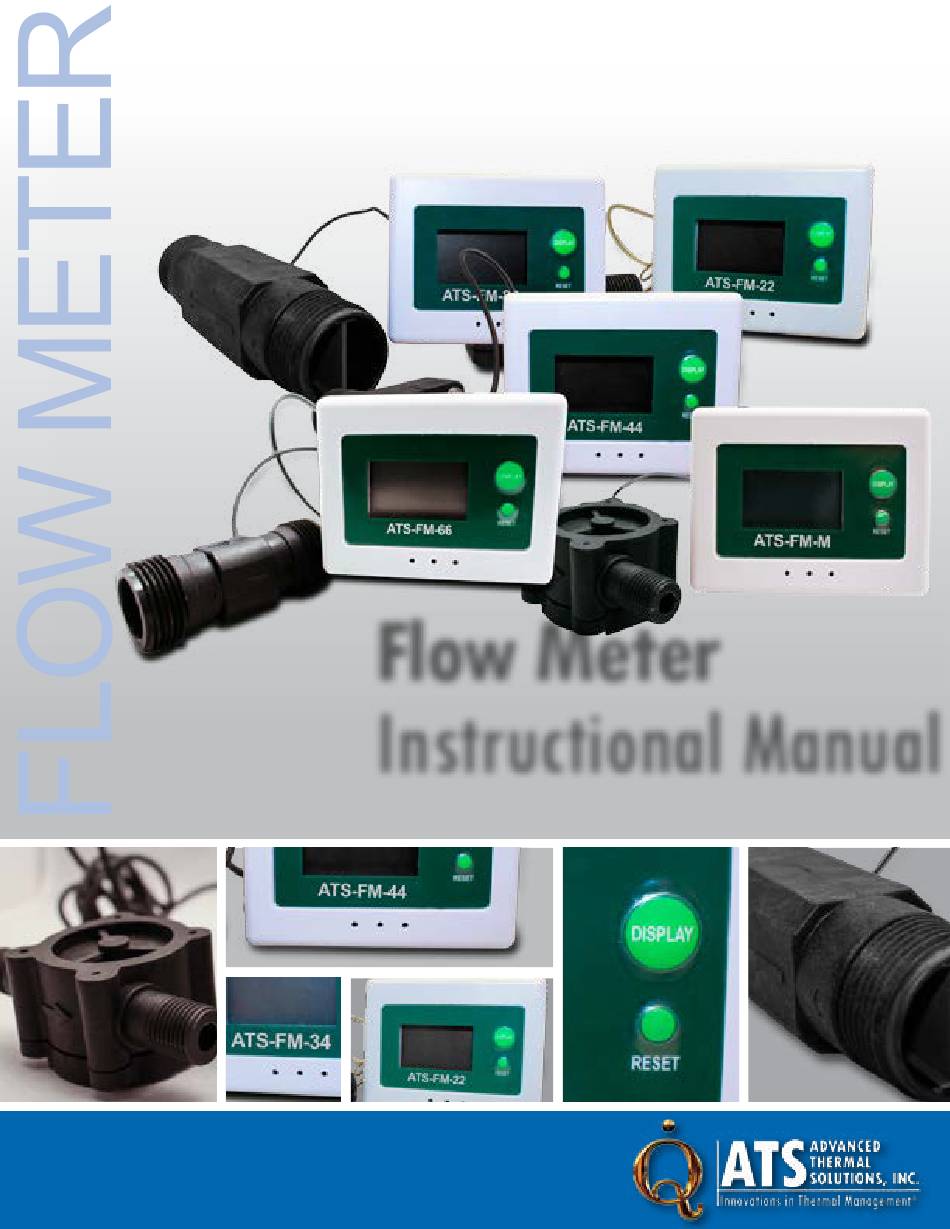

- Page 1 Flow Meter Instructional Manual 89-27 Access Road, Norwood, MA 02062 | T: 781.769. 2800 ats-hq@qats.com | www.qats.com R1_0718...
- Page 2 (90) days from the date of purchase if utilized under normal use and service. Any implied warranties on the Software are limited to ninety (90) days. Copyright The ATS Flow Meter family and its operating software is a product of Advanced Thermal Solutions, Inc. Disclaimer While every effort is made to ensure accuracy, Advanced Thermal Solutions, Inc.,...
-
Page 3: Table Of Contents
Contents Section 1: ATS-FM-M Flow Meter Features, Application, Electrical, Mechanical Drawing, Installation General, Operational Guide Section 2: ATS-FM-22 Flow Meter Features, Application, Electrical, Mechanical Drawing, Installation General, Operational Guide Section 3: ATS-FM-34 Flow Meter Features, Application, Electrical, Mechanical Drawing, Installation... -
Page 4: Section 1: Ats-Fm-M Flow Meter
Section 1: ATS-FM-M Flow Meter 1. Features Flow totaling up to 99,999 L Flow rate display from 0.8-8.0 L/min. Battery operated - two (2) AA batteries Low battery power alert Data retained even without battery power 2. Application Water cooler... - Page 5 7.1 Install Batteries Slide off the cover of the battery compartment and insert two (2) AA batteries. Then slide the cover back. 7.2 Connecting Fitting ATS-FM-M connectors are 1/4" NPT male. 7.3 Operating T he ATS-FM-M will automatically turn on when there is water flowing through the sensor. It will automatically turn off after 10 seconds when there is no water flowing. 7.4 Display and Mode Selection Press the “DISPLAY”...
-
Page 6: Section 2: Ats-Fm-22 Flow Meter
Section 2: ATS-FM-22 Flow Meter 1. Features Flow totaling up to 99,999 L Flow rate display from 1.0 to 15.0 L/min. Battery operated - two (2) AA batteries Low battery power alert Data retained even without battery power 2. Application... - Page 7 7.1 Install Batteries Slide off the cover of the battery compartment and insert two (2) AA batteries. Then slide the cover back. 7.2 Connecting Fitting ATS-FM-22 connectors are 3/8" BSP male. 7.3 Operating T he ATS-FM-22 will automatically turn on when there is water flowing through the sensor. It will automatically turn off after 10 seconds when there is no water flowing. 7.4 Display and Mode Selection Press the “DISPLAY”...
-
Page 8: Section 3: Ats-Fm-34 Flow Meter
Section 3: ATS-FM-34 Flow Meter 1. Features Flow totaling up to 99,999 L Flow rate display from 0.04 to 1.0 L/min. Battery operated - two (2) AA batteries Low battery power alert Data retained even without battery power 2. Applications... - Page 9 7.1 Install Batteries Slide off the cover of the battery compartment and insert two (2) AA batteries. Then slide the cover back. 7.2 Connecting Fitting ATS-FM-34 Flow Meter connectors are 1/4" NPT male. 7.3 Operating T he ATS-FM-34 will automatically turn on when there is water flowing through the sensor. It will automatically turn off after 10 seconds when there is no water flowing. 7.4 Display and Mode Selection Press the “DISPLAY”...
-
Page 10: Section 4: Ats-Fm-44 Flow Meter
Section 4: ATS-FM-44 Flow Meter 1. Features Flow totaling up to 99,999 L Flow rate display from 1.5 to 25.0 L/min. Battery operated - two (2) AA batteries Low battery power alert Data retained even without battery power 2. Application... - Page 11 7.1 Install Batteries Slide off the cover of the battery compartment and insert two (2) AA batteries. Then slide the cover back. 7.2 Connecting Fitting ATS-FM-44 connectors are 1/2" BSP. 7.3 Operating T he ATS-FM-44 will automatically turn on when there is water flowing through the sensor. It will automatically turn off after 10 seconds when there is no water flowing. 7.4 Display and Mode Selection Press the “DISPLAY”...
-
Page 12: Section 5: Ats-Fm-66 Flow Meter
Section 5: ATS-FM-66 Flow Meter 1. Features Flow totaling up to 99,999 L Flow rate display from 2.4 – 60.0 L/min Battery operated - two (2) AA batteries Low battery power alert Data retained even without battery power 2. Application... - Page 13 7.1 Install Batteries Slide off the cover of the battery compartment and insert two (2) AA batteries. Then slide the cover back. 7.2 Connecting Fitting ATS-FM-66 connectors are 3/4" BSP male. 7.3 Operating T he ATS-FM-66 will automatically turn on when there is water flowing through the sensor. It will automatically turn off after 10 seconds when there is no water flowing. 7.4 Display and Mode Selection Press the “DISPLAY”...
-
Page 14: Section 6: Ats-Fm-88 Flow Meter
Section 6: ATS-FM-88 Flow Meter 1. Features Flow totaling up to 99,999 L Flow rate display from 3.0 – 100.0 L/min Battery operated - two (2) AA batteries Low battery power alert Data retained even without battery power 2. Application... - Page 15 7.1 Install Batteries Slide off the cover of the battery compartment and insert two (2) AA batteries. Then slide the cover back. 7.2 Connecting Fitting ATS-FM-88 connectors are 1" BSP male. 7.3 Operating T he ATS-FM-88 will automatically turn on when there is water flowing through the sensor. It will automatically turn off after 10 seconds when there is no water flowing. 7.4 Display and Mode Selection Press the “DISPLAY”...
- Page 16 Advanced Thermal Solutions, Inc Advanced Thermal Solutions, Inc. (ATS) is a leading thermal engineering and manufacturing company supplying complete thermal and mechanical packaging solutions from analysis and testing to final production. ATS is world-renowned for its portfolio of more than 5,000 high-performance heat sinks, research-quality test equipment, complete liquid cooling loop products and leading-edge R&D, specifically tailored to the telecom, LED and computing industries. In addition, ATS provides thermal design consulting services and training for the electronics cooling industry.
