Kobold MSR Operating Instructions Manual

Low-action and snap-action contacts
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

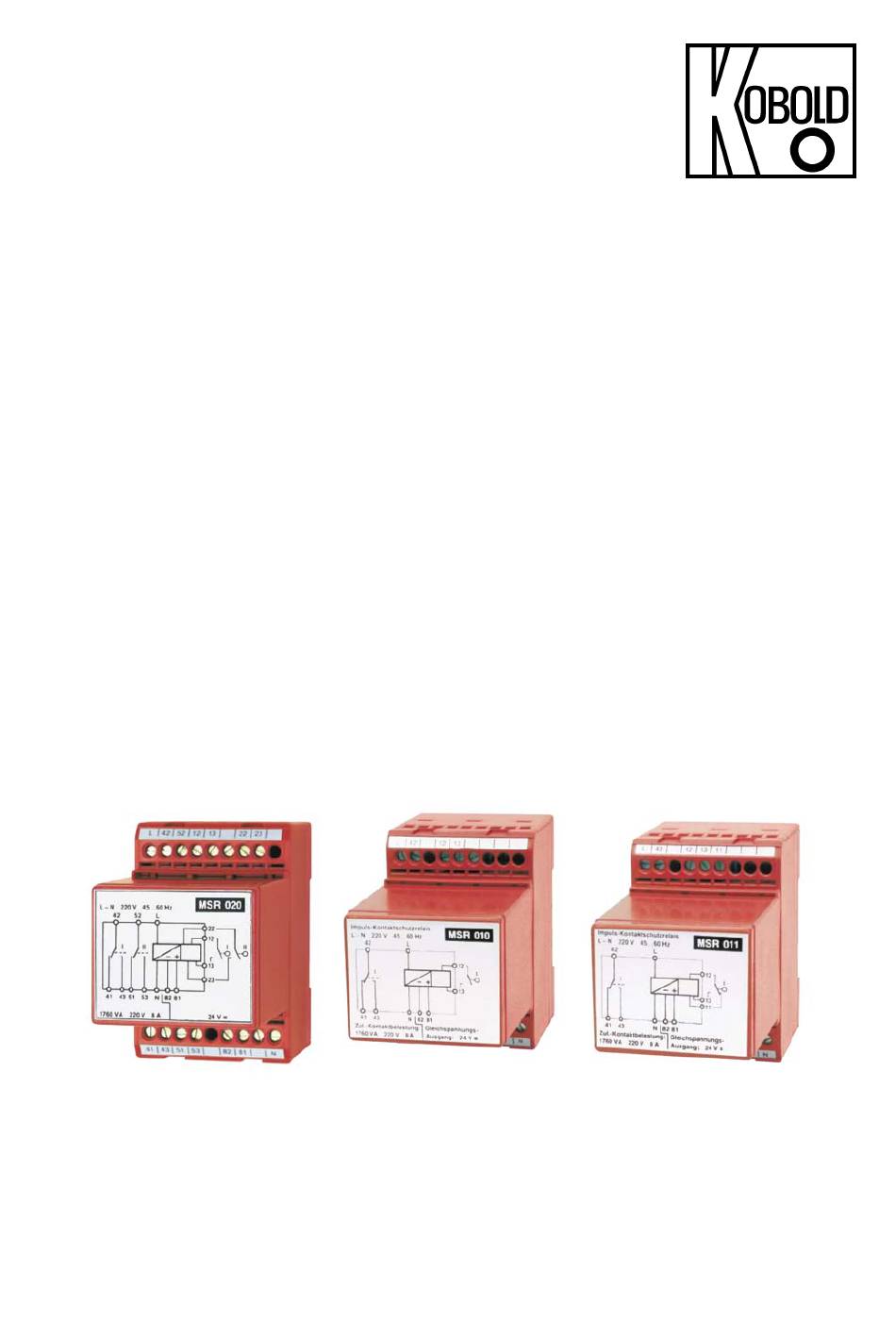

Operating Instructions
for
Low-action
and snap-action contacts
Model: MSR

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MSR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kobold MSR

Summary of Contents for Kobold MSR

  • Page 1 Operating Instructions Low-action and snap-action contacts Model: MSR...

  • Page 2: Table Of Contents

        Regulation Use ..................... 3     Operating Principle ..................4     Electrical Connection ..................5     MSR-010 .................... 5     MSR-020 .................... 6     MSR-011 .................... 7     Technical Information ..................8  ...

  • Page 3: Note

     Contact protection relay, model: MSR 4. Regulation Use Any use of the contact protection relay, model MSR, which exceeds the manufacturer’s specifications may invalidate its warranty. Therefore, any resulting damage is not the responsibility of the manufacturer. The user assumes all risk for such usage.

  • Page 4: Operating Principle

    The switching operation is thus clearly defined. Type MSR-011 is a bistable interval relay with latching and is thus suitable for an interval switching, for example for pump control. Design and construction of the contact protection relay satisfy VDE regulations 0110 insulation class c/250 V.

  • Page 5: Electrical Connection

    N and L. When the supply voltage has been switched on (and the connected limit value switch is not operated, i.e., contact is open) the potential free change-over contact of the MSR-relay is non-operative (see type plate). By operating the limit value switch (contact is closed) the change-over contact is energized.

  • Page 6: Msr-020

    L and N. When the supply voltage has been switched on (and the connected limit value switch is not operated, i.e.; contact is open) the potential free change-over contact of the MSR-relay is non-operative (see type plate). By operating the limit value switch (contact is closed) the change-over contacts are energized.

  • Page 7: Msr-011

    Only when contact is closed (contact has no influence on the switching behaviour any longer) the potential-free change- over device of the MSR relay returns to its inoperative condition (see type plate). If contact of the limit value switch opens again, the contacts at the change-over contact remain inoperative.

  • Page 8: Technical Information

    ≤ 4.7 kOhm Pulse width: 500 µs (typically) OFF delay: approx. 0.5 s Relay output: MSR 10 (1 floating changeover contact) MSR 20 (2 floating changeover contacts) MSR 11 (1 floating changeovcer contact-bistable-) max. 250 V / 8A min. 24 V / 0.1 A...

  • Page 9: Order Codes

    8. Order Codes Relay output Order no. 1 floating changeover contact MSR-010 2 floating changeover contacts MSR-020 1 floating changeover contact - bistable MSR-011 MSR K03/0522 page 9...

  • Page 10: Dimensions

    9. Dimensions page 10 MSR K03/0522...

  • Page 11: Ec Declaration Of Conformance

    10. EC Declaration of Conformance We, KOBOLD Messring GmbH, Hofheim-Ts, Germany, declare under our sole responsibility that the product: Impulse contact protection relay Model: MSR to which this declaration relates is in conformity with the standards noted below: EN 61000-6-2:2005 Electromagnetic compatibility (EMC) - Part 6-2: Generic...
