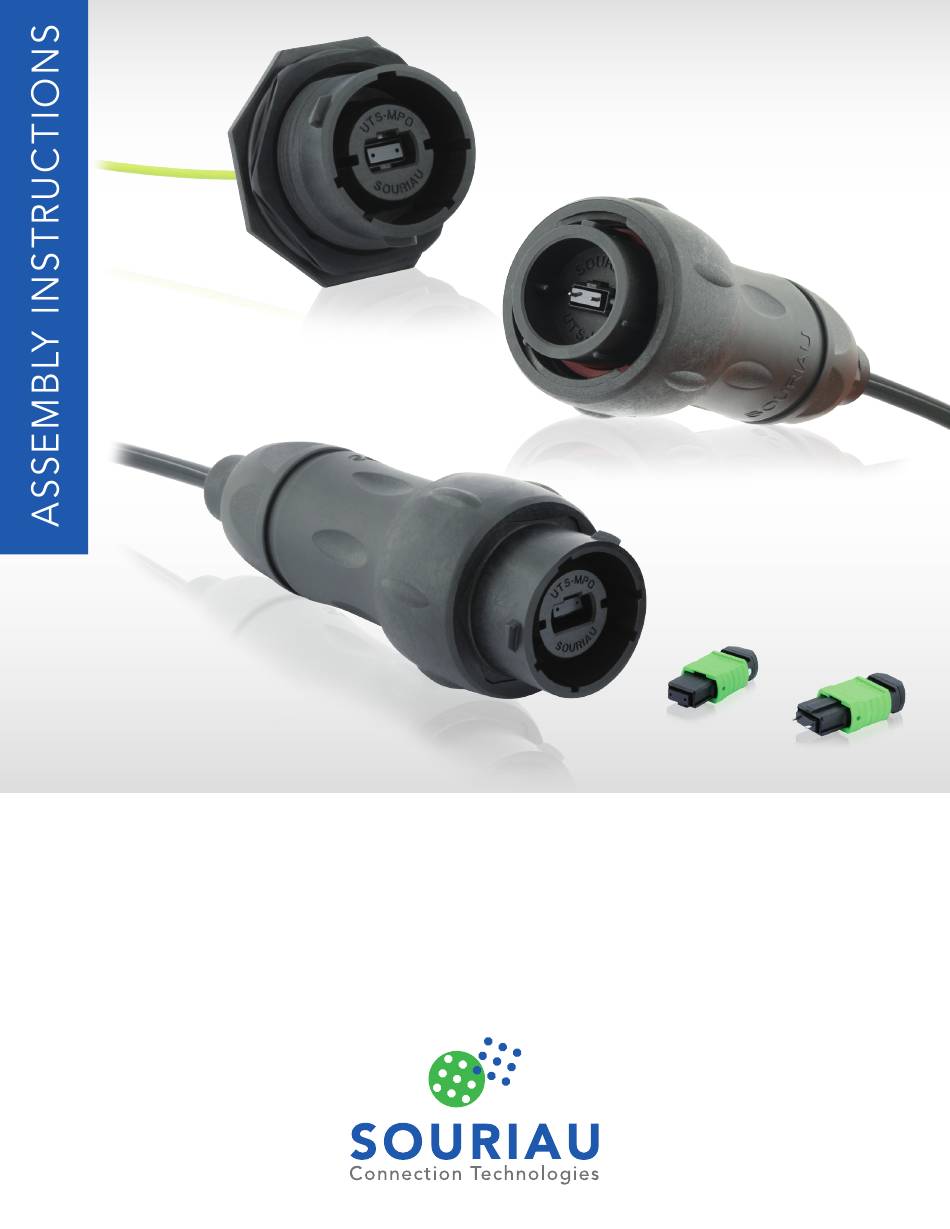

- Page 1 UTS MPO Series BT 319...
-
Page 3: Table Of Contents
UTS MPO Serie BT319 Contents Tool & Material ............ A - Cable preparation ........UTS MPO component details ......B - Backshell screwing for UTS1JC18MPN ..UTS MPO dimensions ......... C - Backshell screwing for UTS6JC18MPN ..10 Assembly instructions for Assembly instructions for UTS718MPN .... -
Page 4: Tool & Material
UTS MPO Serie BT319 Tool & Material The following tools and materials are necessary for preparation, assembly, inspection, and maintenance of the connector and cable assembly. Follow the tool instruction for operation and safety guidelines. Tools Material Assembly instructions • Cable jacket strip tool •... -
Page 5: Uts Mpo Component Details
UTS MPO Serie BT319 Dimensions Free hanging receptacle - UTS1JC18MPN 122 max Plug - UTS6JC18MPN 112 max Jam nut receptacle - UTS718MPN Sealing cap 17.5 max 18.5 max UTS618DCG2 UTS18DCG2 for UTS6JC18MPN for UTS1JC18MPN & UTS718MPN 34 max 24 max 5 max UTS1JC18MPN, UTS6JC18MPN, UTS718MPN overview Plug... -
Page 6: Assembly Instructions For Uts1Jc18Mpn & Uts6Jc18Mpn
UTS MPO Serie BT319 Assembly instructions UTS1JC18MPN & UTS6JC18MPN Cable preparation 1. Slide the backshell onto the cable allowing 50 cm at the end of the cable for stripping the cable. Make sure to orient each component as shown in the UTS MPO Component details section. 2. - Page 7 UTS MPO Serie BT319 UTS1JC18MPN & UTS6JC18MPN (Continued) 6. Separate the kevlar strength members in two groups. Use an adhesive tape to fix the kevlar strength members on the jacket. 7. Apply the instant adhesive on the fiber and cover the crimp support. (e.g. Loctite 480 PRISM). 8.
- Page 8 UTS MPO Serie BT319 Assembly instructions (Continued) UTS1JC18MPN & UTS6JC18MPN (Continued) 11. Terminate the MPO contact on the fiber according to your supplier instruction for gluing, cliving and polishing. Free hanging receptacle UTS1JC18MPN Free hanging receptacle UTS1JC18MPN: 94±1 mm Plug UTS6JC18MPN Plug UTS6JC18MPN: 85±1 mm 12.
-
Page 9: B - Backshell Screwing For Uts1Jc18Mpn
UTS MPO Serie BT319 UTS1JC18MPN & UTS6JC18MPN (Continued) 13. Plug the MPO in the cavity. You need to hear a “click”. Backshell screwing for UTS1JC18MPN 1. Slide the blackshell and screw it using a 28 mm U-wrench. Tightened the backshell with a 4 Nm torque. 2. -
Page 10: C - Backshell Screwing For Uts6Jc18Mpn
UTS MPO Serie BT319 Assembly instructions (Continued) Backshell screwing for UTS6JC18MPN 1. You need a receptacle counter-part. Orient the polarization keys before you start mating the connectors. 2. Coupling plug with receptacle 3. Slide the blackshell and screw it using a 28 mm U-wrench. Tightened the backshell with a 4 Nm torque. 4. - Page 11 UTS MPO Serie BT319 Backshell screwing for UTS6JC18MPN (Continued) 5. Screw the head nut using a 15 mm U-wrench. Tightened the head nut with a 2 Nm torque. Recommendation Use the caps, UTS618DCG2 for plug or UTS18DCG2 for receptacle to protect the MPO contacts from surrouding contamination. ...
-
Page 12: Assembly Instructions For Uts718Mpn
UTS MPO Serie BT319 Assembly instructions (Continued) Assembly instructions for UTS718MPN 2. Terminate the MPO contact on the fiber according to your supplier instruction for gluing, cliving and polishing. 3. Plug the MPO in the receptacle. You need to hear a “click”. 4. - Page 13 UTS MPO Serie BT319 Assembly instructions for UTS718MPN (Continued) 5. Tightened the jam nut with a torque of 5 Nm, using a 36.5 mm U- wrench. 6. Coupling.
