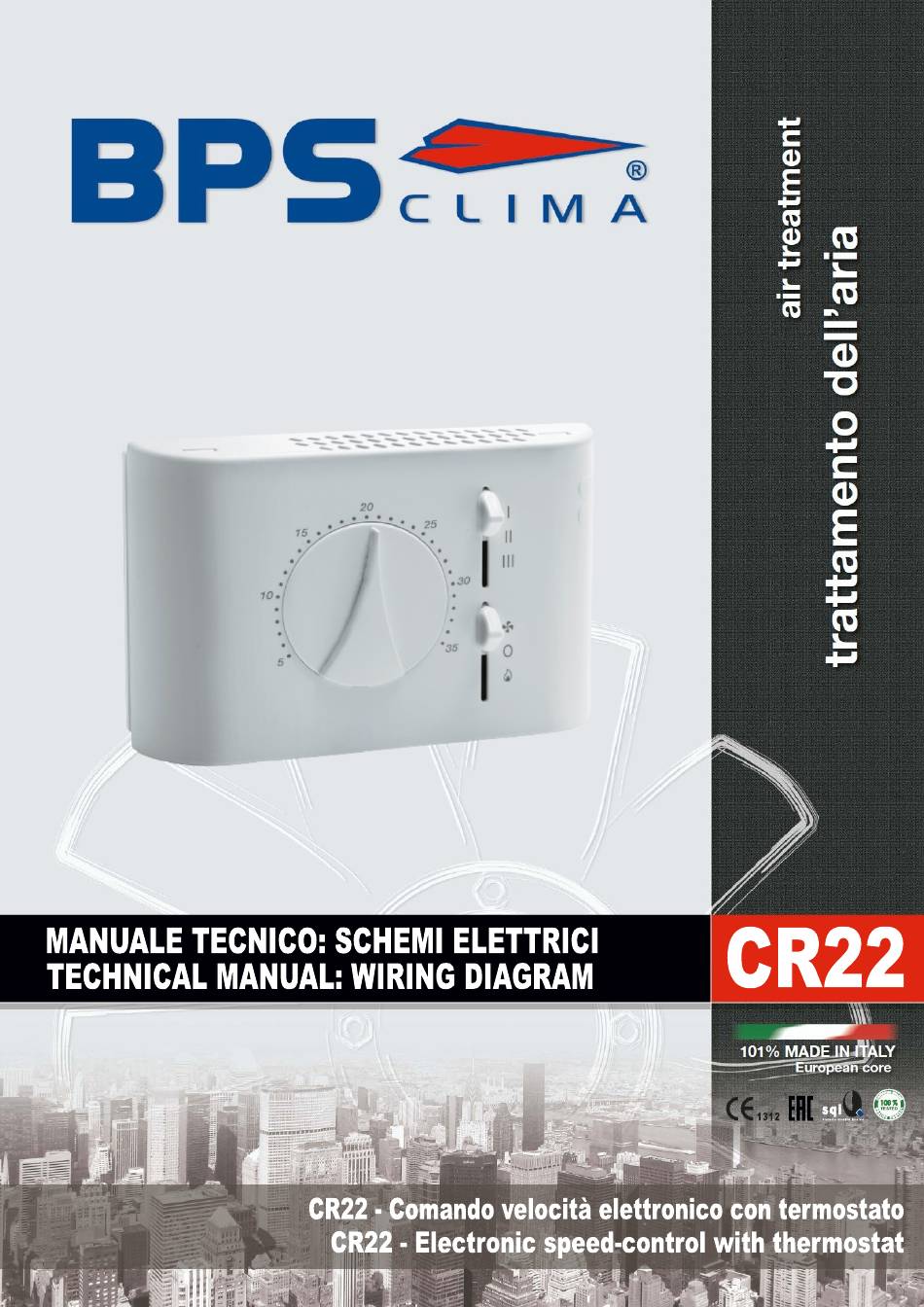

BPS CLIMA CR22 Technical Manual

Electronic speed-control with thermostat
Hide thumbs

Advertisement

Quick Links

Download this manual
MT-SE_CR22-22026071-R00

Advertisement

loading
Need help?

Need help?

Do you have a question about the CR22 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for BPS CLIMA CR22

  • Page 1 MT-SE_CR22-22026071-R00...
  • Page 2 Schema elettrico Regolatore/Unità – Controller/Unit wiring diagram Info: \ Code: CR22-001-61022110-R00 CR22-001 Fan-coils, Slim terminal units, Medium terminal units, Aerotherms, Air barriers, etc. CR22  TM + YV1-230V + YV2-230V + SND-A STD.: REF.: N°1 MOTORE AC (ASINCRONO) 230Vac~ 3-Velocità NO.1 AC MOTOR (ASYNCRONOUS) 230Vac~ 3-Speed ...
  • Page 3 Schema elettrico Regolatore/Unità – Controller/Unit wiring diagram Info: \ Code: CR22-002-61022110-R00 CR22-002 Fan-coils, Slim terminal units, Medium terminal units, Aerotherms, Air barriers, etc. CR22  YV1-230V + YV2-230V + SND-A STD.: REF.: N°1 MOTORE AC (ASINCRONO) 230Vac~ 3-Velocità NO.1 AC MOTOR (ASYNCRONOUS) 230Vac~ 3-Speed ...
  • Page 4 Schema elettrico Regolatore/Unità – Controller/Unit wiring diagram Info: \ Code: CR22-003-61022110-R00 CR22-003 Fan-coils, Slim terminal units, Medium terminal units, Aerotherms, Air barriers, etc. CR22  TM + YV1-230V + SND-A STD.: REF.: N°1 MOTORE AC (ASINCRONO) 230Vac~ 3-Velocità NO.1 AC MOTOR (ASYNCRONOUS) 230Vac~ 3-Speed ...
  • Page 5 Schema elettrico Regolatore/Unità – Controller/Unit wiring diagram Info: \ Code: CR22-004-61022110-R00 CR22-004 Fan-coils, Slim terminal units, Medium terminal units, Aerotherms, Air barriers, etc. CR22  YV1-230V + SND-A STD.: REF.: N°1 MOTORE AC (ASINCRONO) 230Vac~ 3-Velocità NO.1 AC MOTOR (ASYNCRONOUS) 230Vac~ 3-Speed ...
  • Page 6 Schema elettrico Regolatore/Unità – Controller/Unit wiring diagram Info: \ Code: CR22-005-61022110-R00 CR22-005 Fan-coils, Slim terminal units, Medium terminal units, Aerotherms, Air barriers, etc. CR22  TM + YV1-230V + SND-A STD.: REF.: N°1 MOTORE AC (ASINCRONO) 230Vac~ 3-Velocità NO.1 AC MOTOR (ASYNCRONOUS) 230Vac~ 3-Speed ...
  • Page 7 Schema elettrico Regolatore/Unità – Controller/Unit wiring diagram Info: \ Code: CR22-006-61022110-R00 CR22-006 Fan-coils, Slim terminal units, Medium terminal units, Aerotherms, Air barriers, etc. CR22  YV1-230V + SND-A STD.: REF.: N°1 MOTORE AC (ASINCRONO) 230Vac~ 3-Velocità NO.1 AC MOTOR (ASYNCRONOUS) 230Vac~ 3-Speed ...
  • Page 8 Schema elettrico Regolatore/Unità – Controller/Unit wiring diagram Info: \ Code: CR22-007-61022110-R00 CR22-007 Fan-coils, Slim terminal units, Medium terminal units, Aerotherms, Air barriers, etc. CR22  TM + SND-A STD.: REF.: N°1 MOTORE AC (ASINCRONO) 230Vac~ 3-Velocità NO.1 AC MOTOR (ASYNCRONOUS) 230Vac~ 3-Speed ...
  • Page 9 Schema elettrico Regolatore/Unità – Controller/Unit wiring diagram Info: \ Code: CR22-008-61022110-R00 CR22-008 Fan-coils, Slim terminal units, Medium terminal units, Aerotherms, Air barriers, etc. CR22  SND-A STD.: REF.: N°1 MOTORE AC (ASINCRONO) 230Vac~ 3-Velocità NO.1 AC MOTOR (ASYNCRONOUS) 230Vac~ 3-Speed ...
  • Page 10 Code: CR22-009-61022110-R00 CR22-009 Fan-coils, Slim terminal units, Medium terminal units, Aerotherms, Air barriers, etc. CR22  TM + YV1-230V + YV2-230V + MS1-2+3P230 + TB.A1 + TB.W1 + ION + PUMP + SND-A SPE.: REF.: N°1 MOTORE AC (ASINCRONO) 230Vac~ 3-Velocità...
  • Page 11 Info: \ Code: CR22-010-61022110-R00 CR22-010 Fan-coils, Slim terminal units, Medium terminal units, Aerotherms, Air barriers, etc. CR22  YV1-230V + YV2-230V + MS1-2+3P230 + TB.A1 + TB.W1 + ION + PUMP + SND-A SPE.: REF.: N°1 MOTORE AC (ASINCRONO) 230Vac~ 3-Velocità...
  • Page 12 Info: \ Code: CR22-011-61022110-R00 CR22-011 Fan-coils, Slim terminal units, Medium terminal units, Aerotherms, Air barriers, etc. CR22  TM + YV1-230V + MS1-2+3P230 + TB.A1 + TB.W1 + ION + PUMP + SND-A SPE.: REF.: N°1 MOTORE AC (ASINCRONO) 230Vac~ 3-Velocità...
  • Page 13 Info: \ Code: CR22-012-61022110-R00 CR22-012 Fan-coils, Slim terminal units, Medium terminal units, Aerotherms, Air barriers, etc. CR22  YV1-230V + MS1-2+3P230 + TB.A1 + TB.W1 + ION + PUMP + SND-A SPE.: REF.: N°1 MOTORE AC (ASINCRONO) 230Vac~ 3-Velocità NO.1 AC MOTOR (ASYNCRONOUS) 230Vac~ 3-Speed ...
  • Page 14 Info: \ Code: CR22-013-61022110-R00 CR22-013 Fan-coils, Slim terminal units, Medium terminal units, Aerotherms, Air barriers, etc. CR22  TM + YV1-230V + MS1-2+3P230 + TB.A1 + TB.W1 + ION + PUMP + SND-A SPE.: REF.: N°1 MOTORE AC (ASINCRONO) 230Vac~ 3-Velocità...
  • Page 15 Info: \ Code: CR22-014-61022110-R00 CR22-014 Fan-coils, Slim terminal units, Medium terminal units, Aerotherms, Air barriers, etc. CR22  YV1-230V + MS1-2+3P230 + TB.A1 + TB.W1 + ION + PUMP + SND-A SPE.: REF.: N°1 MOTORE AC (ASINCRONO) 230Vac~ 3-Velocità NO.1 AC MOTOR (ASYNCRONOUS) 230Vac~ 3-Speed ...
  • Page 16 Info: \ Code: CR22-015-61022110-R00 CR22-015 Fan-coils, Slim terminal units, Medium terminal units, Aerotherms, Air barriers, etc. CR22  TM + MS1-2+3P230 + TB.A1 + TB.W1 + ION + PUMP + SND-A SPE.: REF.: N°1 MOTORE AC (ASINCRONO) 230Vac~ 3-Velocità NO.1 AC MOTOR (ASYNCRONOUS) 230Vac~ 3-Speed ...
  • Page 17 Info: \ Code: CR22-016-61022110-R00 CR22-016 Fan-coils, Slim terminal units, Medium terminal units, Aerotherms, Air barriers, etc. CR22  MS1-2+3P230 + TB.A1 + TB.W1 + ION + PUMP + SND-A SPE.: REF.: N°1 MOTORE AC (ASINCRONO) 230Vac~ 3-Velocità NO.1 AC MOTOR (ASYNCRONOUS) 230Vac~ 3-Speed ...
