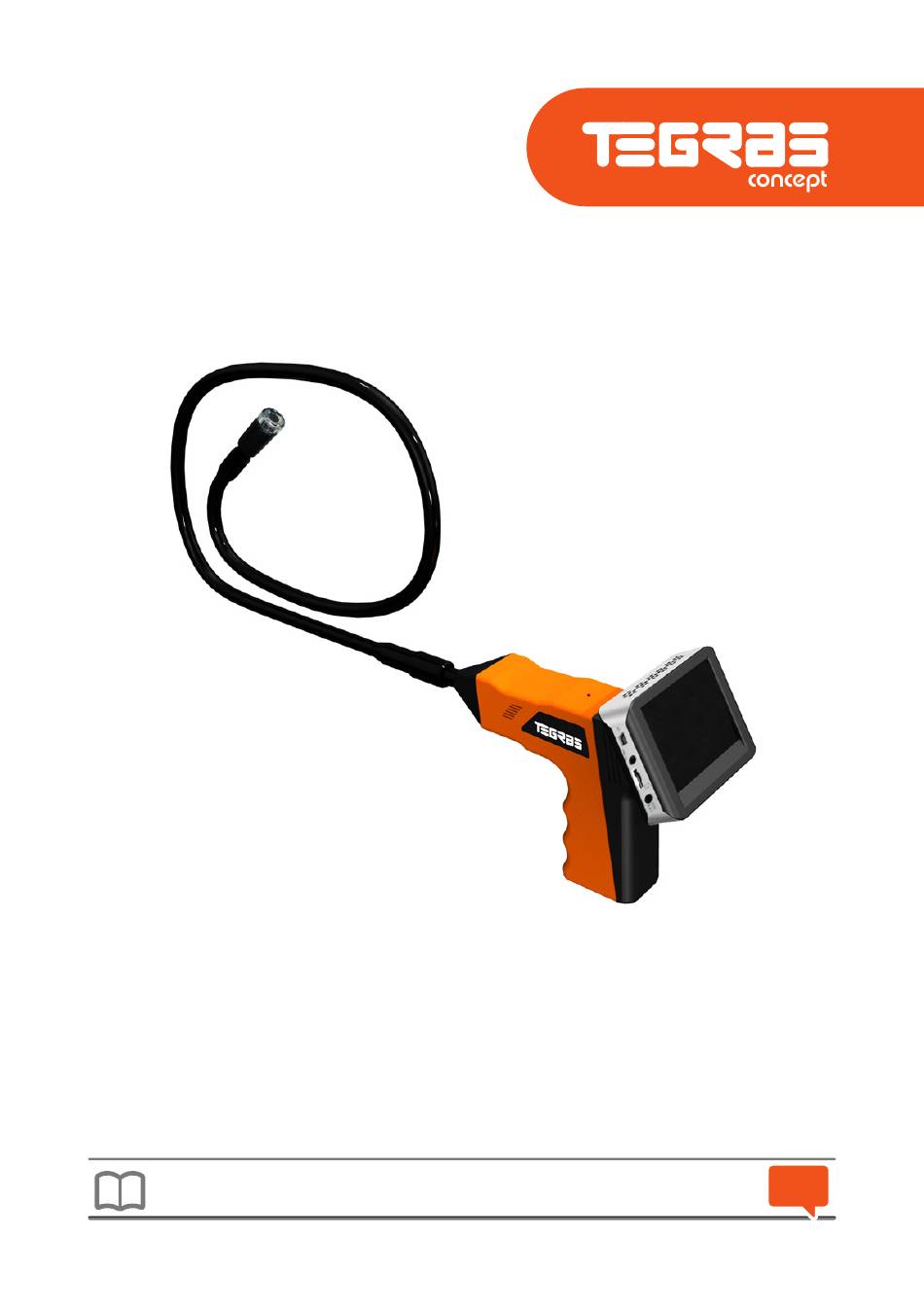

- Page 1 Duct inspection system user manual Duct inspection system...
-
Page 2: Technical Service
We have all kinds of spare parts for your equipment, as well as related accessories. This instruction manual is protected by copyright. We reserve all rights, especially the rights to produce, translate and prepare it using electronic systems. visionano page 2 Duct inspection system... - Page 3 4-21 safety warnings 5-21 know your equipment 6-21 operating instructions 8-21 maintenance and care 18-21 technical specifications 19-21 guarantee conditions 20-21 declaration of conformity 21-21 visionano page 3 Duct inspection system...
-
Page 4: Symbols Used
This symbol warns you of a situation that may cause damage to property, without causing injury, if the instructions given are not followed properly. IMPORTANT! This symbol alerts you to information about the best way to use the equipment avoiding any possible improper operation. visionano page 4 Duct inspection system... -
Page 5: Safety Warnings
The VISIONANO equipment should NOT be used for anything other than the uses covered in this instruction manual. Make sure all the electrical connections are correct before starting the equipment. Everybody who uses the VISIOMAX equipment must be properly trained. -
Page 6: Know Your Equipment
1. Body of the machine. 2. LCD monitor with 3,5’’ screen. 3. Adapted for monitor. 4. Adaptor cable. 5. Magnetic accessory / hook / mirror. 6. Cable and flexible camera. 7. 4 AA batteries. visionano page 6 Duct inspection system... - Page 7 7. Up arrow. 8. Menu. 9. Down arrow. 10. On and off. 11. Power indicator. 12. USB plug. 13. Video output. 14. Slot for SD card. 15. Power supply socket. 16. Reset. 17. Input signal. visionano page 7 Duct inspection system...
-
Page 8: Installation
First insert the batteries and attach the flexible shaft, then insert the SD micro card and, if necessary, select the ideal accessory for the application to be undertaken. These steps are detailed in the following sections. Insertion of batteries: visionano page 8 Duct inspection system... - Page 9 Connect the camera with the flexible shaft Connect the camera’s flexible shaft to the main body of the equipment; make sure the notches on either end are properly aligned. Once aligned, press the knurled knob to fix the connection. visionano page 9 Duct inspection system...
-
Page 10: Installation Of Accessories
To remove the card, gently press the card and then release to remove it from the slot. Installation of accessories The accessories included (mirror, hook and magnet) all attach to the camera in the same manner. Consult the following diagrams: visionano page 10 Duct inspection system... - Page 11 Installation of the monitor for use with cable Display 1. Charge level. 2. Mode. 3. Recording (REC). 4. Channel. 5. Date. 6. Time. 7. Remaining recording time. 8. SD card. visionano page 11 Duct inspection system...
- Page 12 In photo mode, press OK to take a photo. The photo will be automatically saved on the SD card. Video recording: In video mode press OK to begin recording; consult the meaning of the icons on the screen in section 3.a “Display”. visionano page 12 Duct inspection system...
- Page 13 6. Press the Menu button to return to the menu. 7. Press Menu again to exit. Note: The video will automatically save every 30 minutes. When the SD card is full the SD card’s capacity icon will change to ‘F’. visionano page 13 Duct inspection system...
-
Page 14: Delete Photo Or Video
If the folder is not empty it cannot be deleted. Delete all the videos in the folder prior to deleting the folder. If the user tries to delete a folder that is not empty, the following message will appear: ‘FOLDER NOT EMPTY’ visionano page 14... -
Page 15: Language Configuration
3. Use the arrows to highlight the video system icon (yellow). 4. Press OK and to see video format options (NTSC, PAL). 5. Use the arrows to highlight the desired format. 6. Press OK to select format and exit. visionano page 15 Duct inspection system... - Page 16 1. In configuration mode, use the arrows to select System Setting (green icon). 2. Press OK to open the list of SYSTEM icons. 3. Use the arrows to highlight the VERSION icon (green). 4. Press OK to see the version. 5. Press OK again to exit. visionano page 16 Duct inspection system...
-
Page 17: Date/Time Setting
2. Press OK to open the date and time screen. 3. Use OK to alternate between fields. 4. Use the arrows to change the value of the field. 5. Press the Menu button to exit. visionano page 17 Duct inspection system... -
Page 18: Maintenance And Care
Old equipment contains valuable materials for recycling and later re-use. Do not throw the packaging out in the household waste, take it to official recycling collection points. visionano page 18 Duct inspection system... -
Page 19: Technical Specifications
VISIONANO Specifications Camera resolution 704 x 576 (PAL) Screen resolution 640 x 480 Power source 4 AA batteries Water-resistant (camera only) IP-67 LCD screen 3,5’’ TFT-LCD External power source Charging time 3 hours Duration of battery 2 hours... -
Page 20: Guarantee Conditions
1). TECAI INNOVA S.L. C/ Las Balsas 16-B, Pol. Ind. Cantabria. 26006 LOGROÑO (La Rioja), España. TEINNOVA reserves the right to make changes to the equipment without prior notice. visionano page 20 Duct inspection system... -
Page 21: Declaration Of Conformity
EN ISO 12100:2010; EN ISO 13850:2008; EN 60204-1:2006; EN 614-1:2006+A1:2009 Additional information: The product meets the requirements for CE marking TECAI INNOVA, S.L. Pol. Ind. Cantabria, C/Las Balsas 16 26006 LOGROÑO (La Rioja) SIGNATURE: Armando Sáenz Angulo / Technical Director visionano page 21 Duct inspection system...
