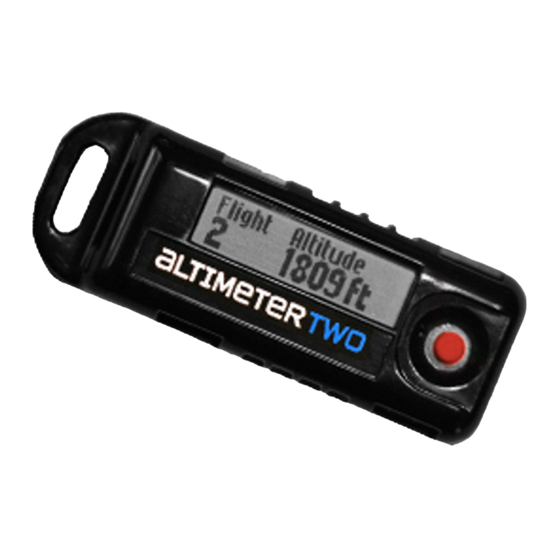

- Page 1 ALTIMETERTWO Complete flight analysis for model rockets EDITION...
-
Page 2: Quick Start
This guide was designed to get you started. More complete information is available online at www.jollylogic.com. You can also shop for accessories and read stories about how others are using AltimeterTwo on our News page. We’d love to hear from you, as well. - Page 3 Œ A quick button click turns it on and off Hold the button to open the menu ...and let go to choose an item Ž Select Launch before each flight When you see Ready it’s ready to fly! jolly logic...
-
Page 4: Visual Tour
Switch between displaying feet or meters Show last 500 flights, most recent first Enter special temporary “Current Altitude Mode” Switch between feet and meters Reboot and reset Erase all flights from memory Leave menu, do nothing jolly logic jolly logic... - Page 5 “Ready” before each flight. Recharging Connector Recharging Connector Plugs into standard USB ports to recharge. This is a USB Micro-B port. Plug the included cable into standard USB ports to recharge. See the Recharging section for more info. jolly logic jolly logic...
-
Page 6: Flight Data
Flight Data Ejection Altitude Apogee (Max Altitude) Apogee to Ejection Time Top Speed Coast to Apogee Time Boost-Stage Peak Acceleration Thrust Time Average Acceleration jolly logic... - Page 7 If ejection occurs BEFORE the apogee (max altitude), Apogee- Ejection time will be negative. • If ejection is very gentle, AltimeterTwo may not detect it. In that case, ejection is assumed to take place at max altitude. • AltimeterTwo is capable of measuring maximum accelerations of up to 64 Gs.
-
Page 8: Mounting Tips
Check the Jolly Logic website for mounting accessories such as the Snap Mount. The Snap Mount can be taped, screwed, or attached with Velcro to hold it in place. AltimeterTwo can then be quickly snapped in place. If you mount your AltimeterTwo with your parachute, try to ensure that the altimeter is protected from direct contact with ejection gases. - Page 9 • AltimeterTwo will automatically turn off after 2 hours from the time that the button was last pressed, or from launch. • If you have a flight where Coast-Apogee and Apogee-Eject times are roughly the negative of each other, this is because AltimeterTwo mistook a rapid deceleration after burnout as ejection.
- Page 10 Recharging Plug AltimeterTwo into any USB port to recharge. If you don’t see a light when you plug it in, the USB port must not have power. Try another one. Red Light Your altimeter is charging correctly. Recharging should be complete in less than 2 hours.
- Page 11 Well, yes, all batteries wear out. If your battery life drops below 4 hours, you should consider replacing it. This is a unique battery; Jolly Logic is the only place you can get a replacement. See our website for instructions.
- Page 12 3 years. ADVERTENCIA! Peligro de asfixia! Contiene partes pequeñas. Inadecuado para niños menores de 3 años. A PARTIRE DAI 14 ANNI 14 ANS ET PLUS Jolly Logic, LLC AB 14 JAHREN info@jollylogic.com FOR AGES 14 UP A PARTIR DE 14 AÑOS...
