Check hardware pack for the following items:
1. 2 qty U-bolts
2. 4 qty 5/8" flat washers
3. 4 qty 1/4" flat washers
4. 4 qty 1/4" lock nuts
5. 3 qty detent pins
6. 2 qty circle cotter rings
7. 3 qty nylon lanyards

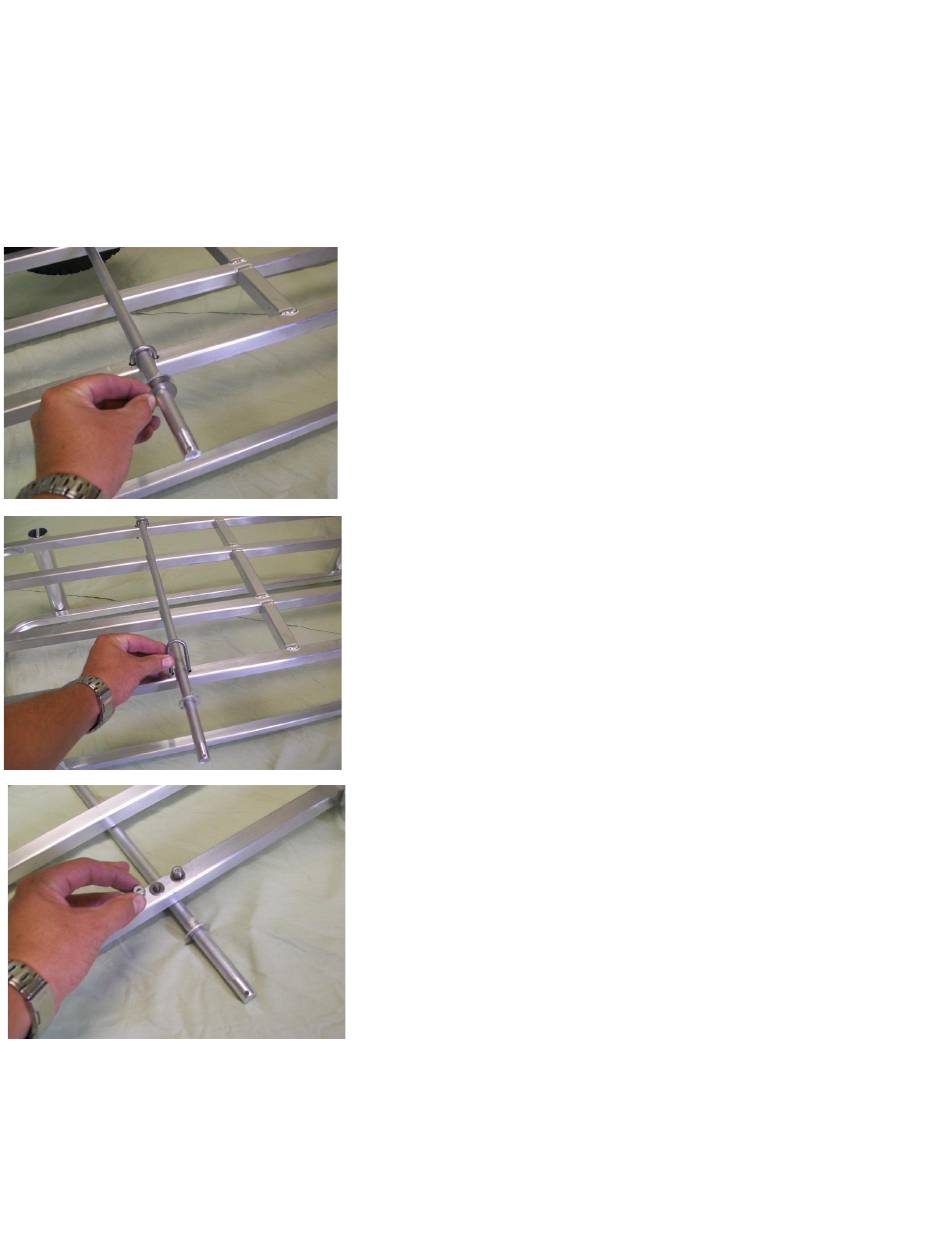

Turn Cart frame over, line up axle between holes, take
2 u-bolts and line up over the axle, and through the
holes
Turn cart over so that it is sitting on the axle, and the
u-bolt threads are showing;
put 1 - 1/4" flat washer and 1 - 1/4" lock nut on each
u-bolt thread.
Advertisement
Table of Contents
Related Manuals for MistCooling MST-MC32120
Summary of Contents for MistCooling MST-MC32120
- Page 1 Check hardware pack for the following items: 1. 2 qty U-bolts 2. 4 qty 5/8" flat washers 3. 4 qty 1/4" flat washers 4. 4 qty 1/4" lock nuts 5. 3 qty detent pins 6. 2 qty circle cotter rings 7.
- Page 2 Tighten nuts with 1/4" open wrench or socket (not provided) Turn the cart over so the axle is facing up. Take 2 of the 5/8" flat washers and put them on each end of the axle. Slide a tire on each end of the axle. Get 2 of the 5/8"...
- Page 3 Properly inserted cotter ring. Take one lanyard from the hardware pack and loop it around the front square tube, putting one loop through the other. Get 1 detent pin from the hardware kit, and feed the ring through the end of the lanyard. Insert the "T"...
- Page 4 Insert the handle into the top of the tube on the front of your cart, loop a lanyard around the frame of the cart, and feed a detent pin through the lanyard. Insert the detent pin through the holes of the handle and the front tube of your cart.
- Page 5 Assemble the fan per diagram here. Insert the fan pole bracket in to the slot on the cart. For better stability, use slots next the wheels of the cart. -Connect the pump's 3/8'' inlet line to the water tank. Connect the pump's 1/4''outlet line to the Mist ring on the fan.
