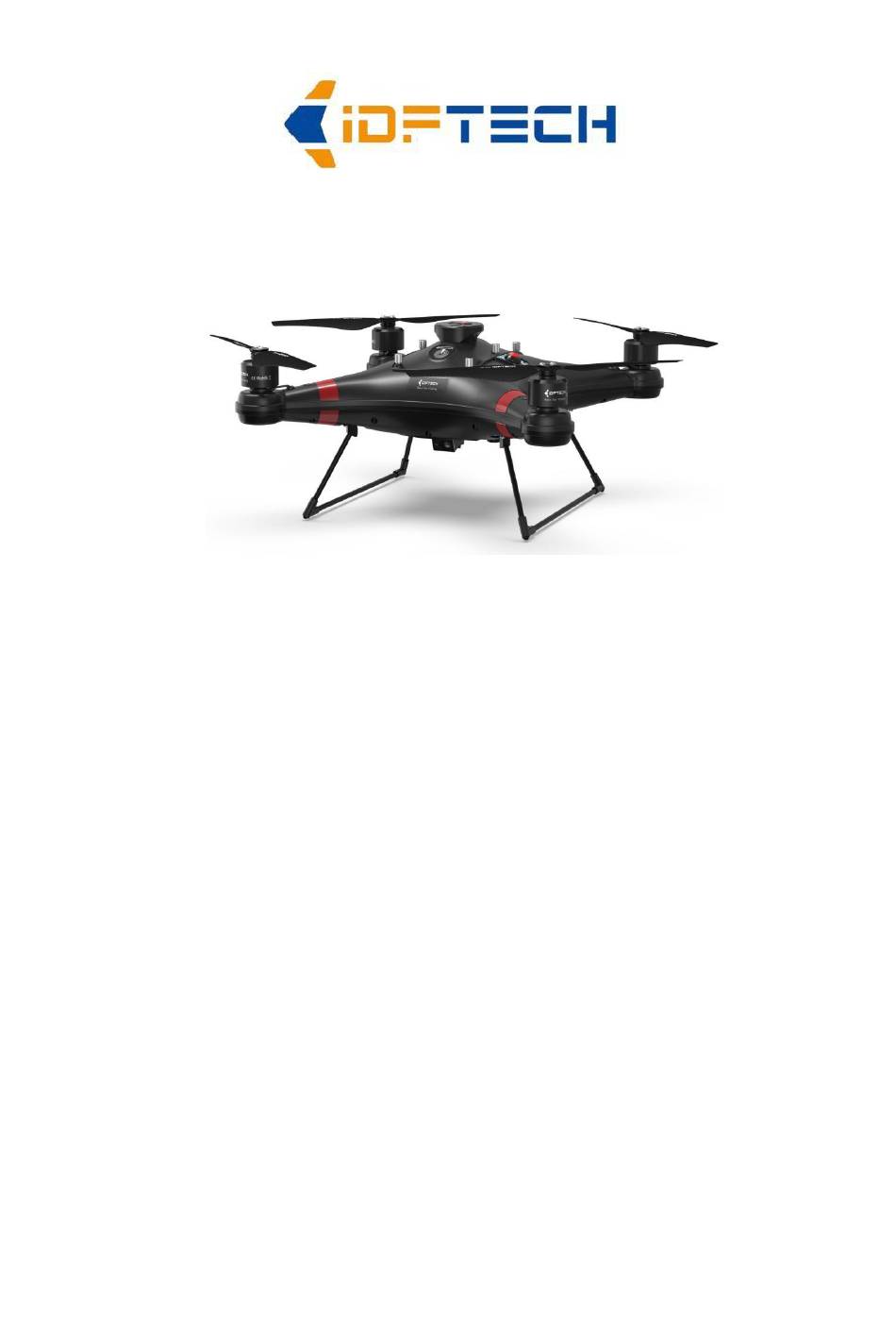

- Page 1 Poseidon Pro II Black User Manual...
- Page 2 Once you use this drone, you will be deemed to have read & accepted the contents of this manual. Please strictly follow the user manual to install and use the product. In the event of improper installation and use, IDFTECH will not be liable for damages and compensation. Disclaimer...
- Page 3 Propeller safety: The Poseidon pro II Black's propeller is very strong and very sharp & is made from carbon fiber. This material gives the propeller high strength and improves the flight of the quadcopter.
- Page 4 Items in box Included in your box:...
- Page 5 1355 propeller X 2 pairs 6S 8000 mAh high voltage battery X 1 Digital battery capacity checker X 1 USB flash drive X 1 Carry case X 1 Note: The USB flash drive contains the Poseidon pro II Black drone training videos.
- Page 6 Items in box The remote control has been coded/paired with the receiver of the aircraft at the factory. It is not necessary to modify the settings of the remote control. Do not touch the fine-tuning buttons of each channel of the remote controller. Otherwise, the aircraft/remote controller will not work.
- Page 7 This chapter will guide you to familiarize and assemble the Poseidon pro II Black and to learn more about the flight characteristics of the Poseidon pro II Black . It is recommended that you read this chapter carefully and follow the steps in this section to prepare for the Poseidon pro II Black before flight.
- Page 8 Initial Setup 1. Be sure to calibrate the compass when you are flying for the first time or changing to a new flight area ; 2. When calibrating, please make sure that the surrounding area is relatively empty, away from strong magnetic environments, such as magnetic fields, high-voltage lines, parking lots, building areas with steel bar strengthening, cars etc.
- Page 9 LED Indicators After following the above, the drone lights will then flash as in the below diagram. These lights are the ones located on the UNDERSIDE of the Drone. NOTE: It is recommended to check the drone telemetry (on your phone & APP Screen) including calibration status when you encounter an error When the drone voltage is too low, (red LED flashing) “Armed”...
- Page 10 Compass calibration After confirming that the initialization of the drone is completed and the signal light is 1） flashing normally (slow flashing BLUE Lights), perform the magnetic compass calibration Open the main interface of the mobile APP and click the “Setting” icon, as shown by the 2）...
- Page 11 Compass calibration The drone needs to be calibrated on six sides, by spinning the drone in a Clockwise 3） Direction as shown below: （A ） （B ） （D ） （C ） （ F ） （E ） After the Drone compass calibration is completed please switch off the IMPORTANT: 4）...
- Page 12 Compass calibration Installing the Propellers: The second figure below shows the spin of the propellers while in 5） flight. To attach the propellers you need to reverse the Spin of the Propeller (shown in the image below) to screw it on correctly. Propellers need to only be hand tightened as they will self tighten while in flight.
- Page 13 Starting and Stopping the Motors 1. Starting/ARMING the Motors. First keep the drone horizontally and still (15 seconds). Push the LEFT & RIGHT JOYSTICKS DOWN & IN to start the motors & the motors will go into idle (as shown in the diagram): Note: In GPS mode, after starting/arming the drone, if the throttle is not pushed above 10%, the drone will automatically enter the disarm mode, and the propeller will automatically stop after about 5 seconds。...
- Page 14 Flight Modes The Flight Mode Switch on the Remote Control is very important to ensure safe flight at all times. Listed below are the THREE Flight Modes available on your new Poseidon. It is recommended that you familiarize yourself with all of them. Flight Mode Switch GPS HOVER.
- Page 15 Drone Operation Controls 3. Main Operation using Joysticks (Mode 2/Factory Setting) Remote control Joystick position Drone THROTTLE: Takeoff-Lift / Descend PITCH: Forward / Backward ROLL: Fly left / Fly right YAW: Rotate Left Ａｎｄ Rotate Right...
- Page 16 Then the Password to connect the Remote Controller to the Phone is “0123456789”. ONCE you have paired the Rwmote control with the Phone’s WIFI – THEN the IDFTECH GO APP can be started. NOTE: ONLY connect the phone (and APP) to the remote control AFTER you have first paired the drone...
- Page 17 APP Setup and Use KEY for each of the APP Onscreen ICONS (Both Android and Apple Phone) It is possible to either use the controls on the APP OR the controls on the Remote Control. IMPORTANT: Please pay close attention to the Important Telemetry Information displayed on the APP Screen as shown in the image above –...
- Page 18 Charging the battery Charging steps for both the drone battery & remote control battery: Connect the Battery Charger to a Wall Outlet. Connect the Battery to the charger as shown in the image below and Power On the Charger. Adjust the charger menu and set the correct parameters:...
- Page 19 Charging the battery The Correct Settings (as shown in the image) should be: Battery type => LiHV (Note: the battery is a high-voltage battery) Charging method => BAL-CHG (Balance Charge) Number of battery cells for this 22.8V Battery => Battery Capacity = 8000 mAh Battery Charging current =>...
- Page 20 Technical Parameter flight control IDF-9 Packing size( carton packaging) 56*46*18cm Image transmission distance 1000m Diagonal size (without propeller) 480mm Propeller blade size 1355 Motor mode 4218 ESC parameters Maximum rising speed 6m/s Maximum falling speed 4.5m/s Maximum horizontal flight speed 18m/s Maximum tilt angle 35°...
